Web: Example for Establishing an IPSec 4over6 Tunnel Based on Physical Interfaces Between Two Gateways

This section provides an example for establishing an IPSec 4over6 tunnel based on physical interfaces between two gateways with fixed IP addresses.

Networking Requirements

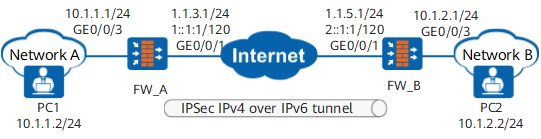

As shown in Figure 1, two IPv4 networks connect to an IPv6 public network respectively through FW_A and FW_B. Security protection is desired for mutual access traffic between the IPv4 networks. The IPv4 networks communicate with each other over the IPv6 public network. An IPSec 4over6 tunnel needs to be established between FW_A and FW_B so that users on the IPv4 networks can communicate with each other over the IPSec tunnel.

Figure 1 Networking for establishing an IPSec 4over6 tunnel based on physical interfaces between two gateways

Data Planning

Item

FW_A

FW_B

Interface configuration

Interface: GigabitEthernet 0/0/1

IPv4 address: 1.1.3.1/120

IPv6 address: 1::1:1/120

Security zone: Untrust

Interface: GigabitEthernet 0/0/1

IPv4 address: 1.1.5.1/120

IPv6 address: 2::1:1/120

Security zone: Untrust

Interface: GigabitEthernet 0/0/3

IP address: 10.1.1.1/24

Security zone: Trust

Interface: GigabitEthernet 0/0/3

IP address: 10.1.2.1/24

Security zone: Trust

IPSec configuration

Scenario: point-to-point

Peer IP address: 2::1:1

Authentication mode: pre-shared key

Local ID: IP address

Peer ID: IP address

Scenario: point-to-point

Peer IP address: 1::1:1

Authentication mode: pre-shared key

Local ID: IP address

Peer ID: IP address

Configuration Roadmap

  1. Enable the IPv6 function.
  2. Set IP addresses for interfaces and add the interfaces to security zones.
  3. Configure an IPSec policy.

    Including the basic IPSec policy information, data flow to be protected by IPSec, and proposal parameters for security association negotiation.

  4. Configure routes.

    Including the public network route between FW_A and FW_B and the private network route from FW_A or FW_B to its respective peer network.

  5. Configure security policies to permit IPSec negotiation packets and service packets.

The configuration roadmap is the same on FW_A and FW_B.

Procedure

  • Configure FW_A.
    1. Choose Dashboard > Device Information and click Configure of IPv6 to enable the IPv6 function.

    2. Set interface IP addresses and assign interfaces to security zones.

      1. Choose Network > Interface.

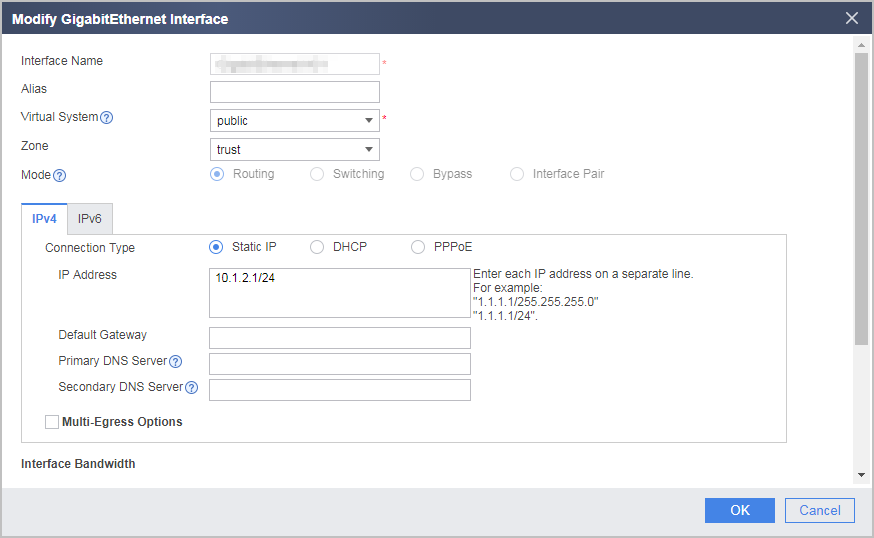

      2. Click of GE0/0/1 and set the parameters as follows:

        Set the IPv4 address to 1.1.3.1/24 and IPv6 address to 1::1:1/120.

      3. Click OK.

      4. Repeat the preceding steps to set the parameters for GE0/0/3.

    3. Configure the IPSec tunnel on FW_A.

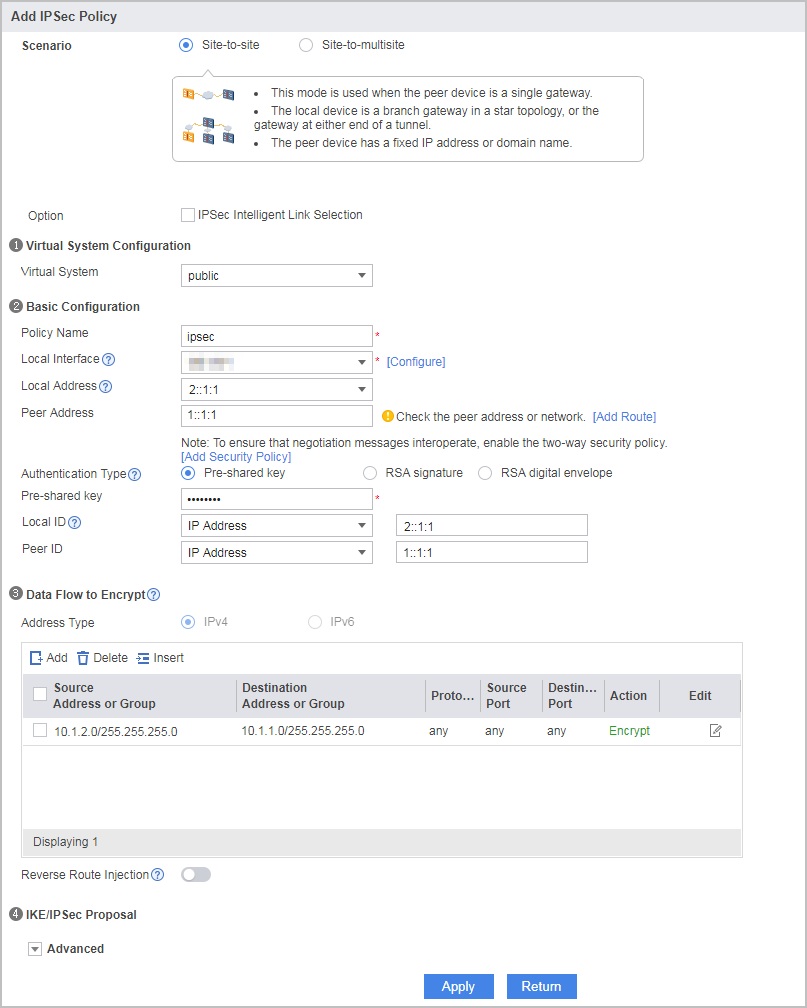

      1. Choose Network > IPSec > IPSec, click Add, and set the parameters shown in the following figure.

        In the example, the default parameter settings are recommended for the IPSec proposal. To change parameter values, expand the Advanced settings of IKE/IPSec Proposal. The security proposals used by the tunnel ends must be the same. The pre-shared key is Hello123.

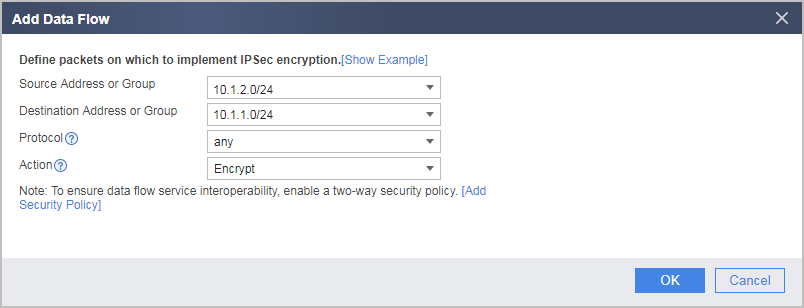

        Configure one data flow to be encrypted. The parameter settings are provided in the following figure.

        The local-untrust interzone policy controls whether IKE negotiation packets can pass through the FW. This policy can use the source and destination addresses, protocol, or port as the matching condition. In this example, the source and destination addresses are used as the matching condition. To use the protocol or port as the matching condition, you need to enable ESP and port 500 for UDP.

      2. Click Apply in the IPSec policy configuration to complete the configuration of FW_A.

    4. Configure a default route. In the example, the next-hop IP address to the Internet is 1::1:2.

      1. Choose Network > Route > Static Route.

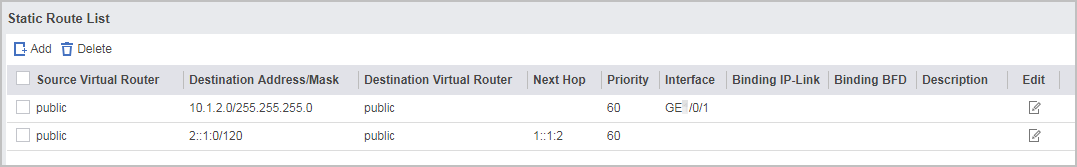

      2. Click Add, configure two routes as shown in the following figure, and click OK.

    5. Configure security policies to permit IPSec negotiation packets and service packets.

      1. Choose Policy > Security Policy > Security Policy.

      2. Click Add and set the following parameters for the Trust -> Untrust interzone policy.

        Name

        policy1

        Source Zone

        trust

        Destination Zone

        untrust

        Source Address/Region

        10.1.1.0/24

        Destination Address/Region

        10.1.2.0/24

        Action

        Permit
      3. Click OK.

      4. Repeat the preceding steps to configure Untrust -> Trust, Local -> Untrust, and Untrust -> Local interzone policies.

        The parameters of the Untrust -> Trust interzone policy are as follows.

        Name

        policy2

        Source Zone

        untrust

        Destination Zone

        trust

        Source Address/Region

        10.1.2.0/24

        Destination Address/Region

        10.1.1.0/24

        Action

        Permit

        The parameters of the Local -> Untrust interzone policy are as follows.

        Name

        policy3

        Source Zone

        local

        Destination Zone

        untrust

        Source Address/Region

        1::1:1/120, 1.1.3.1/24

        Destination Address/Region

        2::1:1/120, 1.1.5.1/24

        Action

        Permit

        The parameters of the Untrust -> Local interzone policy are as follows.

        Name

        policy4

        Source Zone

        untrust

        Destination Zone

        local

        Source Address/Region

        2::1:1/120, 1.1.5.1/24

        Destination Address/Region

        1::1:1/120, 1.1.3.1/24

        Action

        Permit

  • Configure FW_B.
    1. Choose Dashboard > Device Information and click Configure of IPv6 to enable the IPv6 function.

    2. Set interface IP addresses and assign interfaces to security zones.

      1. Choose Network > Interface.

      2. Click of GE0/0/1 and set the parameters as follows:

        Set the IPv4 address to 1.1.5.1/24 and IPv6 address to 2::1:1/120.

      3. Click OK.

      4. Repeat the preceding steps to set the parameters for GE0/0/3.

    3. Configure the IPSec tunnel on FW_B.

      1. Choose Network > IPSec > IPSec, click Add, and set the parameters shown in the following figure.

        In the example, the default parameter settings are recommended for the IPSec proposal. To change parameter values, expand the Advanced settings of IKE/IPSec Proposal. The security proposals used by the tunnel ends must be the same. The pre-shared key is Hello123.

        Configure one data flow to be encrypted. The parameter settings are provided in the following figure.

        The local-untrust interzone policy controls whether IKE negotiation packets can pass through the FW. This policy can use the source and destination addresses, protocol, or port as the matching condition. In this example, the source and destination addresses are used as the matching condition. To use the protocol or port as the matching condition, you need to enable ESP and port 500 for UDP.

      2. Click Apply in the IPSec policy configuration to complete the configuration of FW_B.

    4. Configure a default route. In the example, the next-hop IP address to the Internet is 2::1:2.

      1. Choose Network > Route > Static Route.

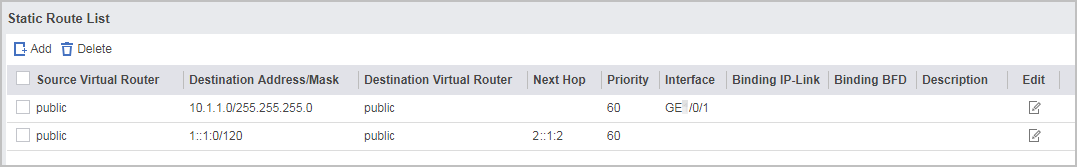

      2. Click Add and set parameters as follows.

    5. Configure security policies to permit IPSec negotiation packets and service packets.

      1. Choose Policy > Security Policy > Security Policy.

      2. Click Add and set the following parameters for the Trust -> Untrust interzone policy.

        Name

        policy1

        Source Zone

        trust

        Destination Zone

        untrust

        Source Address/Region

        10.1.2.0/24

        Destination Address/Region

        10.1.1.0/24

        Action

        Permit
      3. Click OK.

      4. Repeat the preceding steps to configure Untrust -> Trust, Local -> Untrust, and Untrust -> Local interzone policies.

        The parameters of the Untrust -> Trust interzone policy are as follows.

        Name

        policy2

        Source Zone

        untrust

        Destination Zone

        trust

        Source Address/Region

        10.1.1.0/24

        Destination Address/Region

        10.1.2.0/24

        Action

        Permit

        The parameters of the Local -> Untrust interzone policy are as follows.

        Name

        policy3

        Source Zone

        local

        Destination Zone

        untrust

        Source Address/Region

        2::1:1/120, 1.1.5.1/24

        Destination Address/Region

        1::1:1/120, 1.1.3.1/24

        Action

        Permit

        The parameters of the Untrust -> Local interzone policy are as follows.

        Name

        policy4

        Source Zone

        untrust

        Destination Zone

        local

        Source Address/Region

        1::1:1/120, 1.1.3.1/24

        Destination Address/Region

        2::1:1/120, 1.1.5.1/24

        Action

        Permit

Verification

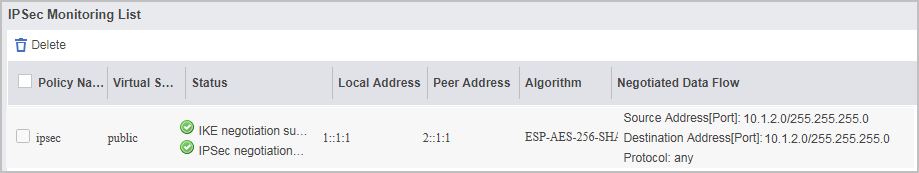

  1. For example, on FW_A, choose Network > IPSec > Monitor to display the established tunnels. The following tunnel information is displayed.

  2. Access a host on network B from a host on network A. The access succeeds.

Configuration Scripts

  • Configuration script of FW_A:

    #
 sysname FW_A
#
ipv6
#
acl ipv6 number 3000
 rule 5 permit ip source 10.1.1.0 0.0.0.255 destination 10.1.2.0 0.0.0.255
#
ipsec proposal prop28111627842
 encapsulation-mode auto
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-256
#
ike proposal 1
 encryption-algorithm aes-256
 dh group14
 authentication-algorithm sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
#
ike peer ike281116278421
 exchange-mode auto
 pre-shared-key %^%#ljD3B%+u|Ci%<,Tk7FE*xzPWG:Y`$O1(oZVea8/S%^%#
 ike-proposal 1
 remote-id-type ip
 remote-id 2::1:1
 local-id 1::1:1
 dpd type periodic
 remote-address 2::1:1
#
ipsec policy ipsec2811162787 1 isakmp
 security acl ipv6 3000
 ike-peer ike281116278421
 proposal prop28111627842
 tunnel local 1::1:1
 alias ipsec
 sa trigger-mode auto
 sa duration traffic-based 10485760
 sa duration time-based 3600
#
interface GigabitEthernet0/0/1
 undo shutdown
 ipv6 enable
 ip address 1.1.3.1 255.255.255.0
 ipv6 address 1::1:1/120
 ipsec policy ipsec2811162787
#
interface GigabitEthernet0/0/3
 undo shutdown
 ip address 10.1.1.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
ip route-static 10.1.2.0 255.255.255.0 GigabitEthernet0/0/1
#
ipv6 route-static 2::1:0 120 1::1:2
#
security-policy
 rule name policy1
  source-zone trust
  destination-zone untrust
  source-address 10.1.1.0 mask 255.255.255.0
  destination-address 10.1.2.0 mask 255.255.255.0
  action permit
 rule name policy2
  source-zone untrust
  destination-zone trust
  source-address 10.1.2.0 mask 255.255.255.0
  destination-address 10.1.1.0 mask 255.255.255.0
  action permit
 rule name policy3
  source-zone local
  destination-zone untrust
  source-address 1.1.3.0 mask 255.255.255.0
  source-address 1::1:1 120
  destination-address 1.1.5.1 mask 255.255.255.0
  destination-address 2::1:1 120
  action permit
 rule name policy4
  source-zone untrust
  destination-zone local
  source-address 2::1:1 120
  source-address 1.1.5.1 mask 255.255.255.0
  destination-address 1::1:1 120
  destination-address 1.1.3.0 mask 255.255.255.0
  action permit
#
return

  • Configuration script of FW_B:

    #
 sysname FW_B
#
ipv6
#
acl ipv6 number 3000
 rule 5 permit ip source 10.1.2.0 0.0.0.255 destination 10.1.1.0 0.0.0.255
#
ipsec proposal prop28111627844
 encapsulation-mode auto
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-256
#
ike proposal 1
 encryption-algorithm aes-256
 dh group14
 authentication-algorithm sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
#
ike peer ike281116278423
 exchange-mode auto
 pre-shared-key %^%#ljD3B%+u|Ci%<,Tk7FE*xzPWG:Y`$O1(oZVea8/S%^%#
 ike-proposal 1
 remote-id-type ip
 remote-id 1::1:1
 local-id 2::1:1
 dpd type periodic
 remote-address 1::1:1
#
ipsec policy ipsec2811162788 1 isakmp
 security acl ipv6 3000
 ike-peer ike281116278423
 proposal prop28111627844
 tunnel local 2::1:1
 alias ipsec
 sa trigger-mode auto
 sa duration traffic-based 10485760
 sa duration time-based 3600
#
interface GigabitEthernet0/0/1
 undo shutdown
 ipv6 enable
 ip address 1.1.5.1 255.255.255.0
 ipv6 address 2::1:1/120
 ipsec policy ipsec2811162788
#
interface GigabitEthernet0/0/3
 undo shutdown
 ip address 10.1.2.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
ip route-static 10.1.1.0 255.255.255.0 GigabitEthernet0/0/1
#
ipv6 route-static 1::1:0 120 2::1:2
#
security-policy
 rule name policy1
  source-zone trust
  destination-zone untrust
  source-address 10.1.2.0 mask 255.255.255.0
  destination-address 10.1.1.0 mask 255.255.255.0
  action permit
 rule name policy2
  source-zone untrust
  destination-zone trust
  source-address 10.1.1.0 mask 255.255.255.0
  destination-address 10.1.2.0 mask 255.255.255.0
  action permit
 rule name policy3
  source-zone local
  destination-zone untrust
  source-address 1.1.5.1 mask 255.255.255.0
  source-address 2::1:1 120
  destination-address 1.1.3.0 mask 255.255.255.0
  destination-address 1::1:1 120
  action permit
 rule name policy4
  source-zone untrust
  destination-zone local
  source-address 1.1.3.0 mask 255.255.255.0
  source-address 1::1:1 120
  destination-address 1.1.5.1 mask 255.255.255.0
  destination-address 2::1:1 120
  action permit
#
return
