CLI Example for Configuring OSPFv3 to Connect Network Devices
This section provides an example for configuring OSPFv3 to implement connectivity between IPv6 devices across departments.
Networking Requirements

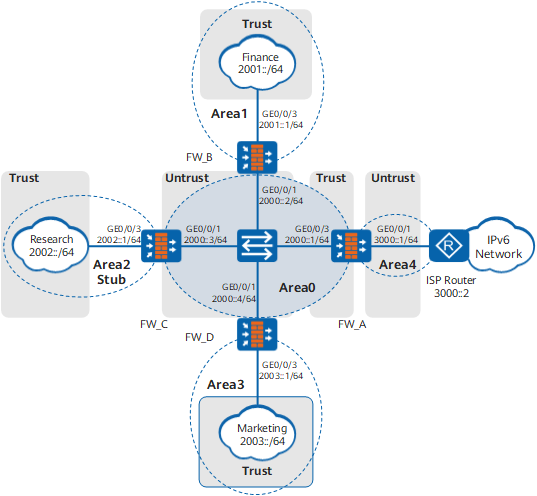

As shown in Figure 1, an enterprise deploys FWs to connect to the research and development, marketing, and financial departments respectively. The enterprise also deploys a FW on the network border as a security gateway to connect the intranet to the IPv6 network through an ISP network.
The networking requirements are as follows:
- OSPFv3 runs on the intranet to implement connectivity between IPv6 devices across departments.
- Routers in the department belong to a totally stub area. These routers can only use a default route to access the IPv6 network. They cannot learn external area routes. The totally stub area minimizes external routing information distribution and improves router performance and Research network quality.
- FW_A and the ISP router establish an OSPFv3 neighbor relationship so that FW_A can learn IPv6 network routes.
- Devices in all departments can access the IPv6 network through the ISP router.
Configuration Roadmap
The configuration roadmap is as follows:
- Configure OSPFv3 on each FW:
- FW_A: connects the ISP router in Area4 to the switch in Area0.
- FW_B: connects devices of the financial department in Area1 to the switch in Area0.
- FW_C: connects devices of the research and development department in Area2 to the switch in Area0.
- FW_D: connects devices of the marketing department in Area3 to the switch in Area0.
- Assign IPv6 addresses to FW interfaces and add interfaces to security zones.
- Configure security policies on FWs so that devices in all departments can exchange OSPFv3 packets and access the IPv6 network.
Procedure
- Configure FW_A.
- Create an OSPFv3 process.
Before enabling IPv6 on an OSPFv3 interface, ensure that an OSPFv3 process has been created. Otherwise, the OSPFv3 interface cannot be configured.# Enable OSPFv3 and set the router ID to 1.1.1.1.
[FW_A] ospfv3 [FW_A-ospfv3-1] router-id 1.1.1.1 [FW_A-ospfv3-1] quit
- Configure an interzone security policy to allow devices
to exchange OSPFv3 packets and the R&D, marketing, and finance
departments to access the IPv6 network.
This section provides only required security policy parameters. Set other security policy parameters as required.
[FW_A] security-policy [FW_A-policy-security] rule name policy_sec_1 [FW_A-policy-security-rule-policy_sec_1] source-zone local trust [FW_A-policy-security-rule-policy_sec_1] destination-zone local trust [FW_A-policy-security-rule-policy_sec_1] action permit [FW_A-policy-security-rule-policy_sec_1] quit [FW_A-policy-security] rule name policy_sec_2 [FW_A-policy-security-rule-policy_sec_2] source-zone local untrust [FW_A-policy-security-rule-policy_sec_2] destination-zone local untrust [FW_A-policy-security-rule-policy_sec_2] action permit [FW_A-policy-security-rule-policy_sec_2] quit [FW_A-policy-security] rule name policy_sec_3 [FW_A-policy-security-rule-policy_sec_3] source-zone trust [FW_A-policy-security-rule-policy_sec_3] destination-zone untrust [FW_A-policy-security-rule-policy_sec_3] source-address 2001:: 64 [FW_A-policy-security-rule-policy_sec_3] source-address 2002:: 64 [FW_A-policy-security-rule-policy_sec_3] source-address 2003:: 64 [FW_A-policy-security-rule-policy_sec_3] action permit [FW_A-policy-security-rule-policy_sec_3] quit [FW_A-policy-security] quit
- Create an OSPFv3 process.
- Configure FW_B.
- Configure an interzone security policy to allow devices
to exchange OSPFv3 packets and the finance department to access the
R&D department, marketing department, and IPv6 network.
This section provides only required security policy parameters. Set other security policy parameters as required.
[FW_B] security-policy [FW_B-policy-security] rule name policy_sec_1 [FW_B-policy-security-rule-policy_sec_1] source-zone local trust [FW_B-policy-security-rule-policy_sec_1] destination-zone local trust [FW_B-policy-security-rule-policy_sec_1] action permit [FW_B-policy-security-rule-policy_sec_1] quit [FW_B-policy-security] rule name policy_sec_2 [FW_B-policy-security-rule-policy_sec_2] source-zone local untrust [FW_B-policy-security-rule-policy_sec_2] destination-zone local untrust [FW_B-policy-security-rule-policy_sec_2] action permit [FW_B-policy-security-rule-policy_sec_2] quit [FW_B-policy-security] rule name policy_sec_3 [FW_B-policy-security-rule-policy_sec_3] source-zone trust [FW_B-policy-security-rule-policy_sec_3] destination-zone untrust [FW_B-policy-security-rule-policy_sec_3] source-address 2001:: 64 [FW_B-policy-security-rule-policy_sec_3] action permit [FW_B-policy-security-rule-policy_sec_3] quit [FW_B-policy-security] quit
- Configure an interzone security policy to allow devices
to exchange OSPFv3 packets and the finance department to access the
R&D department, marketing department, and IPv6 network.
- Configure FW_C.
- Configure an interzone security policy to allow devices
to exchange OSPFv3 packets and the R&D department to access the
finance department, marketing department, and IPv6 network.
This section provides only required security policy parameters. Set other security policy parameters as required.
[FW_C] security-policy [FW_C-policy-security] rule name policy_sec_1 [FW_C-policy-security-rule-policy_sec_1] source-zone local trust [FW_C-policy-security-rule-policy_sec_1] destination-zone local trust [FW_C-policy-security-rule-policy_sec_1] action permit [FW_C-policy-security-rule-policy_sec_1] quit [FW_C-policy-security] rule name policy_sec_2 [FW_C-policy-security-rule-policy_sec_2] source-zone local untrust [FW_C-policy-security-rule-policy_sec_2] destination-zone local untrust [FW_C-policy-security-rule-policy_sec_2] action permit [FW_C-policy-security-rule-policy_sec_2] quit [FW_C-policy-security] rule name policy_sec_3 [FW_C-policy-security-rule-policy_sec_3] source-zone trust [FW_C-policy-security-rule-policy_sec_3] destination-zone untrust [FW_C-policy-security-rule-policy_sec_3] source-address 2002:: 64 [FW_C-policy-security-rule-policy_sec_3] action permit [FW_C-policy-security-rule-policy_sec_3] quit [FW_C-policy-security] quit
- Configure an interzone security policy to allow devices
to exchange OSPFv3 packets and the R&D department to access the
finance department, marketing department, and IPv6 network.
- Configure FW_D.
- Configure an interzone security policy to allow devices
to exchange OSPFv3 packets and the marketing department to access
the finance department, R&D department, and IPv6 network.
This section provides only required security policy parameters. Set other security policy parameters as required.
[FW_D] security-policy [FW_D-policy-security] rule name policy_sec_1 [FW_D-policy-security-rule-policy_sec_1] source-zone local trust [FW_D-policy-security-rule-policy_sec_1] destination-zone local trust [FW_D-policy-security-rule-policy_sec_1] action permit [FW_D-policy-security-rule-policy_sec_1] quit [FW_D-policy-security] rule name policy_sec_2 [FW_D-policy-security-rule-policy_sec_2] source-zone local untrust [FW_D-policy-security-rule-policy_sec_2] destination-zone local untrust [FW_D-policy-security-rule-policy_sec_2] action permit [FW_D-policy-security-rule-policy_sec_2] quit [FW_D-policy-security] rule name policy_sec_3 [FW_D-policy-security-rule-policy_sec_3] source-zone trust [FW_D-policy-security-rule-policy_sec_3] destination-zone untrust [FW_D-policy-security-rule-policy_sec_3] source-address 2003:: 64 [FW_D-policy-security-rule-policy_sec_3] action permit [FW_D-policy-security-rule-policy_sec_3] quit [FW_D-policy-security] quit
- Configure an interzone security policy to allow devices
to exchange OSPFv3 packets and the marketing department to access
the finance department, R&D department, and IPv6 network.
Configuration Verification
View the OSPFv3 neighbor status on the FW. The following command output shows the OSPFv3 neighbor status on FW_A.
[FW_A] display ospfv3 peer OSPFv3 Process (1) OSPFv3 Area (0.0.0.1) Neighbor ID Pri State Dead Time Interface Instance ID 2.2.2.2 1 2-Way/DROther 00:00:34 GE0/0/3 0 3.3.3.3 1 Full/Backup 00:00:32 GE0/0/3 0 4.4.4.4 1 Full/DR 00:00:32 GE0/0/3 0 OSPFv3 Area (0.0.0.4) Neighbor ID Pri State Dead Time Interface Instance ID 5.5.5.5 1 Full/- 00:00:34 GE0/0/1 0
View the OSPFv3 routing table on the FW. The following command output shows the OSPFv3 routing table on FW_A.
[FW_A] display ospfv3 routing Codes : E2 - Type 2 External, E1 - Type 1 External, IA - Inter-Area, N - NSSA, U - Uninstalled, D - Denied by Import Policy OSPFv3 Process (1) Destination Metric Next-hop IA 2000::/64 1 directly-connected, GE0/0/3 IA 2001::/64 2 via 2000::2, GE0/0/3 IA 2002::/64 2 via 2000::3, GE0/0/3 2003::/64 2 via 2000::4, GE0/0/3 IA 3000::/64 1 directly-connected, GE0/0/1
The preceding command output shows that FW_A learns the network segment routes of the R&D, marketing, and finance departments and the IPv6 routes to the Internet.
Configuration Scripts
Configuration script for FW_A:
# ipv6 # sysname FW_A # ospfv3 1 router-id 1.1.1.1 # interface GigabitEthernet0/0/1 ipv6 enable ipv6 address 3000::1 64 ospfv3 1 area 0.0.0.4 # interface GigabitEthernet0/0/3 ipv6 enable ipv6 address 2000::1 64 ospfv3 1 area 0.0.0.0 # firewall zone trust set priority 85 add interface GigabitEthernet0/0/3 # firewall zone untrust set priority 5 add interface GigabitEthernet0/0/1 # security-policy rule name policy_sec_1 source-zone local source-zone trust destination-zone local destination-zone trust action permit rule name policy_sec_2 source-zone local source-zone untrust destination-zone local destination-zone untrust action permit rule name policy_sec_3 source-zone trust destination-zone untrust source-address 2001:: 64 source-address 2002:: 64 source-address 2003:: 64 action permit # return
Configuration script for FW_B:
# ipv6 # sysname FW_B # ospfv3 1 router-id 2.2.2.2 # interface GigabitEthernet0/0/1 ipv6 enable ipv6 address 2000::2 64 ospfv3 1 area 0.0.0.0 # interface GigabitEthernet0/0/3 ipv6 enable ipv6 address 2001::1 64 ospfv3 1 area 0.0.0.1 # firewall zone trust set priority 85 add interface GigabitEthernet0/0/3 # firewall zone untrust set priority 5 add interface GigabitEthernet0/0/1 # security-policy rule name policy_sec_1 source-zone local source-zone trust destination-zone local destination-zone trust action permit rule name policy_sec_2 source-zone local source-zone untrust destination-zone local destination-zone untrust action permit rule name policy_sec_3 source-zone trust destination-zone untrust source-address 2001:: 64 action permit # return
Configuration script for FW_C:
# ipv6 # sysname FW_C # ospfv3 1 router-id 3.3.3.3 area 0.0.0.2 stub no-summary # interface GigabitEthernet0/0/1 ipv6 enable ipv6 address 2000::3 64 ospfv3 1 area 0.0.0.0 # interface GigabitEthernet0/0/3 ipv6 enable ipv6 address 2002::1 64 ospfv3 1 area 0.0.0.2 # firewall zone trust set priority 85 add interface GigabitEthernet0/0/3 # firewall zone untrust set priority 5 add interface GigabitEthernet0/0/1 # security-policy rule name policy_sec_1 source-zone local source-zone trust destination-zone local destination-zone trust action permit rule name policy_sec_2 source-zone local source-zone untrust destination-zone local destination-zone untrust action permit rule name policy_sec_3 source-zone trust destination-zone untrust source-address 2002:: 64 action permit # return
Configuration script for FW_D:
# ipv6 # sysname FW_D # ospfv3 1 router-id 4.4.4.4 # interface GigabitEthernet0/0/1 ipv6 enable ipv6 address 2000::4 64 ospfv3 1 area 0.0.0.0 # interface GigabitEthernet0/0/3 ipv6 enable ipv6 address 2003::1 64 ospfv3 1 area 0.0.0.3 # firewall zone trust set priority 85 add interface GigabitEthernet0/0/3 # firewall zone untrust set priority 5 add interface GigabitEthernet0/0/1 # security-policy rule name policy_sec_1 source-zone local source-zone trust destination-zone local destination-zone trust action permit rule name policy_sec_2 source-zone local source-zone untrust destination-zone local destination-zone untrust action permit rule name policy_sec_3 source-zone trust destination-zone untrust source-address 2003:: 64 action permit # return
