Authentication Policy
Authentication policies determine which data flows need to undergo portal authentication and authentication exemption.
By default, the FW does not authenticate passing-by data flows. Authentication policies are required to filter data flows that require authentication. An authentication policy takes effect on the following authentication modes:
- Redirected authentication: When a user accesses HTTP service and the access data flow matches an authentication policy, the FW pushes an authentication page to the user.
- User-initiated authentication: To access non-HTTP services, a user needs to proactively access the authentication page for authentication. If the user accesses non-HTTP service without being authenticated, access traffic will be blocked by the FW if matching the authentication policy.
- Authentication exemption: When a user's access traffic matches the authentication exemption policy, the user can access network resources without entering the user name and password. The FW identifies users based their P/MAC address bindings.
- SSO: The login of SSO users is not under control of authentication policies, but user-specific policy control can be implemented only when user service traffic matches an authentication policy.
The following types of traffic do not trigger authentication even if they match the specified authentication policy:
- Traffic destined for or originated by the FW
- DHCP, BGP, OSPF, and LDP packets
- The corresponding DNS packet of an HTTP service data flow that triggers authentication is not controlled by the specified authentication policy. After the user is authenticated and logs in, the DNS packet is controlled by the authentication policy.
Policy Contents
An authentication policy is a set of authentication rules that determine whether to implement authentication on a data flow.
An authentication rule consists of conditions and an action. Conditions used by a FW to match packets are as follows:
Source zone
Destination zone
Source address/region
Destination address/region
An action indicates how a FW processes packets. Possible actions are as follows:
Portal authentication
Portal authentication is implemented on data flows that meet conditions.
Authentication exemption
Authentication exemption is implemented on data flows that meet conditions. The FW identifies user identities by other means. This action applies to the following scenarios:
- For top executives, having to be authenticated to obtain network access is undesirable. However, top executives have access to confidential data and therefore need higher information security than common users. You bidirectionally can bind top executives and IP or MAC addresses and configure the FW not to implement authentication on the data flows of top executives when they access network resources using the specified IP or MAC addresses. The FW identifies IP addresses in data flows based on the mappings between users and IP or MAC addresses.
- In an AD/Agile Controller/RADIUS SSO scenario, the FW has obtained user information from another authentication system and therefore exempts SSO users from authentication.
No authentication
No authentication is implemented on data flows that meet conditions. This action applies to the following scenarios:
- Data flows, such as data flows between intranets do not require to be authenticated by the FW either.
- In an AD/Agile Controller/RADIUS SSO scenario, a FW does not implement authentication on the data flows between users and the authentication server.
Anonymous authentication
Anonymous authentication is implemented on data flows that matches the policy. The user can be authenticated without entering the user name or password. In this case, the FW identifies the user by IP address.
Matching Sequence

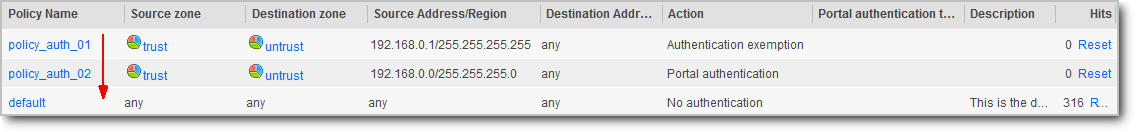

The FW matches packets with multiple authentication rules from top to bottom, as shown in Figure 1. If the attributes of a packet match all the conditions of an authentication rule, the rule is successfully matched, and the FW does not match the packet with other rules. If no rule is matched, the FW applies the default authentication policy to the packet.
The FW has a default authentication policy with all matching conditions set to any and the action set to No authentication.
