Web: Example for Configuring Local Authentication on Remote Access Users Using SSL VPN

This section provides an example for configuring local authentication on remote access users using SSL VPN when a FW works as a VPN access gateway.

Networking Requirements

An enterprise has deployed a FW as the VPN access gateway that connects the intranet to the Internet, as shown in Figure 1. Employees on the move connect to the FW using SSL VPN to access network resources.

Figure 1 Local authentication on remote access users using SSL VPN

The user management and authentication mechanisms of the FW must allow employees on the move to connect to the headquarters and identify their IP addresses as users to implement user-specific behavior control and permission assignment. Information about users and departments is saved on the FW and can be referenced by policies and SSL VPNs.

Configuration Roadmap

This example describes only how to configure user management and authentication. For details on certificate authentication, see SSL VPN related sections.

Create user groups and users and set passwords for the users.
Configure a default authentication domain.

Data Planning

Item	Data	Description
R&D employee on the move	Group Name: research Parent Group: /default User Login Name: user_0002 Display Name: Tom Parent Group: /default/research Password/Confirm Password: Admin@123 Prohibit Users from Sharing This Account	Add the R&D employee on the move to group research. You can repeat the operations in this example to configure multiple user accounts.
Marketing employee on the move	Group Name: marketing Parent Group: /default User Login Name: user_0003 Display Name: Jack Parent Group: /default/marketing Password/Confirm Password: Admin@123 Prohibit Users from Sharing This Account	Add the marketing employee on the move to group marketing. You can repeat the operations in this example to configure multiple user accounts.
Authentication domain	Name: default Access Control: Allow SSL VPN Access and Allow Online Behavior Management	The default authentication domain is used during authentication. No authentication domain is required in the entered user names of the employees on the move.

Item

Data

Description

R&D employee on the move

Group

Name: research
Parent Group: /default

User

Login Name: user_0002
Display Name: Tom
Parent Group: /default/research
Password/Confirm Password: Admin@123
Prohibit Users from Sharing This Account

Add the R&D employee on the move to group research.

You can repeat the operations in this example to configure multiple user accounts.

Marketing employee on the move

Group

Name: marketing
Parent Group: /default

User

Login Name: user_0003
Display Name: Jack
Parent Group: /default/marketing
Password/Confirm Password: Admin@123
Prohibit Users from Sharing This Account

Add the marketing employee on the move to group marketing.

You can repeat the operations in this example to configure multiple user accounts.

Authentication domain

Name: default
Access Control: Allow SSL VPN Access and Allow Online Behavior Management

The default authentication domain is used during authentication. No authentication domain is required in the entered user names of the employees on the move.

Procedure

Choose Network > Interface, set IP addresses for interfaces and assign the interfaces to security zones.
The following example describes how to configure interface GigabitEthernet 0/0/2. You can configure other interfaces based on the networking diagram.

Zone

dmz

IP Address

10.2.0.1/24

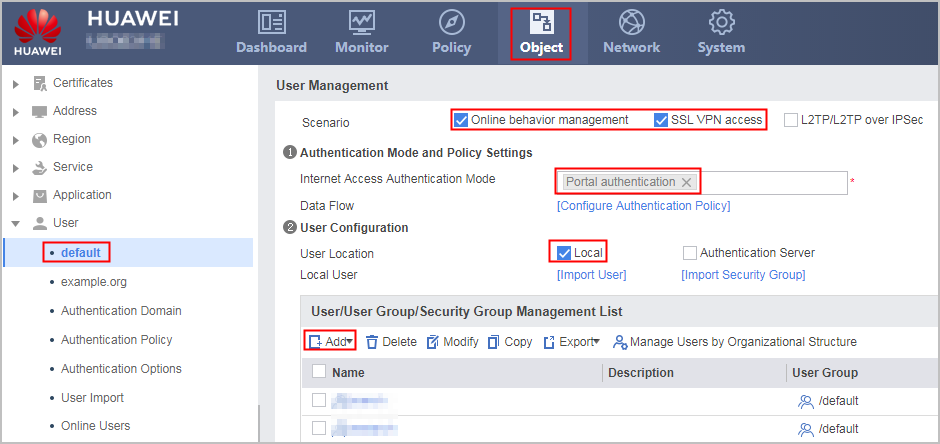

Choose Object > User > default, configure local authentication.

For mobile employees that use the network extension service, if user name-specific permission control is required, configure SSL VPN access and Online behavior management in Scenario; if user name-specific permission control is not required, configure SSL VPN access only. For mobile employees that do not use the network extension service, configure SSL VPN access only. In this case, permission control can be implemented using the role-based authorization function of SSL VPN.

The Online behavior management option enables the FW to record the mapping between IP addresses and user names.

Click Add and create user groups and users.
1. Choose Add Group, create a user group object for an R&D employee.
2. Choose Add a User, create a user object for an R&D employee.
3. Repeat the previous steps to create the user group/user account (marketing/user_0003) of the marketing department.
4. Click Apply.
Choose Object > User > Authentication Policy, click Add to create an authentication policy.

Name

auth_policy_service

Source Address/Region

10.2.0.2-10.2.0.15

Action

Authentication exemption

To configure user-specific policies for VPN access users, you need to configure authentication policies for private IP addresses after VPN decapsulation. For example, addresses in the network extension address pool are 10.2.0.2-10.2.0.15.
After the configuration is complete, you can configure service authorization.
- Network extension service: Configure security policies, PBR policies, bandwidth policies, quota control policies, proxy policies, and audit policies that reference the user and user group objects.
- Web proxy, file sharing, and port forwarding services: Reference the user and user group objects in the role module of the SSL VPN.

Zone	dmz
IP Address	10.2.0.1/24

Name	auth_policy_service
Source Address/Region	10.2.0.2-10.2.0.15
Action	Authentication exemption

Verification

An R&D employee on the move accesses the authentication web page of the SSL VPN virtual gateway and enters user name user_0002 and password Admin@123 for authentication. After being authenticated, the employee on the move can access network resources.
A marketing employee on the move accesses the authentication web page of the SSL VPN virtual gateway and enters user name user_0003 and password Admin@123 for authentication. After being authenticated, the employee on the move can access network resources.
On the FW, choose Object > User > Online User to see information about online users.

Configuration Scripts

#
 sysname FW
#
interface GigabitEthernet0/0/1
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 10.2.0.1 255.255.255.0
#
firewall zone untrust
 add interface GigabitEthernet0/0/1
#
firewall zone dmz
 add interface GigabitEthernet0/0/2
#
aaa
 #
 domain default
  service-type internetaccess ssl-vpn
 #
#
auth-policy
 rule name auth_policy_service
  source-address range 10.2.0.2 10.2.0.15
  action exempt-auth

# The following user/group creation configuration is stored in the database, but not in the configuration profile.
user-manage group /default/research
user-manage group /default/marketing
user-manage user user_0002
 alias Tom
 parent-group /default/research
 password *********
 undo multi-ip online enable
user-manage user user_0003
 alias Jack
 parent-group /default/marketing
 password *********
 undo multi-ip online enable
