Configuring Direct Communication Between Two Virtual Systems

Networking Requirements

As shown in Figure 1, the device is deployed between network A and network B. Virtual systems vsysa and vsysb function as network A's gateway and network B's gateway respectively to isolate and protect their respective network.

You need to configure direct communication between vsysa and vsysb so that networks A and B can communicate with each other.

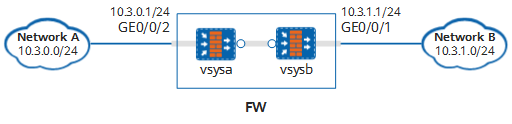

Figure 1 Direct communication between two virtual systems

Configuration Roadmap

The configuration roadmap is as follows:

Enable the virtual system function, create virtual systems vsysa and vsysb, and allocate resources to them.
Configure interfaces for the public system, vsysa, and vsysb, and add the interfaces to security zones.
Configure routes in the public system to divert traffic between networks A and B.
Configure routes in vsysa and vsysb to divert traffic sent from the device to networks A and B.
Configure security policies in vsysa and vsysb to permit the traffic between networks A and B.

Procedure

Enable the virtual system function.
```
<FW> system-view
[FW] vsys enable
```

Create virtual systems and allocate resources to them.

# Create virtual system vsysa and allocate an interface to it.

[FW] vsys name vsysa
[FW-vsys-vsysa] assign interface GigabitEthernet 0/0/2
[FW-vsys-vsysa] quit

# Create virtual system vsysb and allocate an interface to it.

[FW] vsys name vsysb
[FW-vsys-vsysb] assign interface GigabitEthernet 0/0/1
[FW-vsys-vsysb] quit

Add the virtual interface Virtual-if0 to a security zone.

[FW] firewall zone trust
[FW-zone-trust] add interface Virtual-if 0
[FW-zone-trust] quit

Configure routes in the public system.
# Configure a route from vsysa to vsysb to divert the forward traffic for network A to access network B to vsysb.
```
[FW] ip route-static vpn-instance vsysa 10.3.1.0 255.255.255.0 vpn-instance vsysb
```
# Configure a route from vsysb to vsysa to divert the forward traffic for network B to access network A to vsysa.
```
[FW] ip route-static vpn-instance vsysb 10.3.0.0 255.255.255.0 vpn-instance vsysa
```

Switch to the system view of vsysa.

[FW] switch vsys vsysa
<FW-vsysa> system-view

Configure interfaces for vsysa and add the interfaces to security zones.

[FW-vsysa] interface GigabitEthernet 0/0/2
[FW-vsysa-GigabitEthernet0/0/2] ip address 10.3.0.1 24
[FW-vsysa-GigabitEthernet0/0/2] quit
[FW-vsysa] firewall zone trust
[FW-vsysa-zone-trust] add interface GigabitEthernet 0/0/2
[FW-vsysa-zone-trust] quit
[FW-vsysa] firewall zone untrust
[FW-vsysa-zone-untrust] add interface Virtual-if 1
[FW-vsysa-zone-untrust] quit

Configure a route in vsysa.
Configure a route from vsysa to network A to divert the return traffic for network A to access network B or the forward traffic for network B to access network A to network A. 10.3.0.254 is the next-hop address of the route from vsysa to network A.
```
[FW-vsysa] ip route-static 10.3.0.0 255.255.255.0 10.3.0.254
```

Configure security policies in vsysa.

# Configure a security policy for traffic from the Trust zone to the Untrust zone to permit traffic from network A to network B.

[FW-vsysa] security-policy
[FW-vsysa-policy-security] rule name vsysa_trust_to_untrust
[FW-vsysa-policy-security-rule-vsysa_trust_to_untrust] source-zone trust
[FW-vsysa-policy-security-rule-vsysa_trust_to_untrust] destination-zone untrust
[FW-vsysa-policy-security-rule-vsysa_trust_to_untrust] source-address 10.3.0.0 24
[FW-vsysa-policy-security-rule-vsysa_trust_to_untrust] destination-address 10.3.1.0 24
[FW-vsysa-policy-security-rule-vsysa_trust_to_untrust] action permit
[FW-vsysa-policy-security-rule-vsysa_trust_to_untrust] quit

# Configure a security policy for traffic from the Untrust zone to the Trust zone to permit traffic from network B to network A.

[FW-vsysa-policy-security] rule name vsysa_untrust_to_trust
[FW-vsysa-policy-security-rule-vsysa_untrust_to_trust] source-zone untrust
[FW-vsysa-policy-security-rule-vsysa_untrust_to_trust] destination-zone trust
[FW-vsysa-policy-security-rule-vsysa_untrust_to_trust] source-address 10.3.1.0 24
[FW-vsysa-policy-security-rule-vsysa_untrust_to_trust] destination-address 10.3.0.0 24
[FW-vsysa-policy-security-rule-vsysa_untrust_to_trust] action permit
[FW-vsysa-policy-security-rule-vsysa_untrust_to_trust] quit
[FW-vsysa-policy-security] quit

Switch to the system view of vsysb.

[FW-vsysa] quit
<FW-vsysa> quit
[FW] switch vsys vsysb
<FW-vsysb> system-view

Configure interfaces for vsysb and add the interfaces to security zones.

[FW-vsysb] interface GigabitEthernet 0/0/1
[FW-vsysb-GigabitEthernet0/0/1] ip address 10.3.1.1 24
[FW-vsysb-GigabitEthernet0/0/1] quit
[FW-vsysb] firewall zone trust
[FW-vsysb-zone-trust] add interface GigabitEthernet 0/0/1
[FW-vsysb-zone-trust] quit
[FW-vsysb] firewall zone untrust
[FW-vsysb-zone-untrust] add interface Virtual-if 2
[FW-vsysb-zone-untrust] quit

Configure a route in vsysb.
Configure a route from vsysb to network B to divert the forward traffic for network A to access network B and the return traffic for network B to access network A to network B. 10.3.1.254 is the next-hop address of the route from vsysb to network B.
```
[FW-vsysb] ip route-static 10.3.1.0 255.255.255.0 10.3.1.254
```

Configure security policies in vsysb.

# Configure a security policy for traffic from the Trust zone to the Untrust zone to permit traffic from network B to network A.

[FW-vsysb] security-policy
[FW-vsysb-policy-security] rule name vsysb_trust_to_untrust
[FW-vsysb-policy-security-rule-vsysb_trust_to_untrust] source-zone trust
[FW-vsysb-policy-security-rule-vsysb_trust_to_untrust] destination-zone untrust
[FW-vsysb-policy-security-rule-vsysb_trust_to_untrust] source-address 10.3.1.0 24
[FW-vsysb-policy-security-rule-vsysb_trust_to_untrust] destination-address 10.3.0.0 24
[FW-vsysb-policy-security-rule-vsysb_trust_to_untrust] action permit
[FW-vsysb-policy-security-rule-vsysb_trust_to_untrust] quit

# Configure a security policy for traffic from the Untrust zone to the Trust zone to permit traffic from network A to network B.

[FW-vsysb-policy-security] rule name vsysb_untrust_to_trust
[FW-vsysb-policy-security-rule-vsysb_untrust_to_trust] source-zone untrust
[FW-vsysb-policy-security-rule-vsysb_untrust_to_trust] destination-zone trust
[FW-vsysb-policy-security-rule-vsysb_untrust_to_trust] source-address 10.3.0.0 24
[FW-vsysb-policy-security-rule-vsysb_untrust_to_trust] destination-address 10.3.1.0 24
[FW-vsysb-policy-security-rule-vsysb_untrust_to_trust] action permit
[FW-vsysb-policy-security-rule-vsysb_untrust_to_trust] quit
[FW-vsysb-policy-security] quit

Verifying the Configuration

A user on network A can access network B. In addition, the following sessions are created in vsysa and vsysb.

10.3.1.3 is the IP address of the server on network B accessed by the user on network A. 10.3.0.2 is the IP address of the user host on network A.

Sessions in vsysa:

<FW> display firewall session table verbose vsys vsysa destination global 10.3.1.3
 Current Total Sessions : 1
 icmp  VPN: vsysa --> vsysb  ID: xxxxxxxxxxxxxxxxxxxxxx
 Zone: trust --> untrust  TTL: xx:xx:xx  Left: xx:xx:xx
 Recv Interface: GigabitEthernet 0/0/2
 Interface: Virtual-if1  NextHop: 0.0.0.0
 <--packets: xxx bytes: xxx --> packets: xxx bytes: xxx
 10.3.0.2:43999 --> 10.3.1.3:2048 PolicyName: vsysa_trust_to_untrust

Sessions in vsysb:

<FW> display firewall session table verbose vsys vsysb destination global 10.3.1.3
 Current Total Sessions : 1
 icmp  VPN: vsysb --> vsysb  ID: xxxxxxxxxxxxxxxxxxxxxx
 Zone: untrust --> trust  TTL: xx:xx:xx  Left: xx:xx:xx
 Recv Interface: Virtual-if2
 Interface: GigabitEthernet 0/0/1  NextHop: 10.3.1.254  MAC: xxxx-xxxx-xxxx
 <--packets: xxx bytes: xxx --> packets: xxx bytes: xxx
 10.3.0.2:43999 --> 10.3.1.3:2048 PolicyName: vsysb_untrust_to_trust

A user on network B can access network A. In addition, the following sessions are created in vsysa and vsysb.

10.3.0.3 is the IP address of the server on network A accessed by the user on network B. 10.3.1.2 is the IP address of the user host on network B.

Sessions in vsysa:

<FW> display firewall session table verbose vsys vsysa destination global 10.3.0.3
 Current Total Sessions : 1
 icmp  VPN: vsysa --> vsysa  ID: xxxxxxxxxxxxxxxxxxxxxx
 Zone: untrust --> trust  TTL: xx:xx:xx  Left: xx:xx:xx
 Recv Interface: Virtual-if1
 Interface: GigabitEthernet 0/0/2  NextHop: 10.3.0.254  MAC: xxxx-xxxx-xxxx
 <--packets: xxx bytes: xxx --> packets: xxx bytes: xxx
 10.3.1.2:43999 --> 10.3.0.3:2048 PolicyName: vsysa_untrust_to_trust

Sessions in vsysb:

<FW> display firewall session table verbose vsys vsysb destination global 10.3.0.3
 Current Total Sessions : 1
 icmp  VPN: vsysb --> vsysa  ID: xxxxxxxxxxxxxxxxxxxxxx
 Zone: trust --> untrust  TTL: xx:xx:xx  Left: xx:xx:xx
 Recv Interface: GigabitEthernet 0/0/1
 Interface: Virtual-if2  NextHop: 0.0.0.0
 <--packets: xxx bytes: xxx --> packets: xxx bytes: xxx
 10.3.1.2:43999 --> 10.3.0.3:2048 PolicyName: vsysb_trust_to_untrust

Configuration Scripts

Public system (public)

#
 sysname FW
#
 vsys enable
#
vsys name vsysa 1
 assign interface GigabitEthernet0/0/2
#
vsys name vsysb 2
 assign interface GigabitEthernet0/0/1
#
interface Virtual-if 0
 ip address 172.16.0.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface Virtual-if0
#
 ip route-static vpn-instance vsysa 10.3.1.0 255.255.255.0 vpn-instance vsysb
 ip route-static vpn-instance vsysb 10.3.0.0 255.255.255.0 vpn-instance vsysa
#
return

Virtual system (vsysa)

#
interface GigabitEthernet0/0/2
 ip address 10.3.0.1 255.255.255.0
#
interface Virtual-if 1
 ip address 172.16.1.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/2
#
firewall zone untrust
set priority 5
 add interface Virtual-if1
#
 ip route-static 10.3.0.0 255.255.255.0 10.3.0.254
#
security-policy
 rule name vsysa_trust_to_untrust
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 mask 255.255.255.0
  destination-address 10.3.1.0 mask 255.255.255.0
  action permit
 rule name vsysa_untrust_to_trust
  source-zone untrust
  destination-zone trust
  source-address 10.3.1.0 mask 255.255.255.0
  destination-address 10.3.0.0 mask 255.255.255.0
  action permit
#
return

Virtual system (vsysb)

#
interface GigabitEthernet0/0/1
 ip address 10.3.1.1 255.255.255.0
#
interface Virtual-if 2
 ip address 172.16.2.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/1
#
firewall zone untrust
set priority 5
 add interface Virtual-if2
#
 ip route-static 10.3.1.0 255.255.255.0 10.3.1.254
#
security-policy
 rule name vsysb_trust_to_untrust
  source-zone trust
  destination-zone untrust
  source-address 10.3.1.0 mask 255.255.255.0
  destination-address 10.3.0.0 mask 255.255.255.0
  action permit
 rule name vsysb_untrust_to_trust
  source-zone untrust
  destination-zone trust
  source-address 10.3.0.0 mask 255.255.255.0
  destination-address 10.3.1.0 mask 255.255.255.0
  action permit
#
return
