Web: Example for Configuring Hierarchical Traffic Policies for Bandwidth Management on a Specific Department or on the Employees and Services of That Department

This section provides an example for configuring hierarchical traffic policies to control bandwidth of different departments, different employees in each department, and different services used by employees.

Networking Requirements

As shown in Figure 1, an enterprise has department A. Department A includes sales and R&D employees. The sales employees need to use email and ERP applications.

The enterprise requires to enable the bandwidth management function on the FW to assign bandwidth resources available for department A and further assign these bandwidth resources to the sales employees in the department, so that the email and ERP traffic of the sales employees can be properly forwarded. Specific requirements are as follows:

The maximum downstream bandwidth of department A cannot exceed 60 Mbit/s.
The maximum downstream bandwidth of sales employees in department A cannot exceed 30 Mbit/s.
The minimum downstream bandwidth for email and ERP traffic of sales employees in department A cannot be lower than 20 Mbit/s.

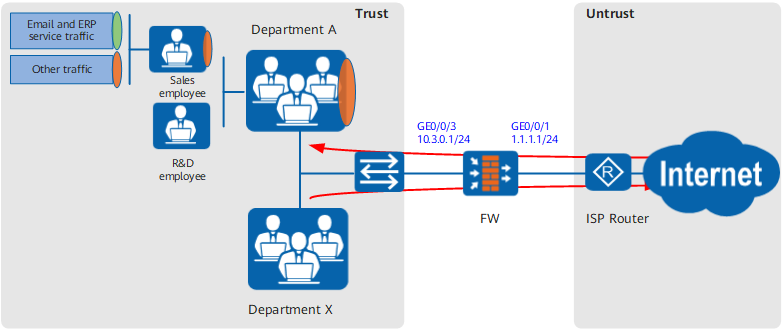

Figure 1 Networking diagram for configuring hierarchical traffic policies for bandwidth management on a specific department or on the employees and services of that department

Configuration Roadmap

Set interface IP addresses and assign the interfaces to security zones.
Configure a traffic policy for department A and reference the traffic profile in which the overall maximum downstream bandwidth is 60 Mbit/s.
Configure a traffic policy for the sales employees in department A, use the traffic policy for department A as its parent policy, and reference the traffic profile in which the overall maximum downstream bandwidth is 30 Mbit/s.
Configure a traffic policy for the email and ERP traffic of the sales employees in department A, use the traffic policy for the sales employees in department A as its parent policy, and reference the traffic profile in which the overall guaranteed downstream bandwidth is 20 Mbit/s.

Upstream and downstream depend on the direction of FW bandwidth policy. For simplicity, upstream refers to the direction from Trust to Untrust, and downstream refers to Untrust to DMZ in this section.
Assuming that the security zones, routers, and security policies have been configured, this section introduces only how to configure bandwidth management.

Procedure

Set interface IP addresses and assign the interfaces to security zones.
1. Choose Network > Interface.
2. Click for GE0/0/3 and set the parameters as follows:

  Zone

  trust

  IPv4

  IP Address

  10.3.0.1/24
3. Click OK.
4. Repeat the preceding steps to configure interface GE0/0/1.

  Zone

  untrust

  IPv4

  IP Address

  1.1.1.1/24
Configure a traffic profile for department A.

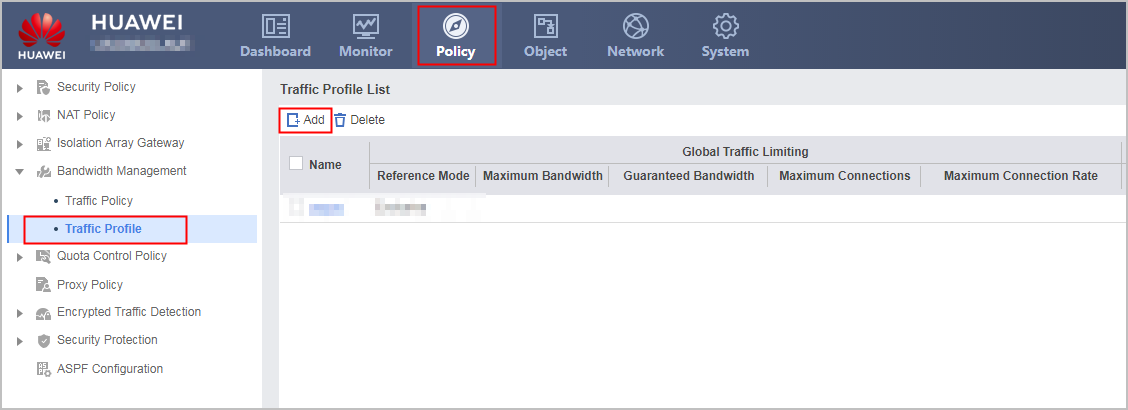

1. Choose Policy > Bandwidth Management > Traffic Profile.
2. Click Add and set the parameters as follows:

  Name

  profile_dep_a

  Traffic Limiting Mode

  Upstream and downstream bandwidth

  Global Traffic Limiting

  Downstream Bandwidth Maximum

  60 Mbit/s
3. Click OK.
Configure bandwidth management for department A.

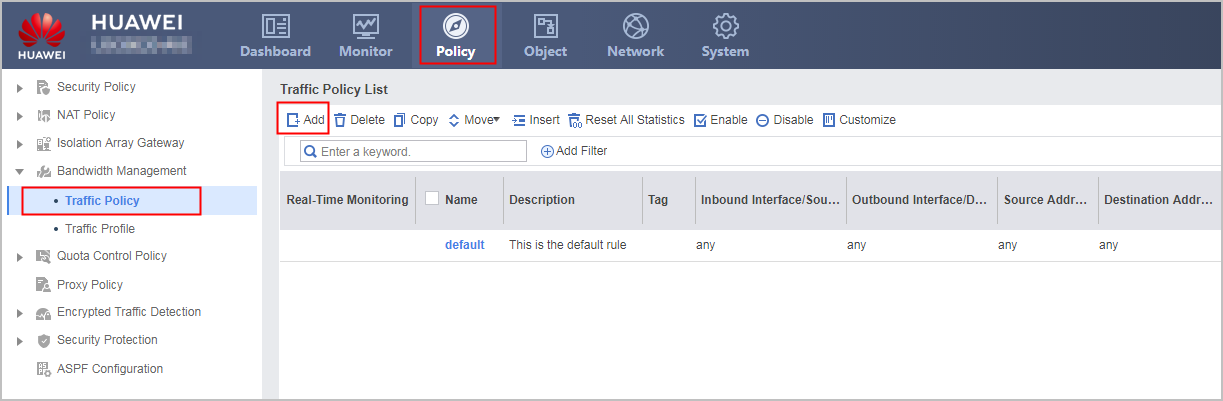

1. Choose Policy > Bandwidth Management > Traffic Policy.
2. Click Add and set the parameters as follows:

  In the example, user authentication configuration for department A (dep_a) and sales employees in department A (dep_a_sale) has been completed.

  Name

  policy_dep_a

  Source Zone

  trust

  Destination Zone

  untrust

  User

  /default/dep_a

  Action

  Limit

  Traffic Profile

  profile_dep_a
3. Click OK.
Configure a traffic profile for sales employees in department A.
1. Choose Policy > Bandwidth Management > Traffic Policy.
2. Click Add and set the parameters as follows:

  Name

  profile_dep_a_sale

  Traffic Limiting Mode

  Upstream and downstream bandwidth

  Global Traffic Limiting

  Downstream Bandwidth Maximum

  30 Mbit/s
3. Click OK.
Configure bandwidth management for sales employees in department A.
1. Choose Policy > Bandwidth Management > Traffic Policy.
2. Click Add and set the parameters as follows:

  Name

  policy_dep_a_sale

  Parent Policy

  policy_dep_a

  Source Zone

  trust

  Destination Zone

  untrust

  User

  /default/dep_a_sale

  Action

  Limit

  Traffic Profile

  profile_dep_a_sale
3. Click OK.
Configure a traffic profile for the email and ERP traffic of the sales employees in department A.
1. Choose Policy > Bandwidth Management > Traffic Policy.
2. Click Add and set the parameters as follows:

  Name

  profile_dep_a_sale_email

  Traffic Limiting Mode

  Upstream and downstream bandwidth

  Global Traffic Limiting

  Downstream Bandwidth Assured

  20 Mbit/s

Zone	trust
IPv4
IP Address	10.3.0.1/24

Zone	untrust
IPv4
IP Address	1.1.1.1/24

Name	profile_dep_a
Traffic Limiting Mode	Upstream and downstream bandwidth
Global Traffic Limiting
Downstream Bandwidth Maximum	60 Mbit/s

Name	policy_dep_a
Source Zone	trust
Destination Zone	untrust
User	/default/dep_a
Action	Limit
Traffic Profile	profile_dep_a

Name	profile_dep_a_sale
Traffic Limiting Mode	Upstream and downstream bandwidth
Global Traffic Limiting
Downstream Bandwidth Maximum	30 Mbit/s

Name	policy_dep_a_sale
Parent Policy	policy_dep_a
Source Zone	trust
Destination Zone	untrust
User	/default/dep_a_sale
Action	Limit
Traffic Profile	profile_dep_a_sale

Name	profile_dep_a_sale_email
Traffic Limiting Mode	Upstream and downstream bandwidth
Global Traffic Limiting
Downstream Bandwidth Assured	20 Mbit/s

Configure bandwidth management for the email and ERP traffic of the sales employees in department A.

Choose Policy > Bandwidth Management > Traffic Policy.

Click Add and set the parameters as follows:

The following example describes the bandwidth management configuration for Outlook Web Access and LotusNotes. You can specify other P2P services as required.

Name	policy_dep_a_sale_email
Parent Policy	policy_dep_a_sale
Source Zone	trust
Destination Zone	untrust
Application	Outlook Web Access, LotusNotes
Action	Limit
Traffic Profile	profile_dep_a_sale_email

Click OK.

Configuration Scripts

This section provides only the script related to the example.

#
sysname FW
#
interface GigabitEthernet0/0/1
 undo shutdown
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/3
 undo shutdown
 ip address 10.3.0.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
traffic-policy
 profile profile_dep_a
  bandwidth maximum-bandwidth whole downstream 60000
 profile profile_dep_a_sale
  bandwidth maximum-bandwidth whole downstream 30000
 profile profile_dep_a_sale_email
  bandwidth guaranteed-bandwidth whole downstream 20000
 rule name policy_dep_a
  source-zone trust
  destination-zone untrust
  user user-group /default/dep_a
  action qos profile profile_dep_a
 rule name policy_dep_a_sale parent policy_dep_a
  source-zone trust
  destination-zone untrust
  user user-group /default/dep_a_sale
  action qos profile profile_dep_a_sale
 rule name policy_dep_a_sale_email parent policy_dep_a_sale
  source-zone trust
  destination-zone untrust
  application app LotusNotes
  application app OWA
  action qos profile profile_dep_a_sale_email
