CLI: Example for Configuring Destination NAT for Mobile Phone Users to Access Wireless Networks (Translating Public Addresses Randomly Into Addresses in the Destination Address Pool)

This section provides an example for configuring destination NAT for mobile phone users to access wireless networks.

Networking Requirements

Mobile phone users need to access the Internet by logging in to a WAP gateway. If the IP address of a mobile phone for accessing the Internet is not that of the WAP gateway, configure rules on the FW to translate the destination IP address of the access request into the IP address of the WAP gateway.

As shown in Figure 1, the default gateway address of the mobile phone is 1.1.1.1, but that provided by the carrier is 2.2.2.2. The FW needs to change the gateway address of the packets from the mobile phone to the carrier gateway.

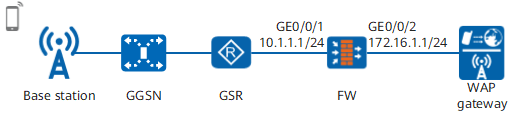

Figure 1 Networking diagram for configuring destination NAT for mobile phone users

Data Planning

Item

Data

Description

GigabitEthernet 0/0/1

IP address: 10.1.1.1/24

Security zone: Trust

-

GigabitEthernet 0/0/2

IP address: 172.16.1.1/24

Security zone: Untrust

-

Destination NAT

Destination IP address pool: 2.2.2.2

-

Security policy

Source zone: Trust

Destination zone: Untrust

Destination address: 2.2.2.2

Permits the traffic destined to the gateway address of the carrier to pass through the FW.

Configuration Roadmap

  1. Set interface IP addresses and assign the interfaces to security zones.
  2. Configure destination NAT to translate destination addresses.
  3. Configure a security policy to permit the traffic from mobile phone users to pass through the FW.

Procedure

  1. Complete the basic configurations of the FW.

    # Set an IP address for GigabitEthernet 0/0/1.

    <FW> system-view
    [FW] interface GigabitEthernet 0/0/1
    [FW-GigabitEthernet 0/0/1] ip address 10.1.1.1 24
    [FW-GigabitEthernet 0/0/1] quit

    # Set an IP address for GigabitEthernet 0/0/2.

    [FW] interface GigabitEthernet 0/0/2
    [FW-GigabitEthernet 0/0/2] ip address 172.16.1.1 24
    [FW-GigabitEthernet 0/0/2] quit

    # Add GigabitEthernet 0/0/1 to the trust zone.

    [FW] firewall zone trust
    [FW-zone-trust] add interface GigabitEthernet 0/0/1
    [FW-zone-trust] quit

    # Add GigabitEthernet 0/0/2 to the untrust zone.

    [FW] firewall zone untrust
    [FW-zone-untrust] add interface GigabitEthernet 0/0/2
    [FW-zone-untrust] quit

  2. Configure a destination NAT address pool.

    [FW] destination-nat address-group addressgroup1
    [FW-dnat-address-group-addressgroup1] section 2.2.2.2 2.2.2.2
    [FW-dnat-address-group-addressgroup1] quit

  3. Configure a NAT policy.

    [FW] nat-policy
    [FW-policy-nat] rule name policy_nat1
    [FW-policy-nat-rule-policy_nat1] source-zone trust
    [FW-policy-nat-rule-policy_nat1] destination-address 1.1.1.1 32
    [FW-policy-nat-rule-policy_nat1] action destination-nat address-group addressgroup1
    [FW-policy-nat-rule-policy_nat1] quit
    [FW-policy-nat] quit

  4. Configure black-hole routes destined to the destination address of traffic to prevent routing loops.

    [FW] ip route-static 1.1.1.1 255.255.255.255 NULL0

  5. Configure a security policy.

    [FW] security-policy
    [FW-policy-security] rule name policy1
    [FW-policy-security-rule-policy1] source-zone trust
    [FW-policy-security-rule-policy1] destination-zone untrust
    [FW-policy-security-rule-policy1] destination-address 2.2.2.2 32
    [FW-policy-security-rule-policy1] action permit
    [FW-policy-security-rule-policy1] quit
    [FW-policy-security] quit

Verification

  1. Mobile phone users can access the Internet, indicating that destination NAT is configured successfully.
  2. Run the display firewall session table verbose command to view the entry whose destination address is 1.1.1.1 for detailed NAT information.
    <FW> display firewall session table verbose
    Current Total Sessions : 1
     http  VPN:public --> public  10.1.1.100:4194-->1.1.1.1:2048[2.2.2.2:2048]


    The gateway address of the packets from mobile phone users is changed by the FW from 1.1.1.1 to the carrier gateway address (2.2.2.2). The content in [] is the translated carrier gateway address.

Configuration Scripts

Configuration script for the FW:

#
 sysname FW
#
interface GigabitEthernet0/0/1
 undo shutdown
 ip address 10.1.1.1 255.255.255.0
#
interface GigabitEthernet 0/0/2
 undo shutdown
 ip address 172.16.1.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/1
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet 0/0/2
#
 ip route-static 1.1.1.1 255.255.255.255 NULL0
#
destination-nat address-group addressgroup1
 section 2.2.2.2 2.2.2.2
#
security-policy
  rule name policy1
    source-zone trust
    destination-zone untrust
    destination-address 2.2.2.2 32
    action permit
#
nat-policy
 rule name policy_nat1
  source-zone trust
  destination-address 1.1.1.1 32
  action destination-nat address-group addressgroup1
#
return
