CLI: Example for Configuring an LDAP Server to Implement Authentication on Internet Access Users

This section provides an example for configuring a Sun ONE LDAP server to implement authentication on Internet access users when a FW works as an egress gateway.

Networking Requirements

An enterprise has deployed a FW as the egress gateway to connect the intranet to the Internet, as shown in Figure 1. Details are as follows:

  • The intranet has a Sun ONE LDAP server that stores information about users, departments, and groups (named static groups on the LDAP server).
  • Internet access users on the intranet include R&D employees and marketing employees.

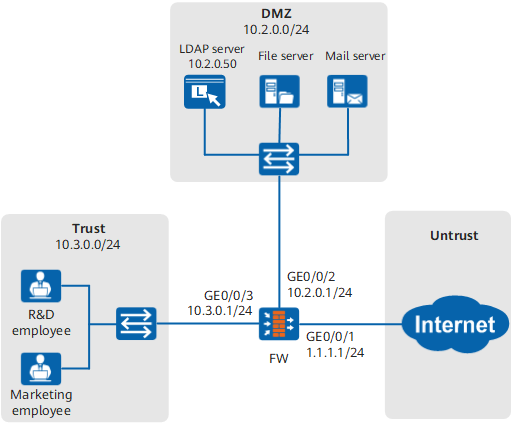

Figure 1 LDAP server deployed to authenticate Internet access users

The user management and authentication mechanisms of the FW must identify IP addresses on the intranet as users to implement user-specific behavior control and permission assignment. Requirements are as follows:

  • Information about users and departments is saved on the FW and can be referenced by policies.
  • An LDAP server implements authentication on Internet access users.
  • Before accessing network resources, R&D employees and marketing employees must be authenticated by the Portal of FW.
  • If the domain accounts of new employees have been created on an LDAP server but not stored on a FW, the employees go online as temporary users in the organization structure on the server.

Configuration Roadmap

This example describes only how to configure user management and authentication.

Information about users, departments, and groups (static groups) on the LDAP server needs to be imported to the FW. Select the import type as required. For example, when a large number of users exist on the LDAP server, you can import departments and groups and implement department- and group-specific permission control.

  1. Set parameters for the FW to communicate with the LDAP server and configure the FW to work as a client of the LDAP server by sending user names and passwords to the LDAP server for authentication.
  2. Configure an authentication scheme and set the authentication mode to LDAP.
  3. Configure an authentication domain on the FW. The domain name must be the same as that on the LDAP server.

  4. Configure a policy to import user information from the LDAP server to the FW.

    User groups on the FW correspond to departments on the LDAP server, and security groups on the FW correspond to static groups on the LDAP server.

  5. Configure the new user option of the authentication domain. If an authenticated user does not exist on the FW, the user goes online as a temporary user in the organization structure on the server.
  6. Configure an authentication policy to authenticate users before they access the Internet.
  7. Configure security policies on the FW to allow Internet access users to access authentication web pages to trigger user-initiated authentication and the FW to communicate with the LDAP server.

Data Planning

Item

Data

Description

LDAP server

  • Name: auth_server_ldap

  • Primary Authentication Server IP: 10.2.0.50

  • Port: 389

  • Server Type: Sun ONE LDAP

  • Base DN: dc=cce, dc=com

  • LDAP Port: 389

  • Administrator DN: uid=admin_test

  • Administrator Password: Admin@123

On a FW, set the parameters for communication with an LDAP server.

The parameter settings on the FW must be consistent with those on the LDAP server.

User information import policy

  • Name: policy_import

  • Server Type: LDAP

  • Server Name: auth_server_ldap

  • Import Type: all

  • Target User Group: /cce.com

  • Incremental Synchronization: 120 minutes

  • Overwrite local user records when the current user exists

Import users from the LDAP server to the FW.

Authentication domain

  • Name: cce.com

  • Authentication Scheme: ldap

  • Access Control: Online behavior management

  • Authentication Server: auth_server_ldap

  • New User Authentication Item: A user goes online as a temporary user in the organization structure on the server.

The cce.com authentication domain is used during authentication.

Authentication policy

  • Name: policy_auth_service

  • Source Zone: Trust

  • Source Address/Region: 10.3.0.0/24

  • Action: auth

The R&D employee and marketing employee can access network resources only after being authenticated by a FW.

Procedure

  1. Set interface IP addresses and assign interfaces to security zones on the FW. The following example describes how to configure interface GigabitEthernet 0/0/3. You can configure other interfaces based on the networking diagram.

    <FW> system-view
[FW] interface GigabitEthernet 0/0/3
[FW-GigabitEthernet0/0/3] ip address 10.3.0.1 24
[FW-GigabitEthernet0/0/3] quit
[FW] firewall zone trust
[FW-zone-trust] add interface GigabitEthernet 0/0/3
[FW-zone-trust] quit

  2. Configure security policies.
    1. Configure a security policy to allow users to access the authentication page.

      [FW] security-policy
[FW-policy-security] rule name policy_local_01
[FW-policy-security-rule-policy_local_01] source-zone trust
[FW-policy-security-rule-policy_local_01] destination-zone local
[FW-policy-security-rule-policy_local_01] source-address 10.3.0.0 24
[FW-policy-security-rule-policy_local_01] service protocol tcp destination-port 8887
[FW-policy-security-rule-policy_local_01] action permit
[FW-policy-security-rule-policy_local_01] quit

    2. Configure a security policy to allow the FW to communicate with the LDAP server.

      [FW-policy-security] rule name policy_local_02
[FW-policy-security-rule-policy_local_02] source-zone local
[FW-policy-security-rule-policy_local_02] destination-zone dmz
[FW-policy-security-rule-policy_local_02] destination-address 10.2.0.50 32
[FW-policy-security-rule-policy_local_02] action permit
[FW-policy-security-rule-policy_local_02] quit

    3. Configure a security policy to allow users to access the Internet.

      [FW-policy-security] rule name policy_sec_02
[FW-policy-security-rule-policy_sec_02] source-zone trust
[FW-policy-security-rule-policy_sec_02] source-address 10.3.0.0 24
[FW-policy-security-rule-policy_sec_02] destination-zone untrust
[FW-policy-security-rule-policy_sec_02] action permit
[FW-policy-security-rule-policy_sec_02] quit

      Enable the DNS service for the Trust -> Untrust interzone to allow HTTP domain name resolution packets through.

    4. Configure a security policy to allow users to access the server cluster.

      [FW-policy-security] rule name policy_sec_03
[FW-policy-security-rule-policy_sec_03] source-zone trust
[FW-policy-security-rule-policy_sec_03] source-address 10.3.0.0 24
[FW-policy-security-rule-policy_sec_03] destination-zone dmz
[FW-policy-security-rule-policy_sec_03] action permit
[FW-policy-security-rule-policy_sec_03] quit
[FW-policy-security] quit

  3. Set the parameters for communication with an LDAP server.

    [FW] ldap-server template auth_server_ldap
[FW-ldap-auth_server_ldap] ldap-server authentication 10.2.0.50 389 no-ssl
[FW-ldap-auth_server_ldap] ldap-server authentication base-dn dc=cce,dc=com
[FW-ldap-auth_server_ldap] ldap-server authentication manager uid=admin_test Admin@123
[FW-ldap-auth_server_ldap] ldap-server group-filter ou
[FW-ldap-auth_server_ldap] ldap-server user-filter uid
[FW-ldap-auth_server_ldap] ldap-server server-type sun-one
[FW-ldap-auth_server_ldap] test-aaa testname testpassword ldap-template auth_server_ldap
[FW-ldap-auth_server_ldap] quit

    The parameter settings on the FW must be consistent with those on the LDAP server.

  4. Configure an authentication scheme.

    [FW] aaa
[FW-aaa] authentication-scheme ldap
[FW-aaa-authen-ldap] authentication-mode ldap
[FW-aaa-authen-ldap] quit

  5. Create an authentication domain.

    [FW-aaa] domain cce.com
[FW-aaa-domain-cce.com] authentication-scheme ldap
[FW-aaa-domain-cce.com] ldap-server auth_server_ldap
[FW-aaa-domain-cce.com] service-type internetaccess
[FW-aaa-domain-cce.com] quit
[FW-aaa] quit

    The domain name must be the same as that on the LDAP server.

  6. Configure a policy to import user information from the LDAP server to the FW.

    [FW] user-manage import-policy policy_import from ldap
[FW-import-policy_import] server template auth_server_ldap
[FW-import-policy_import] server basedn dc=cce,dc=com
[FW-import-policy_import] destination-group /cce.com
[FW-import-policy_import] user-attribute uid
[FW-import-policy_import] import-type all
[FW-import-policy_import] import-override enable
[FW-import-policy_import] sync-mode incremental schedule interval 120
[FW-import-policy_import] quit

  7. Execute the import policy to import users to the FW.

    [FW] execute user-manage import-policy policy_import

  8. Set the new user option for the authentication domain on the FW.

    [FW] aaa
[FW-aaa] domain cce.com
[FW-aaa-domain-cce.com] new-user add-temporary group /cce.com auto-import policy_import
[FW-aaa-domain-cce.com] quit
[FW-aaa] quit

  9. Configure an authentication policy.

    [FW] auth-policy
[FW-policy-auth] rule name auth_policy_service
[FW-policy-auth-rule-auth_policy_service] source-zone trust
[FW-policy-auth-rule-auth_policy_service] source-address 10.3.0.0 24
[FW-policy-auth-rule-auth_policy_service] action auth
[FW-policy-auth-rule-auth_policy_service] quit

  10. After the configuration is complete, you can configure security policies, PBR policies, bandwidth policies, quota control policies, proxy policies, and audit policies that reference the user and user group objects.

Verification

  • Run the display user-manage user and display user-manage group commands on the FW to display information about users and user groups.
  • The R&D employee uses the Internet Explorer to access www.example.org and is redirected to an authentication page. The R&D employee then enters user name and password for authentication. After the R&D employee is authenticated, R&D employee can access network resources.
  • The marketing employee uses the Internet Explorer to access www.example.org and is redirected to an authentication page. The marketing employee then enters user name and password for authentication. After the marketing employee is authenticated, marketing employee can access network resources.
  • The new employee uses the Internet Explorer to access www.example.org and is redirected to an authentication page. The new employee then enters user name and password for authentication. After the new employee is authenticated, new employee can access network resources.
  • Before accessing non-HTTP servers, such as FTP servers, employees need to access the authentication page at https://10.3.0.1:8887 for authentication. The IP address of the authentication page must be that of the interface on the FW and must be reachable to users.
  • Run the display user-manage online-user command on the FW to display information about online users.
    <FW> display user-manage online-user verbose
Current Total Number: 1
--------------------------------------------------------------------------------
 IP Address: 10.3.0.2
 Login Time: 2015-01-30 17:24:16  Online Time: 00:01:58
 State: Active  TTL: 00:30:00  Left Time: 00:30:00
 Access Type: local
 Authentication Mode: Password (LDAP)
 Access Device Type: unknown
 <--packets: 0 bytes: 0  -->packets: 0 bytes: 0
 Build ID: 0
 User Name: user_0002@cce.com  Parent User Group: /cce.com/research
--------------------------------------------------------------------------------

Configuration Scripts

#
 sysname FW
#
ldap-server template auth_server_ldap
 ldap-server authentication 10.2.0.50 389 no-ssl
 ldap-server authentication base-dn dc=cce,dc=com
 ldap-server authentication manager uid=admin_test %$%$>884X|-geW:1_*O\(6EI+|sj%$%$ %$%$>884X|-geW:1_*O\(6EI+|sj%$%$
 ldap-server group-filter ou
 ldap-server user-filter uid
 ldap-server server-type sun-one
#
interface GigabitEthernet0/0/1
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 10.2.0.1 255.255.255.0
#
interface GigabitEthernet0/0/3
 ip address 10.3.0.1 255.255.255.0
#
firewall zone trust
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 add interface GigabitEthernet0/0/1
#
firewall zone dmz
 add interface GigabitEthernet0/0/2
#
aaa
 authentication-scheme ldap
  authentication-mode ldap
 #
 domain cce.com
  authentication-scheme ldap
  ldap-server auth_server_ldap
  service-type internetaccess
  new-user add-temporary group /cce.com auto-import policy_import
#
user-manage import-policy policy_import from ldap
 server template auth_server_ldap
 server basedn dc=cce,dc=com
 destination-group /cce.com
 user-attribute uid
 user-filter (&(|(objectclass=person)(objectclass=organizationalPerson))(uid=*))
 group-filter (|(objectclass=organizationalUnit)(ou=*))
 security-group-filter (&(objectclass=groupofuniquenames)(!(memberURL=*)))
 import-type all
 import-override enable
 sync-mode incremental schedule interval 120
#
auth-policy
 rule name auth_policy_service
  source-zone trust
  source-address 10.3.0.0 24
  action auth
#
security-policy
 rule name policy_local_01
  source-zone trust
  destination-zone local
  source-address 10.3.0.0 24
  service protocol tcp destination-port 8887
  action permit
 rule name policy_local_02
  source-zone local
  destination-zone dmz
  destination-address 10.2.0.50 32
  action permit
 rule name policy_sec_02
  source-zone trust
  source-address 10.3.0.0 24
  destination-zone untrust
  action permit
 rule name policy_sec_03
  source-zone trust
  source-address 10.3.0.0 24
  destination-zone dmz
  action permit

# The following configuration is used to perform a one-time operation and not stored in the configuration profile.
 user-manage user-import demo.csv auto-create-group override
 test-aaa testname testpassword ldap-template auth_server_ldap
