CLI: Example for Configuring NTLM Authentication for Internet Access Users
This section describes an example that no authentication is required when the user logs in to the AD domain and accesses the Internet through the browser in a scenario where the FW serves as the enterprise egress gateway. The FW obtains the user identity through NTLM authentication.
Networking Requirements

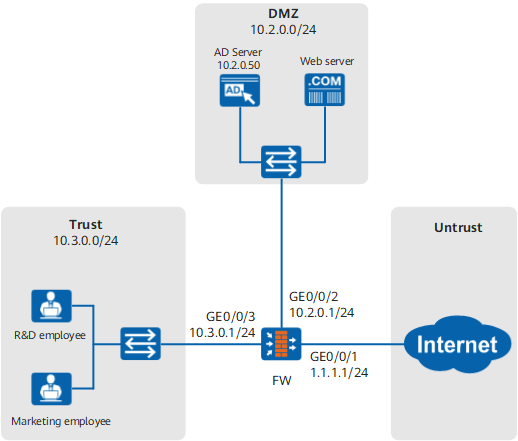

An enterprise has deployed a FW as the egress gateway to connect the intranet to the Internet, as shown in Figure 1.
- The AD identity authentication mechanism is enabled on the intranet, and information about users and user group is saved on an AD server.
- Internet access users on the intranet include R&D employees and marketing employees.
The user management and authentication mechanisms of the FW must identify IP addresses on the intranet as users to implement user-specific behavior control and permission assignment. Requirements are as follows:
- Information about users and departments is saved on the FW and can be referenced by policies.
- R&D and marketing employees can log in to the AD domain using their domain accounts and passwords and access the Internet through the browser without further authentication. R&D and marketing employees are identified by the user names they use to log in to AD domains.
- If the domain accounts of new employees have been created on an AD server but not stored on a FW, the employees go online as temporary users in a specified user group.
- This example describes only how to configure user management and authentication.
- A prerequisite of NTLM authentication is that the browser must support NTLM authentication. Otherwise, the browser cannot automatically provide user login information. At present, IE and Chrome support NTLM authentication. However, you must enable automatic logon in Internet Options.
- In the Internet Options dialog box, click the Security tab and then Custom level.
- Click Automatic logon with current user name and password in .
Configuration Roadmap
The configuration roadmap is as follows:
- Configure the new user option of the authentication domain. If an authenticated user does not exist on the FW, the user goes online as a temporary user in a specified user group.
- Configure the portal authentication template and enable NTLM authentication.
- Configure the authentication policy on the FW and set the action to authentication and portal authentication template reference.
Procedure
- Set IP addresses for interfaces and assign the interfaces to security zones. The following example describes how to configure interface GigabitEthernet 0/0/3. You can configure other interfaces based on the networking diagram.
<FW> system-view [FW] interface GigabitEthernet 0/0/3 [FW-GigabitEthernet0/0/3] ip address 10.3.0.1 24 [FW-GigabitEthernet0/0/3] quit [FW] firewall zone trust [FW-zone-trust] add interface GigabitEthernet 0/0/3 [FW-zone-trust] quit
- Configure security policies.
- Configure a security policy to allow users to access the Internet.
[FW-policy-security] rule name policy_sec_02 [FW-policy-security-rule-policy_sec_02] source-zone trust [FW-policy-security-rule-policy_sec_02] source-address 10.3.0.0 24 [FW-policy-security-rule-policy_sec_02] destination-zone untrust [FW-policy-security-rule-policy_sec_02] action permit [FW-policy-security-rule-policy_sec_02] quit
Enable the DNS service for the Trust -> Untrust interzone to allow HTTP domain name resolution packets through.
- Configure a security policy to allow users to access the Internet.
- Configure an authentication domain.
[FW] aaa [FW-aaa] domain cce [FW-aaa-domain-cce] service-type internetaccess [FW-aaa-domain-cce] new-user add-temporary group /default [FW-aaa-domain-cce] quit [FW-aaa] quit
NTLM authentication supports only using the permission of a certain user group as a temporary user but not referencing an import policy in the new user option configuration to obtain a user's organizational structure on the AD server.
- Configure the redirect from the authentication page to the previously accessed page after authentication.
[FW] user-manage redirect - Configure a portal authentication template and enable NTLM authentication.
[FW] user-manage portal-template ntlm [FW-portal-template-ntlm] portal-url https://10.3.0.1:8887 [FW-portal-template-ntlm] portal-url push information [FW-portal-template-ntlm] ntlm enable [FW-portal-template-ntlm] ntlm auth-server address 10.2.0.50 port 445
In NTLM authentication, the FW does not prompt a portal authentication page for entering the user name and password. This process, however, involves redirection for authentication. Therefore, you must configure the URL of the portal authentication page in the portal authentication template, namely, https://interface IP address:8887.
Ensure that users can access https://interface-IP-address:8887. If not, see The Portal Authentication Page Cannot Be Displayed.
Redirects HTTPS service requests need run the https enable command in the portal authentication template.
- Create authentication policies.
Pay attention to the sequence of configuring the following two authentication policies. If the sequence is incorrect, traffic of users logging in to the AD domain matches the portal authentication policy and needs to go through the firewall authentication process.
- After the configuration is complete, you can configure security policies, PBR policies, bandwidth policies, quota control policies, proxy policies, and audit policies that reference the user and user group objects.
Verification
- Verify whether users who already log in to the AD domain using domain accounts and passwords can access the Internet through the browser without entering user names or passwords again.
If the browser displays a dialog box asking for the user name and password, enter your domain account and password.
- Run the display user-manage online-user command on the FW to display information about online users.
<FW> display user-manage online-user verbose Current Total Number: 1 -------------------------------------------------------------------------------- IP Address: 10.3.0.2 Login Time: 2016-11-21 14:58:36 Online Time: 00:00:49 State: Active TTL: 00:30:00 Left Time: 00:29:59 Access Type: local Authentication Mode: Password (AD) Access Device Type: unknown <--packets: 0 bytes: 0 -->packets: 0 bytes: 0 Build ID: 0 User Name: user_0001@cce Parent User Group: /cce/research --------------------------------------------------------------------------------
Configuration Scripts
# sysname FW # user-manage redirect # user-manage portal-template ntlm 0 portal-url https://10.3.0.1:8887 portal-url push information ntlm enable ntlm auth-server address 10.2.0.50 port 445 # security-policy rule name policy_sec_01 source-zone trust destination-zone dmz source-address 10.3.0.0 24 action permit rule name local_policy_user_01 source-zone trust destination-zone local source-address 10.3.0.0 24 action permit rule name local_policy_ad_01 source-zone local destination-zone dmz destination-address 10.2.0.50 32 action permit rule name local_policy_ad_02 source-zone dmz destination-zone local source-address 10.2.0.50 32 action permit rule name policy_sec_02 source-zone trust destination-zone untrust source-address 10.3.0.0 24 action permit # auth-policy rule name auth_policy_ad source-zone trust destination-zone dmz source-address 10.3.0.0 24 destination-address 10.2.0.50 32 action none rule name auth_policy_service source-zone trust source-address 10.3.0.0 24 action auth portal-template nltm # interface GigabitEthernet0/0/1 ip address 1.1.1.1 255.255.255.0 # interface GigabitEthernet0/0/2 ip address 10.2.0.1 255.255.255.0 # interface GigabitEthernet0/0/3 ip address 10.3.0.1 255.255.255.0 # firewall zone trust add interface GigabitEthernet0/0/3 # firewall zone untrust add interface GigabitEthernet0/0/1 # firewall zone dmz add interface GigabitEthernet0/0/2 # aaa domain cce service-type internetaccess new-user add-temporary group /default
