CLI: Example for Configuring Portal Authentication for Internet Access Users (the FW Participates in User Authentication)

This section provides an example for configuring the FW that serves as an egress gateway to complete user authentication with the Agile Controller. Users can directly access HTTP services. The FW redirects HTTP requests to the Portal authentication page of the Agile Controller. The Agile Controller sends authentication requests to the FW. The user can access desired services after the authentication succeeds.

Networking Requirements

As shown in Figure 1, an enterprise has deployed the FW as the egress gateway at the network border to connect the intranet and Internet.

  • The intranet Portal server (a component of the Agile Controller) provides a Portal authentication page. The FW redirects users' HTTP requests to the authentication page of the Portal server.
  • The intranet RADIUS server (a component of the Agile Controller) stores user information and completes user authentication.
  • Intranet users include R&D employees and marketing employees.

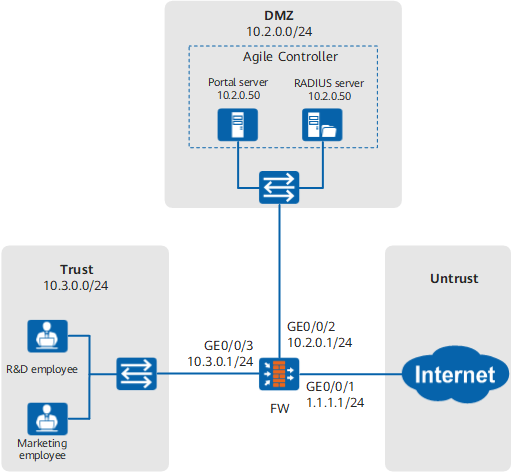

Figure 1 Configuring Portal authentication for Internet access users (the FW participates in user authentication)

The enterprise network administrator wants to use the user management mechanism provided by the FW to identify intranet IP addresses as users to control users' network behavior and assign network permissions.

  • R&D employees and marketing employees can access HTTP services without proactively accessing the portal authentication page of the Portal server, because their HTTP requests will be automatically redirected to the portal authentication page.
  • R&D employees and marketing employees can access network resources only after being authenticated by the RADIUS server.
  • The FW saves security group information, not user information. The permissions of authenticated users are controlled on the basis of the groups they belong to.

Configuration Roadmap

This example describes how to configure only users and user authentication.

  1. Configure user information, authorization information, Portal server information, and RADIUS server information on the Agile Controller so that the Agile Controller can interwork with the FW.
  2. Configure interfaces and security policies on the FW.
  3. Configure the RADIUS server.
  4. Configure authentication, authorization, and accounting schemes.
  5. Configure an authentication domain and reference the authentication, authorization, and accounting schemes.
  6. Configure Portal2.0 authentication.
  7. Configure the portal authentication page.
  8. Configure an authentication policy.

Data Planning

Item

Data

Description

Agile Controller
R&D user information:
  • Account: user_0001
  • Password: Admin@123
  • Role: role1
  • Security group: research
Marketing user information:
  • Account: user_0002
  • Password: Admin@123
  • Role: role2
  • Security group: marketing

When a user is redirected to the Portal authentication page of the Portal server, the user needs to enter the account and password for authentication.
RADIUS parameters:
  • Authentication and accounting key: Admin@123
  • Authorization key: Admin@123

The RADIUS parameters configured on the Agile Controller must be consistent with those on the FW.
Portal authentication parameters:
  • Port: 2000
  • Portal key: Admin@123
  • Access device IP address list: 10.3.0.0/24
  • Portal protocol: Huawei Portal protocol
  • Enable heartbeat detection between the access device and Portal server
  • Portal server IP address: 10.2.0.50

The Portal parameters configured on the Agile Controller must be consistent with those on the FW.

FW
RADIUS server:
  • Authentication/Accounting/Authorization server IP address: 10.2.0.50
  • Authentication port: 1812
  • Accounting port: 1813
  • Authentication and accounting key: Admin@123
  • Authorization key: Admin@123

The RADIUS server parameters configured on the FW must be consistent with those on the Agile Controller.
Portal server:
  • IP address: 10.2.0.50
  • Port: 50100
  • Portal key: Admin@123
  • Probe interval and probe retry count: 100s and 5
  • User synchronization period and synchronization count: 300s and 5
  • Portal authentication page: http://10.2.0.50:8080/portal

The Portal server parameters configured on the FW must be consistent with those on the Agile Controller.

FW listening port: 2000

The port must be set on both the Agile Controller and FW. The port is the one for Portal authentication on the Agile Controller.

Procedure

  1. Configure user information, authorization information, Portal server information, and RADIUS server information on the Agile Controller.
    1. Choose Resource > User > Role Management to create a role.

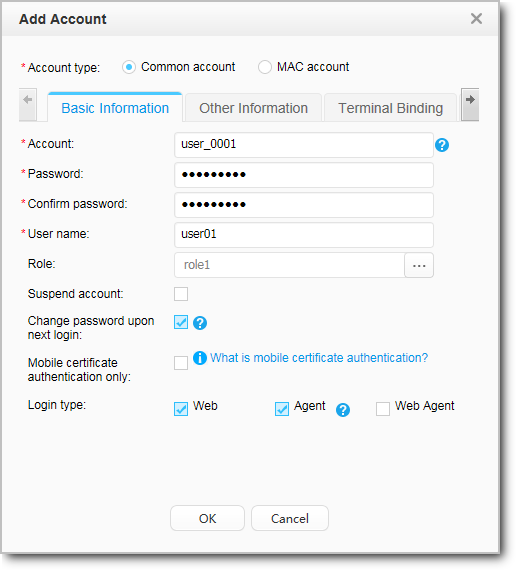

    2. Choose Resource > User > User Management to create a user and associate the user with the role.

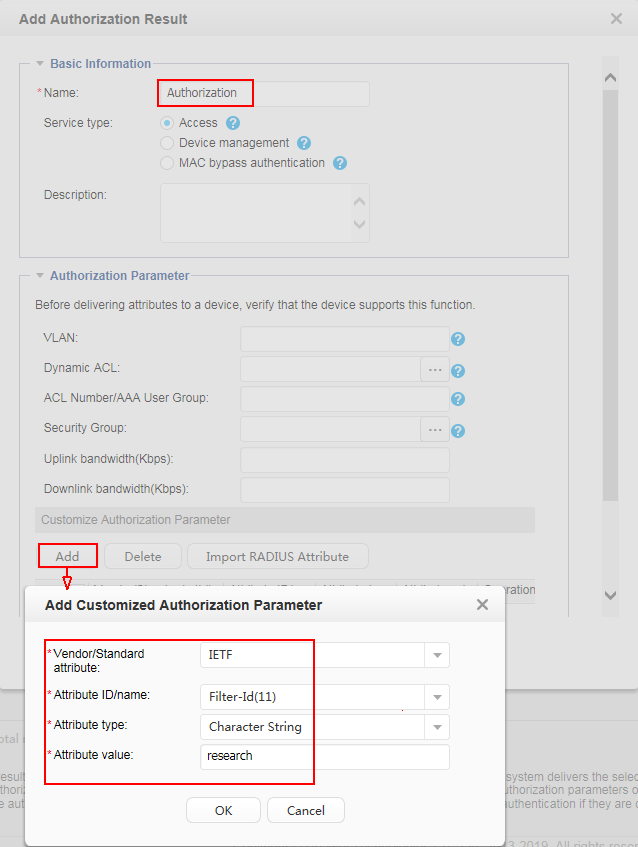

    3. Choose Policy > Permission Control > Authentication & Authorization > Authorization Result to configure the authorization result. The attribute value research is the security group of the user and must the same as that on the 7.

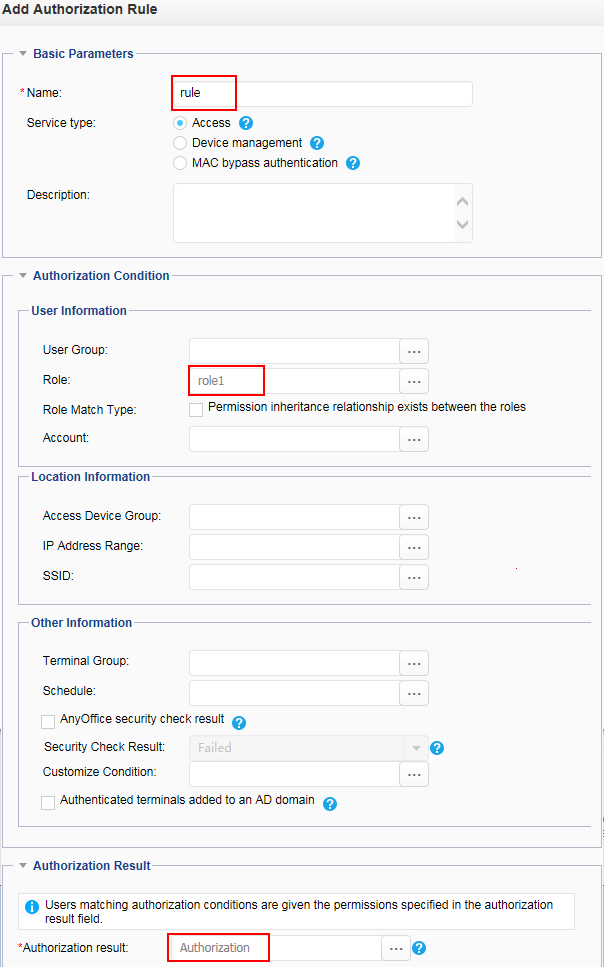

    4. Choose Policy > Permission Control > Authentication & Authorization > Authorization Rule to configure an authorization rule. Reference the authorization result and role in the rule and associate the authorization result and role.

      The process for configuring marketing user information and authorization information is similar to the process for configuring R&D user and authorization information.

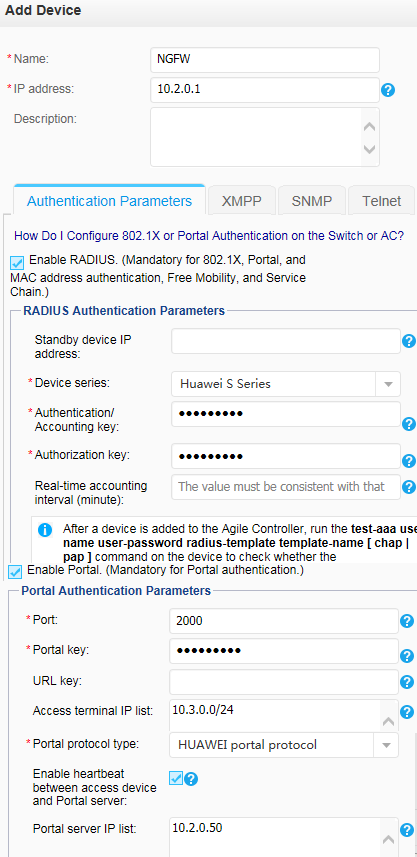

    5. Choose Resource > Device > Device Management to add a device and configure the Portal server and RADIUS server.

      Parameter

      Description

      IP address

      The interface on the FW must be able to communicate with the Agile Controller.

      RADIUS parameter

      Authentication and accounting key

      The key must be the same as the shared key (configured in 4) used by the FW to communicate with the authentication server and accounting server.

      Authorization key

      The key must be the same as the shared key (configured in 4) used by the FW to communicate with the authorization server.

      Realtime account period

      This parameter is optional.

      Device series

      Use the default value.

      Portal authentication parameters

      Port

      The port must be the same as the listening port configured in 8.

      Portal key

      The key must be the shared key configured in 8.



  2. Specify interface IP addresses and assign the interfaces to security zones on the FW. The following example describes how to configure GigabitEthernet 0/0/3. You can configure other interfaces based on the networking diagram.

    <FW> system-view
[FW] interface GigabitEthernet 0/0/3
[FW-GigabitEthernet0/0/3] ip address 10.3.0.1 24
[FW-GigabitEthernet0/0/3] quit
[FW] firewall zone trust
[FW-zone-trust] add interface GigabitEthernet 0/0/3
[FW-zone-trust] quit

  3. Configure security policies on the FW.
    1. Configure a security policy for the Trust (intranet users) -> DMZ (Portal server) for users to access the Portal authentication page of the Portal server.

      [FW] security-policy
[FW-policy-security] rule name sec_policy_tsm
[FW-policy-security-rule-sec_policy_tsm] source-zone trust
[FW-policy-security-rule-sec_policy_tsm] source-address 10.3.0.0 24
[FW-policy-security-rule-sec_policy_tsm] destination-zone dmz
[FW-policy-security-rule-sec_policy_tsm] destination-address 10.2.0.0 24
[FW-policy-security-rule-sec_policy_tsm] action permit
[FW-policy-security-rule-sec_policy_tsm] quit

      If the URL of the authentication page is a domain name and a DNS server for resolving the URL is deployed in the DMZ, you need to enable the DNS server from the Trust zone to DMZ.

    2. Configure a security policy between the DMZ (where the Portal and RADIUS servers reside) and Local zone to allow the Portal and RADIUS servers communicate with the FW.

      [FW-policy-security] rule name local_policy_01
[FW-policy-security-rule-local_policy_01] source-zone local
[FW-policy-security-rule-local_policy_01] destination-zone dmz
[FW-policy-security-rule-local_policy_01] action permit
[FW-policy-security-rule-local_policy_01] quit
[FW-policy-security] rule name local_policy_02
[FW-policy-security-rule-local_policy_02] source-zone dmz
[FW-policy-security-rule-local_policy_02] destination-zone local
[FW-policy-security-rule-local_policy_02] action permit
[FW-policy-security-rule-local_policy_02] quit

  4. Configure the RADIUS server on the FW. The parameters must be consistent with those on the RADIUS server.

    # Configure IP addresses and ports for the RADIUS authentication and accounting servers and the shared key used by the FW to communicate with the authentication and accounting servers.

    [FW] radius-server template auth_server_radius
[FW-radius-auth_server_radius] radius-server authentication 10.2.0.50 1812
[FW-radius-auth_server_radius] radius-server accounting 10.2.0.50 1813
[FW-radius-auth_server_radius] radius-server shared-key cipher Admin@123
[FW-radius-auth_server_radius] test-aaa testname testpassword radius-template auth_server_radius
[FW-radius-auth_server_radius] quit

    # Configure an IP address for the RADIUS authorization server and the shared key used by the FW to communicate with the authorization server.

    [FW] radius-server authorization 10.2.0.50 shared-key cipher Admin@123

  5. Configure authentication, authorization, and accounting schemes.

    # Configure an authentication scheme and set the authentication mode to RADIUS.

    [FW] aaa
[FW-aaa] authentication-scheme radius   //Configure authentication scheme radius.
[FW-aaa-authen-radius] authentication-mode radius
[FW-aaa-authen-radius] quit

    # Configure an authorization scheme and set the authorization mode to RADIUS.

    [FW] aaa
[FW-aaa] authorization-scheme radius   //Configure authorization scheme radius.
[FW-aaa-author-radius] authorization-mode radius
[FW-aaa-author-radius] quit

    # Configure an accounting scheme and set the accounting mode to RADIUS.

    [FW] aaa
[FW-aaa] accounting-scheme radius   //Configure accounting scheme radius.
[FW-aaa-accounting-radius] accounting-mode radius
[FW-aaa-accounting-radius] quit

  6. Configure an authentication domain and reference the RADIUS server template and authentication, authorization, and accounting schemes.

    [FW-aaa] domain default
[FW-aaa-domain-default] authentication-scheme radius   //The authentication domain is bound with authentication scheme radius.
[FW-aaa-domain-default] authorization-scheme radius   //The authentication domain is bound with authorization scheme radius
[FW-aaa-domain-default] accounting-scheme radius   //The authentication domain is bound with accounting scheme radius
[FW-aaa-domain-default] radius-server auth_server_radius   //The authentication domain is bound with the server template.
[FW-aaa-domain-default] service-type internetaccess
[FW-aaa-domain-default] quit
[FW-aaa] quit

  7. Configure the security group to which the Internet access user belongs.

    [FW] user-manage security-group research
[FW-securitygroup-research] security-group-type static
[FW-securitygroup-research] quit
[FW] user-manage security-group marketing
[FW-securitygroup-marketing] security-group-type static
[FW-securitygroup-marketing] quit

  8. Configure Portal2.0 authentication.

    # Configure the Portal server template and create Portal server information in the Portal server template.

    [FW] web-auth-server default
[FW-web-auth-server-default] server-ip 10.2.0.50
[FW-web-auth-server-default] port 50100
[FW-web-auth-server-default] shared-key cipher Admin@123
[FW-web-auth-server-default] server-detect interval 100 max-times 5 action log
[FW-web-auth-server-default] user-sync interval 300 max-times 5
[FW-web-auth-server-default] quit

    # Configure a listening port for Portal2.0 enable the device to transparently transmit the user authentication information from the RADIUS server to the Portal server.

    [FW] web-auth-server listening-port 2000
[FW] web-auth-server reply-message

    # Configure the Portal access template and bind the Portal server template.

    [FW] portal-access-profile name default
[FW-portal-acces-profile-default] web-auth-server default
[FW-portal-acces-profile-default] quit

    # Configure the authentication template and bind the Portal access template. In this example, authentication template portal_authen_default is created.

    [FW] authentication-profile name portal_authen_default
[FW-authen-profile-portal_authen_default ] portal-access-profile default
[FW-authen-profile-portal_authen_default ] quit

    # Configure Loopback 0 and apply the authentication template to Loopback 0. Currently, the authentication template can be bound only to Loopback 0, and only authentication template portal_authen_default can be bound to Loopback 0.

    [FW] interface loopback 0
[FW-LoopBack0] authentication-profile portal_authen_default
[FW-LoopBack0] quit

  9. Configure the Portal authentication page and ensure that the Portal URL is the same as the authentication page used by the Portal server.

    [FW] user-manage portal-template portal
[FW-portal-template-portal] portal-url http://10.2.0.50:8080/portal
[FW-portal-template-portal] portal-url push information
[FW-portal-template-portal] server-detect web-auth-server default
[FW-portal-template-portal] quit

  10. Configure the action in the authentication policy for users to access the Portal server to no-authentication so that the users' authentication packets can go through the FW to the Portal server. Set the action in the authentication policy for users to access other services to Portal authentication.

    [FW] auth-policy
[FW-policy-auth] rule name auth_policy_tsm
[FW-policy-auth-rule-auth_policy_tsm] source-zone trust
[FW-policy-auth-rule-auth_policy_tsm] destination-zone dmz
[FW-policy-auth-rule-auth_policy_tsm] source-address 10.3.0.0 24
[FW-policy-auth-rule-auth_policy_tsm] destination-address 10.2.0.50 32
[FW-policy-auth-rule-auth_policy_tsm] action none
[FW-policy-auth-rule-auth_policy_tsm] quit
[FW-policy-auth] rule name auth_policy_service
[FW-policy-auth-rule-auth_policy_service] source-zone trust
[FW-policy-auth-rule-auth_policy_service] destination-zone untrust
[FW-policy-auth-rule-auth_policy_service] source-address 10.3.0.0 24
[FW-policy-auth-rule-auth_policy_service] action auth portal-template portal

  11. After completing the preceding configurations, reference the security group when configuring a security policy, PBR, proxy policy, audit policy and quota control policy.

Verification

  • Access extranet resources as an R&D employee. The HTTP request is redirected to the authentication page. After entering the Agile Controller account and password, you can continue to access network resources.
  • Access extranet resources as a marketing employee. The HTTP request is redirected to the authentication page. After entering the Agile Controller account and password, you can continue to access network resources.
  • Run the display user-manage online-user verbose command on the firewall to view online user information.
    <sysname> display user-manage online-user verbose
 Current Total Number: 1
--------------------------------------------------------------------------------
 IP Address: 10.3.0.10
 Login Time: 2017-05-16 12:03:13  Online Time: 00:00:10
 State: Active  TTL: 00:30:00  Left Time: 00:30:00
 Access Type: Portal
 Authentication Mode: Password (RADIUS)
 Access Device Type: unknown
 <--packets: 8 bytes: 1590  -->packets: 8 bytes: 1389
 Downlink Rate: 23 kbps     Uplink Rate: 750 kbps
 Build ID: 0
 User Name: user_0001  Parent User Group: /default
 Parent Security Group: research
 --------------------------------------------------------------------------------

Configuration Scripts

sysname FW
#
authentication-profile name portal_authen_default
 portal-access-profile default
#
 user-manage portal-template portal
 portal-url push information
 portal-url http://10.2.0.50:8080/portal
 server-detect web-auth-server default
#
security-policy
 rule name sec_policy_tsm
  source-zone trust
  destination-zone dmz
  source-address 10.3.0.0 24
  destination-address 10.2.0.0 24
  action permit
 rule name local_policy_01
  source-zone local
  destination-zone dmz
  action permit
 rule name local_policy_02
  source-zone dmz
  destination-zone local
  action permit
#
radius-server template auth_server_radius
 radius-server shared-key cipher %^%#H**3(i3_k%ugc;,fvZG!,-:|*=(A5(y4Q_2t'3P%^%
#
 radius-server authentication 10.2.0.50 1812 weight 80
 radius-server accounting 10.2.0.50 1813 weight 80
 radius-server group-filter class
radius-server authorization 10.2.0.50 shared-key cipher %^%#K}(^&0opP~Q%fMUr3k*(
59%N:,+H$*!(Vs%%^%#
#
web-auth-server default
 server-ip 10.2.0.50
 port 50100
 shared-key cipher %^%#/.6y+B[H{Q'wPG"lpVK,bx*Yg9C*5VEC;'-K7~Z%^%#
 server-detect interval 100 max-times 5 action log
 user-sync max-times 5
#
portal-access-profile name default
 web-auth-server default
#
aaa
 authentication-scheme radius
  authentication-mode radius
 authorization-scheme radius
  authorization-mode radius
 accounting-scheme radius
  accounting-mode radius
 domain default
  authentication-scheme radius
  accounting-scheme radius
  authorization-scheme radius
  radius-server auth_server_radius
  service-type internetaccess
  internet-access mode password
#
interface GigabitEthernet0/0/3
 undo shutdown
 ip address 10.3.0.1 255.255.255.0
#
interface LoopBack0
 authentication-profile portal_authen_default
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet0/0/2
#
auth-policy
 rule name auth_policy_tsm
  source-zone trust
  destination-zone dmz
  source-address 10.3.0.0 mask 255.255.255.0
  destination-address 10.2.0.50 mask 255.255.255.255
  action none
 rule name auth_policy_service
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 mask 255.255.255.0
  action auth portal-template portal
#
return
Parent Topic: User Authentication
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
