Web: Example for Configuring Virtual Systems to Isolate Enterprise Departments (Layer-2 Access)
A firewall accesses an enterprise network at Layer 2. You can configure virtual systems with separate administrators to isolate departments of the enterprise.
Networking Requirements
Medium-sized enterprise A deploys a firewall as the network gateway. The network of this enterprise is divided into three subnets respectively for the R&D, financial, and administrative department. The security policies for the three departments are different and must meet the following requirements:
- The FW connects to an existing intranet through Layer-2 access, without changing the intranet's network topology.
- Internet access is granted to all employees of the administrative department, some employees of the R&D department, but none of the employees of the financial department.
- The three departments have similar traffic volumes and therefore are assigned the same amount of virtual system resources.
Configure virtual systems to meet the preceding requirements. Figure 1 shows the networking diagram.
Data Planning
Item |
Data |
Description |
|---|---|---|
vsysa |
|
Both the outside interface GE0/0/1 and inside interface GE0/0/2 are trunk interfaces and can be assigned to multiple virtual systems based on VLAN assignment. |
vsysb |
|
- |
vsysc |
|
- |
Resource class |
|
The three departments have similar traffic volumes and therefore are assigned the same resource class. |
Configuration Roadmap
- Configure GE0/0/1 and GE0/0/2 as trunk interfaces and add them to VLANs.
- The public system administrator creates three virtual systems vsysa, vsysb, and vsysc, assigns VLANs and resources, and configures an administrator for each virtual system.
- The administrator of the R&D department logs in to the FW to configure security policies for vsysa.
- The administrator of the financial department logs in to the FW to configure security policies for vsysb.
- The administrator of the administrative department logs in to the FW to configure security policies for vsysc.
Procedure
- Configure GE0/0/1 and GE0/0/2 as trunk interfaces and add them to VLANs.
- Click Dashboard on the main menu. In the Device Information area, click Configure on the line of Virtual System to enable the virtual system function.

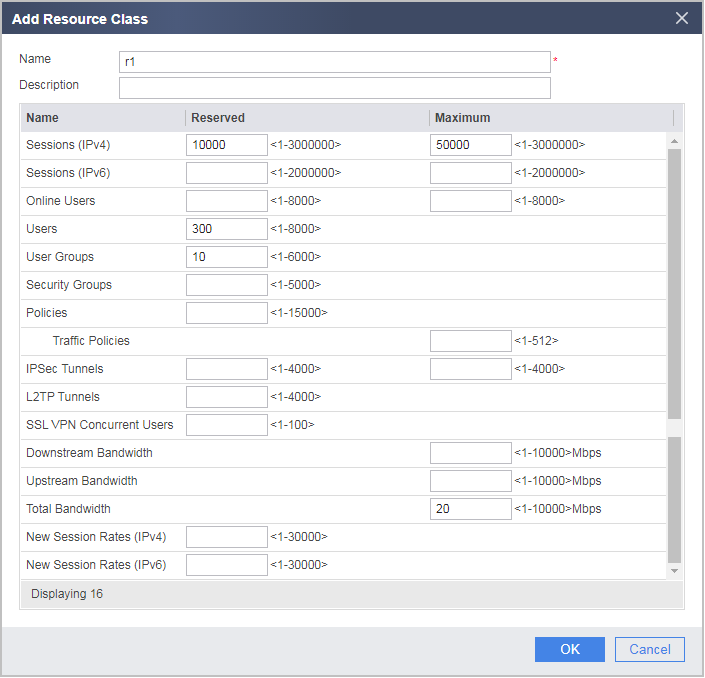

- Configure a resource class.
- Choose .
- Click Add and set the following parameters.
- Choose .
- In the root system, create virtual systems vsysa and vsysb and add them to VLANs.
- Choose .
- Click Add and then the Basic Settings tab and set the following parameters.

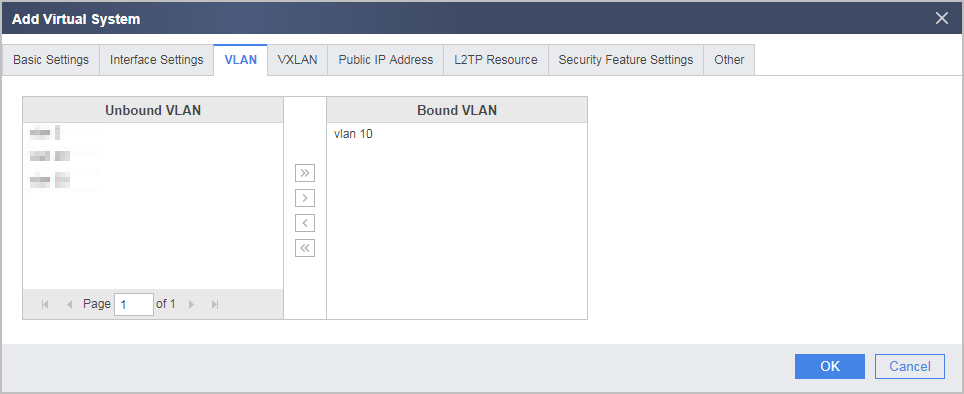

- Click the VLAN tab and set the following parameters.
- Choose .
- Create administrators for the virtual systems in the root system.
- Choose .
- Choose .
- The R&D department administrator enters vsysa and configures security zones and policies for interfaces.
- Choose .
- Choose .
- The financial department administrator admin@@vsysb and administrative department administrator admin@@vsysc log in to the FW and configure IP addresses, security zones, and security policies for vsysb and vsysc, respectively.
The configuration is similar to that of the R&D department except the following:
- You only need to configure a security policy to prevent the IP address segment 10.3.1.2-10.3.1.254 from accessing the Internet.
- You only need to configure a security policy to allow the IP address segment 10.3.2.2-10.3.2.254 to access the Internet.
Verification
- Use a PC that is allowed to access the Internet and a PC that is not allowed to access the Internet from the R&D department to access the Internet. If the results are as expected, the security policies of vsysa are correctly configured.
- Access the Internet from the financial department. If the access fails, the security policies of vsysb are correctly configured.
- Access the Internet from the administrative department. If the access succeeds, the security policies of vsysc are correctly configured.
Configuration Scripts
Configuration script of the public system
# sysname FW # vlan batch 10 20 30 # vsys enable # resource-class r1 resource-item-limit session reserved-number 10000 maximum 50000 resource-item-limit policy reserved-number 300 resource-item-limit user reserved-number 300 resource-item-limit user-group reserved-number 10 # vsys name vsysa 1 assign vlan 10 assign resource-class r1 # vsys name vsysb 2 assign vlan 20 assign resource-class r1 # vsys name vsysc 3 assign vlan 30 assign resource-class r1 # interface GigabitEthernet0/0/1 portswitch undo shutdown port link-type trunk undo port trunk allow-pass vlan 1 port trunk allow-pass vlan 10 20 30 # interface GigabitEthernet0/0/2 portswitch undo shutdown port link-type trunk undo port trunk allow-pass vlan 1 port trunk allow-pass vlan 10 20 30 # return
Configuration script of vsysa
# firewall zone trust set priority 85 add interface GigabitEthernet0/0/2 # firewall zone untrust set priority 5 add interface GigabitEthernet0/0/1 # aaa manager-user admin@@vsysa password cipher %@%@@~QEN4"Db/xmvR'5@=5)^`WN]~h`Mwn-{BNPy#ZYE>`6`f]X%@%@ service-type web telnet ssh level 15 bind manager-user admin@@vsysa role system-admin # ip address-set ipaddress1 type object address 0 range 10.3.0.2 10.3.0.10 # security-policy rule name to_internet source-zone trust destination-zone untrust source-address address-set ipaddress1 action permit rule name to_internet2 source-zone trust destination-zone untrust action deny # return
Configuration script of vsysb
# firewall zone trust set priority 85 add interface GigabitEthernet0/0/2 # firewall zone untrust set priority 5 add interface GigabitEthernet0/0/1 # aaa manager-user admin@@vsysb password cipher %@%@zG{;O|!gEN4"Db/xmvR'5@=5)^`WN]~h`Mwn-{BNPy#ZYE>`6`f] service-type web telnet ssh level 15 bind manager-user admin@@vsysb role system-admin # ip address-set ipaddress1 type object address 0 range 10.3.1.2 10.3.1.254 # security-policy rule name to_internet source-zone trust destination-zone untrust source-address address-set ipaddress1 action deny # return
Configuration script of vsysc
# firewall zone trust set priority 85 add interface GigabitEthernet0/0/2 # firewall zone untrust set priority 5 add interface GigabitEthernet0/0/1 # aaa manager-user admin@@vsysc password cipher %@%@zG{;x|!gEN5"Db/6dvR'5@=5)^`WN]~h`Mwn-{BNPy#ZYE>`6`f] service-type web telnet ssh level 15 bind manager-user admin@@vsysc role system-admin # ip address-set ipaddress1 type object address 0 range 10.3.2.2 10.3.2.254 # security-policy rule name to_internet source-zone trust destination-zone untrust source-address address-set ipaddress1 action permit # return
