CLI: A Branch Accesses Different VPN Resources at the Headquarters Through an IPSec Tunnel
Networking Requirements

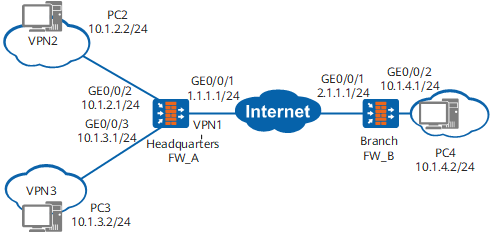

In Figure 1, FW_A is the headquarters gateway, and FW_B is the branch gateway. Different resources at the headquarters are isolated using VPNs. The branch needs to securely access these resources through an IPSec tunnel.
Configuration Roadmap
Configure an IPSec policy using an IPSec policy template on FW_A to respond to the branch access request. Only one VPN instance can be bound to the IKE peer of FW_A, so VPNs need to import routes from each other for inter-VPN traffic forwarding if the branch needs to access different VPN resources at the headquarters.
Perform basic configurations, including configuring IP addresses for interfaces, adding interfaces to security zones, configuring inter-zone security policies, and configuring static routes.
Configure IPSec policies, including IPSec proposals, data flows to be encrypted, and IKE proposals.
Procedure
- On FW_A, configure VPN instances, configure IP addresses for interfaces, add interfaces to security zones, and configure inter-zone security policies.
- Configure inter-zone security policies between the local zone and zone where the inbound interface resides.
The Local-Untrust interzone policy controls whether IKE negotiation packets can pass through the FW. This policy can use the source and destination addresses, protocol, or port as the matching condition. In this example, the source and destination addresses are used as the matching condition. To use the protocol or port as the matching condition, you need to enable ESP and port 500 for UDP (port 4500 also in NAT traversal scenarios).
[FW_A] security-policy [FW_A-policy-security] rule name policy1 [FW_A-policy-security-rule-policy1] source-zone local [FW_A-policy-security-rule-policy1] destination-zone untrust [FW_A-policy-security-rule-policy1] source-address 1.1.1.1 24 [FW_A-policy-security-rule-policy1] destination-address 2.1.1.1 24 [FW_A-policy-security-rule-policy1] action permit [FW_A-policy-security-rule-policy1] quit [FW_A-policy-security] rule name policy2 [FW_A-policy-security-rule-policy2] source-zone untrust [FW_A-policy-security-rule-policy2] destination-zone local [FW_A-policy-security-rule-policy2] source-address 2.1.1.1 24 [FW_A-policy-security-rule-policy2] destination-address 1.1.1.1 24 [FW_A-policy-security-rule-policy2] action permit [FW_A-policy-security-rule-policy2] quit
- Configure inter-zone security policies between the local zone and zone where the inbound interface resides.
- Configure an IPSec policy on FW_A.
- Configure an IPSec policy.
[FW_A] ipsec policy-template use1 10 [FW_A-ipsec-policy-templet-use1-10] proposal tran1 [FW_A-ipsec-policy-templet-use1-10] ike-peer vpn [FW_A-ipsec-policy-templet-use1-10] flow-vrf check disable [FW_A-ipsec-policy-templet-use1-10] quit [FW_A] ipsec policy map1 10 isakmp template use1
If VPNs import routes from each other for inter-VPN traffic forwarding, you need to run the flow-vrf check disable command to disable the check of the VPN instance in data flows during IPSec encryption/decryption.
- Configure an IPSec policy.
- Perform basic configurations on FW_B.
- Configure inter-zone security policies.
Configure inter-zone security policies between the trust zone and untrust zone.
[FW_B] security-policy [FW_B-policy-security] rule name policy1 [FW_B-policy-security-rule-policy1] source-zone trust [FW_B-policy-security-rule-policy1] destination-zone untrust [FW_B-policy-security-rule-policy1] source-address 10.1.4.0 24 [FW_B-policy-security-rule-policy1] destination-address 10.1.0.0 16 [FW_B-policy-security-rule-policy1] action permit [FW_B-policy-security-rule-policy1] quit [FW_B-policy-security] rule name policy2 [FW_B-policy-security-rule-policy2] source-zone untrust [FW_B-policy-security-rule-policy2] destination-zone trust [FW_B-policy-security-rule-policy2] source-address 10.1.0.0 16 [FW_B-policy-security-rule-policy2] destination-address 10.1.4.0 24 [FW_B-policy-security-rule-policy2] action permit [FW_B-policy-security-rule-policy2] quit
Configure inter-zone security policies between the local zone and untrust zone.
The Local-Untrust interzone policy controls whether IKE negotiation packets can pass through the FW. This policy can use the source and destination addresses, protocol, or port as the matching condition. In this example, the source and destination addresses are used as the matching condition. To use the protocol or port as the matching condition, you need to enable ESP and port 500 for UDP (port 4500 also in NAT traversal scenarios).
[FW_B-policy-security] rule name policy3 [FW_B-policy-security-rule-policy3] source-zone local [FW_B-policy-security-rule-policy3] destination-zone untrust [FW_B-policy-security-rule-policy3] source-address 2.1.1.1 24 [FW_B-policy-security-rule-policy3] destination-address 1.1.1.1 24 [FW_B-policy-security-rule-policy3] action permit [FW_B-policy-security-rule-policy3] quit [FW_B-policy-security] rule name policy4 [FW_B-policy-security-rule-policy4] source-zone untrust [FW_B-policy-security-rule-policy4] destination-zone local [FW_B-policy-security-rule-policy4] source-address 1.1.1.1 24 [FW_B-policy-security-rule-policy4] destination-address 2.1.1.1 24 [FW_B-policy-security-rule-policy4] action permit [FW_B-policy-security-rule-policy4] quit [FW_B-policy-security] quit
You can configure inter-zone security policies between the local zone and untrust zone to allow devices on both ends of an IPSec tunnel to communicate with each other.
- Configure inter-zone security policies.
- Configure an IPSec policy on FW_B.
Verification
Ping PC2 and PC3 from PC4. The ping succeeds.
You can run the display ike sa command on the FWs to view SA establishment information. The following example shows the command output of FW_A.
<FW_A> display ike sa IKE SA information: Conn-ID Peer VPN Flag(s) Phase RemoteType RemoteID ------------------------------------------------------------------- 117477245 2.1.1.1 vpn1 RD|A v2:2 IP 2.1.1.1 117477244 2.1.1.1 vpn1 RD|A v2:2 IP 2.1.1.1 117477243 2.1.1.1 vpn1 RD|A v2:1 IP 2.1.1.1 Number of IKE SA : 2 ------------------------------------------------------------------- Flag Description: RD--READY ST--STAYALIVE RL--REPLACED FD--FADING TO--TIMEOUT HRT--HEARTBEAT LKG--LAST KNOWN GOOD SEQ NO. BCK--BACKED UP M--ACTIVE S--STANDBY A--ALONE NEG--NEGOTIATING
Configuration Scripts
FW_A configuration scripts
# sysname FW_A # ip vpn-instance vpn1 route-distinguisher 100:1 # ip vpn-instance vpn2 route-distinguisher 200:1 # ip vpn-instance vpn3 route-distinguisher 300:1 # ipsec proposal tran1 esp authentication-algorithm sha2-256 esp encryption-algorithm aes-256 # ike proposal 10 encryption-algorithm aes-256 dh group14 authentication-algorithm sha2-256 authentication-method pre-share integrity-algorithm hmac-sha2-256 prf hmac-sha2-256 # ike peer vpn pre-shared-key %^%#5$\vJ~&IS==EJ=Eq^`3@GA[a!Xa}eIm'-GPK]_K@%^%# ike-proposal 10 sa binding vpn-instance vpn1 # ipsec policy-template use1 10 ike-peer vpn proposal tran1 flow-vrf check disable # ipsec policy map1 10 isakmp template use1 # interface GigabitEthernet0/0/1 undo shutdown ip binding vpn-instance vpn1 ip address 1.1.1.1 255.255.255.0 ipsec policy map1 # interface GigabitEthernet0/0/2 undo shutdown ip binding vpn-instance vpn2 ip address 10.1.2.1 255.255.255.0 # interface GigabitEthernet0/0/3 undo shutdown ip binding vpn-instance vpn3 ip address 10.1.3.1 255.255.255.0 # firewall zone trust add interface GigabitEthernet0/0/2 add interface GigabitEthernet0/0/3 # firewall zone untrust add interface GigabitEthernet0/0/1 # ip route-static vpn-instance vpn1 2.1.1.0 255.255.255.0 1.1.1.2 ip route-static vpn-instance vpn1 10.1.2.0 24 vpn-instance vpn2 10.1.2.2 ip route-static vpn-instance vpn1 10.1.3.0 24 vpn-instance vpn3 10.1.3.2 ip route-static vpn-instance vpn2 10.1.4.0 24 vpn-instance vpn1 1.1.1.2 ip route-static vpn-instance vpn3 10.1.4.0 24 vpn-instance vpn1 1.1.1.2 # security-policy rule name policy1 source-zone local destination-zone untrust source-address 1.1.1.0 255.255.255.0 destination-address 2.1.1.0 255.255.255.0 action permit rule name policy2 source-zone untrust destination-zone local source-address 2.1.1.0 255.255.255.0 destination-address 1.1.1.0 255.255.255.0 action permit rule name policy3 source-zone untrust destination-zone trust source-address 10.1.0.0 255.255.0.0 destination-address 10.1.4.0 255.255.255.0 action permit rule name policy4 source-zone trust destination-zone untrust source-address 10.1.4.0 255.255.255.0 destination-address 10.1.0.0 255.255.0.0 action permit # return
FW_B configuration scripts
# sysname FW_B # acl number 3000 rule 10 permit ip source 10.1.4.0 0.0.0.255 destination 10.1.2.0 0.0.0.255 rule 15 permit ip source 10.1.4.0 0.0.0.255 destination 10.1.3.0 0.0.0.255 # ipsec proposal tran1 esp authentication-algorithm sha2-256 esp encryption-algorithm aes-256 # ike proposal 10 encryption-algorithm aes-256 dh group14 authentication-algorithm sha2-256 authentication-method pre-share integrity-algorithm hmac-sha2-256 prf hmac-sha2-256 # ike peer vpn pre-shared-key %^%#5$\vJ~&IS==EJ=Eq^`3@GA[a!Xa}eIm'-GPK]_K@%^%# ike-proposal 10 remote-address 1.1.1.1 # ipsec policy map1 10 isakmp security acl 3000 ike-peer vpn proposal tran1 # interface GigabitEthernet0/0/1 undo shutdown ip address 2.1.1.1 255.255.255.0 ipsec policy map1 # interface GigabitEthernet0/0/2 undo shutdown ip address 10.1.4.1 255.255.255.0 # firewall zone trust add interface GigabitEthernet0/0/2 # firewall zone untrust add interface GigabitEthernet0/0/1 # ip route-static 1.1.1.0 255.255.255.0 2.1.1.2 ip route-static 10.1.0.0 255.255.0.0 2.1.1.2 # security-policy rule name policy1 source-zone untrust destination-zone trust source-address 10.1.4.0 255.255.255.0 destination-address 10.1.0.0 255.255.0.0 action permit rule name policy2 source-zone trust destination-zone untrust source-address 10.1.1.0 255.255.0.0 destination-address 10.1.4.0 255.255.255.0 action permit rule name policy3 source-zone local destination-zone untrust source-address 2.1.1.0 255.255.255.0 destination-address 1.1.1.0 255.255.255.0 action permit rule name policy4 source-zone untrust destination-zone local source-address 1.1.1.0 255.255.255.0 destination-address 2.1.1.0 255.255.255.0 action permit # return
