CLI Example: Configuring DSVPN Protected by IPSec

Networking Requirements

A large-scale enterprise has a central office (Hub) and multiple branches which are located in different areas (this example shows only two Spokes Spoke1 and Spoke2). The networks of the central office and branches frequently change. The Spokes use dynamic addresses to connect to the public network. Open Shortest Path First (OSPF) is used on the enterprise network.

The enterprise wants to establish a VPN between the Spokes and encrypt data transmitted between the Hub and Spokes, and between Spokes to increase data security.

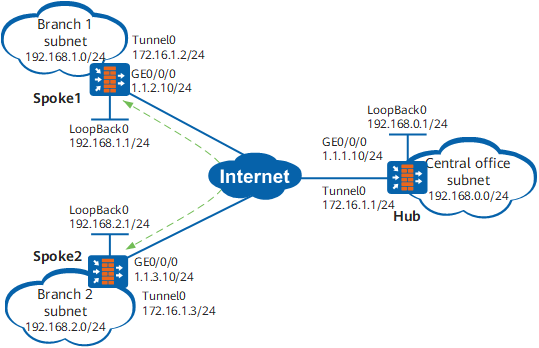

Figure 1 Networking diagram for DSVPN protected by IPSec configuration

Configuration Roadmap

The configuration roadmap is as follows:

Because a Spoke uses a dynamic address to connect to the public network, it does not know the public IP address of the other Spoke. DSVPN is implemented to establish a VPN between the Spokes.
Shortcut Scenario of DSVPN is implemented because the enterprise has a large number of branches.
The networks of the central office and branches frequently change. OSPF is deployed to realize communication between the Hub and Spokes and to simplify maintenance.
DSVPN protected by IPSec is implemented to encrypt data transmitted between the central office and branches, and between branches.

When you deploy IPSec on a DSVPN network, the IPSec encapsulation mode can only be transport if two branches are connected to different NAT devices or the headquarters is connected to a NAT device.

Procedure

Assign an IP address to each interface.

Configure IP addresses for the interfaces of each FW.

# Configure IP addresses for interfaces of Hub.

<sysname> system-view
[sysname] sysname Hub
[Hub] interface GigabitEthernet 0/0/0
[Hub-GigabitEthernet0/0/0] ip address 1.1.1.10 255.255.255.0
[Hub-GigabitEthernet0/0/0] quit
[Hub] interface tunnel 0
[Hub-Tunnel0] ip address 172.16.1.1 255.255.255.0
[Hub-Tunnel0] quit
[Hub] interface loopback 0
[Hub-LoopBack0] ip address 192.168.0.1 255.255.255.0
[Hub-LoopBack0] quit

Configure IP addresses for interfaces of the Spoke1 and Spoke2 as shown in Figure 1. The specific configuration is not mentioned here.

Configure security zones and security policies.
# Configure security zones on each device. The configuration commands are the same, and the Hub is used as an example.
```
[Hub] firewall zone untrust
[Hub-zone-untrust] add interface GigabitEthernet 0/0/0
[Hub-zone-untrust] add interface tunnel 0
[Hub-zone-untrust] quit
```
# Configure security policies on each device. The configuration commands are the same, and the Hub is used as an example.

In this example, loopback interfaces in the Local zone are used to simulate subnet users. Therefore, the interzone policy between the Local zone and security zone where the tunnel interface resides needs to be configured (in this example, policy rule1 is configured). Actually, the interzone policy between the security zones where subnets reside needs to be configured. For example, if the subnet of the enterprise resides in the Trust zone, configure the interzone policy between the Trust zone and security zone where the tunnel interface resides.
```
[Hub] security-policy
[Hub-policy-security] rule name rule1
[Hub-policy-security-rule-rule1] source-zone untrust local
[Hub-policy-security-rule-rule1] destination-zone untrust local
[Hub-policy-security-rule-rule1] sourse-address 192.168.0.0 mask 255.255.0.0
[Hub-policy-security-rule-rule1] action permit
[Hub-policy-security-rule-rule1] quit
[Hub-policy-security] rule name rule2
[Hub-policy-security-rule-rule2] source-zone untrust local
[Hub-policy-security-rule-rule2] destination-zone untrust local
[Hub-policy-security-rule-rule2] quit
[Hub-policy-security] quit
```

Configure routes between the FWs.

Configure OSPF on each FW to provide reachable routes to the public network.

# Configure OSPF on Hub.

[Hub] ospf 2 router-id 1.1.1.10
[Hub-ospf-2] area 0.0.0.1
[Hub-ospf-2-area-0.0.0.1] network 1.1.1.0 0.0.0.255
[Hub-ospf-2-area-0.0.0.1] quit
[Hub-ospf-2] quit

# Configure OSPF on Spoke1.

[Spoke1] ospf 2 router-id 1.1.2.10
[Spoke1-ospf-2] area 0.0.0.1
[Spoke1-ospf-2-area-0.0.0.1] network 1.1.2.0 0.0.0.255
[Spoke1-ospf-2-area-0.0.0.1] quit
[Spoke1-ospf-2] quit

# Configure OSPF on Spoke2.

[Spoke2] ospf 2 router-id 1.1.3.10
[Spoke2-ospf-2] area 0.0.0.1
[Spoke2-ospf-2-area-0.0.0.1] network 1.1.3.0 0.0.0.255
[Spoke2-ospf-2-area-0.0.0.1] quit
[Spoke2-ospf-2] quit

Configure the basic OSPF functions.

# Configure Hub.

[Hub] ospf 1 router-id 172.16.1.1
[Hub-ospf-1] area 0.0.0.0
[Hub-ospf-1-area-0.0.0.0] network 172.16.1.0 0.0.0.255
[Hub-ospf-1-area-0.0.0.0] network 192.168.0.0 0.0.0.255
[Hub-ospf-1-area-0.0.0.0] quit
[Hub-ospf-1] quit

# Configure Spoke1.

[Spoke1] ospf 1 router-id 172.16.1.2
[Spoke1-ospf-1] area 0.0.0.0
[Spoke1-ospf-1-area-0.0.0.0] network 172.16.1.0 0.0.0.255
[Spoke1-ospf-1-area-0.0.0.0] network 192.168.1.0 0.0.0.255
[Spoke1-ospf-1-area-0.0.0.0] quit
[Spoke1-ospf-1] quit

# Configure Spoke2.

[Spoke2] ospf 1 router-id 172.16.1.3
[Spoke2-ospf-1] area 0.0.0.0
[Spoke2-ospf-1-area-0.0.0.0] network 172.16.1.0 0.0.0.255
[Spoke2-ospf-1-area-0.0.0.0] network 192.168.2.0 0.0.0.255
[Spoke2-ospf-1-area-0.0.0.0] quit
[Spoke2-ospf-1] quit

Configure IKE proposals.

On Hub, Spoke1, and Spoke2, configure IKE proposals and set the same authentication mode.

# Configure Hub.

[Hub] ike proposal 1
[Hub-ike-proposal-1] dh group5
[Hub-ike-proposal-1] authentication-algorithm sha2-256
[Hub-ike-proposal-1] prf aes-xcbc-128
[Hub-ike-proposal-1] quit

# Configure Spoke1.

[Spoke1] ike proposal 1
[Spoke1-ike-proposal-1] dh group5
[Spoke1-ike-proposal-1] authentication-algorithm sha2-256
[Spoke1-ike-proposal-1] prf aes-xcbc-128
[Spoke1-ike-proposal-1] quit

# Configure Spoke2.

[Spoke2] ike proposal 1
[Spoke2-ike-proposal-1] dh group5
[Spoke2-ike-proposal-1] authentication-algorithm sha2-256
[Spoke2-ike-proposal-1] prf aes-xcbc-128
[Spoke2-ike-proposal-1] quit

Configure IKE peers.

Configure IKE peers used during IKE negotiation on Hub, Spoke1, and Spoke2.

# Configure Hub.

[Hub] ike peer hub
[Hub-ike-peer-hub] ike-proposal 1
[Hub-ike-peer-hub] pre-shared-key Huawei@1234
[Hub-ike-peer-hub] dpd type periodic
[Hub-ike-peer-hub] dpd idle-time 40
[Hub-ike-peer-hub] quit

# Configure Spoke1.

[Spoke1] ike peer spoke1
[Spoke1-ike-peer-spoke1] ike-proposal 1
[Spoke1-ike-peer-spoke1] pre-shared-key Huawei@1234
[Spoke1-ike-peer-spoke1] dpd type periodic
[Spoke1-ike-peer-spoke1] dpd idle-time 40
[Spoke1-ike-peer-spoke1] quit

# Configure Spoke2.

[Spoke2] ike peer spoke2
[Spoke2-ike-peer-spoke2] ike-proposal 1
[Spoke2-ike-peer-spoke2] pre-shared-key Huawei@1234
[Spoke2-ike-peer-spoke2] dpd type periodic
[Spoke2-ike-peer-spoke2] dpd idle-time 40
[Spoke2-ike-peer-spoke2] quit

Create IPSec proposals.

Configure IPSec proposals on Hub, Spoke1, and Spoke2.

# Configure Hub.

[Hub] ipsec proposal pro1
[Hub-ipsec-proposal-pro1] transform ah-esp
[Hub-ipsec-proposal-pro1] ah authentication-algorithm sha2-256
[Hub-ipsec-proposal-pro1] esp authentication-algorithm sha2-256
[Hub-ipsec-proposal-pro1] esp encryption-algorithm aes-192
[Hub-ipsec-proposal-pro1] quit

# Configure Spoke1.

[Spoke1] ipsec proposal pro1
[Spoke1-ipsec-proposal-pro1] transform ah-esp
[Spoke1-ipsec-proposal-pro1] ah authentication-algorithm sha2-256
[Spoke1-ipsec-proposal-pro1] esp authentication-algorithm sha2-256
[Spoke1-ipsec-proposal-pro1] esp encryption-algorithm aes-192
[Spoke1-ipsec-proposal-pro1] quit

# Configure Spoke2.

[Spoke2] ipsec proposal pro1
[Spoke2-ipsec-proposal-pro1] transform ah-esp
[Spoke2-ipsec-proposal-pro1] ah authentication-algorithm sha2-256
[Spoke2-ipsec-proposal-pro1] esp authentication-algorithm sha2-256
[Spoke2-ipsec-proposal-pro1] esp encryption-algorithm aes-192
[Spoke2-ipsec-proposal-pro1] quit

Configure IPSec profiles.

Configure IPSec profiles on Hub, Spoke1, and Spoke2.

# Configure Hub.

[Hub] ipsec profile profile1
[Hub-ipsec-profile-profile1] ike-peer hub
[Hub-ipsec-profile-profile1] proposal pro1
[Hub-ipsec-profile-profile1] quit

# Configure Spoke1.

[Spoke1] ipsec profile profile1
[Spoke1-ipsec-profile-profile1] ike-peer spoke1
[Spoke1-ipsec-profile-profile1] proposal pro1
[Spoke1-ipsec-profile-profile1] quit

# Configure Spoke2.

[Spoke2] ipsec profile profile1
[Spoke2-ipsec-profile-profile1] ike-peer spoke2
[Spoke2-ipsec-profile-profile1] proposal pro1
[Spoke2-ipsec-profile-profile1] quit

Configure tunnel interfaces.

# On Hub, configure a tunnel interface, configure OSPF, and apply the IPSec profile.

[Hub] interface tunnel 0
[Hub-Tunnel0] tunnel-protocol gre p2mp
[Hub-Tunnel0] source GigabitEthernet 0/0/0
[Hub-Tunnel0] nhrp entry multicast dynamic
[Hub-Tunnel0] ospf network-type p2mp
[Hub-Tunnel0] nhrp redirect
[Hub-Tunnel0] ipsec profile profile1
[Hub-Tunnel0] quit

# On Spoke1, configure a tunnel interface, OSPF, and a static NHRP mapping entry of Hub, and apply the IPSec profile.

[Spoke1] interface tunnel 0
[Spoke1-Tunnel0] tunnel-protocol gre p2mp
[Spoke1-Tunnel0] source GigabitEthernet 0/0/0
[Spoke1-Tunnel0] nhrp entry 172.16.1.1 1.1.1.10 register
[Spoke1-Tunnel0] ospf network-type p2mp
[Spoke1-Tunnel0] nhrp shortcut
[Spoke1-Tunnel0] ipsec profile profile1
[Spoke1-Tunnel0] quit

# On Spoke2, configure a tunnel interface, OSPF, and a static NHRP mapping entry of Hub, and apply the IPSec profile.

[Spoke2] interface tunnel 0
[Spoke2-Tunnel0] tunnel-protocol gre p2mp
[Spoke2-Tunnel0] source GigabitEthernet 0/0/0
[Spoke2-Tunnel0] nhrp entry 172.16.1.1 1.1.1.10 register
[Spoke2-Tunnel0] ospf network-type p2mp
[Spoke2-Tunnel0] nhrp shortcut
[Spoke2-Tunnel0] ipsec profile profile1
[Spoke2-Tunnel0] quit

Verify the DSVPN configuration.

After the preceding configurations are complete, check the NHRP mapping entries of Spoke1 and Spoke2.

# Run the display nhrp peer all command on Spoke and Hub. Take Spoke1 as an example. The command output is as follows:

[Spoke1] display nhrp peer all
-------------------------------------------------------------------------------
Protocol-addr   Mask  NBMA-addr       NextHop-addr    Type         Flag
-------------------------------------------------------------------------------
172.16.1.1      32    1.1.1.10        172.16.1.1       hub          up
-------------------------------------------------------------------------------
Tunnel interface: Tunnel0
Created time    : 00:10:58
Expire time     : -- HostName        : Hub HostEsn         : 210235G7G610F1000002

Number of nhrp peers: 1

If you run the display nhrp peer all command on Spoke1 and Spoke2, you can view only the static NHRP mapping entry of Hub.

Verify the IPSec SA configuration.

Check the IPSec SAs generated on Hub, Spoke1, and Spoke2. Take Spoke1 as an example.

# Run the display ipsec sa command on Spoke1. The command output is as follows:

[Spoke1] display ipsec sa
ipsec sa information:

===============================
Interface: Tunnel0
===============================

  -----------------------------
  IPSec profile name: "profile1"
  Mode              : PROF-ISAKMP
  -----------------------------
    Connection ID     : 2
    Encapsulation mode: Tunnel
    Tunnel local      : 1.1.2.10:500
    Tunnel remote     : 1.1.1.10:500

    [Outbound ESP SAs]
      SPI: 2485560141 (0x9426a34d)
      Proposal: ESP-ENCRYPT-AES-192 SHA2-512-256
      SA remaining key duration (bytes/sec): 1887426800/2652
      Max sent sequence-number: 107
      UDP encapsulation used for NAT traversal: N       SA encrypted packets (number/bytes): 4/240

    [Outbound AH SAs]
      SPI: 3662509166 (0xda4d746e)
      Proposal: SHA2-512-256
      SA remaining key duration (bytes/sec): 1887436800/2652
      Max sent sequence-number: 107
      UDP encapsulation used for NAT traversal: N       SA encrypted packets (number/bytes): 4/240

    [Inbound AH SAs]
      SPI: 833505824 (0x31ae4a20)
      Proposal: SHA2-512-256
      SA remaining key duration (bytes/sec): 1887436800/2652
      Max received sequence-number: 119
      UDP encapsulation used for NAT traversal: N       SA decrypted packets (number/bytes): 4/240
      Anti-replay : Enable
      Anti-replay window size: 1024

    [Inbound ESP SAs]
      SPI: 2140030022 (0x7f8e4446)
      Proposal: ESP-ENCRYPT-AES-192 SHA2-512-256
      SA remaining key duration (bytes/sec): 1887425168/2652
      Max received sequence-number: 119
      UDP encapsulation used for NAT traversal: N       SA decrypted packets (number/bytes): 4/240
      Anti-replay : Enable
      Anti-replay window size: 1024

Run the ping command to check the configuration result.

To use the ping command for link detection, run the service-manage ping permit command in the interface view to set the ping service of all firewall interfaces on the link to permit.

Ping 192.168.2.1 on Spoke1. You can see that Spoke1 and Spoke2 have learned dynamic NHRP mapping entries from each other.

# Run the ping -a 192.168.1.1 192.168.2.1 command on Spoke1. The command output is as follows:

[Spoke1] ping -a 192.168.1.1 192.168.2.1
  PING 192.168.2.1: 56  data bytes, press CTRL_C to break
    Reply from 192.168.2.1: bytes=56 Sequence=1 ttl=254 time=3 ms
    Reply from 192.168.2.1: bytes=56 Sequence=2 ttl=255 time=2 ms
    Reply from 192.168.2.1: bytes=56 Sequence=3 ttl=255 time=2 ms
    Reply from 192.168.2.1: bytes=56 Sequence=4 ttl=255 time=2 ms
    Reply from 192.168.2.1: bytes=56 Sequence=5 ttl=255 time=2 ms

  --- 192.168.2.1 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 2/2/3 ms

# Run the display nhrp peer all command on Spoke. Take Spoke1 as an example. The command output is as follows:

[Spoke1] display nhrp peer all
-------------------------------------------------------------------------------
Protocol-addr   Mask  NBMA-addr       NextHop-addr    Type            Flag
-------------------------------------------------------------------------------
172.16.1.1      32    1.1.1.10        172.16.1.1      hub              up
-------------------------------------------------------------------------------
Tunnel interface: Tunnel0
Created time    : 00:46:35
Expire time     : -- HostName        : Hub HostEsn         : 210235G7G610F1000002
-------------------------------------------------------------------------------
Protocol-addr   Mask  NBMA-addr       NextHop-addr    Type            Flag
-------------------------------------------------------------------------------
192.168.2.1     32    1.1.3.10        172.16.1.3      remote-network  up
-------------------------------------------------------------------------------
Tunnel interface: Tunnel0
Created time    : 00:00:28
Expire time     : 01:59:32 HostName        : Spoke2 HostEsn         : 210235G7G610F3000017
-------------------------------------------------------------------------------
Protocol-addr   Mask  NBMA-addr       NextHop-addr    Type            Flag
-------------------------------------------------------------------------------
172.16.1.3      32    1.1.3.10        172.16.1.3      remote          up
-------------------------------------------------------------------------------
Tunnel interface: Tunnel0
Created time    : 00:00:28
Expire time     : 01:59:32 HostName        : Spoke2 HostEsn         : 210235G7G610F3000017
-------------------------------------------------------------------------------
Protocol-addr   Mask  NBMA-addr       NextHop-addr    Type            Flag
-------------------------------------------------------------------------------
172.16.1.2      32    1.1.2.10        172.16.1.2      local           up
-------------------------------------------------------------------------------
Tunnel interface: Tunnel0
Created time    : 00:00:28
Expire time     : 01:59:32 HostName        : Spoke1 HostEsn         : 210235G7G610F1000013

Number of nhrp peers: 4

# Run the display ipsec sa command on Spoke. Take Spoke1 as an example. The command output is as follows:

[Spoke1] display ipsec sa
ipsec sa information:

===============================
Interface: Tunnel0
===============================

  -----------------------------
  IPSec profile name: "profile1"
  Mode              : PROF-ISAKMP
  -----------------------------
    Connection ID     : 2
    Encapsulation mode: Tunnel
    Tunnel local      : 1.1.2.10:500
    Tunnel remote     : 1.1.1.10:500

    [Outbound ESP SAs]
      SPI: 2485560141 (0x9426a34d)
      Proposal: ESP-ENCRYPT-AES-192 SHA2-512-256
      SA remaining key duration (bytes/sec): 1887420488/2020
      Max sent sequence-number: 175
      UDP encapsulation used for NAT traversal: N       SA encrypted packets (number/bytes): 4/240

    [Outbound AH SAs]
      SPI: 3662509166 (0xda4d746e)
      Proposal: SHA2-512-256
      SA remaining key duration (bytes/sec): 1887436800/2020
      Max sent sequence-number: 175
      UDP encapsulation used for NAT traversal: N       SA encrypted packets (number/bytes): 4/240

    [Inbound AH SAs]
      SPI: 833505824 (0x31ae4a20)
      Proposal: SHA2-512-256
      SA remaining key duration (bytes/sec): 1887436800/2020
      Max received sequence-number: 192
      UDP encapsulation used for NAT traversal: N       SA decrypted packets (number/bytes): 4/240
      Anti-replay : Enable
      Anti-replay window size: 1024

    [Inbound ESP SAs]
      SPI: 2140030022 (0x7f8e4446)
      Proposal: ESP-ENCRYPT-AES-192 SHA2-512-256
      SA remaining key duration (bytes/sec): 1887418092/2020
      Max received sequence-number: 192
      UDP encapsulation used for NAT traversal: N       SA decrypted packets (number/bytes): 4/240
      Anti-replay : Enable
      Anti-replay window size: 1024

  -----------------------------
  IPSec profile name: "profile1"
  Mode              : PROF-ISAKMP
  -----------------------------
    Connection ID     : 5
    Encapsulation mode: Tunnel
    Tunnel local      : 1.1.2.10:500
    Tunnel remote     : 1.1.3.10:500

    [Outbound ESP SAs]
      SPI: 576349831 (0x225a6687)
      Proposal: ESP-ENCRYPT-AES-192 SHA2-512-256
      SA remaining key duration (bytes/sec): 1887436368/3511
      Max sent sequence-number: 4
      UDP encapsulation used for NAT traversal: N       SA encrypted packets (number/bytes): 4/240

    [Outbound AH SAs]
      SPI: 3363305474 (0xc877f802)
      Proposal: SHA2-512-256
      SA remaining key duration (bytes/sec): 1887436800/3511
      Max sent sequence-number: 4
      UDP encapsulation used for NAT traversal: N       SA encrypted packets (number/bytes): 4/240

    [Inbound AH SAs]
      SPI: 3753703982 (0xdfbcfa2e)
      Proposal: SHA2-512-256
      SA remaining key duration (bytes/sec): 1887436800/3511
      Max received sequence-number: 4
      UDP encapsulation used for NAT traversal: N       SA decrypted packets (number/bytes): 4/240
      Anti-replay : Enable
      Anti-replay window size: 1024

    [Inbound ESP SAs]
      SPI: 3361785078 (0xc860c4f6)
      Proposal: ESP-ENCRYPT-AES-192 SHA2-512-256
      SA remaining key duration (bytes/sec): 1887436368/3511
      Max received sequence-number: 4
      UDP encapsulation used for NAT traversal: N       SA decrypted packets (number/bytes): 4/240
      Anti-replay : Enable
      Anti-replay window size: 1024

Configuration Files

Hub configuration file

#
sysname Hub
#
ipsec proposal pro1
 transform ah-esp
 ah authentication-algorithm sha2-256
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-192
#
ike proposal 1
 encryption-algorithm aes-256
 dh group5
 authentication-algorithm sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf aes-xcbc-128
#
ike peer hub
 pre-shared-key
 ike-proposal 1
 dpd type periodic
 dpd idle-time 40
#
ipsec profile profile1
 ike-peer hub
 proposal pro1
#
interface GigabitEthernet0/0/0
 ip address 1.1.1.10 255.255.255.0
#
interface LoopBack0
 ip address 192.168.0.1 255.255.255.0
#
interface Tunnel0
 ip address 172.16.1.1 255.255.255.0
 tunnel-protocol gre p2mp
 source GigabitEthernet0/0/0
 ospf network-type p2mp
 nhrp redirect
 nhrp entry multicast dynamic
 ipsec profile profile1
#
ospf 1 router-id 172.16.1.1
 area 0.0.0.0
  network 172.16.1.0 0.0.0.255
  network 192.168.0.0 0.0.0.255
#
ospf 2 router-id 1.1.1.10
 area 0.0.0.1
  network 1.1.1.0 0.0.0.255
#
 firewall zone untrust
 add interface GigabitEthernet0/0/0
 add interface Tunnel0
#
security-policy
 rule name rule1
 source-zone local
 source-zone untrust
 destination-zone local
 destination-zone untrust
 source-address 192.168.0.0 mask 255.255.0.0
 action permit
 rule name rule2
 source-zone local
 source-zone untrust
 destination-zone local
 destination-zone untrust
 action permit
#
return

Spoke1 configuration file

#
sysname Spoke1
#
ipsec proposal pro1
 transform ah-esp
 ah authentication-algorithm sha2-256
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-192
#
ike proposal 1
 encryption-algorithm aes-256
 dh group5
 authentication-algorithm sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf aes-xcbc-128
#
ike peer spoke1
 pre-shared-key
 ike-proposal 1
 dpd type periodic
 dpd idle-time 40
#
ipsec profile profile1
 ike-peer spoke1
 proposal pro1
#
interface GigabitEthernet0/0/0
 ip address 1.1.2.10 255.255.255.0
#
interface LoopBack0
 ip address 192.168.1.1 255.255.255.0
#
interface Tunnel0
 ip address 172.16.1.2 255.255.255.0
 tunnel-protocol gre p2mp
 source GigabitEthernet0/0/0
 ospf network-type p2mp
 nhrp shortcut
 nhrp entry 172.16.1.1 1.1.1.10 register
 ipsec profile profile1
#
ospf 1 router-id 172.16.1.2
 area 0.0.0.0
  network 172.16.1.0 0.0.0.255
  network 192.168.1.0 0.0.0.255
#
ospf 2 router-id 1.1.2.10
 area 0.0.0.1
  network 1.1.2.0 0.0.0.255
#
 firewall zone untrust
 add interface GigabitEthernet0/0/0
 add interface Tunnel0
#
security-policy
 rule name rule1
 source-zone local
 source-zone untrust
 destination-zone local
 destination-zone untrust
 source-address 192.168.0.0 mask 255.255.0.0
 action permit
 rule name rule2
 source-zone local
 source-zone untrust
 destination-zone local
 destination-zone untrust
 action permit
#
return

Spoke2 configuration file

#
sysname Spoke2
#
ipsec proposal pro1
 transform ah-esp
 ah authentication-algorithm sha2-256
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-192
#
ike proposal 1
 encryption-algorithm aes-256
 dh group5
 authentication-algorithm sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf aes-xcbc-128
#
ike peer spoke2
 pre-shared-key
 ike-proposal 1
 dpd type periodic
 dpd idle-time 40
#
ipsec profile profile1
 ike-peer spoke2
 proposal pro1
#
interface GigabitEthernet0/0/0
 ip address 1.1.3.10 255.255.255.0
#
interface LoopBack0
 ip address 192.168.2.1 255.255.255.0
#
interface Tunnel0
 ip address 172.16.1.3 255.255.255.0
 tunnel-protocol gre p2mp
 source GigabitEthernet0/0/0
 ospf network-type p2mp
 nhrp shortcut
 nhrp entry 172.16.1.1 1.1.1.10 register
 ipsec profile profile1
#
ospf 1 router-id 172.16.1.3
 area 0.0.0.0
  network 172.16.1.0 0.0.0.255
  network 192.168.2.0 0.0.0.255
#
ospf 2 router-id 1.1.3.10
 area 0.0.0.1
  network 1.1.3.0 0.0.0.255
#
 firewall zone untrust
 add interface GigabitEthernet0/0/0
 add interface Tunnel0
#
security-policy
 rule name rule1
 source-zone local
 source-zone untrust
 destination-zone local
 destination-zone untrust
 source-address 192.168.0.0 mask 255.255.0.0
 action permit
 rule name rule2
 source-zone local
 source-zone untrust
 destination-zone local
 destination-zone untrust
 action permit
#
return
