Web: Example for Configuring the Audit Function

This section provides the networking requirements and a step-by-step procedure for configuring the audit function. After the audit function is enabled, Internet access activities are logged for future audits and analysis.

Networking Requirements

As shown in Figure 1, the FW serves as the gateway at the border of an enterprise network. Log the Internet access behavior of employees by configuring the audit function.

The employees of the enterprise are either R&D personnel or marketing personnel. The requirements are as follows:

Logs non-work-related Internet access behavior of R&D personnel during working hours (09:00:00 to 17:00:00). The behavior includes URL accessing, BBS posting, microblogging, and file upload and download through HTTP and FTP.
Logs email transmission and file upload activities as well as HTTP or FTP upload and download activities of marketing personnel.

Figure 1 Networking for configuring the audit function

Configuration Roadmap

Set the interface IP address and add the interface to a security zone.
Configure one audit profile specific to R&D personnel and another specific to marketing personnel. Audit HTTP, FTP, and mail behavior.
Configure two audit policies, reference the preceding profiles in the policies, and apply the policies to the trust -> untrust interzone.

Procedure

Set the interface IP address and add the interface to a security zone.
1. Choose Network > Interface.
2. Click for GE0/0/3 and set the parameters as follows:

  Zone

  trust

  IPv4

  IP Address

  10.3.0.1/24
3. Click OK.
4. Set the parameters of interface GE0/0/1 based on preceding steps.

  Zone

  untrust

  IPv4

  IP Address

  1.1.1.1/24
Configure the schedule.
1. Choose Object > Schedule.
2. Click Add and set the parameters as follows:

  Name

  time_range

  Type

  Periodical Schedule

  Start time

  09:00:00

  End time

  17:00:00

  Weekly Validity Time

  Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday
3. Click OK.

Zone	trust
IPv4
IP Address	10.3.0.1/24

Zone	untrust
IPv4
IP Address	1.1.1.1/24

Name	time_range
Type	Periodical Schedule
Start time	09:00:00
End time	17:00:00
Weekly Validity Time	Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday

Configure the audit profile.

After you specified the interface IP address, security zone, and schedule, use the audit administrator account to log in to the FW and complete the configurations related to the audit function.

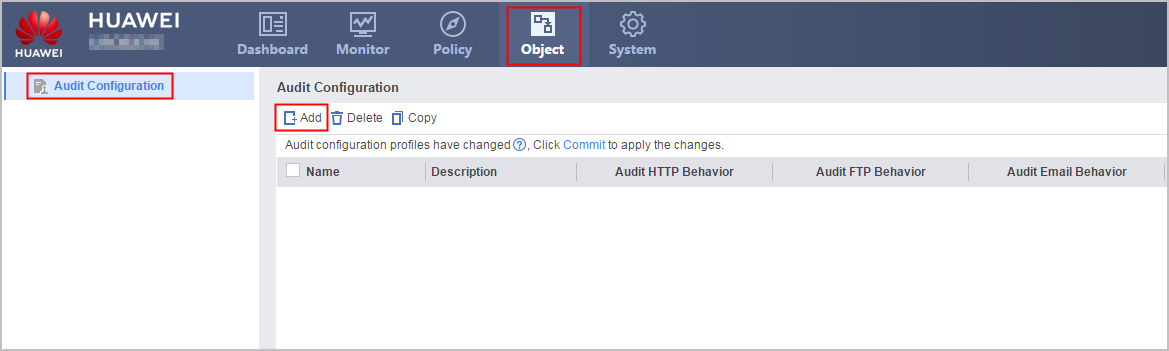

Choose Object > Audit Configuration.

Click Add in Audit Configuration and set the parameters as follows:

Audit HTTP behavior
Name	profile_audit_1
Description	Profile of auditing for research.
URL Access	Select All.
Web Page Title	Select Keep records.
BBS Post	Select Keep records.
Microblog	Select Keep records.
HTTP File Download	Select Keep records.
Audit FTP Behavior
FTP File Download	Select Keep records.

Click OK.

Click Add in Audit Configuration and set the parameters as follows:

Audit HTTP Behavior
Name	profile_audit_2
Description	Profile of auditing for marketing.
HTTP File Upload	Select Keep records.
HTTP File Download	Select Keep records.
Audit FTP Behavior
FTP File Upload	Select Keep records.
FTP File Download	Select Keep records.
Audit Email-Related Behavior
Sending	Select Keep records.
Receiving	Select Keep records.

Click OK.

Reference the profile in the security policy.

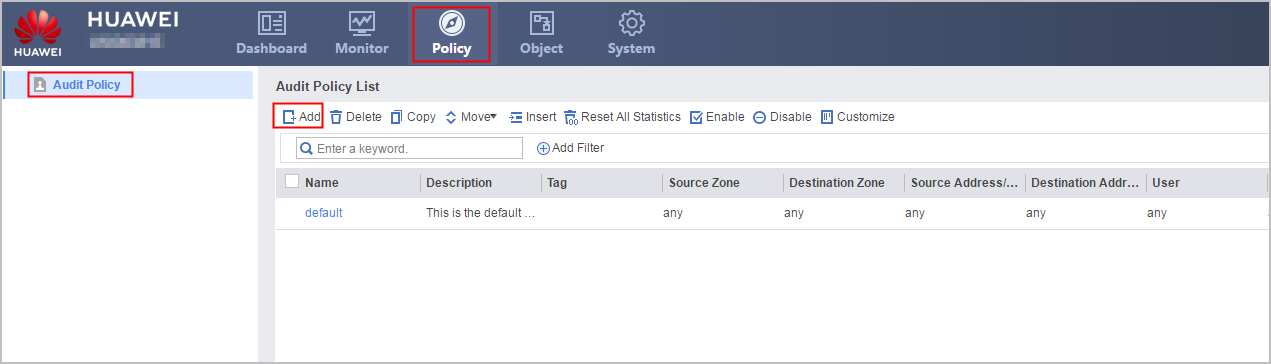

Choose Policy > Audit Policy.

Click Add in Audit Policy List and set the parameters as follows:

In this example, user groups for research (R&D personnel) and marketing (marketing personnel) to be referenced have been created.

Name	policy_audit_1
Description	Policy of auditing for research.
Source zone	trust
Destination zone	untrust
User	/default/research
Service	any
Schedule	time_range
Action	Audit
Audit Configuration	profile_audit_1

Click OK.

Click Add in Audit Policy List and set the parameters as follows:

Name	policy_audit_2
Description	Policy of auditing for marketing.
Source zone	trust
Destination zone	untrust
User	/default/marketing
Service	any
Schedule	any
Action	Audit
Audit Configuration	profile_audit_2

Click OK.

Click Commit on the upper-right corner and click OK on the dialog box that is displayed.

Follow-up Procedure

After the configuration is complete, you can view various reports, audit logs, and user activity logs to identify the users and user behavior that leads to low productivity. You can also use this information to fine-tune security policies in the future.

Configuration Scripts

This section provides only the script related to the example.

#
sysname FW
#
 time-range time_range
  period-range 09:00:00 to 17:00:00 daily
#
interface GigabitEthernet0/0/1
 undo shutdown
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/3
 undo shutdown
 ip address 10.3.0.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
profile type audit name profile_audit_1
 description Profile of auditing for research.
 http-audit url all
 http-audit url recorded-title
 http-audit bbs-content
 http-audit micro-blog
 http-audit file direction download
 ftp-audit file direction download
#
profile type audit name profile_audit_2
 description Profile of auditing for marketing.
 http-audit url all
 http-audit file direction upload
 http-audit file direction download
 ftp-audit file direction upload
 ftp-audit file direction download
 mail-audit send
 mail-audit receive
#
audit-policy
 rule name policy_audit_1
  description Policy of auditing for research.
  source-zone trust
  destination-zone untrust
  user user-group /default/research
  time-range time_range
  action audit profile profile_audit_1
 rule name policy_audit_2
  description Policy of auditing for marketing.
  source-zone trust
  destination-zone untrust
  user user-group /default/marketing
  action audit profile profile_audit_2
