DC Power Cable
Connection
A DC power cable is connected as follows:
- One end is connected to the matching DC power terminal on the DC power module of the USG.
- The other end is connected to an external power source.
Appearance and Structure

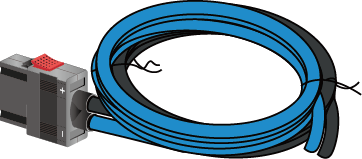

The DC power cables include the RTN cable, and NEG (-48 V) cable. Both the RTN and NEG (-48 V) power cables consist of the terminal blocks and cables, as shown in Figure 1. For details about the power cable appearance, see Quick Reference Tables of Power Cables. You can view the photo of a power cable according to the corresponding BOM.
Cable Type |
Color |
|---|---|
NEG cable |
Blue |
RTN cable |
Black |
The USG provides cord end terminals and OT terminals. You can select one of them based on the actual condition.
Figure 2 shows the appearance of the cord end terminal.
Figure 3 shows the appearance of the OT terminal without a cable.
Technical Specifications
| Description | Part Number | Model | Connector X1 | Connector X2 | Cable length | Bend radius |
|---|---|---|---|---|---|---|
| Power Cable,3m,12AWG,PS2F,12UL1015B+12UL1015BL,2*T4^2GY | 04150695 | DCWIREA-3M | 14190215: PS2F | 14170114: 2*T4^2GY | 3 m | 24 mm |
| Power Cable,3m,4^2mm,PS2F,(H07Z-K-4^2B+H07Z-K-4^2BL),2*T4^2GY | 04152883 | PS2F-T4-3M | 14191175: PS2F | 14170114: 2*T4^2GY | 3 m | 24 mm |
