PGND Cable

A ground cable is connected as follows:

The M4 lug is connected to the ground point on the USG.
The M6 lug is connected to the ground point or equipotential terminal on a cabinet.

A PGND cable has two OT terminals and a copper cable with yellow/green plastic encapsulation. Figure 1 shows the appearance of a type of PGND cables.

The figure is for reference only.

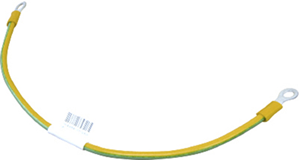

Figure 1 Appearance of the PGND cable

Figure 2 shows the appearance of the OT terminal.

Figure 2 OT terminal

**Table 1** Technical specifications of the PGND Cable
Description	Part Number	Model	Connector X1	Connector X2	Cable length	Bend radius
Power Cable,0.4m,4mm^2,OT6-4,227IEC02-4^2G&Y,OT6-6	04150617	IEC401	14170017: OT6-4	14170023: OT6-6	0.4 m	-
Power Cable,4m,OT2-16-8,H07Z-K-16^2G&Y,OT16-6,LSZH	04152748-001	-	OT2-16-8	OT16-6	0.85 m	30 mm
