Configuring DS-Lite NO-NAT
This section describes how to configure DS-Lite NO-NAT.
Prerequisites
The following configurations must be complete before configuring an interzone NAT policy:
Exempting DS-Lite Packets from NAT

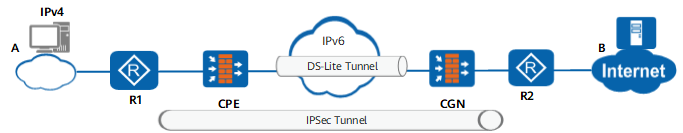

When the CGN device receives packets from the CPE, NAT shall not be performed on the packets in certain scenarios. As shown in Figure 1, public network users in area A need to access the server in area B, and an IPSec tunnel is established on the routing device. The router does not support NAT traversal. If the CGN device performs NAT on received packets, services are interrupted. Therefore, the CGN device is required to perform only DS-Lite tunnel decapsulation but not NAT on the received packets.
Procedure
- Configure the device to forward DS-Lite packets that do
not match the NAT policy.
- Run the system-view command to access the system view.
- Run the tunnel ds-lite no-nat action forward command to configure the device to forward DS-Lite packets that do not match the NAT policy.
