CLI: Example for Sending URL Session Logs to the eLog Log Host

You can check URL filtering logs on the eLog to know about the control of users' URL access behavior by the FW.

Networking Requirements

As shown in Figure 1, a FW is deployed at the border of a network as a gateway. You can configure the URL filtering function on the FWl to control the web server access behavior of users on internal networks and permit or deny their access to certain web page resources.

You need to check URL filtering logs on the eLog to know about the control of users' URL access behavior by the FW and thereby adjust the policy in time and manage users' network access behavior precisely.

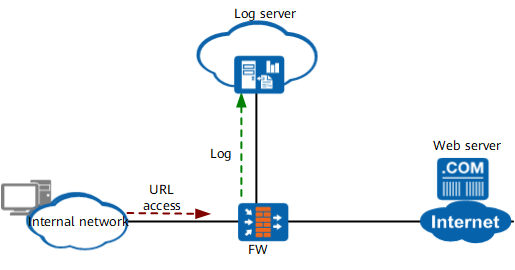

Figure 1 Networking diagram for querying URL session logs on the eLog

Configuration Roadmap

To meet the requirements, you need to consider the following key configuration points:

  • Configure the URL filtering function on the FW, set the interworking parameters to output logs to the eLog.
  • After the eLog is installed, discover the log source (that is, the FW) on the eLog and associate the collector with the log source.

Data Planning

In this case, data planning for the FW and eLog is shown in Table 1.

Table 1 Data planning

Data Planning on the FW

Data Planning on the eLog

Description

Interface and IP Address

Security Policy

IP Address

Collection Mode

Interface connecting to the eLog:

GigabitEthernet 0/0/1

Associated security zone:

DMZ

IP address:

172.16.81.1/16

Security policy for service traffic:

  • Source security zone: Trust

  • Destination security zone: Untrust

  • Source IP address: 192.168.0.0/24
  • Action: Permit

NAT policy for service traffic:

  • Source security zone: Trust

  • Destination security zone: Untrust

  • Source IP address: 192.168.0.0/24
  • Action: NAT translation

  • NAT address pool: addr1

172.16.110.168

Collection mode:

Session

Port:

9002

The dataflow collection mode is used for the eLog, and port 9902 is used to receive log information.

Procedure

  1. Important check items before configuration

    Before configuring the FW and eLog, pay attention to the following important check items and complete the configuration based on the actual situation:

    • The time zone and time of the FW shall be the same as those of the eLog.

      If the time zone or time of the FW is different from that of the eLog collector, log query results will be affected. You are advised to use NTP to make the FW and eLog as the clients to synchronize time from the clock source. If NTP is not deployed on the network, you can manually adjust the time on the FW to ensure time consistency between the FW and eLog.

    • Specify the method of managing the log source (that is, the FW) on the eLog.

      Currently, the eLog supports two FW management methods: manual adding and automatic discovery. You are advised to manually add the FW because this method is simple and you do not need to perform extra configuration on the FW. When there are a large number of FW, you can use the other method, automatic discovery. If this method is used, you need to set SNMP parameters on the FW.

  2. Configure the FW.

    1. Check whether the time zone and time of the FW are the same as those of the eLog collector. In the case of inconsistency, run the following commands to adjust the time zone or time of the FW.

      # Adjust the time zone of theFW to keep consistency with that of the eLog collector. Assume that the eLog collector is in the Beijing time zone. The time of the collector is 8 hours earlier than Universal Time Coordinated (UTC). Use the add 08:00:00 parameter. If the eLog collector is in a time zone where the time is later than UTC, use the minus parameter.

      <FW> clock timezone BJ add 08:00:00

      # Adjust the time of the FW to keep consistency with that of the eLog collector. Assume that the current time of the eLog collector is 00:00:00 on December 1, 2018.

      <FW> clock datetime 0:0:0 2018/12/01

      After the preceding configuration, run the display clock command to view configuration results.

      <FW> display clock
      2018-12-01 00:00:06
      Tuesday
      Time Zone(Default Zone Name) : UTC
      Daylight saving time :
               Name        : utc
               Repeat mode : repeat
               Start year  : 2011
               End year    : 2018
               Start time  : 01-01 12:11:00
               End time    : 12-04 01:00:00
               Saving time : 01:00:00
    2. If the eLog manages FW through automatic discovery, SNMP parameters must be configured on the FW. However, if the eLog manages FW through manual adding, skip this step.

      # Configure SNMP parameters on FW, so that they can be automatically discovered by the eLog. As SNMPv3 is securer than SNMPv1 or SNMPv2c, you are advised to use SNMPv3. At the same time, you are advised to use SHA2-256 as the authentication protocol and AES128 as the encryption protocol.

      <FW> system-view
      [FW] snmp-agent sys-info version v3
      [FW] snmp-agent group v3 group privacy
      [FW] snmp-agent usm-user v3 admin group group
      [FW] snmp-agent usm-user v3 admin authentication-mode sha2-256
      Please configure the authentication password (8-64)
      Enter Password:
      Confirm Password:
      [FW] snmp-agent usm-user v3 admin privacy-mode aes128
      Please configure the authentication password (8-64)
      Enter Password:
      Confirm Password:
    3. Complete the basic configuration such as the configuration of the IP address and security zone of the interface.

      # Configure the IP address of the interface and assign the interface to the security zone. Here the interface connecting the firewall to the eLog is taken as an example. If the firewall and eLog belong to different networks, configure a route on the firewall to the eLog.

      [FW] interface GigabitEthernet 0/0/1
      [FW-GigabitEthernet 0/0/1] ip address 172.16.81.1 16
      [FW-GigabitEthernet 0/0/1] quit
      [FW] firewall zone dmz
      [FW-zone-dmz] add interface GigabitEthernet 0/0/1
      [FW-zone-dmz] quit

      If the eLog manages firewalls through automatic discovery, you need to run the service-manage SNMP permit command to enable the access permission on SNMP after running the ip address 172.16.81.1 16 command; if the eLog manages firewalls through manual adding, you do not need to run the command.

    4. Configure the security policy.

      # Configure the security policy for service traffic.

      [FW] security-policy
      [FW-policy-security] rule name policy1
      [FW-policy-security-rule-policy1] source-zone trust
      [FW-policy-security-rule-policy1] destination-zone untrust
      [FW-policy-security-rule-policy1] source-address 192.168.0.0 24
      [FW-policy-security-rule-policy1] action permit
      [FW-policy-security-rule-policy1] quit
      [FW-policy-security] quit
    5. Configure the NAT policy.

      # Configure the NAT address pool and use the PAT mode (also the default mode).

      [FW] nat address-group addr1
      [FW-address-group-1] mode pat
      [FW-address-group-1] section 0 192.168.5.100 192.168.5.120
      [FW-address-group-1] quit

      # Configure the NAT policy and reference the NAT address pool.

      [FW] nat-policy
      [FW-policy-nat] rule name policy1
      [FW-policy-nat-rule-policy1] source-zone trust
      [FW-policy-nat-rule-policy1] destination-zone untrust
      [FW-policy-nat-rule-policy1] source-address 192.168.0.0 24
      [FW-policy-nat-rule-policy1] action source-nat address-group addr1
      [FW-policy-nat-rule-policy1] quit
      [FW-policy-nat] quit
    6. Configure the log host.

      # Set the IP address and port of the log host respectively to 172.16.110.168 and 9002 (the eLog collects logs in session mode).

      [FW] firewall log host 1 172.16.110.168 9002

      # Configure the source address and source port to be used for sending session logs by the firewall.

      [FW] firewall log source 172.16.81.1 6666
    7. Enable the function of sending URL session logs.

      [FW] firewall log session url-log enable
    8. Enable the session log function.

      # Enable the record function for session logs in the security policy for service traffic.

      [FW] security-policy
      [FW-policy-security] rule name policy1
      [FW-policy-security-rule-policy1] session logging
      [FW-policy-security-rule-policy1] quit
      [FW-policy-security] quit

  3. Configure the eLog.

    Assume that the eLog has been successfully installed; the collector works normally; and the disk space has been planned. Operations for managing log sources and viewing log reports on the eLog are as follows.

    For details about how to install and use the eLog, see the product documentation of the corresponding version in Technical Support > Product Support > Documentation > Security > eLog.

    1. Log in to the eLog using an administrator account.
    2. Choose System > System Management > Log Source List.
    3. Select the log source management method, manual adding or automatic discovery. Manual adding is recommended.

      • Manage log sources by manually adding them:

        1. Click and set the following parameters.

        2. Click OK. A message is displayed, indicating the configuration success.
        3. Click OK.

      • Manage log sources by automatically discovering them:

        1. Click and set the following parameters. The authentication and authorization protocol and password as well as the data encryption protocol and password must be consistent with the configuration on the FW.

          If there are many log sources on the network and these log sources are configured with the same SNMP parameters, you can create an SNMP parameter template on the eLog in advance, set the automatic discovery mode, and reference the SNMP parameter template to reduce the configuration workload.

        2. Click Start Discovery.
        3. After discovery is complete, the discovery result shows information about discovered log sources. In the Discovery Result dialog box, click Close.

    4. Choose System > System Management > Service Management.
    5. Click next to the collector. Then click in the Operation column of the collector.

      The collector configuration window is displayed.

    6. Click .
    7. Select log sources to be associated, as shown in the following figure:

    8. Click Next and configure the log collection mode.

      Configure the corresponding log collection mode on the eLog, select SESSION, and set the port number to 9002. If the firewall supports the UTM feature, select Enable the UTM feature.

    9. Click Finish.

Checking Log Information

After the configuration is complete, when a user on an internal network accesses a URL, the FW performs corresponding processing and sends the log to the eLog. Then you can query the URL session log on the eLog.

  1. Choose Session Analysis > URL Session Query.
  2. Set a reasonable query time range and click Search.

    The query results are as shown in the following figure. The log information given here is only an example. Log information in different network environments should conform to the actual conditions.

    If N/A is displayed in the query results, the logs of the FW contain fields that the eLog cannot parse. In this case, you need to contact the technical support engineers.

    According to the preceding log information, the administrator can intuitively understand URL access conditions.

Configuration Script

This example provides only the configuration script regarding the interworking between the FW and eLog.

#
 sysname FW
#
 firewall log source 172.16.81.1 6666
 firewall log session url-log enable
 firewall log host 1 172.16.110.168 9002
#
interface GigabitEthernet 0/0/1
 ip address 172.16.81.1 255.255.0.0
#
 nat address-group addr1
 mode pat
 section 0 192.168.5.100 192.168.5.120
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet 0/0/1
#
security-policy
 rule name policy1
  session logging
  source-zone trust
  destination-zone untrust
  source-address 192.168.0.0 mask 255.255.255.0
  action permit
 #
nat-policy
 rule name policy1
  source-zone trust
  destination-zone untrust
  source-address 192.168.0.0 24
  action source-nat address-group addr1
#
 snmp-agent
 snmp-agent sys-info version v3
 snmp-agent group v3 group privacy
 snmp-agent usm-user v3 admin group group
 snmp-agent usm-user v3 admin authentication-mode sha2-256 cipher %^%#ZgL-L2HsZ<5P]s+:6d)LcBG5)~mdl=te
 snmp-agent usm-user v3 admin privacy-mode aes128 cipher %^%#i!rs46cpF"_)d#.cJ,'1>wE_>wE
#
