Viewing the Threat Reports in the Threat Name Dimension

Viewing Reports

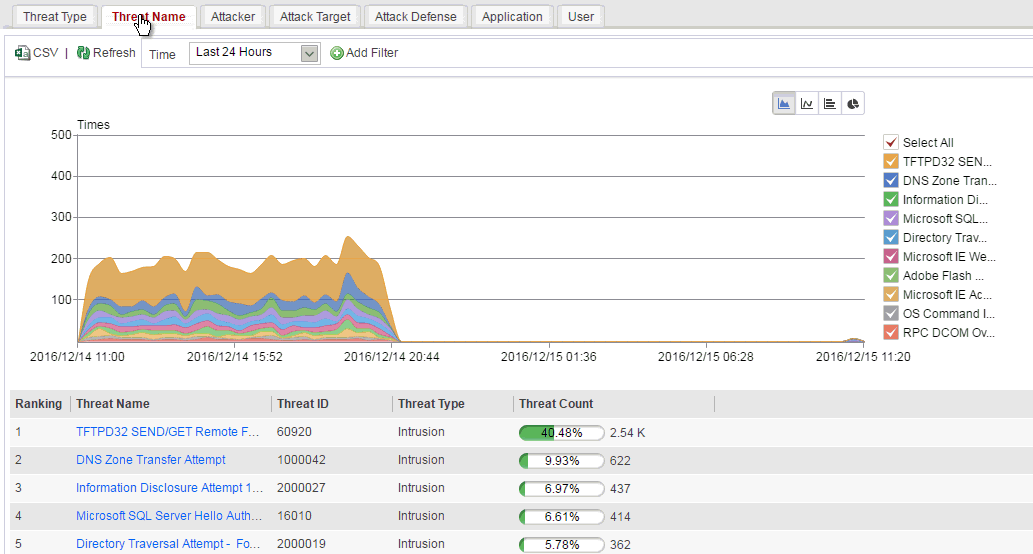

To view threat reports in the threat name dimension, click the Threat Name tab.

Customizing Generated Reports

You can narrow the search range to view top rankings of the number of threats in a specific dimension using the advanced search function. You can specify one or more search conditions in Add Filter, and click Refresh.

For example, you can view the top N number of threats with specified threat names generated by an attacker with IP address 192.168.0.100. The following figure shows the specific operations and displayed information.

Drilling Threat Statistics in the Attacker or Attack Target Dimension

Only the USG6000E (not including USG6510E/6510E-POE/6530E) support this function.

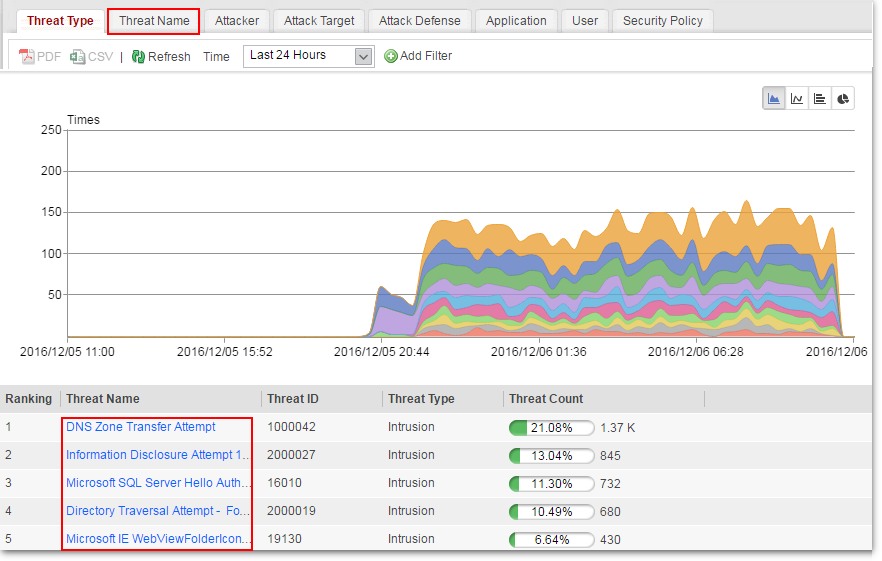

The threat reports in the threat name dimension support secondary drilling to the attacker or attack target. You can click the data link to drill the threat statistics in the attacker or attack target dimension.

For example, if a large number of threats with a specified threat name occur, you can view the trend of threats initiated by attackers based on this threat name. The following figure shows the specific operations and displayed information.

In addition, you can view details on signatures for intrusion, botnet, Trojan horse, and worm threats. To be specific, you can click View signature details to view the predefined signature to which the threat name corresponds.
