Viewing Threat Reports in the Application Dimension
This topic describes how to view threat reports in the application dimension.
You can view top N number of threats generated for accessing applications in the threat reports in the application dimension.
Viewing Reports

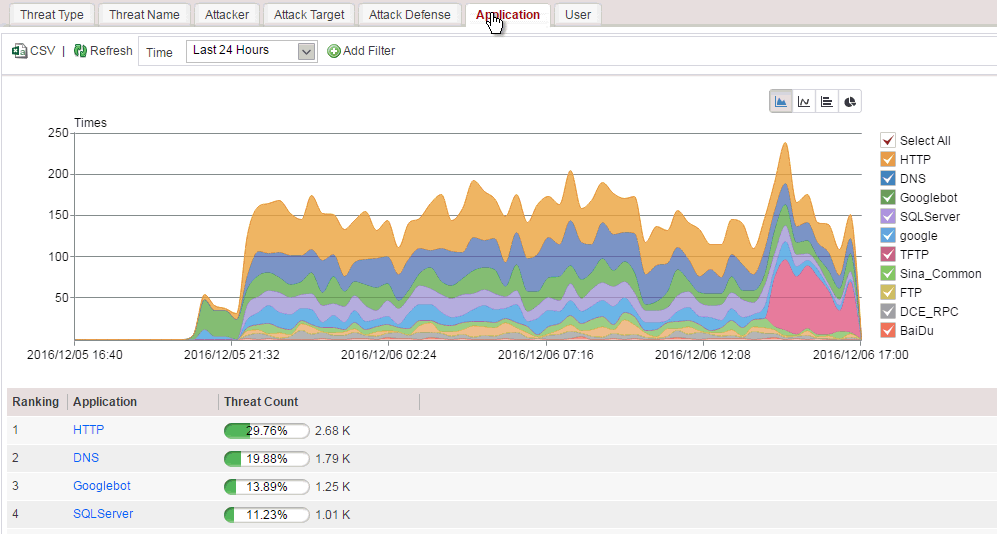

To view the threat report in the application dimension, click the Application tab.
Customizing Generated Reports
You can narrow the search range to view top rankings of the number of threats in a specific dimension using the advanced search function. To customize generated reports, specify one or more search conditions in Add Filter, and click Refresh.

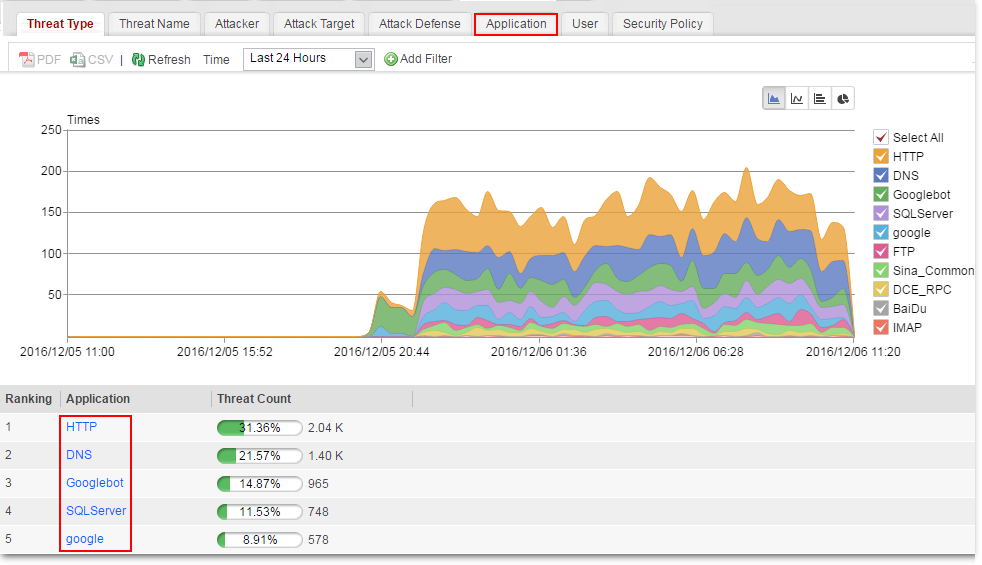

For example, you can view top N number of threats for accessing applications, generated by an attacker with IP address 192.168.10.2. The following figure shows the specific operations and displayed information.
Drilling the Threat Types and Users
Only the USG6000E (not including USG6510E/6510E-POE/6530E) support this function.The threat reports in the application dimension support the drilling to threat types and users based on an application. You can click the data link of an application to view the number of threats corresponding to a specified threat type or user.

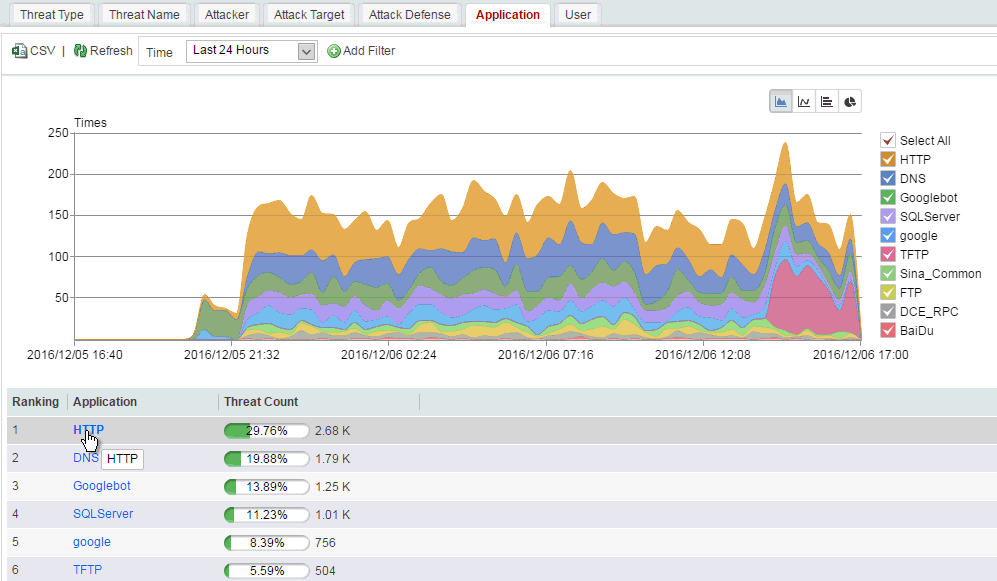

For example, if the number of threats generated by a certain application is extremely high, you can view the threat trend corresponding to the threat type or user. The following figure shows the specific operations and displayed information.
