Manually Adding Assets

Procedure

1. Choose Monitor > Security Posture Awareness > Asset Management.

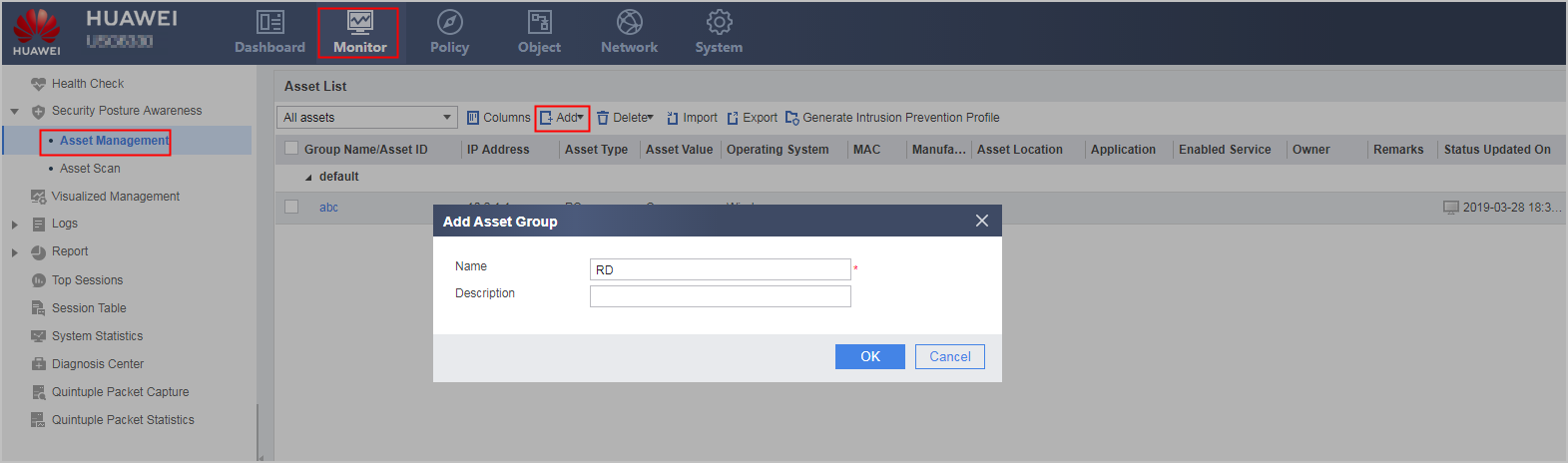

2. Optional: Click Add and select Add Asset Group to create an asset group. Click OK.

   By default, a default asset group exists in the system. You can create an asset group based on the asset department and asset type.

   A created asset group does not have assets. Empty asset groups are not displayed. After assets are added to an empty asset group, the asset group is listed.

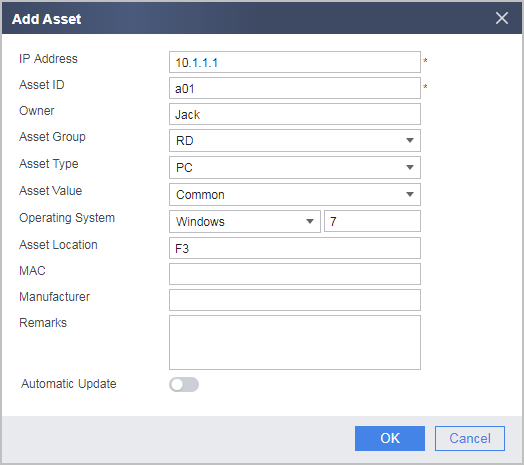

3. Click Add and select Add Asset to record intranet asset information. Click OK.





   To ensure the effectiveness of the intrusion prevention configuration file, enter the asset information truthfully.

   Parameter	Description
   IP Address	IP address of an asset. Each IP address must be unique.
   Asset ID	Unique identifier of the asset in the enterprise. The value is a string of 1 to 31 case-sensitive characters that cannot contain spaces, hyphens (-), asterisks (*), commas (,), double quotation marks ("") or question marks (?).
   Owner	Owner of the asset. The value cannot contain commas (,), double quotation marks ("") or question marks (?).
   Asset Group	Group to which the asset belongs to. If you do not specify the asset group, the asset belongs to the default group by default.
   Asset Type	Firewall, router, switch, PC, server, printer, mobile device, IP camera, network video recorder, or other types. If you do not specify the asset type, the asset type belongs to the PC by default.
   Asset Value	Significance level, including minor, common, medium, important, and core assets If you do not specify the asset value, the asset value belongs to the Common by default.
   Operating System	Operating system used on the asset. Select the operating system type, such as Windows, Linux, or iOS. Determine whether to enter the operating system version number as required. If you do not specify the operating system, the operating system belongs to the Windows by default.
   Asset Location	Location of the asset.
   MAC	MAC address of the asset.
   Manufacturer	Vendor information of the asset.
   Remarks	Remarks of the asset.
   Automatic Update	Whether the asset information created or modified by the administrator can be overwritten by the asset information automatically obtained by proactive scanning or passive traffic learning. By default, the automatic asset update function is disabled. That is, the asset information manually created or modified locally is preferred and cannot be overwritten by the asset information automatically obtained by proactive scanning or passive traffic learning. The FW can automatically obtain assets through proactive scanning or passive traffic learning. However, the obtained asset information may be different from the actual asset information. The administrator can manually correct the asset information. In this case, you do not need to enable the automatic asset update function so that the modified information will not be updated by subsequent asset scanning tasks. When asset information changes greatly and asset information needs to be updated through asset scanning or passive traffic scanning, you can enable the automatic asset update function. NOTE: The function of obtaining assets through passive traffic learning applies to the camera security management solution. When camera traffic passes through the FW, the FW obtains camera asset information through in-depth traffic learning. In this case, the FW sends the asset information to the video security management platform. Only the assets that are admitted by the administrator on the video security management platform can be delivered to the asset list of the FW.
   Application	Applications used by the asset. This parameter can be set only when asset information is modified.
   Enabled Service	Service used by the asset. This parameter can be set only when asset information is modified.
   VLAN-ID	VLAN ID of the asset. This parameter can be set only when asset information is modified.

4. After configuring the asset information, click Generate Intrusion Prevention Profile under Asset List. Select the application and operating system as required.

   View the generated intrusion prevention profile in Object > Security Profiles > Intrusion Prevention. Apply the profile in a specified security policy.
