CLI: Example for Configuring Bidirectional NAT for IPv6 Internet Users to Access Intranet Servers

Networking Requirements

The FW serves as a security gateway at the border of an enterprise network. To enable Internet users to access internal servers through bidirectional NAT, configure source NAT and destination NAT policies on the FW. Figure 1 shows the network environment. The router is the access gateway provided by the ISP.

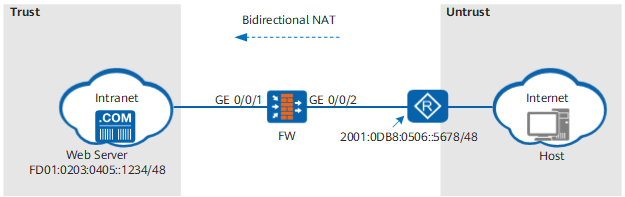

Figure 1 Networking for source NAT+destination NAT

Data Planning

Item		Data	Description
GigabitEthernet 0/0/1		IP address: FD01:0203:0405::5678/48 Security zone: Trust	Configure the IP address of the GigabitEthernet 0/0/1 as the default gateway for intranet hosts.
GigabitEthernet 0/0/2		IP address: 2001:0DB8:0506::1234/48 Security zone: Untrust	Set the parameters according to the requirement of the ISP.
Address segment before translation	Source address before translation	Host user address (2001:0DB8:0607::1234/48)	-
Address segment before translation	Destination address before translation	2001:0DB8:0405::1234/48	-
Address segment after translation	Source address after translation	Source address translation based on the host user address (FD01:0203:0506::1234/48)	-
Address segment after translation	Destination address after translation	FD01:0203:0405::1234/48	-
Route	Default route	Destination address: 0:0::0:0 Next hop: 2001:0DB8:0506::5678/48	To ensure that traffic from the intranet server can be forwarded to the ISP router, configure a default route destined for the Internet on the FW.
Route	Router static route	Destination address: address before destination NAT Next hop: IP address of GigabitEthernet 0/0/2	To ensure that the traffic returned by the Internet can be forwarded to the FW, manually configure static routes on the router. In most cases, you have to contact the ISP network administrator to configure the static routes.

Configuration Roadmap

Configure interface IP addresses and assign the interfaces to security zones.
Configure a security policy to allow Internet users to access the intranet server.
Configure a NAT policy to enable the host to use a public network IP address to access the internal server.
Configure a default route on the FW, so that traffic from the intranet server can be forwarded to the ISP router.
Configure static routes on the router, so that the router forwards return traffic from the Internet to the FW.

Procedure

Enable the IPv6 packet forwarding function.
```
[FW] ipv6
```

Configure interface IP addresses and assign the interfaces to security zones.

# Configure the IP address of GigabitEthernet 0/0/1.

<FW> system-view
 [FW] interface GigabitEthernet 0/0/1
 [FW-GigabitEthernet 0/0/1] ipv6 enable
 [FW-GigabitEthernet 0/0/1] ipv6 address FD01:0203:0405::5678 48
 [FW-GigabitEthernet 0/0/1] quit

# Configure the IP address of GigabitEthernet 0/0/2.

[FW] interface GigabitEthernet 0/0/2
 [FW-GigabitEthernet 0/0/2] ipv6 enable
 [FW-GigabitEthernet 0/0/2] ipv6 address 2001:0DB8:0506::1234 48
 [FW-GigabitEthernet 0/0/2] quit

# Add GigabitEthernet 0/0/1 to the Trust zone.

[FW] firewall zone trust
 [FW-zone-untrust] add interface GigabitEthernet 0/0/1
 [FW-zone-untrust] quit

#Add GigabitEthernet 0/0/2 to the Untrust zone.

[FW] firewall zone untrust
 [FW-zone-dmz] add interface GigabitEthernet 0/0/2
 [FW-zone-dmz] quit

Configure a security policy to allow Internet users to access the intranet server.

[FW] security-policy
 [FW-policy-security] rule name policy1
 [FW-policy-security-rule-policy1] source-zone untrust
 [FW-policy-security-rule-policy1] destination-zone trust
 [FW-policy-security-rule-policy1] destination-address FD01:0203:0405::1234 48
 [FW-policy-security-rule-policy1] action permit
 [FW-policy-security-rule-policy1] quit
 [FW-policy-security] quit

Configure a NAT policy.

[FW] nat-policy
 [FW-policy-nat] rule name policy_nat1
 [FW-policy-nat-rule-policy_nat1] nat-type nat66
 [FW-policy-nat-rule-policy_nat1] source-zone untrust
 [FW-policy-nat-rule-policy_nat1] source-address 2001:0DB8:0607:: 48
 [FW-policy-nat-rule-policy_nat1] destination-address 2001:0DB8:0405::1234 48
 [FW-policy-nat-rule-policy_nat1] action source-nat static FD01:0203:0506:: 48
 [FW-policy-nat-rule-policy_nat1] action destination-nat static FD01:0203:0405:: 48
 [FW-policy-nat-rule-policy_nat1] quit
 [FW-policy-nat] quit

Configure black-hole routes destined for the address of traffic to prevent routing loops.

[FW] ipv6 route-static 2001:0DB8:0405::1234 48 NULL 0
[FW] ipv6 route-static FD01:0203:0506::1234 48 NULL 0

Configure a default route, so that traffic from the intranet server can be forwarded to the ISP router.
```
[FW] ipv6 route-static 0:0::0:0 0 2001:0DB8:0506::5678
```
Configure the default gateway on each host on the intranet, so that the hosts send traffic to the FW when they access the Internet.
Configure static routes on the router, so that the router forwards return traffic from the Internet to the FW.
Contact the ISP network administrator to perform this step.

Configuration Scripts

Configuration script for the FW:

#
  sysname FW
 #
 interface GigabitEthernet0/0/1
  undo shutdown
  ipv6 address FD01:0203:0405::5678 48
 #
 interface GigabitEthernet0/0/2
  undo shutdown
  ipv6 address 2001:0DB8:0506::1234 48
 #
 firewall zone trust
  set priority 5
  add interface GigabitEthernet0/0/1
 #
 firewall zone untrust
  set priority 50
  add interface GigabitEthernet0/0/2
 #
  ipv6 route-static 2001:0DB8:0405::1234 48 NULL 0
  ipv6 route-static FD01:0203:0506::1234 48 NULL 0
  ipv6 route-static 0:0::0:0 0 2001:0DB8:0506::5678
 #
 security-policy
   rule name policy1
     source-zone untrust
     destination-zone trust
     destination-address FD01:0203:0405::1234 48
     action permit
 #
 nat-policy
   rule name policy_nat1
     nat-type nat66
     source-zone untrust
     source-address 2001:0DB8:0607:: 48
     destination-address 2001:0DB8:0405::1234 48
     action source-nat static FD01:0203:0506:: 48
     action destination-nat static FD01:0203:0405:: 48
 #
 return
