Example for Configuring Basic IS-IS Functions

This part provides an example for interconnecting IPv4 networks through IS-IS.

Networking Requirements

As shown in Figure 1:

  • RouterA, RouterB, FW_C, and FW_D belong to the same AS. IS-IS is enabled on the devices to implement interconnection in the IP network.

  • The area addresses of RouterA, RouterB, and FW_C are all 10, and the area address of FW_D is 20.

  • RouterA and RouterB are Level-1 routers, FW_C is a Level-1-2 router. FW_D is a Level-2 router.

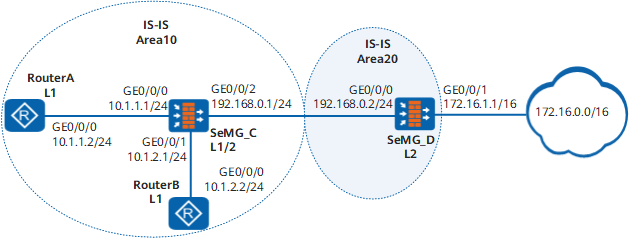

Figure 1 Networking diagram for configuring basic IS-IS functions

Configuration Roadmap

The configuration roadmap is as follows:

  1. Enable IS-IS on each device, configure the levels of routers, and specify an NET.

  2. Set RouterA and FW_C to authenticate Hello packets in specified mode and with the specified password.

  3. Check the IS-IS database and the routing table of each device.

Data Preparation

To complete the configuration, you need the following data:

  • Area addresses of RouterA, RouterB, FW_C and FW_D

  • Levels of RouterA, RouterB, FW_C, and FW_D

Procedure

  1. Configure an IP address for each interface.

    # Configure RouterA.

    <Router> system-view
    [Router] sysname RouterA
    [RouterA] interface GigabitEthernet 0/0/0
    [RouterA-GigabitEthernet 0/0/0] ip address 10.1.1.2 24
    [RouterA-GigabitEthernet 0/0/0] quit

    # Configure RouterB.

    <Router> system-view
    [Router] sysname RouterB
    [RouterB] interface GigabitEthernet 0/0/0
    [RouterB-GigabitEthernet 0/0/0] ip address 10.1.2.2 24
    [RouterB-GigabitEthernet 0/0/0] quit

    # Configure FW_C.

    <FW> system-view
[FW] sysname FW_C
[FW_C] interface GigabitEthernet 0/0/0
[FW_C-GigabitEthernet 0/0/0] ip address 10.1.1.1 24
[FW_C-GigabitEthernet 0/0/0] quit
[FW_C] interfaceGigabitEthernet 0/0/1
[FW_C-GigabitEthernet 0/0/1] ip address 10.1.2.1 24
[FW_C-GigabitEthernet 0/0/1] quit
[FW_C] interface GigabitEthernet 0/0/2
[FW_C-GigabitEthernet 0/0/2] ip address 192.168.0.1 24
[FW_C-GigabitEthernet 0/0/2] quit

    # Configure FW_D.

    <FW> system-view
[FW] sysname FW_D
[FW_D] interface GigabitEthernet 0/0/0
[FW_D-GigabitEthernet 0/0/0] ip address 192.168.0.2 24
[FW_D-GigabitEthernet 0/0/0] quit
[FW_D] interfaceGigabitEthernet 0/0/1
[FW_D-GigabitEthernet 0/0/1] ip address 172.16.1.1 16
[FW_D-GigabitEthernet 0/0/1] quit

  2. Assign interfaces of FW_C and FW_D to security zones and enable interzone security policies.

    # Assign interfaces of FW_C to security zones.

    [FW_C] firewall zone trust
[FW_C-zone-trust] add interface GigabitEthernet 0/0/0
[FW_C-zone-trust] add interface GigabitEthernet 0/0/1
[FW_C-zone-trust] quit
    [FW_C] firewall zone untrust
[FW_C-zone-untrust] add interface GigabitEthernet 0/0/2
[FW_C-zone-untrust] quit

    # Assign interfaces of FW_D to security zones.

    [FW_D] firewall zone trust
[FW_D-zone-trust] add interface GigabitEthernet 0/0/0
[FW_D-zone-trust] quit
    [FW_D] firewall zone untrust
[FW_D-zone-untrust] add interface GigabitEthernet 0/0/1
[FW_D-zone-untrust] quit

    # Enable Trust-Untrust, Local-Untrust, and Untrust-Local interzone policies FW_C to ensure normal packet transmission.

    This section provides only required security policy parameters. Set other security policy parameters as required.
    [FW_C] security-policy
[FW_C-policy-security] rule name policy_sec_1
[FW_C-policy-security-rule-policy_sec_1] source-zone trust
[FW_C-policy-security-rule-policy_sec_1] destination-zone untrust
[FW_C-policy-security-rule-policy_sec_1] action permit
[FW_C-policy-security-rule-policy_sec_1] quit
[FW_C-policy-security] rule name policy_sec_2
[FW_C-policy-security-rule-policy_sec_2] source-zone local untrust
[FW_C-policy-security-rule-policy_sec_2] destination-zone local untrust
[FW_C-policy-security-rule-policy_sec_2] action permit
[FW_C-policy-security-rule-policy_sec_2] quit
[FW_C-policy-security] rule name policy_sec_3
[FW_C-policy-security-rule-policy_sec_3] source-zone local trust
[FW_C-policy-security-rule-policy_sec_3] destination-zone local trust
[FW_C-policy-security-rule-policy_sec_3] action permit
[FW_C-policy-security-rule-policy_sec_3] quit
[FW_C-policy-security] quit

    # Enable Trust-Untrust, Local-Untrust, and Untrust-Local interzone policies on FW_D to ensure normal packet transmission.

    This section provides only required security policy parameters. Set other security policy parameters as required.
    [FW_D] security-policy
[FW_D-policy-security] rule name policy_sec_1
[FW_D-policy-security-rule-policy_sec_1] source-zone trust
[FW_D-policy-security-rule-policy_sec_1] destination-zone untrust
[FW_D-policy-security-rule-policy_sec_1] action permit
[FW_D-policy-security-rule-policy_sec_1] quit
[FW_D-policy-security] rule name policy_sec_2
[FW_D-policy-security-rule-policy_sec_2] source-zone local untrust
[FW_D-policy-security-rule-policy_sec_2] destination-zone local untrust
[FW_D-policy-security-rule-policy_sec_2] action permit
[FW_D-policy-security-rule-policy_sec_2] quit
[FW_D-policy-security] rule name policy_sec_3
[FW_D-policy-security-rule-policy_sec_3] source-zone local trust
[FW_D-policy-security-rule-policy_sec_3] destination-zone local trust
[FW_D-policy-security-rule-policy_sec_3] action permit
[FW_D-policy-security-rule-policy_sec_3] quit
[FW_D-policy-security] quit

  3. Configure basic IS-IS functions.

    # Configure RouterA.

    [RouterA] isis 1
[RouterA-isis-1] is-level level-1
[RouterA-isis-1] network-entity 10.0000.0000.0001.00
[RouterA-isis-1] quit
[RouterA] interface GigabitEthernet 0/0/0
[RouterA-GigabitEthernet 0/0/0] isis enable 1
[RouterA-GigabitEthernet 0/0/0] quit

    # Configure RouterB.

    [RouterB] isis 1
[RouterB-isis-1] is-level level-1
[RouterB-isis-1] network-entity 10.0000.0000.0002.00
[RouterB-isis-1] quit
[RouterB] interface GigabitEthernet 0/0/0
[RouterB-GigabitEthernet 0/0/0] isis enable 1
[RouterB-GigabitEthernet 0/0/0] quit

    # Configure FW_C.

    [FW_C] isis 1
[FW_C-isis-1] network-entity 10.0000.0000.0003.00
[FW_C-isis-1] quit
[FW_C] interface GigabitEthernet 0/0/0
[FW_C-GigabitEthernet 0/0/0] isis enable 1
[FW_C-GigabitEthernet 0/0/0] quit
[FW_C] interface GigabitEthernet 0/0/1
[FW_C-GigabitEthernet 0/0/1] isis enable 1
[FW_C-GigabitEthernet 0/0/1] quit
[FW_C] interface GigabitEthernet 0/0/2
[FW_C-GigabitEthernet 0/0/2] isis enable 1
[FW_C-GigabitEthernet 0/0/2] quit

    # Configure FW_D.

    [FW_D] isis 1
[FW_D-isis-1] is-level level-2
[FW_D-isis-1] network-entity 20.0000.0000.0004.00
[FW_D-isis-1] quit
[FW_D] interface GigabitEthernet 0/0/1
[FW_D-GigabitEthernet 0/0/1] isis enable 1
[FW_D-GigabitEthernet 0/0/1] quit
[FW_D] interface GigabitEthernet 0/0/0
[FW_D-GigabitEthernet 0/0/0] isis enable 1
[FW_D-GigabitEthernet 0/0/0] quit

  4. Configure the authentication mode and password for RouterA and FW_C to authenticate Hello packets.

    # Configure RouterA.

    [RouterA] interface GigabitEthernet 0/0/0
[RouterA-GigabitEthernet 0/0/1] isis authentication-mode md5 huawei

    # Configure FW_C.

    [FW_C] interface GigabitEthernet 0/0/0
[FW_C-GigabitEthernet 0/0/1] isis authentication-mode md5 huawei

  5. Verify the configuration.

    # Display the IS-IS LSDB of each Router.

    [RouterA] display isis lsdb

                        Database information for ISIS(1)
                        --------------------------------
                          Level-1 Link State Database
LSPID                 Seq Num      Checksum      Holdtime      Length  ATT/P/OL
-------------------------------------------------------------------------
0000.0000.0001.00-00* 0x00000006   0xbf7d        649           68      0/0/0
0000.0000.0002.00-00  0x00000003   0xef4d        545           68      0/0/0
0000.0000.0003.00-00  0x00000008   0x3340        582           111     1/0/0
Total LSP(s): 3
*(In TLV)-Leaking Route, *(By LSPID)-Self LSP, +-Self LSP(Extended),
           ATT-Attached, P-Partition, OL-Overload

    [RouterB] display isis lsdb

                        Database information for ISIS(1)
                        --------------------------------
                          Level-1 Link State Database

LSPID                 Seq Num      Checksum      Holdtime      Length  ATT/P/OL
-------------------------------------------------------------------------
0000.0000.0001.00-00  0x00000006   0xbf7d        642           68      0/0/0
0000.0000.0002.00-00* 0x00000003   0xef4d        538           68      0/0/0
0000.0000.0003.00-00  0x00000008   0x3340        574           111     1/0/0
Total LSP(s): 3
*(In TLV)-Leaking Route, *(By LSPID)-Self LSP, +-Self LSP(Extended),
           ATT-Attached, P-Partition, OL-Overload

    [FW_C] display isis lsdb

                        Database information for ISIS(1)
                        --------------------------------

                          Level-1 Link State Database

LSPID                 Seq Num      Checksum      Holdtime      Length  ATT/P/OL
-------------------------------------------------------------------------
0000.0000.0001.00-00  0x00000006   0xbf7d        638           68      0/0/0
0000.0000.0002.00-00  0x00000003   0xef4d        533           68      0/0/0
0000.0000.0003.00-00* 0x00000008   0x3340        569           111     1/0/0
Total LSP(s): 3
*(In TLV)-Leaking Route, *(By LSPID)-Self LSP, +-Self LSP(Extended),
           ATT-Attached, P-Partition, OL-Overload

                          Level-2 Link State Database

LSPID                 Seq Num      Checksum      Holdtime      Length  ATT/P/OL
-------------------------------------------------------------------------
0000.0000.0003.00-00* 0x00000008   0x55bb        650           100     0/0/0
0000.0000.0004.00-00  0x00000005   0x6510        629           84      0/0/0
Total LSP(s): 2
*(In TLV)-Leaking Route, *(By LSPID)-Self LSP, +-Self LSP(Extended),
           ATT-Attached, P-Partition, OL-Overload

    [FW_D] display isis lsdb

                        Database information for ISIS(1)
                        --------------------------------

                          Level-2 Link State Database

LSPID                 Seq Num      Checksum      Holdtime      Length  ATT/P/OL
-------------------------------------------------------------------------
0000.0000.0003.00-00  0x00000008   0x55bb        644           100     0/0/0
0000.0000.0004.00-00* 0x00000005   0x6510        624           84      0/0/0
Total LSP(s): 2

*(In TLV)-Leaking Route, *(By LSPID)-Self LSP, +-Self LSP(Extended),
           ATT-Attached, P-Partition, OL-Overload

    # Display the IS-IS routing information of each device. A default route must exist in the Level-1 routing table and the next hop is a Level-1-2 router. A Level-2 router must have all Level-1 and Level-2 routes.

    [RouterA] display isis route

                         Route information for ISIS(1)
                         -----------------------------
                        ISIS(1) Level-1 Forwarding Table
                        --------------------------------

 IPV4 Destination   IntCost   ExtCost ExitInterface   NextHop         Flags
-------------------------------------------------------------------------
 10.1.1.0/24        10        NULL    GigabitEthernet 0/0/0          Direct        D/-/L/-
 10.1.2.0/24        20        NULL    GigabitEthernet 0/0/0          10.1.1.1      A/-/-/-
 192.168.0.0/24     20        NULL    GigabitEthernet 0/0/0          10.1.1.1      A/-/-/-
 0.0.0.0/0          10        NULL    GigabitEthernet 0/0/0          10.1.1.1      A/-/-/-
     Flags: D-Direct, A-Added to URT, L-Advertised in LSPs, S-IGP Shortcut,
                               U-Up/Down Bit Set

    [FW_C] display isis route

                         Route information for ISIS(1)
                         -----------------------------

                        ISIS(1) Level-1 Forwarding Table
                        --------------------------------

 IPV4 Destination   IntCost   ExtCost ExitInterface   NextHop         Flags
-------------------------------------------------------------------------
 10.1.1.0/24        10        NULL    GigabitEthernet 0/0/0          Direct        D/-/L/-
 10.1.2.0/24        10        NULL    GigabitEthernet 0/0/1          Direct        D/-/L/-
 192.168.0.0/24     10        NULL    GigabitEthernet 0/0/2          Direct        D/-/L/-

     Flags: D-Direct, A-Added to URT, L-Advertised in LSPs, S-IGP Shortcut,
                               U-Up/Down Bit Set


                        ISIS(1) Level-2 Forwarding Table
                        --------------------------------

 IPV4 Destination   IntCost   ExtCost ExitInterface   NextHop         Flags
-------------------------------------------------------------------------
 10.1.1.0/24        10        NULL    GigabitEthernet 0/0/0          Direct        D/-/L/-
 10.1.2.0/24        10        NULL    GigabitEthernet 0/0/1          Direct        D/-/L/-
 192.168.0.0/24     10        NULL    GigabitEthernet 0/0/2          Direct        D/-/L/-
 172.16.0.0/16      20        NULL    GigabitEthernet 0/0/2          192.168.0.2   A/-/-/-

     Flags: D-Direct, A-Added to URT, L-Advertised in LSPs, S-IGP Shortcut,
                               U-Up/Down Bit Set

    [FW_D] display isis route

                         Route information for ISIS(1)
                         -----------------------------

                        ISIS(1) Level-2 Forwarding Table
                        --------------------------------
 IPV4 Destination   IntCost   ExtCost ExitInterface   NextHop          Flags
--------------------------------------------------------------------------
 192.168.0.0/24     10        NULL    GigabitEthernet 0/0/0          Direct         D/-/L/-
 10.1.1.0/24        20        NULL    GigabitEthernet 0/0/0          192.168.0.1    A/-/-/-
 10.1.2.0/24        20        NULL    GigabitEthernet 0/0/0          192.168.0.1    A/-/-/-
 172.16.0.0/16      10        NULL    GigabitEthernet 0/0/1         Direct         D/-/L/-

     Flags: D-Direct, A-Added to URT, L-Advertised in LSPs, S-IGP Shortcut,
                               U-Up/Down Bit Set

Configuration Files

  • Configuration file of RouterA

    #
     sysname RouterA
    #
    isis 1
     is-level level-1
     network-entity 10.0000.0000.0001.00
    #
    interface GigabitEthernet 0/0/0
     ip address 10.1.1.2 255.255.255.0
     isis enable 1
     isis authentication-mode md5 N`C55QK<`=/Q=^Q`MAF4<1!!
    #
    return

  • Configuration file of RouterB

    #
     sysname RouterB
    #
    isis 1
     is-level level-1
     network-entity 10.0000.0000.0002.00
    #
    interface GigabitEthernet 0/0/0
     ip address 10.1.2.2 255.255.255.0
     isis enable 1
    #
    return

  • Configuration file of FW_C

    #
     sysname FW_C
    #
    isis 1
     network-entity 10.0000.0000.0003.00
    #
    interface GigabitEthernet 0/0/0
     ip address 10.1.1.1 255.255.255.0
     isis enable 1
     isis authentication-mode md5 N`C55QK<`=/Q=^Q`MAF4<1!!
    #
    interface GigabitEthernet 0/0/1
     ip address 10.1.2.1 255.255.255.0
     isis enable 1
    #
    interface GigabitEthernet 0/0/2
     ip address 192.168.0.1 255.255.255.0
     isis enable 1
    #
firewall zone trust
 set priority 85
 add interface GigabitEthernet 0/0/0
 add interface GigabitEthernet 0/0/1
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet 0/0/2
#
security-policy
  rule name policy_sec_1
    source-zone trust
    destination-zone untrust
    action permit
  rule name policy_sec_2
    source-zone local
    source-zone untrust
    destination-zone local
    destination-zone untrust
    action permit
  rule name policy_sec_3
    source-zone local
    source-zone trust
    destination-zone local
    destination-zone trust
    action permit

    #
    return

  • Configuration file of FW_D

    #
     sysname FW_D
    #
    isis 1
     is-level level-2
     network-entity 20.0000.0000.0004.00
    #
    interface GigabitEthernet 0/0/0
     ip address 192.168.0.2 255.255.255.0
     isis enable 1
    #
    interface GigabitEthernet 0/0/1
     ip address 172.16.1.1 255.255.0.0
     isis enable 1
    #
firewall zone trust
 set priority 85
 add interface GigabitEthernet 0/0/0
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet 0/0/1
#
security-policy
  rule name policy_sec_1
    source-zone trust
    destination-zone untrust
    action permit
  rule name policy_sec_2
    source-zone local
    source-zone untrust
    destination-zone local
    destination-zone untrust
    action permit
  rule name policy_sec_3
    source-zone local
    source-zone trust
    destination-zone local
    destination-zone trust
    action permit

    #
    return
Parent Topic: Configuration Examples for IS-IS
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
Next topic >
