CLI: Example for Configuring Basic RIP Functions
You can configure RIP-2 on small IP networks to implement network interconnection.
Networking Requirements

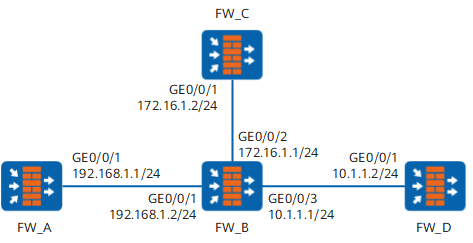

As shown in Figure 1, it is required that RIP be enabled on all interfaces of FW_A, FW_B, FW_C, and FW_D and the routers interconnect with each other through RIP-2.
Configuration Roadmap
The configuration roadmap is as follows:
- Configure the IP address of each interface to make the network layers accessible.
- Enable RIP on each FW and configure basic RIP functions.
- Configure RIP-2 on each FW and check the subnet masks.
Data Preparation
- RIP network segment 192.168.1.0 on FW_A
- RIP network segment 192.168.1.0, 172.16.0.0, and 10.0.0.0 on FW_B
- RIP network segment 172.16.0.0 on FW_C
- RIP network segment 10.0.0.0 on FW_D
- RIP-2 on FW_A, FW_B, FW_C, and FW_D
Procedure
- Set the IP addresses for the interfaces, add the interfaces to security zones, and configure the interzone security policy.
# Configure FW_A.
<FW> system-view [FW] sysname FW_A [FW_A] interface GigabitEthernet 0/0/1 [FW_A-GigabitEthernet0/0/1] ip address 192.168.1.1 24 [FW_A-GigabitEthernet0/0/1] quit [FW_A] firewall zone trust [FW_A-zone-trust] add interface GigabitEthernet 0/0/1 [FW_A-zone-trust] quit [FW_A] security-policy [FW_A-policy-security] rule name policy_sec_1 [FW_A-policy-security-rule-policy_sec_1] source-zone trust local [FW_A-policy-security-rule-policy_sec_1] destination-zone local trust [FW_A-policy-security-rule-policy_sec_1] action permit [FW_A-policy-security-rule-policy_sec_1] quit
# Configure FW_B.
<FW> system-view [FW] sysname FW_B [FW_B] interface GigabitEthernet 0/0/1 [FW_B-GigabitEthernet0/0/1] ip address 192.168.1.2 24 [FW_B-GigabitEthernet0/0/1] quit [FW_B] interface GigabitEthernet 0/0/2 [FW_B-GigabitEthernet0/0/2] ip address 172.16.1.1 24 [FW_B-GigabitEthernet0/0/2] quit [FW_B] interface GigabitEthernet 0/0/3 [FW_B-GigabitEthernet0/0/3] ip address 10.1.1.1 24 [FW_B-GigabitEthernet0/0/3] quit [FW_B] firewall zone trust [FW_B-zone-trust] add interface GigabitEthernet 0/0/1 [FW_B-zone-trust] add interface GigabitEthernet 0/0/2 [FW_B-zone-trust] add interface GigabitEthernet 0/0/3 [FW_B-zone-trust] quit [FW_B] security-policy [FW_B-policy-security] rule name policy_sec_1 [FW_B-policy-security-rule-policy_sec_1] source-zone trust local [FW_B-policy-security-rule-policy_sec_1] destination-zone local trust [FW_B-policy-security-rule-policy_sec_1] action permit [FW_B-policy-security-rule-policy_sec_1] quit
# Configure FW_C.
<FW> system-view [FW] sysname FW_C [FW_C] interface GigabitEthernet 0/0/1 [FW_C-GigabitEthernet0/0/1] ip address 172.16.1.2 24 [FW_C-GigabitEthernet0/0/1] quit [FW_C] firewall zone trust [FW_C-zone-trust] add interface GigabitEthernet 0/0/1 [FW_C-zone-trust] quit [FW_C] security-policy [FW_C-policy-security] rule name policy_sec_1 [FW_C-policy-security-rule-policy_sec_1] source-zone trust local [FW_C-policy-security-rule-policy_sec_1] destination-zone local trust [FW_C-policy-security-rule-policy_sec_1] action permit [FW_C-policy-security-rule-policy_sec_1] quit
# Configure FW_D.
<FW> system-view [FW] sysname FW_D [FW_D] interface GigabitEthernet 0/0/3 [FW_D-GigabitEthernet0/0/3] ip address 10.1.1.2 24 [FW_D-GigabitEthernet0/0/3] quit [FW_D] firewall zone trust [FW_D-zone-trust] add interface GigabitEthernet 0/0/3 [FW_D-zone-trust] quit [FW_D] security-policy [FW_D-policy-security] rule name policy_sec_1 [FW_D-policy-security-rule-policy_sec_1] source-zone trust local [FW_D-policy-security-rule-policy_sec_1] destination-zone local trust [FW_D-policy-security-rule-policy_sec_1] action permit [FW_D-policy-security-rule-policy_sec_1] quit
- Configure basic RIP functions.
# Configure FW_A.
[FW_A] rip [FW_A-rip-1] network 192.168.1.0 [FW_A-rip-1] quit
# Configure FW_B.
[FW_B] rip [FW_B-rip-1] network 192.168.1.0 [FW_B-rip-1] network 172.16.0.0 [FW_B-rip-1] network 10.0.0.0 [FW_B-rip-1] quit
# Configure FW_C.
[FW_C] rip [FW_C-rip-1] network 172.16.0.0 [FW_C-rip-1] quit
# Configure FW_D.
[FW_D] rip [FW_D-rip-1] network 10.0.0.0 [FW_D-rip-1] quit
# Check the RIP routing table of FW_A.
[FW_A] display rip 1 route Route Flags: R - RIP A - Aging, S - Suppressed, G - Garbage-collect ------------------------------------------------------------------------- Peer 192.168.1.2 on GigabitEthernet0/0/1 Destination/Mask Nexthop Cost Tag Flags Sec 10.0.0.0/8 192.168.1.2 1 0 RA 14 172.16.0.0/16 192.168.1.2 1 0 RA 14 192.168.1.0/24 192.168.1.2 1 0 RA 14
From the routing table, you can view that the routes advertised by RIP-1 use natural masks.
- Configure the RIP version number.
# Configure RIP-2 on FW_A.
[FW_A] rip [FW_A-rip-1] version 2 [FW_A-rip-1] quit
# Configure RIP-2 on FW_B.
[FW_B] rip [FW_B-rip-1] version 2 [FW_B-rip-1] quit
# Configure RIP-2 on FW_C.
[FW_C] rip [FW_C-rip-1] version 2 [FW_C-rip-1] quit
# Configure RIP-2 on FW_D.
[FW_D] rip [FW_D-rip-1] version 2 [FW_D-rip-1] quit
- Verify the configuration.
# Check the RIP routing table of FW_A.
[FW_A] display rip 1 route Route Flags: R - RIP A - Aging, S - Suppressed, G - Garbage-collect ------------------------------------------------------------------------- Peer 192.168.1.2 on GigabitEthernet0/0/1 Destination/Mask Nexthop Cost Tag Flags Sec 10.1.1.0/24 192.168.1.2 1 0 RA 32 172.16.1.0/24 192.168.1.2 1 0 RA 32 192.168.1.0/24 192.168.1.2 1 0 RA 14
By default, the Ethernet interface has the split horizon mechanism enabled. Therefore, route aggregation does not take effect. As the routing table shows, routes advertised by RIP-2 contain more accurate subnet mask information.
Configuration Scripts
Configuration script for FW_A:
# sysname FW_A # interface GigabitEthernet0/0/1 undo shutdown ip address 192.168.1.1 255.255.255.0 # firewall zone trust set priority 85 add interface GigabitEthernet0/0/1 # security-policy rule name policy_sec_1 source-zone trust source-zone local destination-zone local destination-zone trust action permit # rip 1 version 2 network 192.168.1.0 # return
Configuration script for FW_B:
# sysname FW_B # interface GigabitEthernet0/0/1 undo shutdown ip address 192.168.1.2 255.255.255.0 # interface GigabitEthernet0/0/2 undo shutdown ip address 172.16.1.1 255.255.255.0 # interface GigabitEthernet0/0/3 undo shutdown ip address 10.1.1.1 255.255.255.0 # firewall zone trust set priority 85 add interface GigabitEthernet0/0/1 add interface GigabitEthernet0/0/2 add interface GigabitEthernet0/0/3 # security-policy rule name policy_sec_1 source-zone trust source-zone local destination-zone local destination-zone trust action permit # rip 1 version 2 network 192.168.1.0 network 172.16.0.0 network 10.0.0.0 # return
Configuration script for FW_C:
# sysname FW_C # interface GigabitEthernet0/0/1 undo shutdown ip address 172.16.1.2 255.255.255.0 # firewall zone trust set priority 85 add interface GigabitEthernet0/0/1 # security-policy rule name policy_sec_1 source-zone trust source-zone local destination-zone local destination-zone trust action permit # rip 1 version 2 network 172.16.0.0 # return
Configuration script for FW_D:
# sysname FW_D # interface GigabitEthernet0/0/3 undo shutdown ip address 10.1.1.2 255.255.255.0 # firewall zone trust set priority 85 add interface GigabitEthernet0/0/3 # security-policy rule name policy_sec_1 source-zone trust source-zone local destination-zone local destination-zone trust action permit # rip 1 version 2 network 10.0.0.0 # return
