Web: Example for Configuring RIP to Import External Routes

This section provides an example for configure different RIP processes of routers to exchange routes.

Networking Requirements

On the network shown in Figure 1, two RIP processes, RIP 100 and RIP 200, run on FW_B. FW_B exchanges routing information with FW_A through RIP 100 and exchanges routing information with FW_C through RIP 200.

It is required that the two RIP processes of FW_B import RIP routes from each other. The cost of the routes imported from RIP 200 defaults to 3.

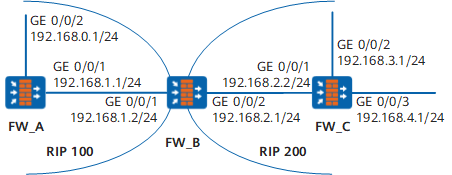

Figure 1 Networking diagram for configuring RIP to import external routes

Configuration Roadmap

The configuration roadmap is as follows:

  1. Enable RIP100 and specify network segments on FW_A and FW_B; enable RIP200 and specify network segments on FW_B and FW_C.
  2. Configure the two RIP processes on FW_B to import routes from each other and set the default cost of the routes imported from RIP200 to 3.

Data Planning

To complete the configuration, you need the following data:

  • RIP instance ID (100) and RIP network segment (192.168.1.0) on FW_A
  • RIP instance ID (100 and 200) and RIP network segment (192.168.1.0 and 192.168.2.0) on FW_B
  • RIP instance ID (200) and RIP network segment (192.168.2.0, 192.168.3.0, and 192.168.4.0) on FW_C

Procedure

  1. On FW_A, set IP addresses for interfaces, assign interfaces to security zones, and configure an interzone security policy.
    1. Choose Network > Interface and set required parameters.

      Interface Name

      GE0/0/1

      GE0/0/2

      Zone

      trust

      trust

      IP Address

      192.168.1.1/24

      192.168.0.1/24

    2. Choose Policy > Security Policy > Security Policy. Configure a security policy for device communication.

      Name

      policy_sec_1

      Source Zone

      Trust and Local

      Destination Zone

      Local and Trust

      Action

      permit

  2. Configure basic RIP functions on FW_A.

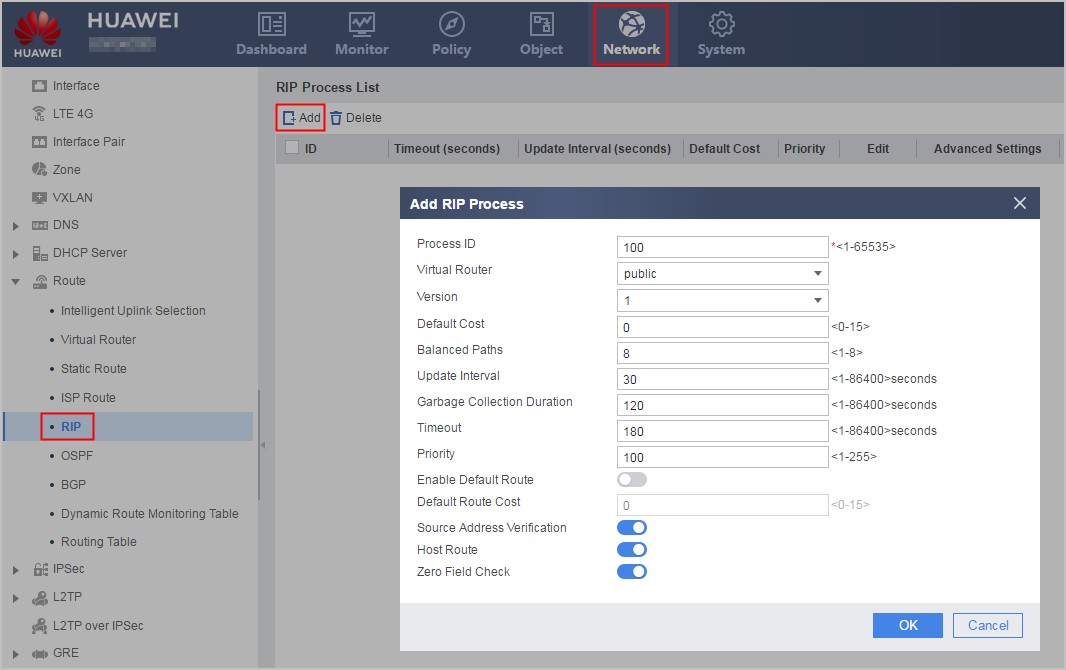

    1. Choose Network > Route > RIP to create RIP100.

    2. Configure RIP network segments 192.168.0.0 and 192.168.1.0.

      1. Click of the created RIP process.
      2. In the RIP Process ID:100 navigation tree, choose Basic Configuration > Area Settings.

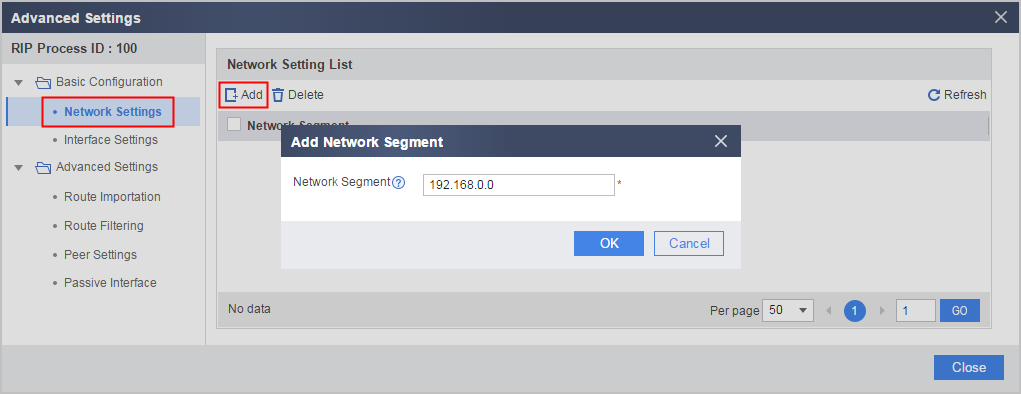

      3. Click Add to configure network segments 192.168.0.0 and192.168.1.0.

      4. Click OK.

  3. By referring to Step 1 and Step 2, configure FW_C and configure basic RIP functions.

    Configure interface IP addresses and security zones.

    Interface Name

    GE0/0/1

    GE0/0/2

    GE0/0/3

    Zone

    trust

    trust

    trust

    IP Address

    192.168.2.2/24

    192.168.3.1/24

    192.168.4.1/24

    Configure a security policy.

    Name

    policy_sec_1

    Source Zone

    Trust and Local

    Destination Zone

    Local and Trust

    Action

    permit

    Configure basic RIP functions.

    Process ID

    200

    Network Segment

    192.168.2.0

    192.168.3.0

    192.168.4.0

  4. Complete basic configurations, configure basic RIP functions, and import external routes on FW_B.
    1. By referring to Step 1, configure FW_B.

      Configure interface IP addresses and security zones.

      Interface Name

      GE0/0/1

      GE0/0/2

      Zone

      trust

      trust

      IP Address

      192.168.1.2/24

      192.168.2.1/24

      Configure a security policy.

      Name

      policy_sec_1

      Source Zone

      Trust and Local

      Destination Zone

      Local and Trust

      Action

      permit

    2. By referring to Step 2, create RIP 100 and RIP 200.

      Process ID

      100

      Network Segment

      192.168.1.0

      Process ID

      200

      Network Segment

      192.168.2.0

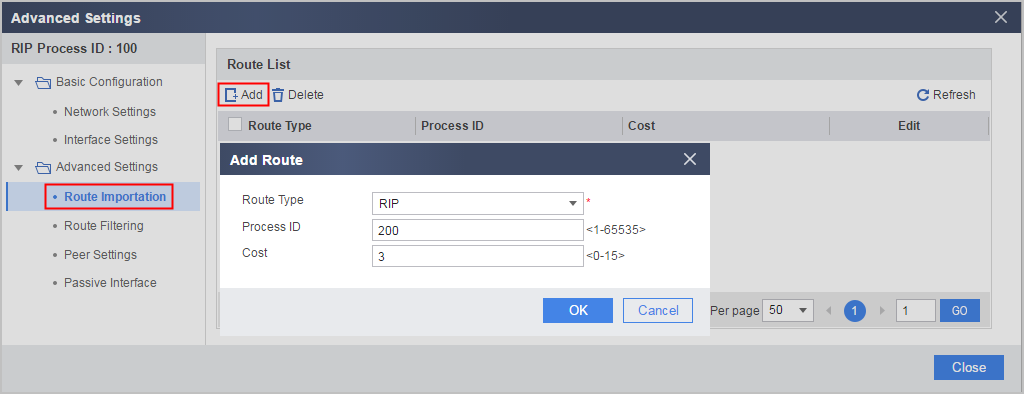

    3. Import routes from RIP 200 to RIP 100 and set the default cost of the routes to 3.

      1. Click for RIP 100.
      2. In the OSPF Process ID:100 navigation tree, choose Advanced Settings > Route Import.
      3. Click Add and set parameters as follows:

      4. Click OK.

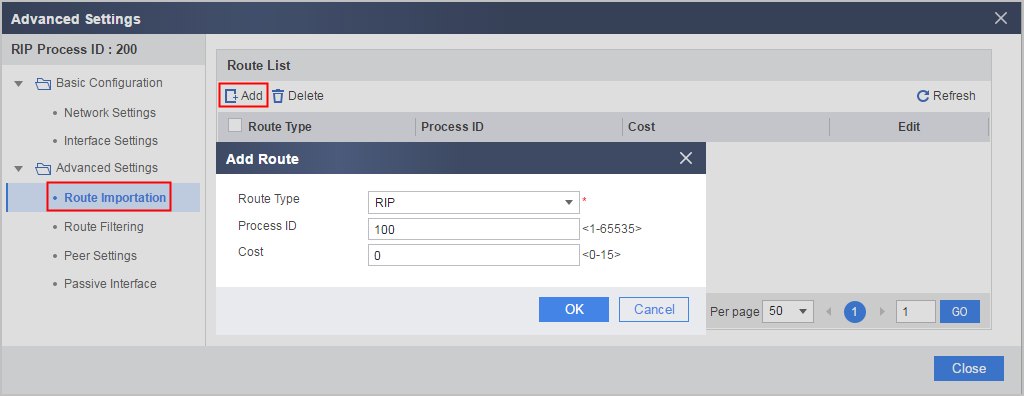

    4. Import routes from RIP 100 to RIP 200.

      1. Click for RIP 200.
      2. In the OSPF Process ID:200 navigation tree, choose Advanced Settings > Route Import.
      3. Click Add and set parameters as follows:

      4. Click OK.

Verification

# Check the routing table of FW_A after route import.

[FW_A] display ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 9       Routes : 9

Destination/Mask    Proto  Pre  Cost   Flags       NextHop         Interface

    192.168.0.0/24  Direct 0    0       D          192.168.0.1     GigabitEthernet0/0/1
    192.168.0.1/32  Direct 0    0       D          127.0.0.1       InLoopBack0
    192.168.1.0/24  Direct 0    0       D          192.168.1.1     GigabitEthernet0/0/1
    192.168.1.1/32  Direct 0    0       D          127.0.0.1       InLoopBack0
    192.168.2.0/24  RIP    100  4       D          192.168.1.2     GigabitEthernet0/0/1
    192.168.3.0/24  RIP    100  4       D          192.168.1.2     GigabitEthernet0/0/1
    192.168.4.0/24  RIP    100  4       D          192.168.1.2     GigabitEthernet0/0/1
      127.0.0.0/8   Direct 0    0       D          127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct 0    0       D          127.0.0.1       InLoopBack0

Configuration Scripts

Configuration script of FW_A

#
 sysname FW_A
#
interface GigabitEthernet0/0/1
 undo shutdown
 ip address 192.168.1.1 255.255.255.0
#
interface GigabitEthernet0/0/2
 undo shutdown
 ip address 192.168.0.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/1
 add interface GigabitEthernet0/0/2
#
security-policy
  rule name policy_sec_1
    source-zone trust
    source-zone local
    destination-zone local
    destination-zone trust
    action permit
#
rip 100
 network 192.168.0.0
 network 192.168.1.0
#
return

Configuration script of FW_B

#
 sysname FW_B
#
acl number 2000
 rule 5 deny source 192.168.4.0 0.0.0.255
 rule 10 permit
#
interface GigabitEthernet0/0/1
 undo shutdown
 ip address 192.168.1.2 255.255.255.0
#
interface GigabitEthernet0/0/2
 undo shutdown
 ip address 192.168.2.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/1
 add interface GigabitEthernet0/0/2
#
security-policy
  rule name policy_sec_1
    source-zone trust
    source-zone local
    destination-zone local
    destination-zone trust
    action permit
#
rip 100
 default-cost 3
 network 192.168.1.0
 filter-policy 2000 export
 import-route rip 200
#
rip 200
 network 192.168.2.0
 import-route rip 100
#
return

Configuration script of FW_C

#
 sysname FW_C
#
interface GigabitEthernet0/0/1
 undo shutdown
 ip address 192.168.2.2 255.255.255.0
#
interface GigabitEthernet0/0/2
 undo shutdown
 ip address 192.168.3.1 255.255.255.0
#
interface GigabitEthernet0/0/3
 undo shutdown
 ip address 192.168.4.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/1
 add interface GigabitEthernet0/0/2
 add interface GigabitEthernet0/0/3
#
security-policy
  rule name policy_sec_1
    source-zone trust
    source-zone local
    destination-zone local
    destination-zone trust
    action permit
#
rip 100
 network 192.168.2.0
 network 192.168.3.0
 network 192.168.4.0
#
return
