Web: Example for Configuring Load Balancing Among Servers on Different Network Segments

This example describes the configuration of FTP server load balancing at Layer 4. The configuration of other servers, such as DNS, SMTP, or RADIUS servers, is similar.

Networking Requirements

As shown in Figure 1, an enterprise has three FTP servers: Server1, Server2, and Server3. The hardware performance of the servers decreases in sequence. Server1 performance is twice of Server2 performance. Server2 performance is twice of Server3 performance. SLB is configured to allow the three servers to provide FTP services as a whole. The carried services match the server hardware performance. In addition, the health check function is configured to monitor the work of the servers.

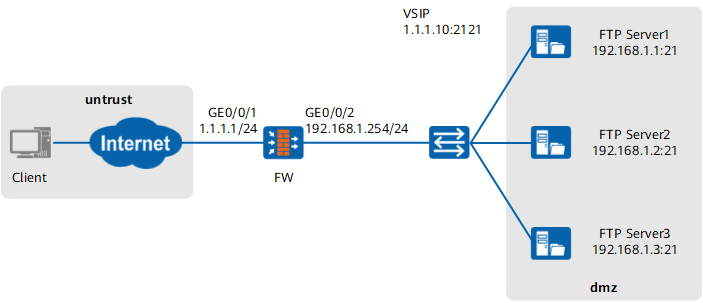

Figure 1 Networking diagram for configuring FTP server load balancing

Configuration Roadmap

Select Weighted Least Connections as the load balancing algorithm for performance-based SLB. As Server1 performance is twice of Server2 performance and Server2 performance is twice of Server3 performance, the weight ratio of the servers is 4:2:1.
Configure the health check function on the FW to check server connectivity. In this example, the protocol type is set to ICMP for health check. You can also use TCP. To allow the FW to send health check packets, configure a Local -> DMZ security policy (the servers reside in the DMZ).
Configure the sticky session function on the FW because a client may need to establish multiple connections to a server for one task. In this manner, the connection requests from the client can be allocated to the same server. As the servers provide FTP services, the sticky session mode can only be Source IP.
Enable ASPF for FTP. ASPF is required only for multi-channel protocols.

Procedure

Choose Network > Interface to configure interface IP addresses and security zones.

Interface Name

GigabitEthernet 0/0/1

GigabitEthernet 0/0/2

Zone

untrust

DMZ

IP Address

1.1.1.1/24

192.168.1.254/24
Choose Policy > Security Policy > Security Policy to configure security policies.
Configure an Untrust -> DMZ security policy to allow Internet users to access intranet web servers. The destination IP address specified in the policy must be the IP address of the virtual server.

Source Zone

untrust

Destination Zone

dmz

Source Address/Region

1.1.1.10/24

Configure a Local -> DMZ security policy to allow the FW to send health probe packets to real servers.

Source Zone

local

Destination Zone

dmz

Source Address/Region

192.168.1.1–192.168.1.3

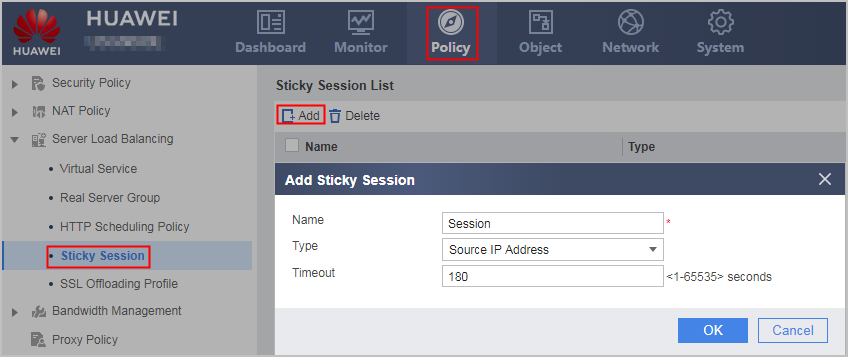

Choose Policy > Server Load Balancing > Sticky Session to configure Sticky Session.

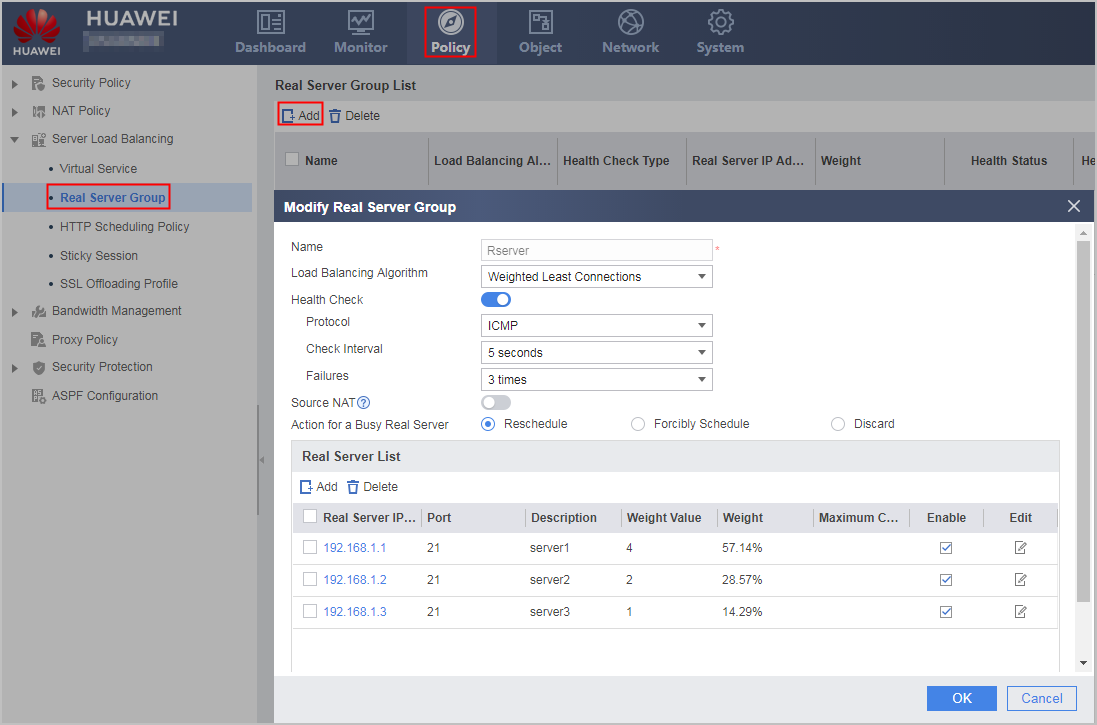

Choose Policy > Server Load Balancing > Real Server GRoup to configure Real Server Group.

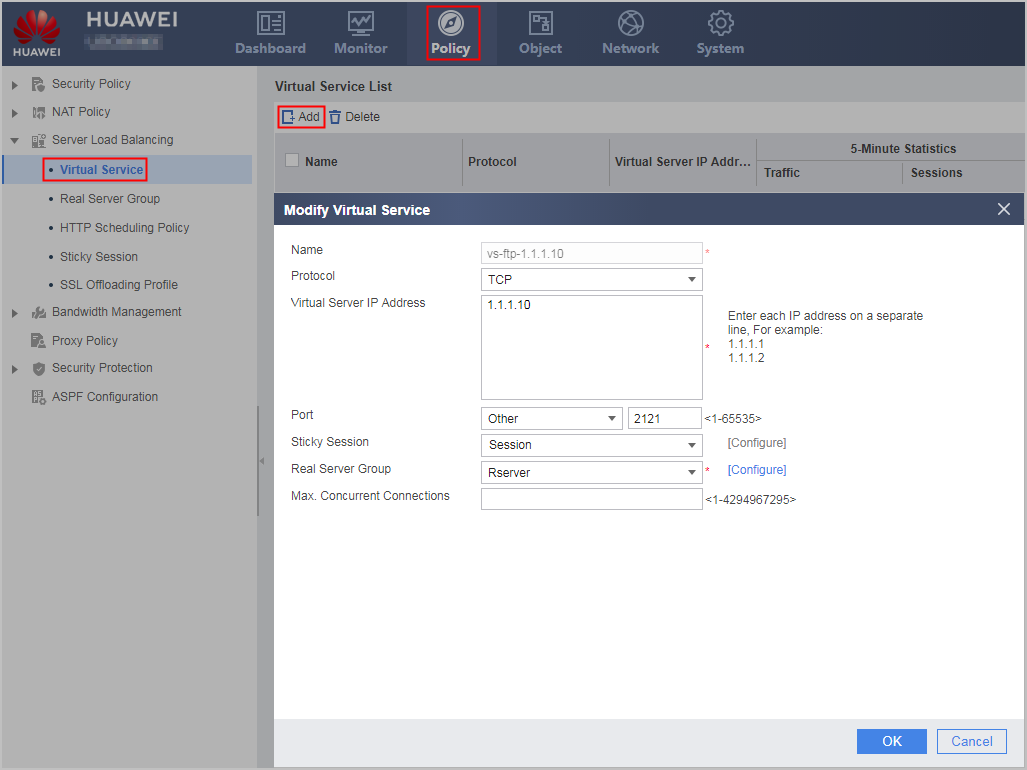

Choose Policy > Server Load Balancing > Virtual Server to configure Virtual Server.

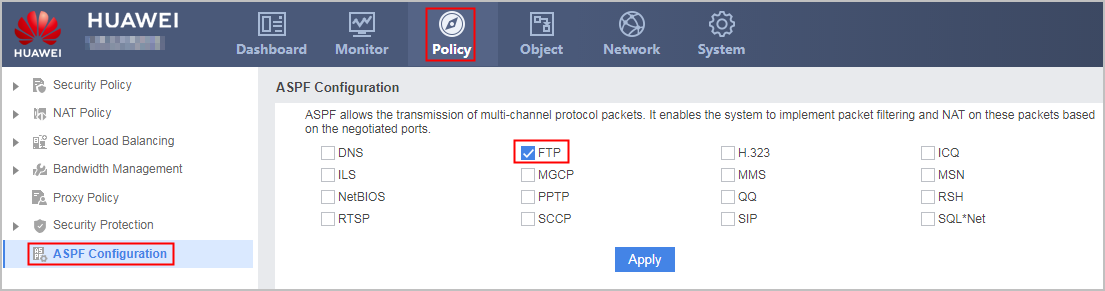

Choose Policy > ASPF Configuration to enable ASPF for FTP.

Interface Name	GigabitEthernet 0/0/1	GigabitEthernet 0/0/2
Zone	untrust	DMZ
IP Address	1.1.1.1/24	192.168.1.254/24

Source Zone	untrust
Destination Zone	dmz
Source Address/Region	1.1.1.10/24

Source Zone	local
Destination Zone	dmz
Source Address/Region	192.168.1.1–192.168.1.3

Verification

Connect the FTP client to the FTP server at 1.1.1.10:2121. The connection succeeds.
After SLB runs for a while, view the traffic and session ratios of the servers in Real Server Group List. The ratios are about 4:2:1.

Configuration Scripts

#
interface GigabitEthernet 0/0/1
 ip address 1.1.1.1 24
#
interface GigabitEthernet 0/0/2
 ip address 192.168.1.254 24
#
firewall zone untrust
 add interface GigabitEthernet 0/0/1
#
firewall zone dmz
 add interface GigabitEthernet 0/0/2
#
security-policy
 rule name policy1
  source-zone untrust
  destination-zone dmz
  destination-address 1.1.1.10 24
  action permit
 rule name policy2
  source-zone local
  destination-zone dmz
  destination-address range 192.168.1.1 192.168.1.3
  action permit
#
slb enable
#
slb
 group 0 Rserver
  metric weight-least-connection
  health-check type icmp tx-interval 5 times 3
  rserver 0 rip 192.168.1.1 port 21 weight 4 description server1
  rserver 1 rip 192.168.1.2 port 21 weight 2 description server2
  rserver 2 rip 192.168.1.3 port 21 weight 1 description server3
 persistence 0 Session
  type source-ip aging-time 180
 vserver 0 vs-ftp-1.1.1.10
  vip 0 1.1.1.10
  protocol tcp
  vport 2121
  persistence Session
  group Rserver
#
firewall detect ftp
