Enabling Communication Between Virtual Systems

This section describes how to configure routes and security policies for the communication between two virtual systems.

Context

To enable the communication between two virtual systems, you need to correctly configure the routes and security policies on the two virtual systems, just as on two physical devices.

Before the configuration, you are advised to read Communication Between Two Virtual Systems and learn about the mechanism for the communication between two virtual systems.

As shown in Figure 1, users in vsysa need to access the server in vsysb. The following configurations must be complete in vsysa, vsysb, and the root system.

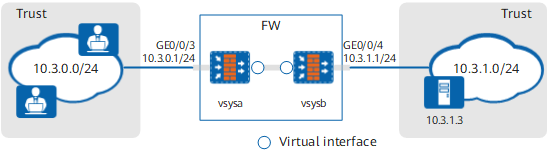

Figure 1 Communication between virtual systems

The preceding configuration allows only the unidirectional communication from vsysa to vsysb.

If hosts in vsysb need to access hosts in vsysa, you must configure the routes and security policies from vsysb to vsysa.

Procedure

  1. Configure the routes for the communication between vsysa and vsysb on the public system.
    1. Select public in the Virtual System drop-down list at the upper right corner of the page to access the public system.
    2. Choose Network > Route > Static Route.
    3. Click Add and configure a static route to vsysb as follows:

      Protocol Type

      IPv4

      Source Virtual Router

      vsysa

      Destination Address/Mask

      10.3.1.0/255.255.255.0

      Destination Virtual Router

      vsysb

      Next Hop

      -

      Interface

      -

      In this example, only users in vsysa need to access the server in vsysb. Therefore, you only need to configure the unidirectional route from vsysa to vsysb. The reply packets from the server will match the session table of vsysb and be directly forwarded to vsysa. This configuration is different from the route configuration for forwarding within one virtual system.

      If users in vsysb need to access hosts in vsysa, you must configure a static route from vsysb to vsysa. Set Source Virtual Router of the route to vsysb, Destination Address/Mask to 10.3.0.0/24, and Destination Virtual Router to vsysa.

    4. Click OK.
    5. Choose Network > Interface.
    6. Click next to the Virtual-if0 interface to set an IP address, add the interface to the Trust zone. The IP address can be any value as long as it does not conflict with the IP address on any other interface.
    7. Click OK.
  2. Configure security policies on vsysa.
    1. Select vsysa in the Virtual System drop-down list at the upper right corner of the page to access vsysa.
    2. Choose Network > Interface.
    3. Click next to the Virtual-if1 interface to set an IP address, add the interface to the Untrust zone. The IP address can be any value as long as it does not conflict with the IP address on any other interface.

      The ID of a virtual interface is automatically assigned based on existing IDs in the system. Therefore, in actual configurations, the interface might not be Virtual-if1. You can view the mapping between the virtual system and virtual interface in Interface List.

    4. Click OK.
    5. Choose Policy > Security Policy > Security Policy.
    6. Click Add Security Policy and configure a security policy as follows:

      Name

      to_server

      Source Zone

      trust

      Destination Zone

      untrust

      Source Address/Region

      10.3.0.0/24

      Destination Address/Region

      10.3.1.3/32

      Action

      Permit

    7. Click OK.
  3. Configure security policies on vsysb.
    1. Select vsysb in the Virtual System drop-down list at the upper right corner of the page to access vsysb.
    2. Choose Network > Interface.
    3. Click next to the Virtual-if2 interface to set an IP address, add the interface to the Untrust zone. The IP address can be any value as long as it does not conflict with the IP address on any other interface.
    4. Click OK.
    5. Choose Policy > Security Policy > Security Policy.
    6. Click Add Security Policy and configure a security policy as follows:

      Name

      vsysa_to_server

      Source Zone

      untrust

      Destination Zone

      trust

      Source Address/Region

      10.3.0.0/24

      Destination Address/Region

      10.3.1.3/32

      Action

      Permit

    7. Click OK.
