Web: Example for Configuring Dynamic Even Distribution to Equally Distribute Bandwidth Resources to Users

This section provides an example for configuring dynamic even distribution to equally and dynamically assign bandwidth resources to each user based on the number of online users.

Networking Requirements

As shown in Figure 1, the number of online users of department A in an enterprise is not fixed. To prevent some employees from exclusively occupying the limited bandwidth resources, the enterprise requires to enable the bandwidth management function on the FW to evenly and dynamically distribute the bandwidth resources to the online users. Specific requirements are as follows:

The maximum downstream bandwidth of department A cannot exceed 60 Mbit/s.
The bandwidth resources (60 Mbit/s) of department A must be equally and dynamically assigned to each user in department A based on the number of online users.

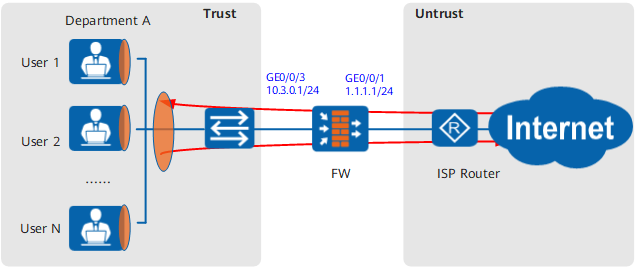

Figure 1 Networking diagram for configuring dynamic even distribution to equally distribute bandwidth resources to users

Configuration Roadmap

Set interface IP addresses and assign the interfaces to security zones.
Configure a traffic profile for department A, set the overall maximum downstream bandwidth to 60 Mbit/s, and select dynamic even distribution for the per-user traffic limiting mode.
Configure a traffic policy for department A and reference the traffic profile configured for department A.

Upstream and downstream depend on the direction of FW bandwidth policy. For simplicity, upstream refers to the direction from Trust to Untrust, and downstream refers to Untrust to DMZ in this section.
Assuming that the security zones, routers, and security policies have been configured, this section introduces only how to configure bandwidth management.

Procedure

Set interface IP addresses and assign the interfaces to security zones.
1. Choose Network > Interface.
2. Click for GE0/0/3 and set the parameters as follows:

  Zone trust

  IPv4

  IP Address 10.3.0.1/24
3. Click OK.
4. Repeat the preceding steps to configure interface GE0/0/1.

  Zone untrust

  IPv4

  IP Address 1.1.1.1/24

Zone	trust
IPv4
IP Address	10.3.0.1/24

Zone	untrust
IPv4
IP Address	1.1.1.1/24

Configure a traffic profile for department A.

Choose Policy > Bandwidth Management > Traffic Profile.

Click Add and set the parameters as follows:

Global Traffic Limiting
Name	profile_dep_a
Traffic Limiting Mode	Upstream and downstream bandwidth
Reference Mode	Exclusive mode
Downstream Bandwidth Maximum	60 Mbit/s
Per-IP/User Traffic Limit
Traffic Limiting Object	Per-user
Dynamic Even Distribution	Enable

Click OK.

Configure bandwidth management for department A.
1. Choose Policy > Bandwidth Management > Traffic Policy.
2. Click Add and set the parameters as follows:

  In the example, user authentication configuration for department A has been completed.

  Name

  policy_dep_a

  Source Zone

  trust

  Destination Zone

  untrust

  User

  dep_a

  Action

  Limit

  Traffic Profile

  profile_dep_a
3. Click OK.

Name	policy_dep_a
Source Zone	trust
Destination Zone	untrust
User	dep_a
Action	Limit
Traffic Profile	profile_dep_a

Verification

Configuration Scripts

This section provides only the script related to the example.

#
sysname FW
#
interface GigabitEthernet0/0/1
 undo shutdown
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/3
 undo shutdown
 ip address 10.3.0.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
traffic-policy
 profile profile_dep_a
  bandwidth maximum-bandwidth whole downstream 60000
  bandwidth average per-user manual multiplier 1 minimum 1000
 rule name policy_dep_a
  source-zone trust
  destination-zone untrust
  user user-group /default/dep_a
  action qos profile profile_dep_a

# The following user/group creation configuration is stored in the database, but not in the configuration profile.
user-manage group /default/dep_a
