CLI: Example for Configuring Static Mapping
This section provides an example for configuring static mapping through the CLI.
Networking Requirements
Because of a fault, the NMS on the carrier A's network fails to deliver commands to the CGN.

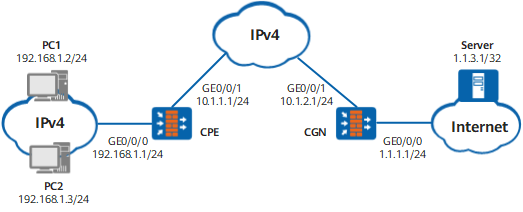

Carrier A requires to configure static mapping on the CGN through the CLI to properly plan public addresses, private addresses, and port ranges and implement address translation. In this way, users on private networks can access the Internet. Figure 1 shows the network planning:
Data planning
| Item | Data | Remarks | |
|---|---|---|---|
CPE |
GE0/0/0 Trust |
Private IPv4 address: 192.168.1.1/24 |
The CPE is used to connect private IPv4 address users. |
GigabitEthernet 0/0/1 Untrust |
Private IPv4 address of the carrier: 10.1.1.1/24 |
GigabitEthernet 0/0/1 is used to connect to the MAN of the carrier. Assume that the next-hop address of the path to the MAN is 10.1.1.2. |
|
Address pool |
The address of the GigabitEthernet 0/0/1 interface is used as the translated address. |
The address pool is used to translate IPv4 addresses of the user's private network to the IPv4 address of the carrier's private network. |
|
| CGN | GE0/0/0 Untrust |
Public IPv4 address: 1.1.1.1/24 |
GE0/0/0 is connected to the IPv4 Internet. Assume that the next-hop address is 1.1.1.2/24. |
GigabitEthernet 0/0/1 Trust |
IPv4 address of the carrier's private network: 10.1.2.1/24 |
GigabitEthernet 0/0/1 is used to connect to the MAN of the carrier. Assume that the next-hop address of the path to the MAN is 10.1.2.2. |
|
Static mapping1 |
Private address pool: 10.1.1.1 to 10.1.1.10 Public address pool: 1.1.2.6 to 1.1.2.10 Port range: 2048 to 4096 Size of the port range: 256 Static mapping mode: 3-tuple-based NAT |
The address pool is used to translate the private IPv4 addresses of the carrier to public IPv4 addresses. |
|
Static mapping2 |
Private address pool: 10.1.1.11 to 10.1.1.20 Public address pool: 1.1.2.11 to 1.1.2.15 Port range: 2048 to 4096 Size of the port range: 256 Static mapping mode: 3-tuple-based NAT |
The address pool is used to translate the private IPv4 addresses of the carrier to public IPv4 addresses. |
|
PC1 |
Private IPv4 address: 192.168.1.2/24 |
- | |
PC2 |
Private IPv4 address: 192.168.1.3/24 |
- | |
Internet Server |
Public IPv4 address: 1.1.3.1/32 |
- | |
Procedure
- Configure the CPE
- Configure the CGN.
- Configure the hash-based CPU selection
mode to be oriented to source IP address.
<FW> system-view [FW] sysname CGN [CGN] firewall hash-mode source-only
The modified hash mode takes effect only after the device is restarted.
- Configure the hash-based CPU selection
mode to be oriented to source IP address.
- Configure the Internet server.
In common cases, the ISP configures servers. This section describes only the following key points for the server configuration:
- Set the IP address to 1.1.3.1/32 for the server.
- The server must maintain a route to an address in the address pool on the CGN.
- Configure PC1 and PC2 on the intranet.
Configure the gateway address to 192.168.1.1 for PC1 and PC2.
Verification
# After you complete the preceding configurations, configure PC1 to ping the IP address of the server.
C:\Documents and Settings\Administrator>ping 1.1.3.1
Pinging 1.1.3.1 with 32 bytes of data:
Reply from 1.1.3.1: bytes=32 time=9ms TTL=253
Reply from 1.1.3.1: bytes=32 time<1ms TTL=253
Reply from 1.1.3.1: bytes=32 time<1ms TTL=253
Reply from 1.1.3.1: bytes=32 time<1ms TTL=253
Ping statistics for 1.1.3.1:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 0ms, Maximum = 9ms, Average = 2ms
Run the display cpe-user information cpe-ipv4 10.1.1.1 command in any view of the CGN to check the details about the CPE user at 10.1.1.1.
[CGN] display cpe-user information cpe-ipv4 10.1.1.1 slot 6 cpu 0 This operation will take a few minutes. Press 'Ctrl+C' to break ... UserTbl item(s) on slot 6 cpu 0 -------------------------------------------------------------------- Scene: NAT444 DstZone: untrust CPEIP: 10.1.1.1 TTL: 40 LeftTime: 37 Increase Count: 0 VPN: public StaticMapping ID: 1 PublicIP: 1.1.2.6 StartPort: 2048 PortNumber: 256 PortTotal: 256 Used Port Number: 0
As shown in the preceding output, the address of the CPE user, 10.1.1.1, is translated into 1.1.2.6 through the static mapping. The start port of the specified port range, namely, 2048 is used.
Run the display nat static-mapping 1 inside-ipv4 10.1.1.1 command in any view of the CGN to check the static mapping configuration.
[CGN] display nat static-mapping 1 inside-ipv4 10.1.1.1 slot: 2 cpu: 0 static-mapping id: 1 mapping: 10.1.1.1 -> 1.1.2.6 [ 2048 2303 ]
As shown in the preceding command output, the address of the CPE user, 10.1.1.1, is translated into public address 1.1.2.6 through the static mapping. The port range is from 2048 to 2303, containing 256 ports.
Configure PC2 to ping the IP address of the server. Run the display cpe-user information cpe-ipv4 10.1.1.1 and display nat static-mapping 1 inside-ipv4 10.1.1.1 commands in any view of the CGN to check the details about the CPE user at 10.1.1.1 and static mapping configuration. The translated addresses and used port range in the command output remain unchanged.
Configuration Scripts
The CPE configuration script is as follows:
# sysname CPE # interface GigabitEthernet0/0/0 ip address 192.168.1.1 255.255.255.0 # interface GigabitEthernet 0/0/1 ip address 10.1.1.1 255.255.255.0 # firewall zone trust set priority 85 add interface GigabitEthernet0/0/0 # firewall zone untrust set priority 5 add interface GigabitEthernet 0/0/1 # ip route-static 10.1.2.0 255.255.255.0 10.1.1.2 # security-policy rule name policy_sec_1 source-zone trust destination-zone untrust source-address 192.168.1.0 24 action permit # nat-policy rule name policy_nat_1 source-zone trust destination-zone untrust source-address 192.168.1.0 24 action source-nat easy-ip # return
The CGN configuration script is as follows:
# sysname CGN # firewall hash-mode source-only # interface GigabitEthernet0/0/0 ip address 1.1.1.1 255.255.255.0 # interface GigabitEthernet 0/0/1 ip address 10.1.2.1 255.255.255.0 # firewall zone trust set priority 85 add interface GigabitEthernet 0/0/1 # firewall zone untrust set priority 5 add interface GigabitEthernet0/0/0 # ip route-static 10.1.1.0 255.255.255.0 10.1.2.2 ip route-static 1 1.3.1.255.255.255.255 1.1.1.2 # nat static-mapping inside-ipv4-pool 1 section 1 10.1.1.1 10.1.1.10 global-pool 1 section 1 1.1.2.6 1.1.2.10 route enable static-mapping 1 inside-ipv4-pool 1 global-pool 1 port-range 2048 4095 port-block-size 256 ip-first inside-ipv4-pool 2 section 2 10.1.1.11 10.1.1.20 global-pool 2 section 2 1.1.2.11 1.1.2.15 route enable static-mapping 2 inside-ipv4-pool 2 global-pool 2 port-range 2048 4095 port-block-size 256 ip-first # security-policy rule name policy_sec_1 source-zone trust destination-zone untrust source-address 10.1.1.0 24 action permit # nat-policy rule name policy_nat_1 source-address range 10.1.1.1 10.1.1.10 source-zone trust destination-zone untrust action source-nat static-mapping 1 rule name policy_nat_2 source-address range 10.1.1.11 10.1.1.20 source-zone trust destination-zone untrust action source-nat static-mapping 2 # return
