Web: Example for Configuring DSVPN with Active/Standby Hub Backup

Networking Requirements

A large-scale enterprise has HQ networks (Hub1 and Hub2) and multiple branch networks (Spoke1 and Spoke2 are involved in this example). Branch networks are distributed in different locations and the subnet environment of the HQ and branch networks frequently changes. Branch networks access the public network using dynamic IP addresses. The live network of the enterprise uses OSPF.

In actual application, branch networks are interconnected through VPNs. Hub1 serves as an active hub, and Hub2 serves as a standby hub. Hub2 forwards protocol packets in case of Hub1 failure and continues to serve as a standby hub after Hub1 is restored.

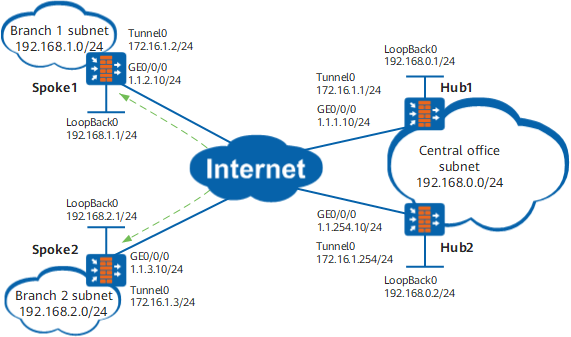

Figure 1 Dual-hub DSVPN networking diagram

Configuration Roadmap

Principles for configuring the enterprise network are as follows:

  1. Because branch networks access the public network using dynamic IP addresses, branch networks are not clear about public network addresses of each other. Therefore, a DSVPN is required for VPN interconnection between branch networks.

  2. Because the quantity of branch networks is large, the DSVPN in the shortcut scenario is recommended.

  3. Because the subnet environment of branch and HQ networks frequently changes, OSPF is recommended for communications between the branch networks and the HQ network to simplify maintenance according to enterprise network planning.

  4. Dual-hub DSVPN is required to achieve Hub2 backup.

Procedure

  1. Configure the IP address of each device interface, and add the interfaces to the corresponding security zone.

    Configure the IP address and security zone for the Hub1 interface.

    1. Choose Network > Interface.
    2. Click of GE0/0/0 and set the parameters as follows:

      Zone

      untrust

      IPv4

      IP Address

      1.1.1.10/24
    3. Click OK.
    4. Choose Network > Interface.
    5. Click Add and set the following parameters.

      Interface Name

      Loopback0

      Type

      Local loopback interface

      IPv4

      IP Address

      192.168.0.1/24
    6. Click OK.

    Configure IP addresses of other device interfaces based on the Figure 1 configuration. IP addresses of the public network interfaces of Spoke1 and Spoke2 are dynamically obtained (DHCP mode). The configuration process is similar to that of the Hub network and is not further described here.

  2. Configure the public network route from the FW and the Internet, and ensure that the public network routes between devices are accessible.

    This section describes the method for configuring a public network route destined for the Internet using the Hub network as an example. The configuration methods of other devices are similar.

    1. Choose Network > Route > Static Route.
    2. Click Add and set the following parameters. Assume that the next-hop address from the Hub network to the Internet is 1.1.1.1.

      Destination IP Address/Mask

      0.0.0.0/0.0.0.0

      Next Hop

      1.1.1.1
    3. Click OK.

  3. Set DSVPN parameters.

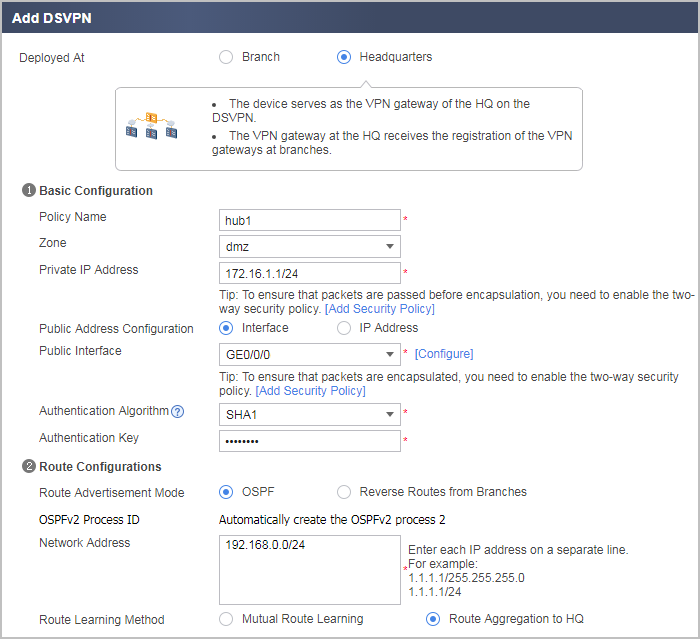

    Configure Hub1.
    1. Choose Network > DSVPN > DSVPN.
    2. Click Add and set the parameters as follows:





    3. Click OK.

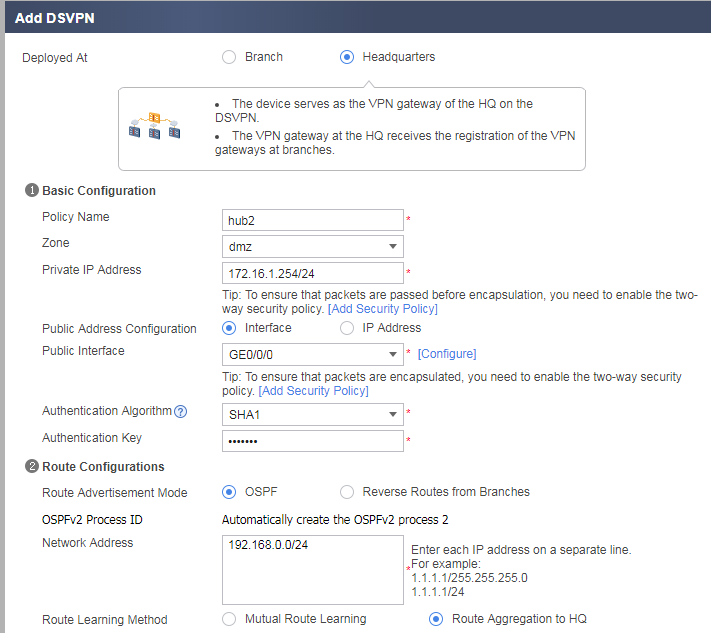

    Configure Hub2.
    1. Choose Network > DSVPN > DSVPN.
    2. Click Add and set the parameters as follows:

    3. Click OK.

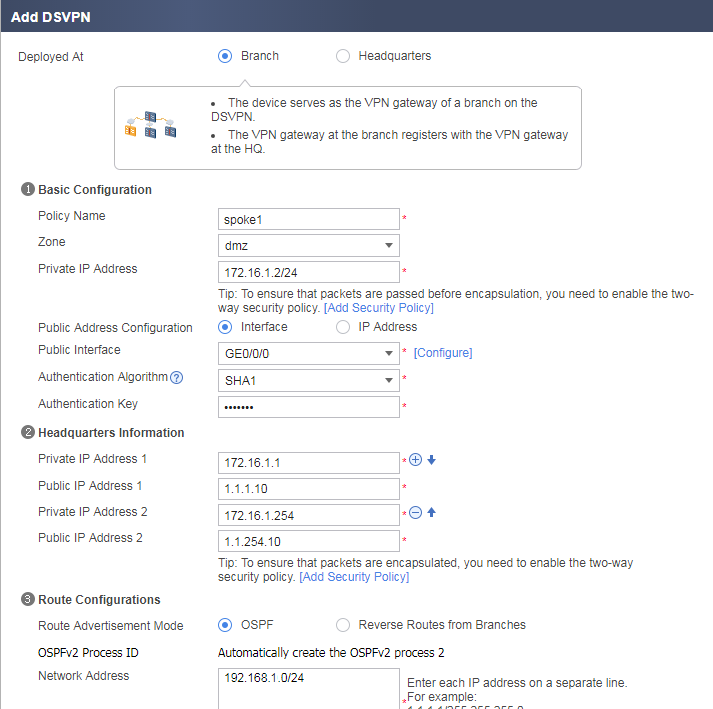

    Configure Spoke1.
    1. Choose Network > DSVPN > DSVPN.
    2. Click Add and set the following parameters. Set the authentication key to Test@123.

    3. Click OK.

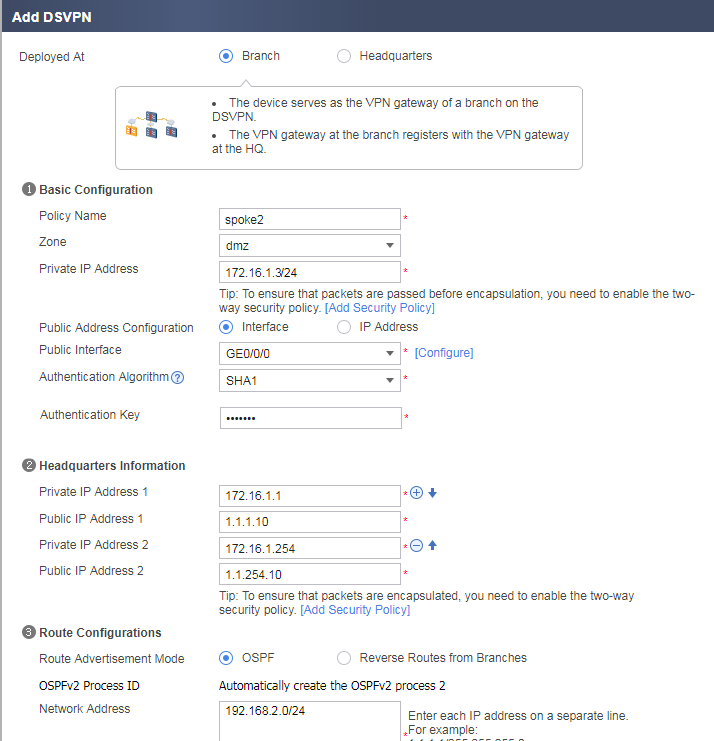

    Configure Spoke2.
    1. Choose Network > DSVPN > DSVPN.
    2. Click Add and set the following parameters. Set the authentication key to Test@123.

    3. Click OK.

  4. Set the priority of the route to Hub 1.

    In the dual-hub scenario, Hub1 needs to preferentially transfer NHRP packets. Therefore, the overhead of the route from the Spoke network to Hub1 must be smaller than that of the route from the Spoke network to Hub2.

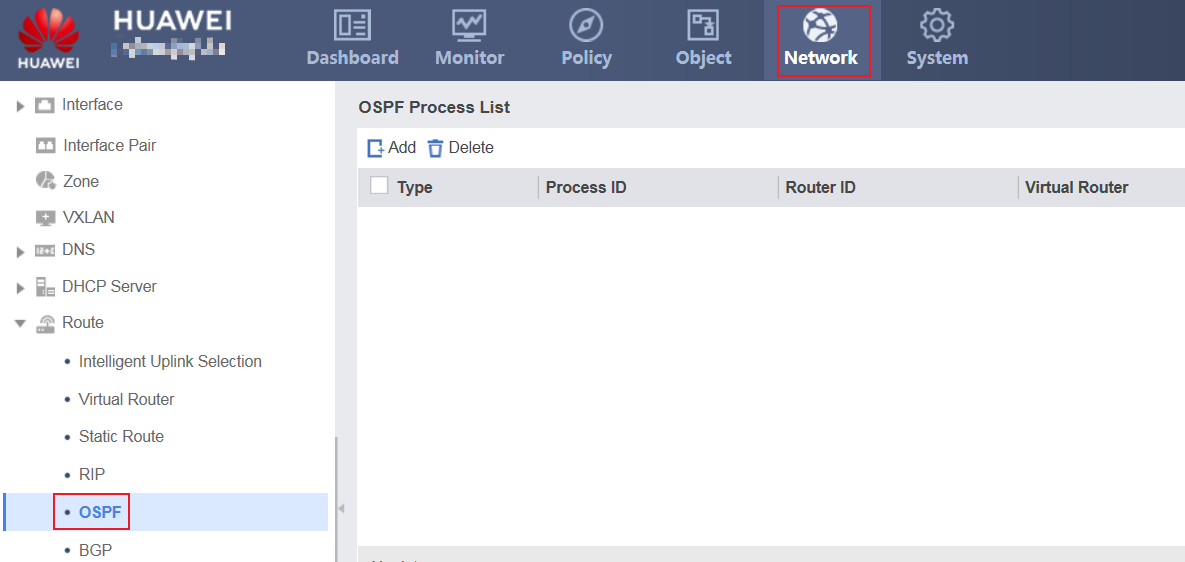

    1. Choose Network > Route > OSPF.
    2. In the OSPF list, select the OSPF route generated for the Hub, and click Advanced corresponding to the route.

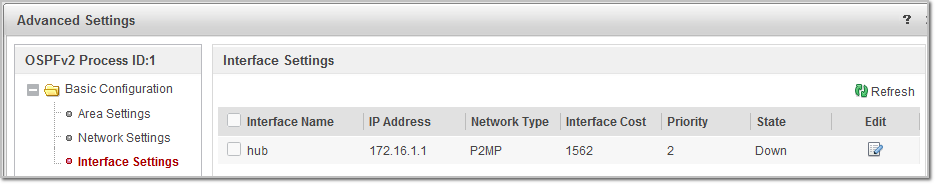

    3. On the Advanced page, choose Basic Configuration > Interface Configuration.

    4. Click Edit, and set the route overhead of the MGRE tunnel interface to 1000.

    5. Click OK.

    When setting the route priority of Hub2, ensure that the route overhead of Hub2 tunnel interface is larger than that of the mGRE tunnel interface of Hub1. For example, the route overhead of Hub2 tunnel interface is set to 3000.

  5. Configure security policies on each device.

    In this example, the Loopback interface (in the Local zone) is used to simulate an internal subnet user of an enterprise. Therefore, the security policy for accessing the security zone (DMZ) of the Tunnel interface from the Local zone must be enabled. In actual situations, you can enable security policies according to the real security zone where the internal subnet of the enterprise is located. For example, if the internal subnet of the enterprise is located in the trust zone, you can enable the security policy for the access from the trust zone to the DMZ. This section describes the method for configuring security policies using Spoke1 as an example.
    1. Choose Policy > Security Policy > Security Policy.
    2. Click Add and configure security policy policy1.

      Name

      policy1

      Source Zone

      local,dmz

      Destination Zone

      local,dmz

      Action

      Permit
    3. Click OK.
    4. Configure the security policy for the access from the Local zone to the Untrust zone, and allow GRE-encapsulated packets to pass through the security policy check.

      Name

      policy21

      Source Zone

      local,untrust

      Destination Zone

      local,untrust

      Service

      gre,ospf

      Action

      Permit
    The security policy configurations of Spoke2, Hub1, and Hub2 networks are the same as that of Spoke1 and are not further described here.

Verification

  1. Enable subnet users of branch network 1 and branch network 2 to mutually access each other.
  2. Choose Network > DSVPN > Monitoring. The tunnel between the current device and another branch network or between the current device and the HQ network is established.

Configuration Scripts

  • Configuration script of Hub1:

    #
interface GigabitEthernet0/0/0
 ip address 1.1.1.10 255.255.255.0
#
interface Loopback0
 ip address 192.168.0.1 255.255.255.0
#
interface Tunnel1
 description hub
 ip address 172.16.1.1 255.255.255.0
 tunnel-protocol gre p2mp
 source GigabitEthernet0/0/0
 ospf cost 1000
 ospf network-type p2mp
 ospf dr-priority 2
 alias hub1
 nhrp authentication hash sha1 %^%#JIo#MH#;W5]17p.1[]t(<*tb.txS('1iT|Dq>,!:%^%#
 nhrp redirect
 nhrp entry multicast dynamic
#
ospf 1
 area 0.0.0.0
  network 172.16.10.0 0.0.0.255
 area 0.0.0.1
  network 192.168.0.0 0.0.0.255
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/0
#
firewall zone dmz
 set priority 50
 add interface Tunnel 1
#
security-policy
 rule name policy1
  source-zone local
  source-zone dmz
  destination-zone local
  destination-zone dmz
  action permit
 rule name policy2
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  service gre
  service ospf
  action permit
#
return

  • Configuration script of Hub2:

    #
#
interface GigabitEthernet0/0/0
 ip address 1.1.254.10 255.255.255.0
#
interface Loopback0
 ip address 192.168.0.2 255.255.255.0
#
interface Tunnel1
 description hub
 ip address 172.16.1.254 255.255.255.0
 tunnel-protocol gre p2mp
 source GigabitEthernet0/0/0
 ospf cost 3000
 ospf network-type p2mp
 ospf dr-priority 2
 alias hub2
 nhrp authentication hash sha1 %^%#JIo#MH#;W5]17p.1[]t(<*tb.txS('1iT|Dq>,!:%^%#
 nhrp redirect
 nhrp entry multicast dynamic
#
ospf 1
 area 0.0.0.0
  network 172.16.10.0 0.0.0.255
 area 0.0.0.1
  network 192.168.0.0 0.0.0.255
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/0
#
firewall zone dmz
 set priority 50
 add interface Tunnel 1
#
security-policy
 rule name policy1
  source-zone local
  source-zone dmz
  destination-zone local
  destination-zone dmz
  action permit
 rule name policy2
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  service gre
  service ospf
  action permit
#
return

  • Configuration script of Spoke1:

    #
#
interface GigabitEthernet0/0/0
 dhcp client enable
#
interface Loopback0
 ip address 192.168.1.1 255.255.255.0
#
interface Tunnel1
 description spoke
 ip address 172.16.1.2 255.255.255.0
 tunnel-protocol gre p2mp
 source GigabitEthernet0/0/0
 ospf network-type p2mp
 alias spoke1
 nhrp authentication hash sha1 %^%#JIo#MH#;W5]17p.1[]t(<*tb.txS('1iT|Dq>,!:%^%#
 nhrp shortcut
 nhrp entry multicast dynamic
 nhrp entry 172.16.1.1 1.1.1.10 register preference 10
 nhrp entry 172.16.1.254 1.1.254.10 register preference 20
#
ospf 1
 area 0.0.0.0
  network 172.16.1.0 0.0.0.255
 area 0.0.0.1
  network 192.168.1.0 0.0.0.255
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/0
#
firewall zone dmz
 set priority 50
 add interface Tunnel 1
#
security-policy
 rule name policy1
  source-zone local
  source-zone dmz
  destination-zone local
  destination-zone dmz
  action permit
 rule name policy2
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  service gre
  service ospf
  action permit
#
return

  • Configuration script of Spoke2:

    #
#
interface GigabitEthernet0/0/0
 dhcp client enable
#
interface Loopback0
 ip address 192.168.2.1 255.255.255.0
#
interface Tunnel1
 description spoke
 ip address 172.16.1.3 255.255.255.0
 tunnel-protocol gre p2mp
 source GigabitEthernet0/0/0
 ospf network-type p2mp
 alias spoke2
 nhrp authentication hash sha1 %^%#JIo#MH#;W5]17p.1[]t(<*tb.txS('1iT|Dq>,!:%^%#
 nhrp shortcut
 nhrp entry multicast dynamic
 nhrp entry 172.16.1.1 1.1.1.10 register preference 10
 nhrp entry 172.16.1.254 1.1.254.10 register preference 20
#
ospf 1
 area 0.0.0.0
  network 172.16.1.0 0.0.0.255
 area 0.0.0.1
  network 192.168.2.0 0.0.0.255
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/0
#
firewall zone dmz
 set priority 50
 add interface Tunnel 1
#
security-policy
 rule name policy1
  source-zone local
  source-zone dmz
  destination-zone local
  destination-zone dmz
  action permit
 rule name policy2
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  service gre
  service ospf
  action permit
#
return
