CLI: Example for Configuring Hot Standby in Load Balancing Mode Where Firewalls Are Deployed in In-path Mode and Connect to Switches in Upstream and Downstream Directions

This section provides a CLI example of configuring hot standby in load balancing mode in which the service interfaces of the firewalls work at Layer 3 and connect to switches in upstream and downstream directions.

Networking Requirements

As shown in Figure 1, the service interfaces of the FWs work at Layer 3 and are directly connected to switches. The upstream switch is connected to the carrier network, and the public IP addresses the carrier assigns to the enterprise are 1.1.1.3 and 1.1.1.4. The FWs are expected to work in load balancing mode. Normally, both FW_A and FW_B forward traffic. If either FW fails, the other FW forwards all traffic to ensure service continuity.

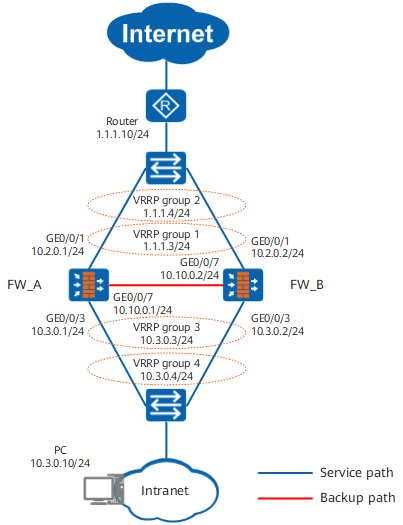

Figure 1 Networking diagram for configuring load balancing when service interfaces work at Layer 3 and connect to switches

Procedure

  1. Complete basic network configurations.

    FW_A

    FW_B

    # Set IP addresses for the interfaces on FWs.


    <FW_A> system-view
[FW_A] interface GigabitEthernet 0/0/1
[FW_A-GigabitEthernet0/0/1] ip address 10.2.0.1 24
[FW_A-GigabitEthernet0/0/1] quit
[FW_A] interface GigabitEthernet 0/0/3
[FW_A-GigabitEthernet0/0/3] ip address 10.3.0.1 24
[FW_A-GigabitEthernet0/0/3] quit
[FW_A] interface GigabitEthernet 0/0/7
[FW_A-GigabitEthernet0/0/7] ip address 10.10.0.1 24
[FW_A-GigabitEthernet0/0/7] quit
    <FW_B> system-view
[FW_B] interface GigabitEthernet 0/0/1
[FW_B-GigabitEthernet0/0/1] ip address 10.2.0.2 24
[FW_B-GigabitEthernet0/0/1] quit
[FW_B] interface GigabitEthernet 0/0/3
[FW_B-GigabitEthernet0/0/3] ip address 10.3.0.2 24
[FW_B-GigabitEthernet0/0/3] quit
[FW_B] interface GigabitEthernet 0/0/7
[FW_B-GigabitEthernet0/0/7] ip address 10.10.0.2 24
[FW_B-GigabitEthernet0/0/7] quit

    # Assign the interfaces to security zones on FWs.


    [FW_A] firewall zone untrust
[FW_A-zone-untrust] add interface GigabitEthernet 0/0/1
[FW_A-zone-untrust] quit
[FW_A] firewall zone trust
[FW_A-zone-trust] add interface GigabitEthernet 0/0/3
[FW_A-zone-trust] quit
[FW_A] firewall zone dmz
[FW_A-zone-dmz] add interface GigabitEthernet 0/0/7
[FW_A-zone-dmz] quit
    [FW_B] firewall zone untrust
[FW_B-zone-untrust] add interface GigabitEthernet 0/0/1
[FW_B-zone-untrust] quit
[FW_B] firewall zone trust
[FW_B-zone-trust] add interface GigabitEthernet 0/0/3
[FW_B-zone-trust] quit
[FW_B] firewall zone dmz
[FW_B-zone-dmz] add interface GigabitEthernet 0/0/7
[FW_B-zone-dmz] quit

    # Create a default route with next hop 1.1.1.10 on FWs.


    [FW_A] ip route-static 0.0.0.0 0.0.0.0 1.1.1.10

    [FW_B] ip route-static 0.0.0.0 0.0.0.0 1.1.1.10

  2. Configure VRRP groups.

    To implement load balancing, configure two VRRP groups on each service interface and set the status of one VRRP group to Active and the other to Standby.

    FW_A

    FW_B

    # Configure VRRP groups 1 and 2 on upstream service interface GE0/0/1 of FW_A and set the status of VRRP group 1 to Active and status of VRRP group 2 to Standby. Configure VRRP groups 1 and 2 on upstream service interface GE0/0/1 of FW_B and set the status of VRRP group 1 to Standby and status of VRRP group 2 to Active. Note that if the interface IP address resides on a different subnet from the address of the VRRP group, you need to specify a subnet mask when setting the address of the VRRP group.


    [FW_A] interface GigabitEthernet 0/0/1
[FW_A-GigabitEthernet0/0/1] vrrp vrid 1 virtual-ip 1.1.1.3 24 active
[FW_A-GigabitEthernet0/0/1] vrrp vrid 2 virtual-ip 1.1.1.4 24 standby
[FW_A-GigabitEthernet0/0/1] quit

    [FW_B] interface GigabitEthernet 0/0/1
[FW_B-GigabitEthernet0/0/1] vrrp vrid 1 virtual-ip 1.1.1.3 24 standby
[FW_B-GigabitEthernet0/0/1] vrrp vrid 2 virtual-ip 1.1.1.4 24 active
[FW_B-GigabitEthernet0/0/1] quit

    # Configure VRRP groups 3 and 4 on downstream service interface GE0/0/3 of FW_A and set the status of VRRP group 3 to Active and status of VRRP group 4 to Standby. Configure VRRP groups 3 and 4 on downstream service interface GE0/0/3 of FW_B and set the status of VRRP group 3 to Standby and status of VRRP group 4 to Active.


    [FW_A] interface GigabitEthernet 0/0/3
[FW_A-GigabitEthernet0/0/3] vrrp vrid 3 virtual-ip 10.3.0.3 active
[FW_A-GigabitEthernet0/0/3] vrrp vrid 4 virtual-ip 10.3.0.4 standby
[FW_A-GigabitEthernet0/0/3] quit
    [FW_B] interface GigabitEthernet 0/0/3
[FW_B-GigabitEthernet0/0/3] vrrp vrid 3 virtual-ip 10.3.0.3 standby
[FW_B-GigabitEthernet0/0/3] vrrp vrid 4 virtual-ip 10.3.0.4 active
[FW_B-GigabitEthernet0/0/3] quit

  3. Configure quick session backup, specify the heartbeat interface, and enable hot standby.

    FW_A

    FW_B

    # Configure quick session backup on both FWs in case of inconsistent forward and return packet paths.


    [FW_A] hrp mirror session enable

    [FW_B] hrp mirror session enable

    # Specify the heartbeat interface and enable hot standby on FWs.


    [FW_A] hrp interface GigabitEthernet 0/0/7 remote 10.10.0.2
[FW_A] hrp enable
    [FW_B] hrp interface GigabitEthernet 0/0/7 remote 10.10.0.1
[FW_B] hrp enable

  4. Create a security policy on FW_A. After hot standby relationship is established, the security policy on FW_A will be automatically backed up to FW_B.

    # Configure a security policy to allow intranet users to access the Internet.

    HRP_M[FW_A] security-policy
HRP_M[FW_A-policy-security] rule name trust_to_untrust
HRP_M[FW_A-policy-security-rule-trust_to_untrust] source-zone trust
HRP_M[FW_A-policy-security-rule-trust_to_untrust] destination-zone untrust
HRP_M[FW_A-policy-security-rule-trust_to_untrust] action permit
HRP_M[FW_A-policy-security-rule-trust_to_untrust] source-address 10.3.0.0 24
HRP_M[FW_A-policy-security-rule-trust_to_untrust] quit
HRP_M[FW_A-policy-security] quit

  5. Configure a NAT policy on FW_A. After hot standby relationship is established, the NAT policy on FW_A will be automatically backed up to FW_B.

    # Configure a NAT policy to translate source addresses on subnet 10.3.0.0/24 to an IP address in the NAT address pool (1.1.2.5 to 1.1.2.8) when intranet users access the Internet.

    HRP_M[FW_A] nat address-group group1
HRP_M[FW_A-address-group-group1] section 0 1.1.2.5 1.1.2.8
HRP_M[FW_A-address-group-group1] route enable
HRP_M[FW_A-address-group-group1] quit
HRP_M[FW_A] nat-policy
HRP_M[FW_A-policy-nat] rule name policy_nat1
HRP_M[FW_A-policy-nat-rule-policy_nat1] source-zone trust
HRP_M[FW_A-policy-nat-rule-policy_nat1] destination-zone untrust
HRP_M[FW_A-policy-nat-rule-policy_nat1] source-address 10.3.0.0 24
HRP_M[FW_A-policy-nat-rule-policy_nat1] action source-nat address-group group1
HRP_M[FW_A-policy-nat-rule-policy_nat1] quit
HRP_M[FW_A-policy-nat] quit

    # To prevent port conflicts in address translation on the FWs in load balancing mode, configure available port ranges respectively on FW_A and FW_B. The configuration on FW_A is as follows:

    HRP_M[FW_A] hrp nat resource primary-group

    After the command is executed on FW_A, FW_B will automatically back it up and convert it to the hrp nat resource secondary-group command.

  6. Configure the switches and PCs.

    # Add the three interfaces of the switches to the same VLANs accordingly. For configuration commands, refer to related documents of the switches.

    # On some intranet PCs, specify the IP address (10.3.0.3) of VRRP group 3 as the default gateway address and on some other intranet PCs, specify the IP address (10.3.0.4) of VRRP group 4 as the default gateway address to implement load balancing of intranet traffic.

  7. Configure the router.

    # Configure equal-cost routes to the NAT address pool, with the next hops being the virtual IP addresses of VRRP group 1 and VRRP group 2.

Verification

  1. Run the display vrrp command on FW_A and FW_B to check the status information about the interfaces in the VRRP group. If the following information is displayed, the VRRP group is successfully created.

    FW_A

    FW_B


    HRP_M<FW_A> display vrrp
 GigabitEthernet0/0/1 | Virtual Router 1
    State : Master
    Virtual IP : 1.1.1.3
    Master IP : 10.2.0.1
    PriorityRun : 120
    PriorityConfig : 100
    MasterPriority : 120
    Preempt : YES   Delay Time : 0 s
    TimerRun : 60 s
    TimerConfig : 60 s
    Auth type : NONE
    Virtual MAC : 0000-5e00-0101
    Check TTL : YES
    Config type : vgmp-vrrp
    Backup-forward : disabled
    Create time : 2015-03-17 17:35:54 UTC+08:00
    Last change time : 2015-03-22 16:01:56 UTC+08:00

 GigabitEthernet0/0/1 | Virtual Router 2
    State : Backup
    Virtual IP : 1.1.1.4
    Master IP : 10.2.0.1
    PriorityRun : 120
    PriorityConfig : 100
    MasterPriority : 120
    Preempt : YES   Delay Time : 0 s
    TimerRun : 60 s
    TimerConfig : 60 s
    Auth type : NONE
    Virtual MAC : 0000-5e00-0102
    Check TTL : YES
    Config type : vgmp-vrrp
    Backup-forward : disabled
    Create time : 2015-03-17 17:35:54 UTC+08:01
    Last change time : 2015-03-22 16:01:56 UTC+08:01

 GigabitEthernet0/0/3 | Virtual Router 3
    State : Master
    Virtual IP : 10.3.0.3
    Master IP : 10.3.0.1
    PriorityRun : 120
    PriorityConfig : 100
    MasterPriority : 120
    Preempt : YES   Delay Time : 0 s
    TimerRun : 60 s
    TimerConfig : 60 s
    Auth type : NONE
    Virtual MAC : 0000-5e00-0103
    Check TTL : YES
    Config type : vgmp-vrrp
    Backup-forward : disabled
    Create time : 2015-03-17 17:35:54 UTC+08:02
    Last change time : 2015-03-22 16:01:56 UTC+08:02

 GigabitEthernet0/0/3 | Virtual Router 4
    State : Backup
    Virtual IP : 10.3.0.4
    Master IP : 10.3.0.1
    PriorityRun : 120
    PriorityConfig : 100
    MasterPriority : 120
    Preempt : YES   Delay Time : 0 s
    TimerRun : 60 s
    TimerConfig : 60 s
    Auth type : NONE
    Virtual MAC : 0000-5e00-0104
    Check TTL : YES
    Config type : vgmp-vrrp
    Backup-forward : disabled
    Create time : 2015-03-17 17:35:54 UTC+08:03
    Last change time : 2015-03-22 16:01:56 UTC+08:03

    HRP_S<FW_B> display vrrp
 GigabitEthernet0/0/1 | Virtual Router 1
    State : Backup
    Virtual IP : 1.1.1.3
    Master IP : 10.2.0.1
    PriorityRun : 120
    PriorityConfig : 100
    MasterPriority : 120
    Preempt : YES   Delay Time : 0 s
    TimerRun : 60 s
    TimerConfig : 60 s
    Auth type : NONE
    Virtual MAC : 0000-5e00-0101
    Check TTL : YES
    Config type : vgmp-vrrp
    Backup-forward : disabled
    Create time : 2015-03-17 17:35:54 UTC+08:00
    Last change time : 2015-03-22 16:01:56 UTC+08:00

 GigabitEthernet0/0/1 | Virtual Router 2
    State : Master
    Virtual IP : 1.1.1.4
    Master IP : 10.2.0.1
    PriorityRun : 120
    PriorityConfig : 100
    MasterPriority : 120
    Preempt : YES   Delay Time : 0 s
    TimerRun : 60 s
    TimerConfig : 60 s
    Auth type : NONE
    Virtual MAC : 0000-5e00-0102
    Check TTL : YES
    Config type : vgmp-vrrp
    Backup-forward : disabled
    Create time : 2015-03-17 17:35:54 UTC+08:01
    Last change time : 2015-03-22 16:01:56 UTC+08:01

 GigabitEthernet0/0/3 | Virtual Router 3
    State : Backup
    Virtual IP : 10.3.0.3
    Master IP : 10.3.0.1
    PriorityRun : 120
    PriorityConfig : 100
    MasterPriority : 120
    Preempt : YES   Delay Time : 0 s
    TimerRun : 60 s
    TimerConfig : 60 s
    Auth type : NONE
    Virtual MAC : 0000-5e00-0103
    Check TTL : YES
    Config type : vgmp-vrrp
    Backup-forward : disabled
    Create time : 2015-03-17 17:35:54 UTC+08:02
    Last change time : 2015-03-22 16:01:56 UTC+08:02

 GigabitEthernet0/0/3 | Virtual Router 4
    State : Master
    Virtual IP : 10.3.0.4
    Master IP : 10.3.0.1
    PriorityRun : 120
    PriorityConfig : 100
    MasterPriority : 120
    Preempt : YES   Delay Time : 0 s
    TimerRun : 60 s
    TimerConfig : 60 s
    Auth type : NONE
    Virtual MAC : 0000-5e00-0104
    Check TTL : YES
    Config type : vgmp-vrrp
    Backup-forward : disabled
    Create time : 2015-03-17 17:35:54 UTC+08:03
    Last change time : 2015-03-22 16:01:56 UTC+08:03

  2. Run the display hrp state verbose command on FW_A and FW_B to check the VGMP group status. If the following information is displayed, hot standby relationship is successfully established.

    FW_A

    FW_B


    HRP_M<FW_A> display hrp state verbose
 Role: active, peer: active
 Running priority: 45000, peer: 45000
 Backup channel usage: 30%
 Stable time: 1 days, 13 hours, 35 minutes
 Last state change information: 2019-03-16 11:08:14 HRP core state changed, old_
state = normal(active), new_state = normal(active), local_priority = 45000,
 peer_priority = 45000.

 Configuration:
 hello interval:              1000ms
 preempt:                     60s
 mirror configuration:        off
 mirror session:              on
 track trunk member:          on
 auto-sync configuration:     on
 auto-sync connection-status: on
 adjust ospf-cost:            on
 adjust ospfv3-cost:          on
 adjust bgp-cost:             on
 nat resource:                primary

 Detail information:
           GigabitEthernet0/0/1 vrrp vrid 1: active
           GigabitEthernet0/0/1 vrrp vrid 2: standby
           GigabitEthernet0/0/3 vrrp vrid 3: active
           GigabitEthernet0/0/3 vrrp vrid 4: standby

    HRP_S<FW_B> display hrp state verbose
 Role: active, peer: active
 Running priority: 45000, peer: 45000
 Backup channel usage: 30%
 Stable time: 1 days, 13 hours, 35 minutes
 Last state change information: 2019-03-16 11:10:14 HRP link changes to up.

 Configuration:
 hello interval:              1000ms
 preempt:                     60s
 mirror configuration:        off
 mirror session:              on
 track trunk member:          on
 auto-sync configuration:     on
 auto-sync connection-status: on
 adjust ospf-cost:            on
 adjust ospfv3-cost:          on
 adjust bgp-cost:             on
 nat resource:                secondary

 Detail information:
           GigabitEthernet0/0/1 vrrp vrid 1: standby
           GigabitEthernet0/0/1 vrrp vrid 2: active
           GigabitEthernet0/0/3 vrrp vrid 3: standby
           GigabitEthernet0/0/3 vrrp vrid 4: active

  3. Ping the Router in the Untrust zone from the PC in the Trust zone, and display session information on FW_A and FW_B.

    FW_A

    FW_B


    HRP_M<FW_A> display firewall session table

 Current Total Sessions : 1
  icmp  VPN: public --> public 10.3.0.10:0[1.1.2.5:10298] --> 1.1.1.10:2048
    HRP_S<FW_B> display firewall session table

 Current Total Sessions : 1
  icmp  VPN:public --> public  Remote 10.3.0.10:0[1.1.2.5:10298] --> 1.1.1.10:2048

    The command output shows that sessions tagged with Remote are created on FW_B, indicating that sessions are successfully backed up after you configure hot standby.

  4. Run the ping 1.1.1.10 -t command on the PC, pull out the cable from GE0/0/1 on FW_A, and then check whether active/standby switchover is performed and whether ping packets are discarded. Insert the cable back to GE0/0/1 on FW_A and check again whether active/standby switchover is performed and whether ping packets are discarded.

Configuration Scripts

FW_A

FW_B


#
 hrp enable
 hrp interface GigabitEthernet 0/0/7 remote 10.10.0.2
 hrp mirror session enable
 hrp nat resource primary-group
#
interface GigabitEthernet 0/0/1
 ip address 10.2.0.1 255.255.255.0
 vrrp vrid 1 virtual-ip 1.1.1.3 255.255.255.0 active
 vrrp vrid 2 virtual-ip 1.1.1.4 255.255.255.0 standby
#
interface GigabitEthernet 0/0/3
 ip address 10.3.0.1 255.255.255.0
 vrrp vrid 3 virtual-ip 10.3.0.3 active
 vrrp vrid 4 virtual-ip 10.3.0.4 standby
#
interface GigabitEthernet 0/0/7
 ip address 10.10.0.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet 0/0/3
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet0/0/7
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet 0/0/1
#
 ip route-static 0.0.0.0 0.0.0.0 1.1.1.10
#
 nat address-group group1
  route enable
  section 0 1.1.2.5 1.1.2.8
#
security-policy
 rule name trust_to_untrust
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 24
  action permit
#
nat-policy
 rule name policy_nat1
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 24
  action source-nat address-group group1

#
 hrp enable
 hrp interface GigabitEthernet 0/0/7 remote 10.10.0.1
 hrp mirror session enable
 hrp nat resource secondary-group
#
interface GigabitEthernet 0/0/1
 ip address 10.2.0.2 255.255.255.0
 vrrp vrid 1 virtual-ip 1.1.1.3 255.255.255.0 standby
 vrrp vrid 2 virtual-ip 1.1.1.4 255.255.255.0 active
#
interface GigabitEthernet 0/0/3
 ip address 10.3.0.2 255.255.255.0
 vrrp vrid 3 virtual-ip 10.3.0.3 standby
 vrrp vrid 4 virtual-ip 10.3.0.4 active
#
interface GigabitEthernet 0/0/7
 ip address 10.10.0.2 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet 0/0/3
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet0/0/7
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet 0/0/1
#
 ip route-static 0.0.0.0 0.0.0.0 1.1.1.10
#
 nat address-group group1
  route enable
  section 0 1.1.2.5 1.1.2.8
#
security-policy
 rule name trust_to_untrust
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 24
  action permit
#
nat-policy
 rule name policy_nat1
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 24
  action source-nat address-group group1
Parent Topic: Hot Standby
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
