CLI: Example for Configuring Hot Standby in Load Balancing Mode Where Firewalls Connect to Switches in Out-of-path Mode and Static Routes Are Configured on the Switches to Divert Traffic to the Firewalls

This section provides a CLI example for how to connect two FWs to core switches of a data center in out-of-path mode and configure static routes on the switches to divert traffic to the FWs. The FWs work in load balancing mode.

Networking Requirements

As shown in Figure 1, two FWs are connected off-line to the core switches in the data center to secure the data center network. All traffic on the core switches is diverted to the FWs based on static routes for security checks. The FWs are expected to work in load balancing mode. Normally, both FW_A and FW_B forward traffic. If either FW fails, the other FW forwards all traffic to ensure service continuity.

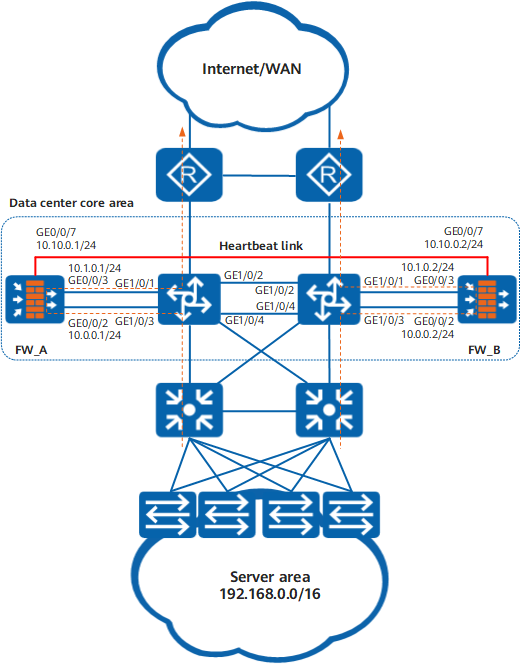

Figure 1 Networking diagram for configuring hot standby when the FWs are deployed in off-line mode (using static routing for traffic diversion)

Configuration Roadmap

  1. As shown in Figure 2, if the core switches need to use static routes to divert traffic to the FWs, you need to configure static routes and set the next hops to the IP addresses of the FW interfaces. However, the core switches and upstream routers and downstream aggregation switches run OSPF. Therefore, traffic cannot be diverted to the FWs after reaching the core switches. Instead, the traffic is directly forwarded to the upstream and downstream devices.

    Therefore, you must configure the virtual routing and forwarding (VRF) function on the core switches to virtualize each core switch into a public switch (Public) for connecting to the upstream switch and a virtual switch (VRF) for connecting to the downstream switch. The two virtualized switches are isolated. Therefore, traffic can be diverted to the FWs.

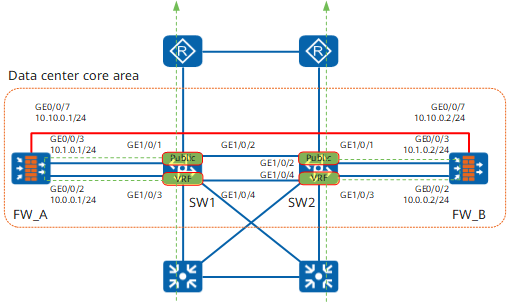

    Figure 2 Configuring VRF on the switches

  2. Figure 2 can be abstracted as Figure 3. The FWs run static routes with upstream and downstream switches (Public and VRF). Therefore, you need to configure VRRP groups on the FWs and switches for them to communicate using the virtual IP addresses of VRRP groups.

    As shown in Figure 3, the FWs work in load balancing mode. You need to configure two equal-cost static routes in the same direction on the FWs and set the next hops respectively to the IP addresses of the two peer VRRP groups. Configure another two equal-cost static routes on the Public or VRF switch and set the next hops respectively to the IP addresses of the two VRRP groups on the FW interfaces.

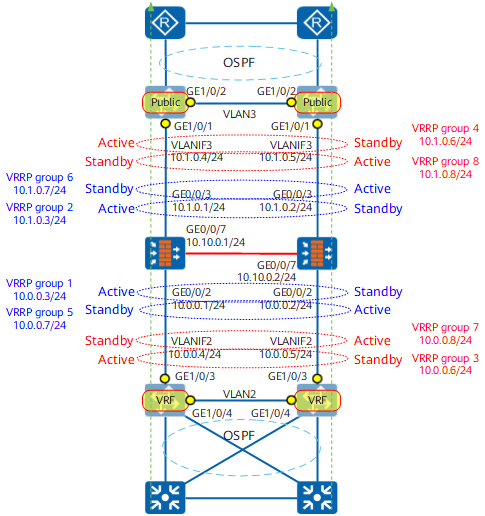

    Figure 3 Configuring VRRP on the FWs and switches

    The core switches run static routes with the FWs and OSPF with other devices. Figure 3 lists only the core switch interfaces related to the FWs.

  3. Specify GE0/0/7 on the FW as the heartbeat interface and enable hot standby.

  4. Configure security functions, such as security policies, IPS, and attack defense, on FW_A. FW_A will automatically synchronize its configurations to FW_B. This section describes only security policy configurations as an example.

Procedure

  1. Set interface IP addresses and assign the interfaces to security zones.

    FW_A

    FW_B

    # Set IP addresses for the interfaces on FWs.


    <FW_A> system-view
[FW_A] interface GigabitEthernet 0/0/2
[FW_A-GigabitEthernet0/0/2] ip address 10.0.0.1 24
[FW_A-GigabitEthernet0/0/2] quit
[FW_A] interface GigabitEthernet 0/0/3
[FW_A-GigabitEthernet0/0/3] ip address 10.1.0.1 24
[FW_A-GigabitEthernet0/0/3] quit
[FW_A] interface GigabitEthernet 0/0/7
[FW_A-GigabitEthernet0/0/7] ip address 10.10.0.1 24
[FW_A-GigabitEthernet0/0/7] quit

    <FW_B> system-view
[FW_B] interface GigabitEthernet 0/0/2
[FW_B-GigabitEthernet0/0/2] ip address 10.0.0.2 24
[FW_B-GigabitEthernet0/0/2] quit
[FW_B] interface GigabitEthernet 0/0/3
[FW_B-GigabitEthernet0/0/3] ip address 10.1.0.2 24
[FW_B-GigabitEthernet0/0/3] quit
[FW_B] interface GigabitEthernet 0/0/7
[FW_B-GigabitEthernet0/0/7] ip address 10.10.0.2 24
[FW_B-GigabitEthernet0/0/7] quit

    # Assign the interfaces to security zones on FWs.


    [FW_A] firewall zone untrust
[FW_A-zone-untrust] add interface GigabitEthernet 0/0/3
[FW_A-zone-untrust] quit
[FW_A] firewall zone dmz
[FW_A-zone-dmz] add interface GigabitEthernet 0/0/7
[FW_A-zone-dmz] quit
[FW_A] firewall zone trust
[FW_A-zone-trust] add interface GigabitEthernet 0/0/2
[FW_A-zone-trust] quit

    [FW_B] firewall zone untrust
[FW_B-zone-untrust] add interface GigabitEthernet 0/0/3
[FW_B-zone-untrust] quit
[FW_B] firewall zone dmz
[FW_B-zone-dmz] add interface GigabitEthernet 0/0/7
[FW_B-zone-dmz] quit
[FW_B] firewall zone trust
[FW_B-zone-trust] add interface GigabitEthernet 0/0/2
[FW_B-zone-trust] quit

  2. Create static routes.

    FW_A

    FW_B

    # Configure two equal-cost static routes (default routes) for the upstream direction and set the next hop s respectively to the IP addresses of VRRP groups 4 and 8.


    [FW_A] ip route-static 0.0.0.0 0.0.0.0 10.1.0.6
[FW_A] ip route-static 0.0.0.0 0.0.0.0 10.1.0.8

    [FW_B] ip route-static 0.0.0.0 0.0.0.0 10.1.0.6
[FW_B] ip route-static 0.0.0.0 0.0.0.0 10.1.0.8

    # Configure two static routes for the downstream direction and set the destination addresses to addresses in the server area and the next hops respectively to the IP addresses of VRRP groups 3 and 7.


    [FW_A] ip route-static 192.168.0.0 255.255.0.0 10.0.0.6
[FW_A] ip route-static 192.168.0.0 255.255.0.0 10.0.0.8

    [FW_B] ip route-static 192.168.0.0 255.255.0.0 10.0.0.6
[FW_B] ip route-static 192.168.0.0 255.255.0.0 10.0.0.8

  3. Configure hot standby.

    FW_A

    FW_B

    # Configure VRRP groups on FWs.


    [FW_A] interface GigabitEthernet 0/0/2
[FW_A-GigabitEthernet0/0/2] vrrp vrid 1 virtual-ip 10.0.0.3 active
[FW_A-GigabitEthernet0/0/2] vrrp vrid 5 virtual-ip 10.0.0.7 standby
[FW_A-GigabitEthernet0/0/2] quit
[FW_A] interface GigabitEthernet 0/0/3
[FW_A-GigabitEthernet0/0/3] vrrp vrid 2 virtual-ip 10.1.0.3 active
[FW_A-GigabitEthernet0/0/3] vrrp vrid 6 virtual-ip 10.1.0.7 standby
[FW_A-GigabitEthernet0/0/3] quit

    [FW_B] interface GigabitEthernet 0/0/2
[FW_B-GigabitEthernet0/0/2] vrrp vrid 1 virtual-ip 10.0.0.3 standby
[FW_B-GigabitEthernet0/0/2] vrrp vrid 5 virtual-ip 10.0.0.7 active
[FW_B-GigabitEthernet0/0/2] quit
[FW_B] interface GigabitEthernet 0/0/3
[FW_B-GigabitEthernet0/0/3] vrrp vrid 2 virtual-ip 10.1.0.3 standby
[FW_B-GigabitEthernet0/0/3] vrrp vrid 6 virtual-ip 10.1.0.7 active
[FW_B-GigabitEthernet0/0/3] quit

    # Specify the heartbeat interface and enable hot standby on FWs.


    [FW_A] hrp mirror session enable

    [FW_B] hrp mirror session enable

    # Specify the heartbeat interface and enable hot standby on FWs.


    [FW_A] hrp interface GigabitEthernet 0/0/7 remote 10.10.0.2
[FW_A] hrp enable

    [FW_B] hrp interface GigabitEthernet 0/0/7 remote 10.10.0.1
[FW_B] hrp enable

  4. Configure a security policy.

    Configure a security policy on FW_A to allow Internet users to access the server area (subnet: 192.168.0.0/16, port: 80) in the data center. Security policies configured on FW_A will be automatically backed up to FW_B.

    HRP_M[FW_A] security-policy
HRP_M[FW_A-policy-security] rule name policy_sec1
HRP_M[FW_A-policy-security-rule-policy_sec1] source-zone untrust
HRP_M[FW_A-policy-security-rule-policy_sec1] destination-zone trust
HRP_M[FW_A-policy-security-rule-policy_sec1] destination-address 192.168.0.0 16
HRP_M[FW_A-policy-security-rule-policy_sec1] service http
HRP_M[FW_A-policy-security-rule-policy_sec1] action permit

  5. Configure the core switches.

    This example describes only the switch configurations related to firewall connection.

    # Configure Switch1.

    [Switch1] ip vpn-instance VRF     //Create VRF.
[Switch1-vpn-instance-VRF] ipv4-family
[Switch1-vpn-instance-VRF-af-ipv4] route-distinguisher 100:1
[Switch1-vpn-instance-VRF-af-ipv4] vpn-target 111:1 both
[Switch1-vpn-instance-VRF-af-ipv4] quit
[Switch1-vpn-instance-VRF] quit
[Switch1] vlan 2
[Switch1-vlan2] port gigabitethernet 1/0/3 to 1/0/4     //Add the interface to VLAN2.
[Switch1-vlan2] quit
[Switch1] interface Vlanif 2
[Switch1-Vlanif2] ip binding vpn-instance VRF     //Bind VLANIF2 to VRF.
[Switch1-Vlanif2] ip address 10.0.0.4 24
[Switch1-Vlanif2] vrrp vrid 3 virtual-ip 10.0.0.6     //Create VRRP group 3.
[Switch1-Vlanif2] vrrp vrid 3 priority 120     //Set the priority to 120. The VRRP group with high priority is active.
[Switch1-Vlanif2] vrrp vrid 7 virtual-ip 10.0.0.8     //Create VRRP group 7.
[Switch1-Vlanif2] vrrp vrid 7 priority 100     //Set the priority to 100. The VRRP group with low priority is standby.
[Switch1-Vlanif2] quit
[Switch1] vlan 3
[Switch1-vlan3] port gigabitethernet 1/0/1 to 1/0/2     //Add the interface to VLAN3.
[Switch1-vlan3] quit
[Switch1] interface Vlanif 3
[Switch1-Vlanif3] ip address 10.1.0.4 24
[Switch1-Vlanif3] vrrp vrid 4 virtual-ip 10.1.0.6     //Create VRRP group 4.
[Switch1-Vlanif3] vrrp vrid 4 priority 120     //Set the priority to 120. The VRRP group with high priority is active.
[Switch1-Vlanif3] vrrp vrid 8 virtual-ip 10.1.0.8     //Create VRRP group 8.
[Switch1-Vlanif3] vrrp vrid 8 priority 100     //Set the priority to 100. The VRRP group with low priority is standby.
[Switch1-Vlanif3] quit
[Switch1] ip route-static vpn-instance VRF 0.0.0.0 0.0.0.0 10.0.0.3    //Configure a default route on the VRF and set the next hop to the virtual IP address of VRRP group 1.
[Switch1] ip route-static vpn-instance VRF 0.0.0.0 0.0.0.0 10.0.0.7    //Configure a default route on the VRF and set the next hop to the virtual IP address of VRRP group 5.
[Switch1] ip route-static 192.168.0.0 255.255.0.0 10.1.0.3    //Configure a static route on the Public switch and set the next hop to the virtual IP address of VRRP group 2.
[Switch1] ip route-static 192.168.0.0 255.255.0.0 10.1.0.7    //Configure a static route on the Public switch and set the next hop to the virtual IP address of VRRP group 6.

    # Configure Switch2.

    [Switch2] ip vpn-instance VRF     //Create VRF.
[Switch2-vpn-instance-VRF] ipv4-family
[Switch2-vpn-instance-VRF-af-ipv4] route-distinguisher 100:1
[Switch2-vpn-instance-VRF-af-ipv4] vpn-target 111:1 both
[Switch2-vpn-instance-VRF-af-ipv4] quit
[Switch2-vpn-instance-VRF] quit
[Switch2] vlan 2
[Switch2-vlan2] port gigabitethernet 1/0/3 to 1/0/4     //Add the interface to VLAN2.
[Switch2-vlan2] quit
[Switch2] interface Vlanif 2
[Switch2-Vlanif2] ip binding vpn-instance VRF     //Bind VLANIF2 to VRF.
[Switch2-Vlanif2] ip address 10.0.0.5 24
[Switch2-Vlanif2] vrrp vrid 3 virtual-ip 10.0.0.6     //Create VRRP group 3.
[Switch2-Vlanif2] vrrp vrid 3 priority 100     //Set the priority to 100. The VRRP group with low priority is standby.
[Switch2-Vlanif2] vrrp vrid 7 virtual-ip 10.0.0.8     //Create VRRP group 7.
[Switch2-Vlanif2] vrrp vrid 7 priority 120     //Set the priority to 120. The VRRP group with high priority is active.
[Switch2-Vlanif2] quit
[Switch2] vlan 3
[Switch2-vlan3] port gigabitethernet 1/0/1 to 1/0/2     //Add the interface to VLAN3.
[Switch2-vlan3] quit
[Switch2] interface Vlanif 3
[Switch2-Vlanif3] ip address 10.1.0.5 24
[Switch2-Vlanif3] vrrp vrid 4 virtual-ip 10.1.0.6     //Create VRRP group 4.
[Switch2-Vlanif3] vrrp vrid 4 priority 100     //Set the priority to 100. The VRRP group with low priority is standby.
[Switch2-Vlanif3] vrrp vrid 8 virtual-ip 10.1.0.8     //Create VRRP group 8.
[Switch2-Vlanif3] vrrp vrid 8 priority 120     //Set the priority to 120. The VRRP group with high priority is active.
[Switch2-Vlanif3] quit
[Switch2] ip route-static vpn-instance VRF 0.0.0.0 0.0.0.0 10.0.0.3    //Configure a default route on the VRF and set the next hop to the virtual IP address of VRRP group 1.
[Switch2] ip route-static vpn-instance VRF 0.0.0.0 0.0.0.0 10.0.0.7    //Configure a default route on the VRF and set the next hop to the virtual IP address of VRRP group 5.
[Switch2] ip route-static 192.168.0.0 255.255.0.0 10.1.0.3    //Configure a static route on the Public switch and set the next hop to the virtual IP address of VRRP group 2.
[Switch2] ip route-static 192.168.0.0 255.255.0.0 10.1.0.7    //Configure a static route on the Public switch and set the next hop to the virtual IP address of VRRP group 6.

Verification

  1. Run the display hrp state verbose command on FW_A and FW_B to view hot standby status.

    FW_A

    FW_B


    HRP_M<FW_A> display hrp state verbose
 Role: active, peer: active
 Running priority: 45000, peer: 45000
 Backup channel usage: 30%
 Stable time: 1 days, 13 hours, 35 minutes
 Last state change information: 2018-03-22 16:01:56 HRP core state changed, old_
state = normal(active), new_state = normal(active), local_priority = 45000,
 peer_priority = 45000.

 Configuration:
 hello interval:              1000ms
 preempt:                     60s
 mirror configuration:        off
 mirror session:              on
 track trunk member:          on
 auto-sync configuration:     on
 auto-sync connection-status: on
 adjust ospf-cost:            on
 adjust ospfv3-cost:          on
 adjust bgp-cost:             on
 nat resource:                off

 Detail information:
           GigabitEthernet0/0/2 vrrp vrid 1: active
           GigabitEthernet0/0/2 vrrp vrid 5: standby
           GigabitEthernet0/0/3 vrrp vrid 2: active
           GigabitEthernet0/0/3 vrrp vrid 6: standby

    HRP_S<FW_B> display hrp state verbose
 Role: active, peer: active
 Running priority: 45000, peer: 45000
 Backup channel usage: 30%
 Stable time: 1 days, 13 hours, 35 minutes
 Last state change information: 2018-03-22 16:01:56 HRP core state changed, old_
state = normal(active), new_state = normal(active), local_priority = 45000,
 peer_priority = 45000.

 Configuration:
 hello interval:              1000ms
 preempt:                     60s
 mirror configuration:        off
 mirror session:              on
 track trunk member:          on
 auto-sync configuration:     on
 auto-sync connection-status: on
 adjust ospf-cost:            on
 adjust ospfv3-cost:          on
 adjust bgp-cost:             on
 nat resource:                off

 Detail information:
           GigabitEthernet0/0/2 vrrp vrid 1: standby
           GigabitEthernet0/0/2 vrrp vrid 5: active
           GigabitEthernet0/0/3 vrrp vrid 2: standby
           GigabitEthernet0/0/3 vrrp vrid 6: active
  2. Run the display firewall session table command on FW_A and FW_B. You can view that FW_A has sessions, indicating that the traffic on the core switch is diverted to the FW, and hot standby in load balancing mode is successfully configured.

Configuration Scripts

FW_A

FW_B


#
 hrp enable
 hrp interface GigabitEthernet 0/0/7 remote 10.10.0.2
 hrp mirror session enable
#
interface GigabitEthernet 0/0/2
 ip address 10.0.0.1 255.255.255.0
 vrrp vrid 1 virtual-ip 10.0.0.3 active
 vrrp vrid 5 virtual-ip 10.0.0.7 standby
#
interface GigabitEthernet 0/0/3
 ip address 10.1.0.1 255.255.255.0
 vrrp vrid 2 virtual-ip 10.1.0.3 active
 vrrp vrid 6 virtual-ip 10.1.0.7 standby
#
interface GigabitEthernet 0/0/7
 ip address 10.10.0.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet 0/0/2
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet0/0/7
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet 0/0/3
#
 ip route-static 0.0.0.0 0.0.0.0 10.1.0.6
 ip route-static 0.0.0.0 0.0.0.0 10.1.0.8
 ip route-static 192.168.0.0 255.255.0.0 10.0.0.6
 ip route-static 192.168.0.0 255.255.0.0 10.0.0.8
#
security-policy
 rule name policy_sec1
  source-zone untrust
  destination-zone trust
  destination-address 192.168.0.0 16
  service http
  action permit

#
 hrp enable
 hrp interface GigabitEthernet 0/0/7 remote 10.10.0.1
 hrp mirror session enable
#
interface GigabitEthernet 0/0/2
 ip address 10.0.0.2 255.255.255.0
 vrrp vrid 1 virtual-ip 10.0.0.3 standby
 vrrp vrid 5 virtual-ip 10.0.0.7 active
#
interface GigabitEthernet 0/0/3
 ip address 10.1.0.2 255.255.255.0
 vrrp vrid 2 virtual-ip 10.1.0.3 standby
 vrrp vrid 6 virtual-ip 10.1.0.7 active
#
interface GigabitEthernet 0/0/7
 ip address 10.10.0.2 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet 0/0/2
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet0/0/7
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet 0/0/3
#
 ip route-static 0.0.0.0 0.0.0.0 10.1.0.6
 ip route-static 0.0.0.0 0.0.0.0 10.1.0.8
 ip route-static 192.168.0.0 255.255.0.0 10.0.0.6
 ip route-static 192.168.0.0 255.255.0.0 10.0.0.8
#
security-policy
 rule name policy_sec1
  source-zone untrust
  destination-zone trust
  destination-address 192.168.0.0 16
  service http
  action permit
Parent Topic: Hot Standby
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
