Web: Example for Configuring Hot Standby in Load Balancing Mode Where Firewalls Are Deployed in In-path Mode and Connect to Routers Through OSPF in the Upstream Direction and Switches in the Downstream Direction

This section provides a web example of configuring hot standby in load balancing mode in which the service interfaces of the firewalls work at Layer 3 and connect to routers through OSPF in the upstream direction and switches in the downstream direction.

Networking Requirements

On the network shown in Figure 1, the service interfaces of two FWs work at Layer 3, with routers as upstream devices and switches as downstream devices. The FWs and directly connected routers run OSPF.

The FWs are expected to work in load balancing mode. Normally, both FW_A and FW_B forward traffic. When one FW goes faulty, the other FW takes over all the traffic load.

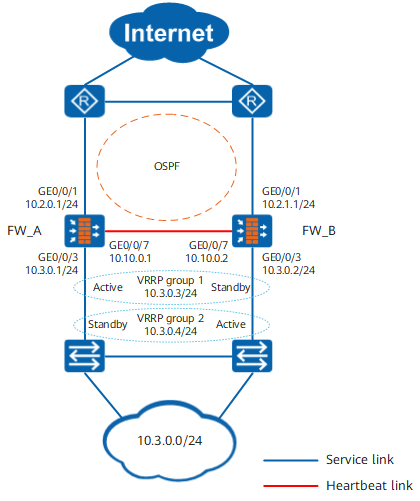

Figure 1 Load balancing networking in which the service interfaces of each FW work at Layer 3, with routers as upstream devices and switches as downstream devices

Procedure

  1. Configure interfaces and basic network configurations.
    1. Configure interfaces on FW_A.

      1. Choose Network > Interface.

      2. Click GE0/0/1, set the parameters as follows, and click OK.

        Zone

        untrust

        IPv4

        IP Address

        10.2.0.1/24

      3. Repeat the preceding steps to set the parameters of GE0/0/3.

        Zone

        trust

        IPv4

        IP Address

        10.3.0.1/24

      4. Repeat the preceding steps to set the parameters of GE0/0/7.

        Zone

        dmz

        IPv4

        IP Address

        10.10.0.1/24

    2. Configure interfaces on FW_B.

      1. Choose Network > Interface.

      2. Click GE0/0/1, set the parameters as follows, and click OK.

        Zone

        untrust

        IPv4

        IP Address

        10.2.1.1/24

      3. Repeat the preceding steps to set the parameters of GE0/0/3.

        Zone

        trust

        IPv4

        IP Address

        10.3.0.2/24

      4. Repeat the preceding steps to set the parameters of GE0/0/7.

        Zone

        dmz

        IPv4

        IP Address

        10.10.0.2/24

  2. Configure OSPF to ensure IP connectivity.
    1. Configure OSPF on FW_A.

      1. Choose Network > Route > OSPF.

      2. Click Add, create an OSPF process and set the parameters as follows, and then click OK.

        Type

        OSPFv2

        Process ID

        10
      3. Click , click Add, create an OSPF area and set the parameters as follows, and click OK.

        Area

        0.0.0.0

        IP Network

        10.2.0.0

        Mask/Wildcard Mask

        255.255.255.0
      4. Choose Basic Configuration > Network Settings, click Add, create a network and set the parameters as follows, and then click OK.

        Area

        0.0.0.0

        IP Network

        10.3.0.0

        Mask/Wildcard Mask

        255.255.255.0

    2. Configure OSPF on FW_B.

      1. Click Add, create an OSPF process and set the parameters as follows, and then click OK.

        Type

        OSPFv2

        Process ID

        10
      2. Click , click Add, create an OSPF area and set the parameters as follows, and click OK.

        Area

        0.0.0.0

        IP Network

        10.2.1.0

        Mask/Wildcard Mask

        255.255.255.0
      3. Choose Basic Configuration > Network Settings, click Add, create a network and set the parameters as follows, and then click OK.

        Area

        0.0.0.0

        IP Network

        10.3.0.0

        Mask/Wildcard Mask

        255.255.255.0

  3. Configure hot standby.

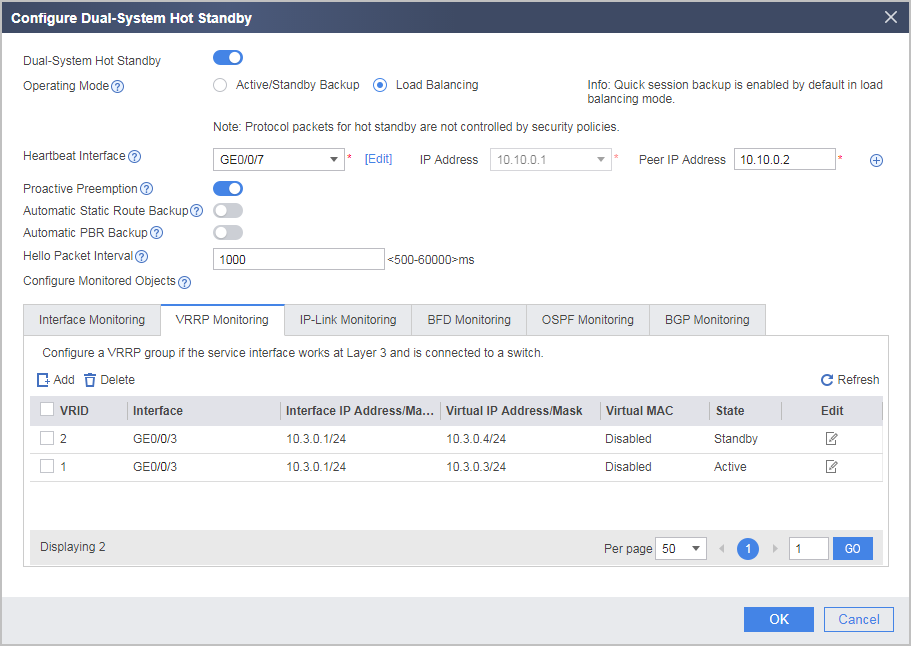

    1. Configure hot standby on FW_A.

      1. Choose System > High Availability > Dual-System Hot Standby and click Edit.

      2. Enable Dual-System Hot Standby, set the parameters as follows, and click OK.

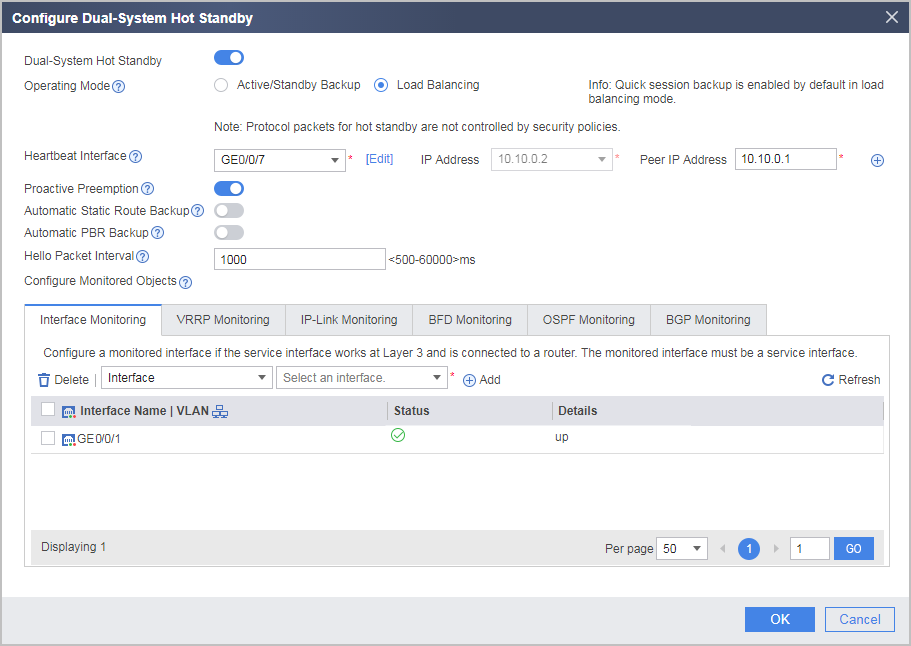

    2. Configure hot standby on FW_B.

      1. Choose System > High Availability > Dual-System Hot Standby and click Edit.

      2. Enable Dual-System Hot Standby, set the parameters as follows, and click OK.

  4. Configure the default routes on intranet devices. You can set the next hop of some devices to the virtual IP address (10.3.0.3) of VRRP group 1 and that of other devices to the virtual IP address (10.3.0.4) of VRRP group 2.
  5. Configure the security policies.

    Security policies configured on FW_A are automatically backed up to FW_B.

    1. Choose Policy > Security Policy > Security Policy.
    2. Click Add Security Policy, configure security policies and set the parameters as follows, and then click OK.

      Name

      policy_ospf_1

      Source Zone

      local

      Destination Zone

      untrust

      Action

      Permit

      Name

      policy_ospf_2

      Source Zone

      untrust

      Destination Zone

      local

      Action

      Permit

      Name

      policy_sec

      Source Zone

      trust

      Destination Zone

      untrust

      Source Address/Region

      10.3.0.0/24

      Action

      Permit

Configuration Verification

Choose System > High Availability > Dual-System Hot Standby to view the operating status of hot standby.

  • Normally, the Current Running Mode of FW_A is Load Balancing and the Current Status is Active. The Current Running Mode of FW_B is Load Balancing and the Current Status is Active. This shows that traffic is forwarded by FW_A.
  • When FW_A goes faulty, the Current Running Mode of FW_A is Active/Standby Backup and the Current Status is Standby. The Current Running Mode of FW_B is Active/Standby Backup and the Current Status is Active. This shows that traffic is forwarded by FW_B.

Configuration Scripts

FW_A

FW_B


#
 hrp enable
 hrp interface GigabitEthernet 0/0/7 remote 10.10.0.2
 hrp mirror session enable
 hrp track interface GigabitEthernet 0/0/1
 #
interface GigabitEthernet 0/0/1
 ip address 10.2.0.1 255.255.255.0
#
interface GigabitEthernet 0/0/3
 ip address 10.3.0.1 255.255.255.0
 vrrp vrid 1 virtual-ip 10.3.0.3 active
 vrrp vrid 2 virtual-ip 10.3.0.4 standby
#
interface GigabitEthernet 0/0/7
 ip address 10.10.0.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet 0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet 0/0/1
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet 0/0/7
#
ospf 10
 area 0.0.0.0
  network 10.2.0.0 0.0.0.255
  network 10.3.0.0 0.0.0.255
#
security-policy
 rule name policy_ospf_1
  source-zone local
  destination-zone untrust
  action permit
 rule name policy_ospf_2
  source-zone untrust
  destination-zone local
  action permit
 rule name policy_sec
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 24
  action permit

#
 hrp enable
 hrp interface GigabitEthernet 0/0/7 remote 10.10.0.1
 hrp mirror session enable
 hrp track interface GigabitEthernet 0/0/1
#
interface GigabitEthernet 0/0/1
 ip address 10.2.1.1 255.255.255.0
#
interface GigabitEthernet 0/0/3
 ip address 10.3.0.2 255.255.255.0
 vrrp vrid 1 virtual-ip 10.3.0.3 standby
 vrrp vrid 2 virtual-ip 10.3.0.4 active
#
interface GigabitEthernet 0/0/7
 ip address 10.10.0.2 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet 0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet 0/0/1
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet 0/0/7
#
ospf 10
 area 0.0.0.0
  network 10.2.1.0 0.0.0.255
  network 10.3.0.0 0.0.0.255
#
security-policy
 rule name policy_ospf_1
  source-zone local
  destination-zone untrust
  action permit
 rule name policy_ospf_2
  source-zone untrust
  destination-zone local
  action permit
 rule name policy_sec
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 24
  action permit
