CLI: Applying IPSec Services in Load Balancing Scenarios

This section provides an example for configuring IPSec services in load balancing scenarios.

Networking Requirements

As shown in Figure 1, the service load balancer (SLB) at the network egress distributes traffic from the eNodeB to network A. FW_A and FW_B are IPSec gateways, forming a cluster server. For the security of access from the eNodeB to network A, you must establish an IPSec tunnel between the eNodeB and FW (FW_A and FW_B) and configure the SLB to evenly distribute IPSec traffic from the eNodeB to the FW. That is, traffic can be evenly distributed to FW_A and FW_B.

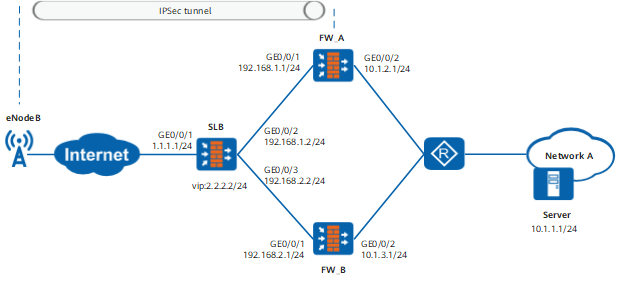

Figure 1 IPSec service load balancing

Configuration Roadmap

  1. Configure the SLB.

    In this example, the FW serves as the SLB.

    1. Complete basic configurations.

      Configure IP addresses for interfaces and assign the interfaces to security zones.

    2. Configure the SLB function.

      Based on the networking requirements, the round robin algorithm is used for load balancing between FW_A and FW_B.

  2. Configure FW_A.

    1. Complete basic configurations.

      Configure IP addresses for interfaces and assign the interfaces to security zones.

    2. Configure the IPSec service.

      The IPSec service includes the IKE proposal, IKE peer, IPSec proposal, and IPSec policy.

  3. Configure FW_B.

    The configuration of FW_B is similar to that of FW_A, and will not be described in detail.

Data Planning

Function

SLB

FW_A

FW_B

Basic configuration

Interface: GE0/0/1

IP address: 1.1.1.1/24

Security zone: Untrust

Interface: GE0/0/1

IP address: 192.168.1.1/24

Security zone: Untrust

Interface: GE0/0/1

IP address: 192.168.2.1/24

Security zone: Untrust

Interface: GE0/0/2

IP address: 192.168.1.2/24

Security zone: DMZ

Interface: GE0/0/2

IP address: 10.1.2.1/24

Security zone: Trust

Interface: GE0/0/2

IP address: 10.1.3.1/24

Security zone: Trust

Interface: GE0/0/3

IP address: 192.168.2.2/24

Security zone: DMZ

-

-

IPSec function

-

Tunnel establishment mode: policy template

IPSec proposal
  • Encapsulation mode: tunnel
  • Security protocol: ESP
IKE proposal
  • Authentication mode: pre-shared key
  • Encryption algorithm: AES-256
  • Authentication algorithm: SHA2-256
IKE peer
  • Negotiation mode: main
  • Pre-shared key: Admin@123
  • Authentication type: IP

Tunnel establishment mode: policy template

IPSec proposal
  • Encapsulation mode: tunnel
  • Security protocol: ESP
IKE proposal
  • Authentication mode: pre-shared key
  • Encryption algorithm: AES-256
  • Authentication algorithm: SHA2-256
IKE peer
  • Negotiation mode: main
  • Pre-shared key: Admin@123
  • Authentication type: IP

Load balancing function

Real server group grp1 includes the following real servers:

  • server1:

    • ID: 1
    • IP address: 192.168.1.1/24
    • Weight: 1
  • server2:

    • ID: 2
    • IP address: 192.168.2.1/24
    • Weight: 1

-

-

Virtual server vs1:
  • IP address: 2.2.2.2/24
  • Port number: any
  • Protocol type: udp
  • Associated real server group: grp1
  • Configure the SLB.
    1. Set the IP addresses of the interfaces and add the interfaces to corresponding security zones.

      <sysname> system-view
      [sysname] sysname SLB
      [SLB] interface GigabitEthernet 0/0/1
      [SLB-GigabitEthernet0/0/1] ip address 1.1.1.1 24
      [SLB-GigabitEthernet0/0/1] quit
      [SLB] interface GigabitEthernet 0/0/2
      [SLB-GigabitEthernet0/0/2] ip address 192.168.1.2 24
      [SLB-GigabitEthernet0/0/2] quit
      [SLB] interface GigabitEthernet 0/0/3
      [SLB-GigabitEthernet0/0/3] ip address 192.168.2.2 24
      [SLB-GigabitEthernet0/0/3] quit
      [SLB] firewall zone untrust
      [SLB-zone-untrust] add interface GigabitEthernet 0/0/1
      [SLB-zone-untrust] quit
      [SLB] firewall zone dmz
      [SLB-zone-dmz] add interface GigabitEthernet 0/0/2
      [SLB-zone-dmz] add interface GigabitEthernet 0/0/3
      [SLB-zone-dmz] quit

    2. Configure interzone security policies.

      [SLB] security-policy
      [SLB-policy-security] rule name untrust_dmz_inbound
      [SLB-policy-security-rule-untrust_dmz_inbound] source-zone untrust
      [SLB-policy-security-rule-untrust_dmz_inbound] destination-zone dmz
      [SLB-policy-security-rule-untrust_dmz_inbound] destination-address 192.168.1.0 24
      [SLB-policy-security-rule-untrust_dmz_inbound] destination-address 192.168.2.0 24
      [SLB-policy-security-rule-untrust_dmz_inbound] action permit
      [SLB-policy-security-rule-untrust_dmz_inbound] quit
      [SLB-policy-security] quit

    3. Configure server load balancing.

      # Enable the SLB function.

      [SLB] slb enable

      # Configure a load balancing algorithm.

      [SLB] slb
      [SLB-slb] group 1 grp1
      [SLB-slb-group-1] metric roundrobin

      # Add real servers to the real server group.

      [SLB-slb-group-1] rserver 1 rip 192.168.1.1 weight 1
      [SLB-slb-group-1] rserver 2 rip 192.168.2.1 weight 1
      [SLB-slb-group-1] quit

      # Configure a protocol type for the virtual server.

      [SLB-slb] vserver 1 vs1
      [SLB-slb-vserver-1] protocol udp

      # Configure a virtual server IP address.

      [SLB-slb-vserver-1] vip 1 2.2.2.2

      # Associate the virtual server with the real server group.

      [SLB-slb-vserver-1] group grp1
      [SLB-slb-vserver-1] quit
      [SLB-slb] quit

  • Configure FW_A.
    1. Set interface IP addresses and assign the interfaces to security zones.

      # Set an IP address for interface GigabitEthernet 0/0/1 and assign it to the Untrust zone.
      [FW_A] interface GigabitEthernet 0/0/1
      [FW_A-GigabitEthernet0/0/1] ip address 192.168.1.1 24
      [FW_A-GigabitEthernet0/0/1] quit
      [FW_A] firewall zone untrust
      [FW_A-zone-untrust] add interface GigabitEthernet 0/0/1
      [FW_A-zone-untrust] quit

      # Set an IP address for interface GigabitEthernet 0/0/2 and assign it to the Trust zone.

      [FW_A] interface GigabitEthernet 0/0/2
      [FW_A-GigabitEthernet0/0/2] ip address 10.1.2.1 24
      [FW_A-GigabitEthernet0/0/2] quit
      [FW_A] firewall zone trust
      [FW_A-zone-trust] add interface GigabitEthernet 0/0/2
      [FW_A-zone-trust] quit

    2. Configure security policies.

      1. Configure the security policy between Trust and Untrust zones. This policy permits service packets before IPSec encapsulation and after decapsulation.
        [FW_A] security-policy
        [FW_A-policy-security] rule name ipsec_tu
        [FW_A-policy-security-rule-ipsec_tu] source-zone trust
        [FW_A-policy-security-rule-ipsec_tu] destination-zone untrust
        [FW_A-policy-security-rule-ipsec_tu] source-address 10.1.1.0 24
        [FW_A-policy-security-rule-ipsec_tu] action permit
        [FW_A-policy-security-rule-ipsec_tu] quit
        [FW_A-policy-security] rule name ipsec_ut
        [FW_A-policy-security-rule-ipsec_ut] source-zone untrust
        [FW_A-policy-security-rule-ipsec_ut] destination-zone trust
        [FW_A-policy-security-rule-ipsec_ut] destination-address 10.1.1.0 24
        [FW_A-policy-security-rule-ipsec_ut] action permit
        [FW_A-policy-security-rule-ipsec_ut] quit
        [FW_A-policy-security] quit
      2. Configure the security policy between Local and Untrust zones. This policy permits IPSec negotiation packets.

        The local-untrust interzone policy controls whether IKE negotiation packets can pass through the FW. This policy can use the source and destination addresses, protocol, or port as the matching condition. In this example, the source and destination addresses are used as the matching condition. To use the protocol or port as the matching condition, you need to enable ESP and port 500 for UDP (port 4500 also in NAT traversal scenarios).

        [FW_A] security-policy
        [FW_A-policy-security] rule name ipsec_lu
        [FW_A-policy-security-rule-ipsec_lu] source-zone local
        [FW_A-policy-security-rule-ipsec_lu] destination-zone untrust
        [FW_A-policy-security-rule-ipsec_lu] source-address 192.168.1.1 32
        [FW_A-policy-security-rule-ipsec_lu] action permit
        [FW_A-policy-security-rule-ipsec_lu] quit
        [FW_A-policy-security] rule name ipsec_ul
        [FW_A-policy-security-rule-ipsec_ul] source-zone untrust
        [FW_A-policy-security-rule-ipsec_ul] destination-zone local
        [FW_A-policy-security-rule-ipsec_ul] destination-address 192.168.1.1 32
        [FW_A-policy-security-rule-ipsec_ul] action permit
        [FW_A-policy-security-rule-ipsec_ul] quit
        [FW_A-policy-security] quit

    3. Configure a route from the eNodeB to network A.

      In this example, the next hop from FW_A to network A is 10.1.2.2, and the next hop of the route to the eNodeB is 192.168.1.2.

      [FW_A] ip route-static 10.1.1.0 24 10.1.2.2
      [FW_A] ip route-static 0.0.0.0 0.0.0.0 192.168.1.2

    4. Configure IPSec.

      1. Define the protected data flows.

        If link health check is enabled on the SLB, you must configure a rule in the ACL to block traffic from 192.168.1.2. Otherwise, the link health check function is invalid.

        [FW_A] acl 3000
        [FW_A-acl-adv-3000] rule 5 permit ip source 10.1.1.0 0.0.0.255
        [FW_A-acl-adv-3000] quit
      2. Configure the IPSec proposal.
        [FW_A] ipsec proposal tran1
        [FW_A-ipsec-proposal-tran1] esp authentication-algorithm sha2-256
        [FW_A-ipsec-proposal-tran1] esp encryption-algorithm aes-256
        [FW_A-ipsec-proposal-tran1] quit
      3. Configure the IKE proposal.
        [FW_A] ike proposal 10
        [FW_A-ike-proposal-10] authentication-method pre-share
        [FW_A-ike-proposal-10] encryption-algorithm aes-256
        [FW_A-ike-proposal-10] dh group2
        [FW_A-ike-proposal-10] authentication-algorithm sha2-256
      4. Configure the IKE peer.
        [FW_A] ike peer enodeb
        [FW_A-ike-peer-enodeb] pre-shared-key Admin@123
        [FW_A-ike-peer-enodeb] ike-proposal 10
        [FW_A-ike-peer-enodeb] quit
      5. Create an IPSec policy template.
        [FW_A] ipsec policy-template template 1
        [FW_A-ipsec-policy-templet-map_temp-1] security acl 3000
        [FW_A-ipsec-policy-templet-map_temp-1] ike-peer enodeb
        [FW_A-ipsec-policy-templet-map_temp-1] proposal tran1
        [FW_A-ipsec-policy-templet-map_temp-1] quit
      6. Reference the IPSec policy template in the IPSec policy.
        [FW_A] ipsec policy map1 10 isakmp template template
      7. Apply the IPSec policy to GigabitEthernet 0/0/1.
        [FW_A] interface GigabitEthernet 0/0/1
        [FW_A-GigabitEthernet0/0/1] ipsec policy map1
        [FW_A-GigabitEthernet0/0/1] quit

  • Configure FW_B.

    The configuration of FW_B is similar to that of FW_A. You can configure FW_B by referring to the configuration of FW_A.

Verification

  1. Check static server map entries on the SLB. If corresponding server map entries exist, the server load balancing is successfully configured.
    [SLB] display firewall server-map static
     Current Total Server-map : 2
     Type: SLB,  ANY -> 2.2.2.2[grp1/0],  Zone:---,  protocol:udp
     Vpn: public -> public
  2. View the session table on the SLB. If a session exists and the destination IP address of the request packet is changed from the virtual server IP address to the IP address of a real server, the server load balancing is successfully configured.
    [SLB] display firewall session table verbose
    Current Total Sessions : 2
     udp  VPN: public --> public  ID: c487fb5ba7d8458875c5758ad84
     Zone: trust --> trust  TTL: 00:02:00  Left: 00:02:00
     Recv Interface: GigabitEthernet0/0/0
     Interface: GigabitEthernet0/0/1  NextHop: 3.3.3.1  MAC: 5254-0012-3513
     <--packets: 58851 bytes: 5,094,045 --> packets: 58851 bytes: 5,094,029
     1.1.1.2:4500[1.1.1.1:2049] --> 2.2.2.2:4500[192.168.1.1:4500] PolicyName: ---

    udp  VPN: public --> public  ID: c487fb5ba7d8300f6b45758ad81
     Zone: trust --> trust  TTL: 00:02:00  Left: 00:01:58
     Recv Interface: GigabitEthernet0/0/0
     Interface: GigabitEthernet0/0/1  NextHop: 3.3.3.1  MAC: 5254-0012-3513
     <--packets: 58858 bytes: 5,094,842 --> packets: 58857 bytes: 5,095,021
     1.1.1.3:4500[1.1.1.1:2048] --> 2.2.2.2:4500[192.168.2.1:4500] PolicyName: ---
  3. After a while, view the running status of the virtual server on the SLB. The ratio of total sessions on the two real servers is 1:1.
    [SLB] display slb vserver verbose vs1
    Virtual Server Information(Total 1)
    --------------------------------------------------------------------------------
    -------------
      Virtual Server Name      : vsr1
      Virtual Server ID        : 0
      Virtual Server IP        : 2.2.2.2
      Protocol                 : udp
      Virtual Server Port      : any
      Http X-forward Enable    : Disable
      Virtual Server Max-conn  : --
      Persistence Name/ID      : a/0
        Persistence Type       : source-ip
      Group Name               : grp1
      Group ID                 : 0
      Current Connection       : 2
        RserverID  IP Address       Weight      Status             Ratio         TotalSession  CurSession
        0          192.168.1.1         1       Admin-Active        50.55%            10          2
        0          192.168.2.1         1       Admin-Active        49.45%            11          2
    --------------------------------------------------------------------------------

  4. Run the display ipsec sa on FW_A. You can see that the IPSec tunnel has been established.
    [FW]display ipsec  sa
    2016-06-13 05:49:46.570

    ipsec sa information:

    ===============================
    Interface: GigabitEthernet0/0/1
    ===============================

      -----------------------------
      IPSec policy name: "map1"
      Sequence number  : 1
      Acl group        : 3000
      Acl rule         : 5
      Mode             : Template
      -----------------------------
        Connection ID     : 339
        Encapsulation mode: Tunnel
        Tunnel local      : 192.168.1.2
        Tunnel remote     : 192.168.1.2
        Flow source       : 10.1.1.0/255.255.255.0 0/0
        Flow destination  : 10.1.4.0/255.255.255.255 0/0

        [Outbound ESP SAs]
          SPI: 1534118999 (0x5b70cc57)
          Proposal: ESP-ENCRYPT-AES-256 ESP-AUTH-SHA2-256-128
          SA remaining key duration (kilobytes/sec): 10485760/3490
          Max sent sequence-number: 1
          UDP encapsulation used for NAT traversal: Y
          SA encrypted packets (number/bytes): 0/0

        [Inbound ESP SAs]
          SPI: 1743339630 (0x67e9406e)
          Proposal: ESP-ENCRYPT-AES-256 ESP-AUTH-SHA2-256-128
          SA remaining key duration (kilobytes/sec): 10485760/3490
          Max received sequence-number: 1
          UDP encapsulation used for NAT traversal: Y
          SA decrypted packets (number/bytes): 0/0
          Anti-replay : Enable
          Anti-replay window size: 1024

Configuration Scripts

Configuration script of the SLB:

#
 sysname SLB
#
 slb enable
#
interface GigabitEthernet0/0/1
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 192.168.1.2 255.255.255.0
#
interface GigabitEthernet0/0/3
 ip address 192.168.2.2 255.255.255.0
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet0/0/2
 add interface GigabitEthernet0/0/3
#
 slb
  group 1 grp1
   metric roundrobin
   rserver 1 rip 192.168.1.1 weight 1
   rserver 2 rip 192.168.2.1 weight 1
  vserver 1 vs1
   vip 1 2.2.2.2
   protocol udp
   vport any
   group grp1
#
security-policy
 rule name untrust_dmz_inbound
  source-zone untrust
  destination-zone dmz
  destination-address 192.168.1.0 24
  destination-address 192.168.2.0 24
  action permit
#
return

Configuration script of FW_A:

#
acl 3000
 rule 5 permit ip source 10.1.1.0 0.0.0.255
#
ipsec proposal tran1
  esp authentication-algorithm sha2-256
  esp encryption-algorithm aes-256
#
ike proposal 10
  encryption-algorithm aes-256
  dh group2
  authentication-algorithm sha2-256
  authentication-method pre-share
#
ike peer enodeb
  pre-shared-key %^%#yUSb-oM,AZO>QmMci+eB\/F:JAxu6=[J-`VrlXeF%^%#
  ike-proposal 10
#
ipsec policy-template template 1
 security acl 3000
 ike-peer enodeb
 proposal tran1
#
ipsec policy map1 10 isakmp template template
#
firewall zone untrust
 add interface GigabitEthernet 0/0/1
#
firewall zone trust
 add interface GigabitEthernet0/0/2
#
security-policy
 rule name ipsec_tu
  source-zone trust
  destination-zone untrust
  source-address 10.1.1.0 mask 255.255.255.0
  action permit
 rule name ipsec_ut
  source-zone untrust
  destination-zone trust
  destination-address 10.1.1.0 mask 255.255.255.0
  action permit
 rule name ipsec_lu
  source-zone local
  destination-zone untrust
  source-address 192.168.1.1 mask 255.255.255.255
  action permit
 rule name ipsec_ul
  source-zone untrust
  destination-zone local
  destination-address 192.168.1.1 mask 255.255.255.255
  action permit
#
 ip route-static 10.1.1.0 255.255.255.0 10.1.2.2
 ip route-static 0.0.0.0 0.0.0.0 192.168.1.2

Configuration script of FW_B:

#
acl 3000
 rule 5 permit ip source 10.1.1.0 0.0.0.255
#
ipsec proposal tran1
  esp authentication-algorithm sha2-256
  esp encryption-algorithm aes-256
#
ike proposal 10
  encryption-algorithm aes-256
  dh group2
  authentication-algorithm sha2-256
  authentication-method pre-share
#
ike peer enodeb
  pre-shared-key %^%#yUSb-oM,AZO>QmMci+eB\/F:JAxu6=[J-`VrlXeF%^%#
  ike-proposal 10
#
ipsec policy-template template 1
 security acl 3000
 ike-peer enodeb
 proposal tran1
#
ipsec policy map1 10 isakmp template template
#
firewall zone untrust
 add interface GigabitEthernet 0/0/1
#
firewall zone trust
 add interface GigabitEthernet0/0/2
#
 ip route-static 10.1.1.0 255.255.255.0 10.1.3.2
 ip route-static 0.0.0.0 0.0.0.0 192.168.2.2
#
security-policy
 rule name ipsec_tu
  source-zone trust
  destination-zone untrust
  source-address 10.1.1.0 mask 255.255.255.0
  action permit
 rule name ipsec_ut
  source-zone untrust
  destination-zone trust
  destination-address 10.1.1.0 mask 255.255.255.0
  action permit
 rule name ipsec_lu
  source-zone local
  destination-zone untrust
  source-address 192.168.2.1 mask 255.255.255.255
  action permit
 rule name ipsec_ul
  source-zone untrust
  destination-zone local
  destination-address 192.168.2.1 mask 255.255.255.255
  action permit
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
