CLI: Example for Logging In to the CLI Using STelnet (RSA Authentication)

Procedure

1. Generate an RSA public key on the PC.
   1. Install the PuTTY software. Details are omitted.
   2. Use the PuTTYgen tool to generate a local SSH-RSA key pair. (PuTTYgen 0.60 is used as an example in the following part.)

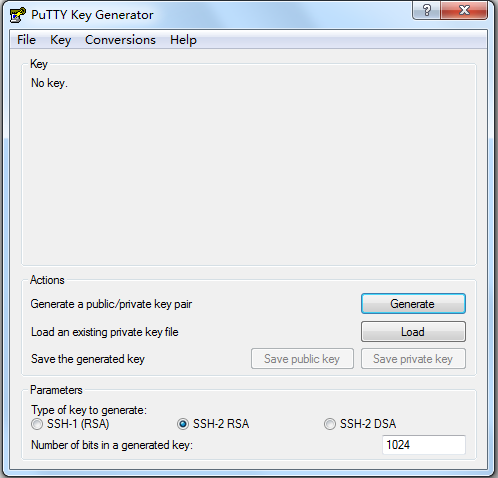

      1. Double-click PuTTYgen.exe. The interface shown in Figure 2 is displayed. In Parameters, set Type of key to generate to SSH-2 RSA. Click Generate. The PC starts to generate a local RSA key pair.
         Figure 2 Selecting the SSH version for generating the local SSH-RSA key pair

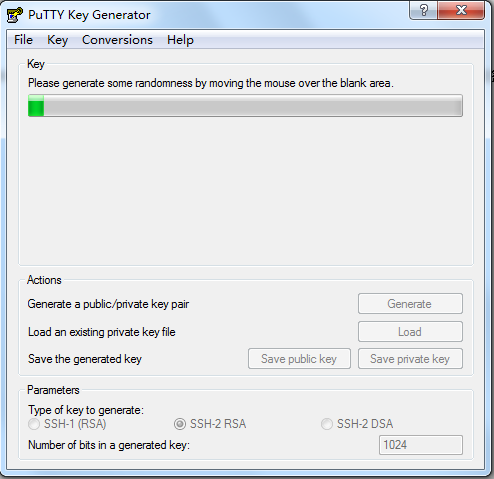

      2. Figure 3 shows the interface for generating a local RSA key pair. You must move the mouse continuously during the generation of the local RSA key pair. Move the pointer only in the window other than the process bar in green. Otherwise, the progress bar suspends, and the generation of the key pair is stopped.
         Figure 3 Generating a local RSA key pair

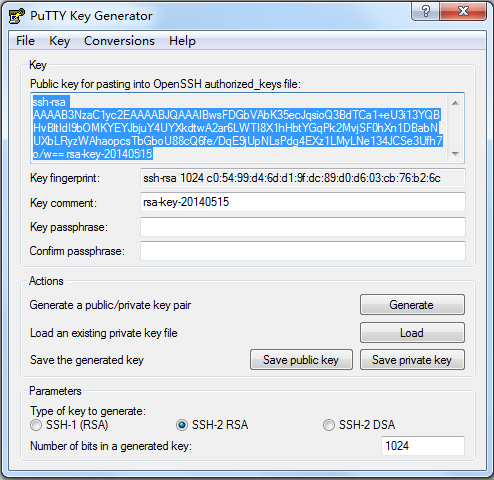

      3. Figure 4 shows the generation of the local RSA key pair. Do as follows to save the RSA key pair in the specified format:
         • OpenSSH: Copy the marked content in the Key text box.
         • PEM: Click Save public key, enter public for the name of the public key file, and click Save. Click Save private key, enter private for the name of the private key file, and click Save.


         To enhance security, you must enter a password in the Key passphrase text box and enter the password again in the Confirm passphrase text box to set a password for using this key pair.

         Figure 4 Saving a local RSA key pair



2. Configure the FW.
   1. Enable the SSH service on interface GigabitEthernet 0/0/3.


      The SSH service is enabled on management interface by default. If the SSH service is disabled, enable it as follows.

      <FW> system-view
      [FW] interface GigabitEthernet 0/0/3
      [FW-GigabitEthernet0/0/3] service-manage ssh permit
      [FW-GigabitEthernet0/0/3] service-manage enable
      [FW-GigabitEthernet0/0/3] quit

   2. Configure the VTY administrator interface.

      # Configure VTY administrator interfaces that support AAA. The administrator interface level is 3.

      [FW] user-interface vty 0 4
      [FW-ui-vty0-4] authentication-mode aaa
      [FW-ui-vty0-4] protocol inbound ssh
      [FW-ui-vty0-4] user privilege level 3
      [FW-ui-vty0-4] quit



      The level of an SSH administrator using RSA authentication relies on the VTY interface level (the user privilege level level command is used to configure the administrator interface level).

      To ensure that the administrator can log in to the device, you are advised to set the administrator level to 3 or higher.

   3. Save the RSA public key of the intranet PC. In this example, the RSA public key is saved in the OpenSSH coding format.

      [FW] rsa peer-public-key key_pc encoding-type openssh
      Enter "RSA public key" view, return system view with "peer-public-key end".
      [FW-rsa-public-key] public-key-code begin
      Enter "RSA key code" view, return last view with "public-key-code end".
      [FW-rsa-key-code] ssh-rsa AAAAB3NzaC1yc2EAAAABJQAAAIBwsFDGbVAbK35ecJqsioQ3BdTCa1+eU3i13YQBHvBltIdI9bOMKYEYJbjuY4UYXkdtwA2ar6LWTI8X1hHbtYGqPk2MvjSF0hXn1DBabNUXbLRyzWAhaopcsTbGboU88cQ6fe/DqE9jUpNLsPdg4EXz1LMyLNe134JCSe3Ufh7o/w== rsa-key-20140515
      [FW-rsa-key-code] public-key-code end
      [FW-rsa-public-key] peer-public-key end
      [FW]


   4. Create an SSH administrator account.

      [FW] aaa
      [FW-aaa] manager-user sshadmin
      [FW-aaa-manager-user-sshadmin] service-type ssh
      [FW-aaa-manager-user-sshadmin] quit
      [FW-aaa] bind manager-user sshadmin role system-admin
      [FW-aaa] quit

   5. Enable the STelnet service.

      [FW] stelnet server enable

   6. Configure the administrator as an STelnet administrator.

      [FW] ssh user sshadmin
      [FW] ssh user sshadmin authentication-type rsa
      [FW] ssh user sshadmin service-type stelnet
      [FW] ssh user sshadmin assign rsa-key key_pc

   7. Optional: Set the SSH server parameters.

      # Set the listening port of the SSH server to 22, authentication timeout period 80 seconds, number of authentication retries to 4, update interval of the key pair to 1 hour, and enable the backward compatibility function.



      If the default SSH port number 22 is changed, the service-manage function does not take effect for the protocol. You need to configure a security policy to allow the protocol to access the device.

      [FW] ssh server port 22
      [FW] ssh server timeout 80
      [FW] ssh server authentication-retries 4
      [FW] ssh server rekey-interval 1
      [FW] ssh server compatible-ssh1x enable

3. Configure the administrator PC as the SSH client.
   1. Set the IP address and subnet mask of the administrator PC to 10.3.0.100 and 255.255.255.0.
   2. Install the PuTTY software. Details are omitted.
   3. Use the PuTTY software to log in to the FW through STelnet. (The following example uses PuTTY0.60.)

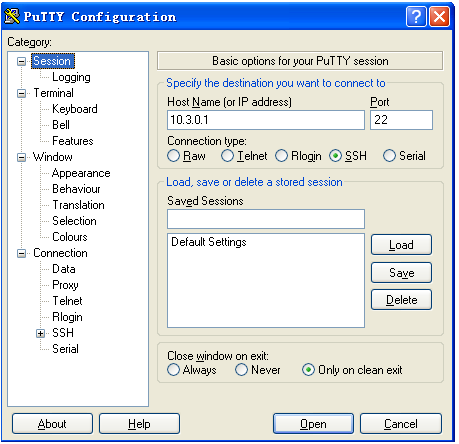

      1. Double-click PuTTY.exe. The interface shown in Figure 5 is displayed. Enter the IP address of the SSH server in the Host Name (or IP address) text box.
         Figure 5 Entering the IP address of the SSH server

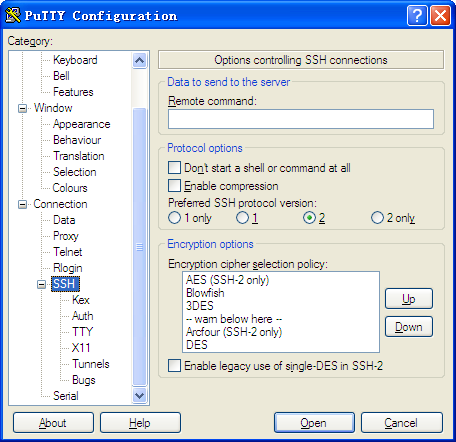

      2. Choose Connection > SSH in the left Category tree. The interface shown in Figure 6 is displayed. In the Protocol options area, set Preferred SSH protocol version to 2.
         Figure 6 Setting SSH protocol version

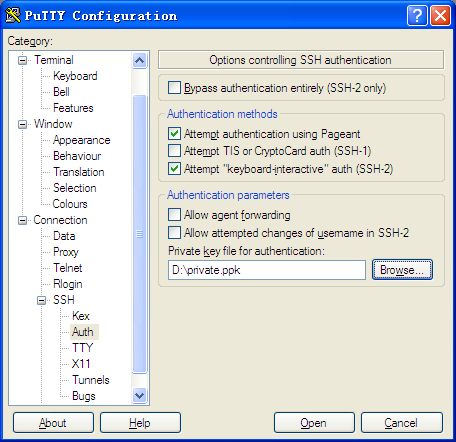

      3. Select Auth in SSH. The dialog box shown in Figure 7 is displayed. Click Browse, import the private key file private.ppk in the saved SSH-RSA key pair.
         Figure 7 Importing the private key in the SSH-RSA key pair

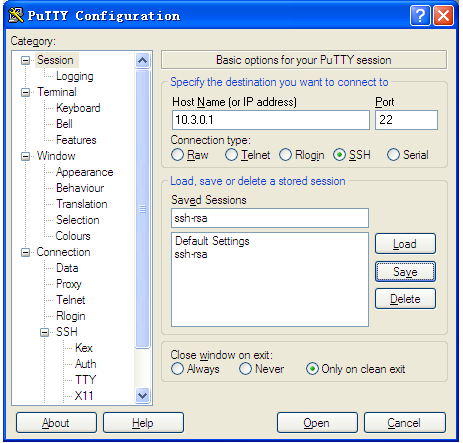

      4. Click Session, enter ssh-rsa in the Saved Sessions text box, and click Save to save the SSH session, as shown in Figure 8.


         The saved session will be used when the PSFTP tool is used for SFTP login. Besides, no configuration is required for future STelnet login. You can double-click the SSH session to open the login page.

         Figure 8 Importing the private key in the SSH-RSA key pair

      5. Enter SSH administrator account sshadmin in the login page that is displayed and press Enter. You can log in to FW.


         If a password is specified for using the key pair, you must enter the password for the login.
