Web: Example for Configuring Static IPv6 Addresses for Devices to Communicate

This section provides an example for configuring a firewall to connect intranet users to the Internet. A firewall is assigned a static IPv6 address to access the Internet and provides Internet access services for intranet users.

Networking Requirements

An enterprise deploys a firewall as a security gateway on the network border and purchases broadband services from a carrier to implement intranet users' Internet access using IPv6 addresses.

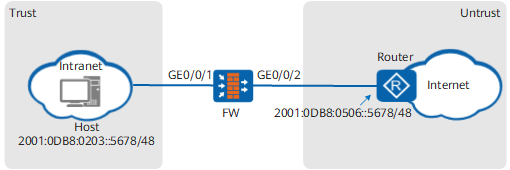

Figure 1 Networking diagram of accessing the Internet through an IPv6 address

Configuration Roadmap

Configure IP addresses of interfaces and add the interfaces to security zones.
Configure a security policy so that intranet hosts can access the Internet.
Configure a default route on the FW, so that traffic from the intranet can be forwarded to the ISP router.
Configure the default gateway on each host on the intranet, so that the hosts send traffic to the FW when they access the Internet.
Configure static routes on the router, so that the router forwards return traffic from the Internet to the FW.

Procedure

Enable the global IPv6 function to allow the firewall to forward IPv6 packets.
1. Choose Dashboard > Device Information.

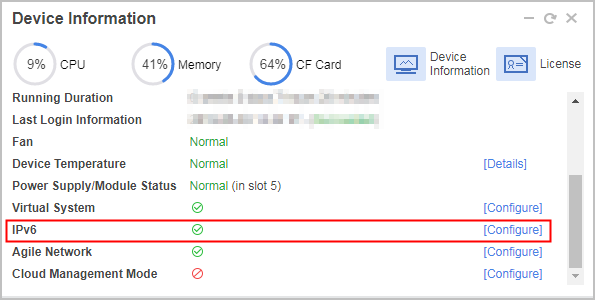

2. Select the row where IPv6 is located and click Configure to enable the IPv6 function.
Configure the IPv6 address for GigabitEthernet 0/0/1.
1. Choose Network > Interface.
2. In Interface List, click corresponding to GigabitEthernet 0/0/1 and set the following parameters.

  Zone

  trust

  Mode

  Route

  IPv6

  Enable the IPv6 protocol

  Connection Type

  Static IP address

  IPv6 Address

  2001:0DB8:0203::1234/48
3. Click OK.
Configure the IPv6 address for GigabitEthernet 0/0/2.
1. Choose Network > Interface.
2. In Interface List, click corresponding to GigabitEthernet 0/0/2 and set the following parameters.

  Zone

  untrust

  Mode

  Route

  IPv6

  Enable the IPv6 protocol

  Connection Type

  Static IP address

  IPv6 Address

  2001:0DB8:0506::1234/48
3. Click OK.
Configure a security policy.
1. Choose Policy > Security Policy > Security Policy .
2. In Security Policy List, click Add Security Policy and configure a security policy based on the following parameter values.

  Name

  policy_sec_1

  Source Zone

  trust

  Destination Zone

  untrust

  Action

  Permit
3. Click OK.
Configure a default route on the FW, so that traffic from the intranet can be forwarded to the ISP router.
1. Choose Network > Route > Static Route.
2. In Static Route List, click Add and configure a default route based on the following parameter values.

  Protocol

  IPv6

  Destination Address/Mask

  0.0.0.0/0.0.0.0

  Next Hop

  2001:0DB8:0506::5678
Configure the default gateway on each host on the intranet, so that the hosts send traffic to the FW when they access the Internet.
Configure static routes on the router, so that the router forwards return traffic from the Internet to the FW.
Contact the ISP network administrator to perform this step.

Zone	trust
Mode	Route
IPv6	Enable the IPv6 protocol
Connection Type	Static IP address
IPv6 Address	2001:0DB8:0203::1234/48

Zone	untrust
Mode	Route
IPv6	Enable the IPv6 protocol
Connection Type	Static IP address
IPv6 Address	2001:0DB8:0506::1234/48

Name	policy_sec_1
Source Zone	trust
Destination Zone	untrust
Action	Permit

Protocol	IPv6
Destination Address/Mask	0.0.0.0/0.0.0.0
Next Hop	2001:0DB8:0506::5678

Configuration Verification

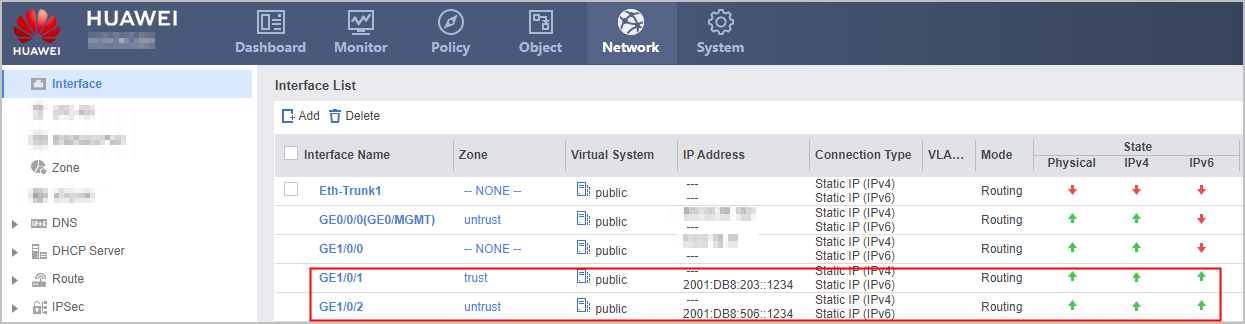

Check the status of GigabitEthernet 0/0/1. The following example uses GigabitEthernet 0/0/1 on FW. If the configuration is successful, the configured global unicast address can be displayed. In addition, the physical status and IPv6 status of the interface is up.
Check whether intranet hosts can use domain names to access the Internet. If the hosts can access the Internet, the configurations are correct. If the hosts fail to access the Internet, modify the configuration and try again.

Configuration Scripts

Configuration script for FW:

#
 sysname FW
#
 ipv6
#
interface GigabitEthernet0/0/1
 ipv6 enable
 ipv6 address 2001:0DB8:0203::1234 48
#
interface GigabitEthernet0/0/2
 ipv6 enable
 ipv6 address 2001:0DB8:0506::1234 48
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/2
#
security-policy
  rule name policy_sec_1
    source-zone trust
    destination-zone untrust
    action permit
#
ipv6 route-static 0:0::0:0 0 2001:0DB8:0506::5678
#
return
