Web: Example for Configuring Security Policies for Bypass Detection

This section provides an example for configuring security policies when the FW functions as a bypass detection device.

Networking Requirements

As shown in Figure 1, a router connects an intranet and the Internet. The FW functions as a bypass detection device to implement content security checks on the traffic that passes through the router.

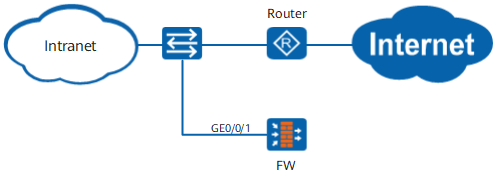

Figure 1 Networking diagram of bypass detection

Configuration Roadmap

When the FW functions as a bypass detection device, set detection interface GE0/0/1 to a Layer-2 interface and connect this interface to a switch. The switch mirrors traffic to the FW for detection.
Configure bypass detection on the detection interface so that the FW only detects traffic.
Configure a security policy and reference an applicable security profile to implement content security checks on the traffic.
- When the FW has only one interface to receive mirroring traffic or has multiple interfaces to receive mirroring traffic but applies the same security policy to the traffic, you can add the interface or interfaces to any security zone and set the source and destination security zones to any.
- When the FW has multiple interfaces to receive mirroring traffic and applies different security policies to the interfaces, you must add the interfaces to different security zones and set the source and destination security zones of each security policy to the security zone where the corresponding interface resides.

Procedure

Configure the interface and assign the interfaces to security zones.
1. Choose Network > Interface.
2. Click of GE0/0/1 and set the following parameters:

  Mode

  Bypass

  Connection Type

  Trunk

  Trunk VLAN ID

  2-4094
3. Click OK.

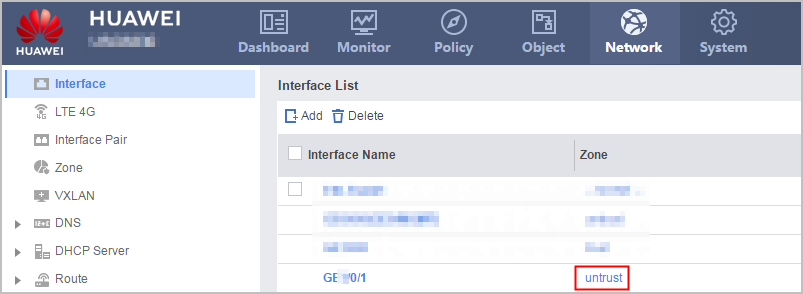

4. Set the security zone of GE0/0/1 to the Untrust zone.
5. Click OK.

Mode	Bypass
Connection Type	Trunk
Trunk VLAN ID	2-4094

Configure a security policy for bypass detection.

Choose Policy > Security Policy > Security Policy.
Click Add Security Policy.

Set the parameters of the security policy for bypass detection.

Content Security
Name	policy_sec_bypass_detection
Source Zone	untrust
Destination Zone	untrust
Action	Permit
Antivirus	default
Intrusion Prevention	default
Record Policy Matching Log	Enable

The antivirus and intrusion prevention profiles are used as examples. You can select other types of profiles as required.

Click OK.

Verification

Choose Monitor > Log > Policy Matching Log to check whether the traffic from the router matches the security policy.
Choose Monitor > Log > Threat Log to view and analyze whether the traffic contains any virus or threat.

Configuration Script

 #
vlan batch 2 to 4094
#
interface GigabitEthernet0/0/1
 portswitch
 undo shutdown
 port link-type trunk
 undo port trunk allow-pass vlan 1
 port trunk allow-pass vlan 2 to 4094
 detect-mode tap
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
security-policy
 rule name policy_sec_bypass_detection
  policy logging
  source-zone untrust
  destination-zone untrust
  profile av default
  profile ips default
  action permit
