Web: Example for Configuring Security Policies Based on User Access Modes and Device Types

Networking Requirements

An enterprise has deployed a FW as the egress gateway to connect the intranet to the Internet, as shown in Figure 1.
  • The Agile Controller identity authentication mechanism is enabled on the intranet, and information about users and user group is saved on a Controller.
  • Intranet users can use different devices (such as PCs and mobile phones) and access modes (wireless access mode, wired access mode, through the Portal, and through the client that supports 802.1X authentication) for the authentication.
  • The Agile Controller server can identify users' access modes and device types and send them to the FW.

In this example, the Agile Controller is called Controller for short.

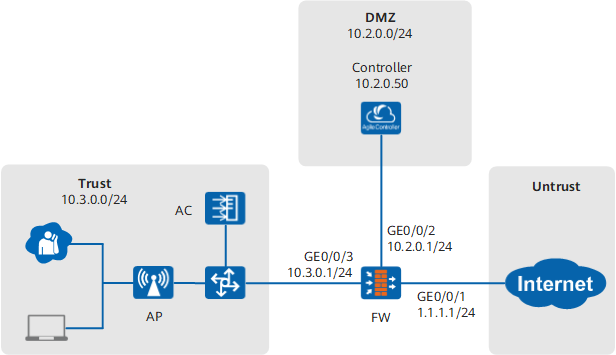

Figure 1 Networking diagram for configuring security policies

The enterprise requires that the FW use its user management and authentication mechanism to identify intranet IP addresses as users with different types of access devices in different access modes, and security policies be configured to implement access control based on users' access modes and device types. Requirements are as follows:
  • Users on the intranet can access HTTP services without proactively accessing the Agile Controller portal authentication page, because their HTTP requests will be automatically redirected to the Agile Controller portal authentication page.
  • After being authenticated by entering correct Agile Controller accounts and passwords, intranet users can access network resources.
  • Only the intranet users whose PCs are physically connected are allowed to access the Internet after being authenticated on the portal authentication page.

Configuration Roadmap

Complete user- and authentication-related configurations.
  1. Add the FW on the Agile Controller server and configure the Agile Controller server on the FW to enable the FW and Agile Controller server to communicate.
  2. Configure a policy to import user information from the Agile Controller server to the FW.
  3. Set the URL of the redirected authentication page to the address of the Agile Controller portal authentication page for the users who directly access HTTP services.
  4. Configure an authentication policy to authenticate users before they access the Internet.
  5. Set Agile Controller SSO parameters on the FW.
  6. Configure new user options in the authentication domain. After being authenticated, a new user goes online as a temporary user in a specified user group.
  7. Because the FW is deployed between users and the Agile Controller server, authentication packets pass through the FW. Therefore, to implement SSO, configure an authentication policy to disable the FW from authenticating the authentication requests destined for the Agile Controller server and configure security policies to ensure normal communication between the FW and Agile Controller server.
  8. Configure a security policy to ensure that users, the Agile Controller server, and the FW can communicate properly.
Complete access mode- and device type-based control configurations:
  1. Import devices from the Agile Controller server to the FW.
  2. Configure a security policy to allow the intranet users whose access mode is wired-portal and device type is pc device group to access the Internet.

Data Planning

Item

Data

Description

Agile Controller server

  • Service Name: auth_server_tsm

  • Agile Controller IP Address: 10.2.0.50

  • Server Port: 8084

  • Encryption: AES128

  • Shared Key: Admin@123

On a FW, set the parameters for communication with a Agile Controller server.

The parameter settings on the FW must be consistent with those on the Agile Controller server.

User information import policy

  • Name: policy_import

  • Server Type: Agile Controller

  • Server Name: auth_server_tsm

  • Import Type: Import only users

  • Target User Group: /default

  • Full Synchronization: 120 minutes

  • Overwrite local user records when the current user exists

Import users from the Agile Controller server to the FW.

Parent group of new users

After being authenticated, a new user goes online as a temporary user in the default user group.

All users passing Agile Controller authentication are new users for the FW.

Agile Controller authentication portal address

http://10.2.0.50:8080/portal

This address must be the same as the setting on the Agile Controller server.

Agile Controller SSO

  • Agile Controller SSO: Enable

  • Internet Access After Identity Authentication

Set SSO parameters on the FW and configure the FW to receive the user login and logout information from the Agile Controller server.

Importing devices
  • Server name: auth_server_tsm
  • If a device type exists, it overwrites the local record.

Only Agile Controller SSO devices can be imported.

Security policy 1
  • Name: policy_sec_tsm
  • Source Zone: trust
  • Destination Zone: dmz
  • Source Address/Region: 10.3.0.0/24
  • Destination Address/Region: 10.2.0.50/32
  • Action: Permit

This policy is used to enable user authentication on the Agile Controller server.

Security policy 2
  • Name: policy_sec_tsm_1
  • Source Zone: local
  • Destination Zone: dmz
  • Action: Permit

This policy is used to allow communication between the Agile Controller server and FW.

Security policy 3
  • Name: policy_sec_tsm_2
  • Source Zone: dmz
  • Destination Zone: local
  • Action: Permit

This policy is used to allow communication between the Agile Controller server and FW.

Security policy 4
  • Name: policy_sec_dns
  • Source Zone: trust
  • Destination Zone: untrust
  • Source Address/Region: 10.3.0.0/24
  • Service: DNS
  • Action: Permit

This policy is used to permit the DNS packets for the HTTP service.

Security policy 5
  • Name: policy_sec_user
  • Source Zone: trust
  • Destination Zone: untrust
  • Source Address/Region: 10.3.0.0/24
  • Access Mode: wired-portal
  • Device: pc
  • Action: Permit

This policy is used to allow the intranet users whose PCs are physically connected to access the Internet after being authenticated on the portal authentication page.

Procedure

  1. Set the IP address and security zone of the interface.
    1. Choose Network > Interface.
    2. In Interface List, click of GE0/0/1.

      Set the parameters as follows for interface GigabitEthernet 0/0/1 and use default values for other parameters:

      Zone

      untrust

      Mode

      Routing

      IPv4

      Connection Type

      Static IP

      IP Address

      1.1.1.1/255.255.255.0

    3. Click OK.
    4. Repeat the previous steps to set the parameters of interface GE0/0/2 and GE0/0/3.

      Set the parameters as follows for interface GigabitEthernet 0/0/2 and use default values for other parameters:

      Zone

      dmz

      Mode

      Routing

      IPv4

      Connection Type

      Static IP

      IP Address

      10.2.0.1/255.255.255.0

      Set the parameters as follows for interface GigabitEthernet 0/0/3 and use default values for other parameters:

      Zone

      trust

      Mode

      Routing

      IPv4

      Connection Type

      Static IP

      IP Address

      10.3.0.1/255.255.255.0

  2. Configure security policies to ensure the communication among the users, Agile Controller server, and FW.
    1. Configure a security policy between the Trust zone (users) and DMZ (Agile Controller server) for users to get authenticated by the Agile Controller server.

      Choose Policy > Security Policy > Security Policy, click Add Security Policy and set the following parameters. Then click OK.

      Name

      sec_policy_tsm

      Source Zone

      trust

      Destination Zone

      dmz

      Source Address/Region

      10.3.0.0/24

      Destination Address/Region

      10.2.0.50/32

      Action

      Permit

      If the URL of the authentication page is a domain name and a DNS server for resolving the URL is deployed in the DMZ, you need to enable the DNS service from the Trust zone to DMZ.

    2. Configure security policies between the DMZ (Agile Controller server) and Local zone for the Agile Controller server and FW to communicate.

      1. Click Add Security Policy and set the following parameters. Then click OK.

        Name

        local_policy_tsm_1

        Source Zone

        local

        Destination Zone

        dmz

        Action

        Permit

      2. Click Add Security Policy and set the following parameters. Then click OK.

        Name

        local_policy_tsm_2

        Source Zone

        dmz

        Destination Zone

        local

        Action

        Permit

    3. Configure a security policy for the Trust (users) -> Untrust (Internet) interzone to permit DNS packets (resolving the URLs of HTTP services).

      Click Add Security Policy and set the following parameters. Then click OK.

      Name

      sec_policy_dns

      Source Zone

      trust

      Destination Zone

      untrust

      Source Address/Region

      10.3.0.0/24

      Service

      dns

      Action

      Permit

  3. Add the FW on the Agile Controller server.

    The Controller updates with versions. Therefore, in this example, the Controller configuration is for reference only. For details, refer to the configuration manual of the Controller.

    Choose System > Server Configuration > Online Behavior Management Device, click Add and set the following parameters. Then click OK.

    If the FWs work in hot standby mode, you need to add Online Behavior Management Device twice on the Agile Controller server. The IP Address parameters must be set respectively to the real IP addresses of the active and standby device interfaces connecting to the Agile Controller server.

  4. On the FW, set the parameters for communication with a Agile Controller server.

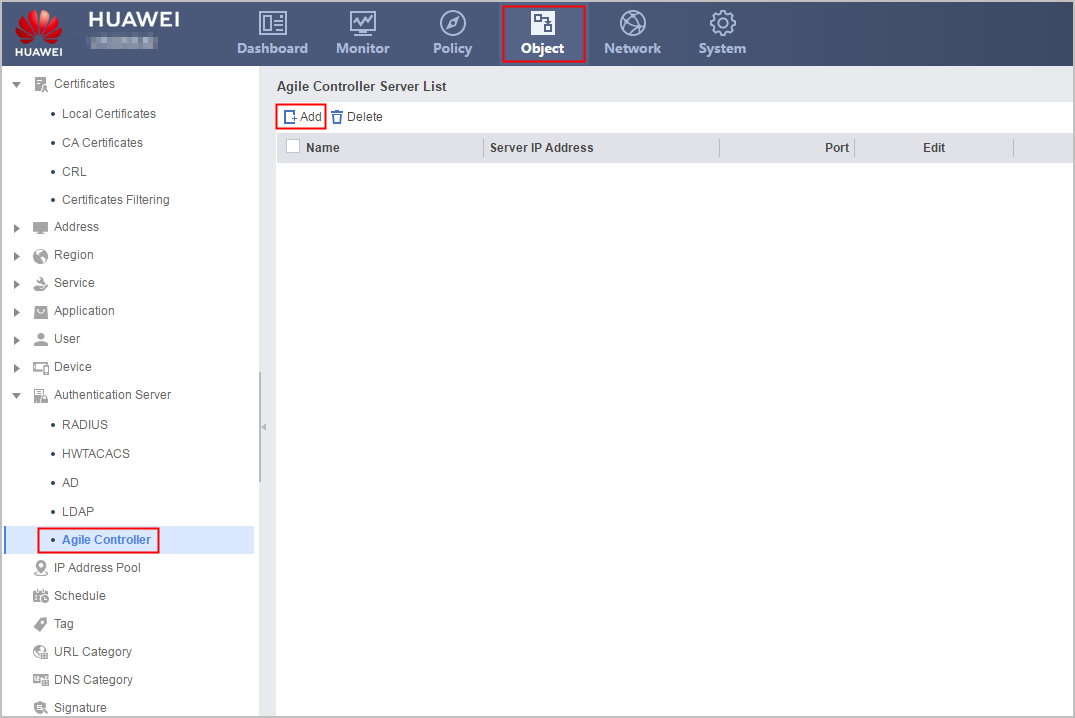

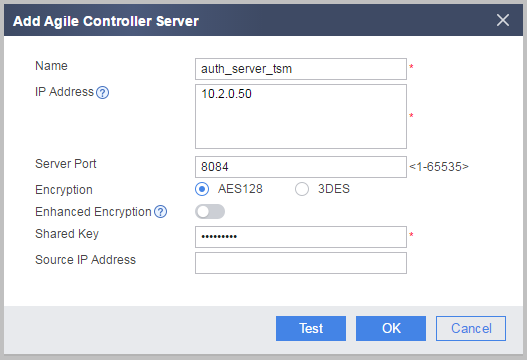

    Choose Object > Authentication Server > Agile Controller, click Add and set the following parameters. Then click OK.

    The parameter settings on the FW must be consistent with those on the Agile Controller server. In most cases, the server port of Agile Controller is 8084.

    Click Detect. In the dialog box that is displayed, click OK to check the connectivity to the Agile Controller server.

  5. Configure a policy to import user information from the Agile Controller server to the FW.

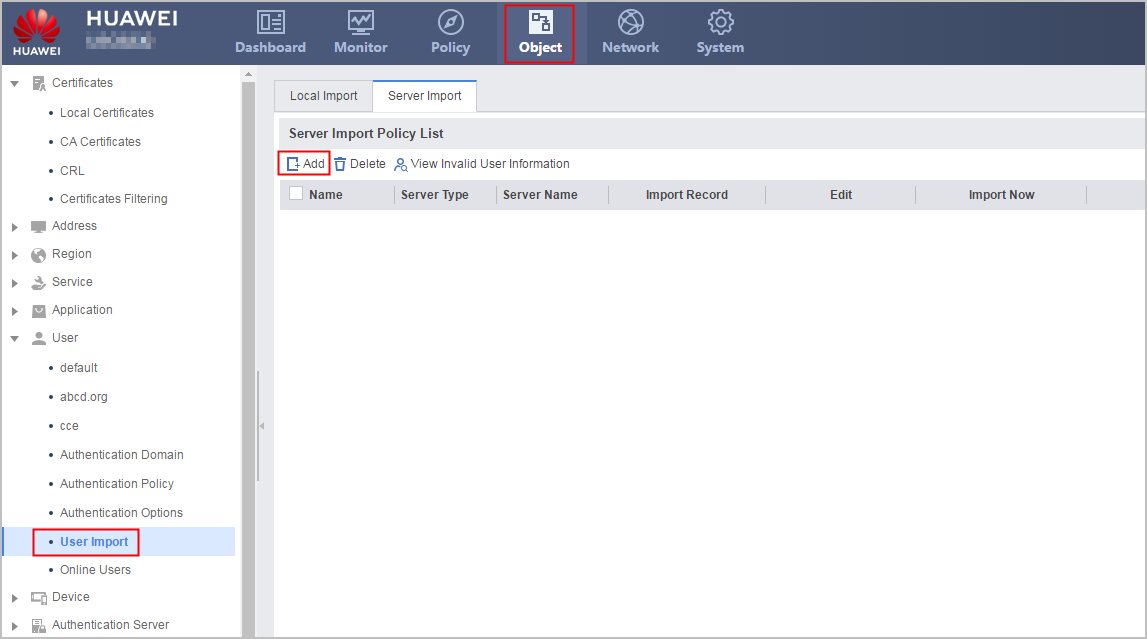

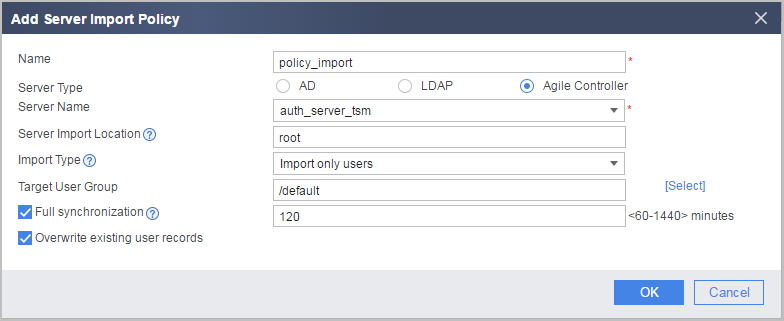

    1. Choose Object > User > User Import > Server Import, click Add and set the following parameters. Then click OK.

    2. Click for policy_import. In the dialog box that is displayed, click OK to apply the import policy.
  6. Configure the portal authentication page.

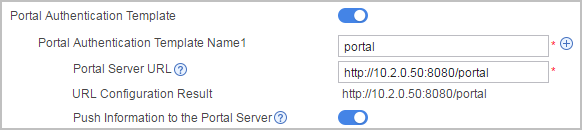

    Choose Object > User > Authentication Option > User-Defined Portal, set the following parameters. Then click Apply.

    The portal URL must be consistent with that of the Controller.

  7. Configure the action in the authentication policy for users to access the Internet as authentication so that the users' HTTP service access traffic triggers authentication. Configure the action in the authentication policy for users to access the Agile Controller server as no-authentication so that the users' authentication packets can go through the FW to the Agile Controller server.
    1. Choose Policy > Authentication Policy, click Add and set the following parameters. Then click OK.

      Name

      auth_policy_service

      Source Zone

      trust

      Destination Zone

      untrust

      Source Address/Region

      10.3.0.0/24

      Action

      Portal authentication

      Template Name

      portal

    2. Click Add and set the following parameters. Then click OK.

      Name

      auth_policy_tsm

      Source Zone

      trust

      Destination Zone

      dmz

      Source Address/Region

      10.3.0.0/24

      Destination Address/Region

      10.2.0.50/32

      Action

      No authentication

  8. Set SSO parameters and new user authentication option on the FW.

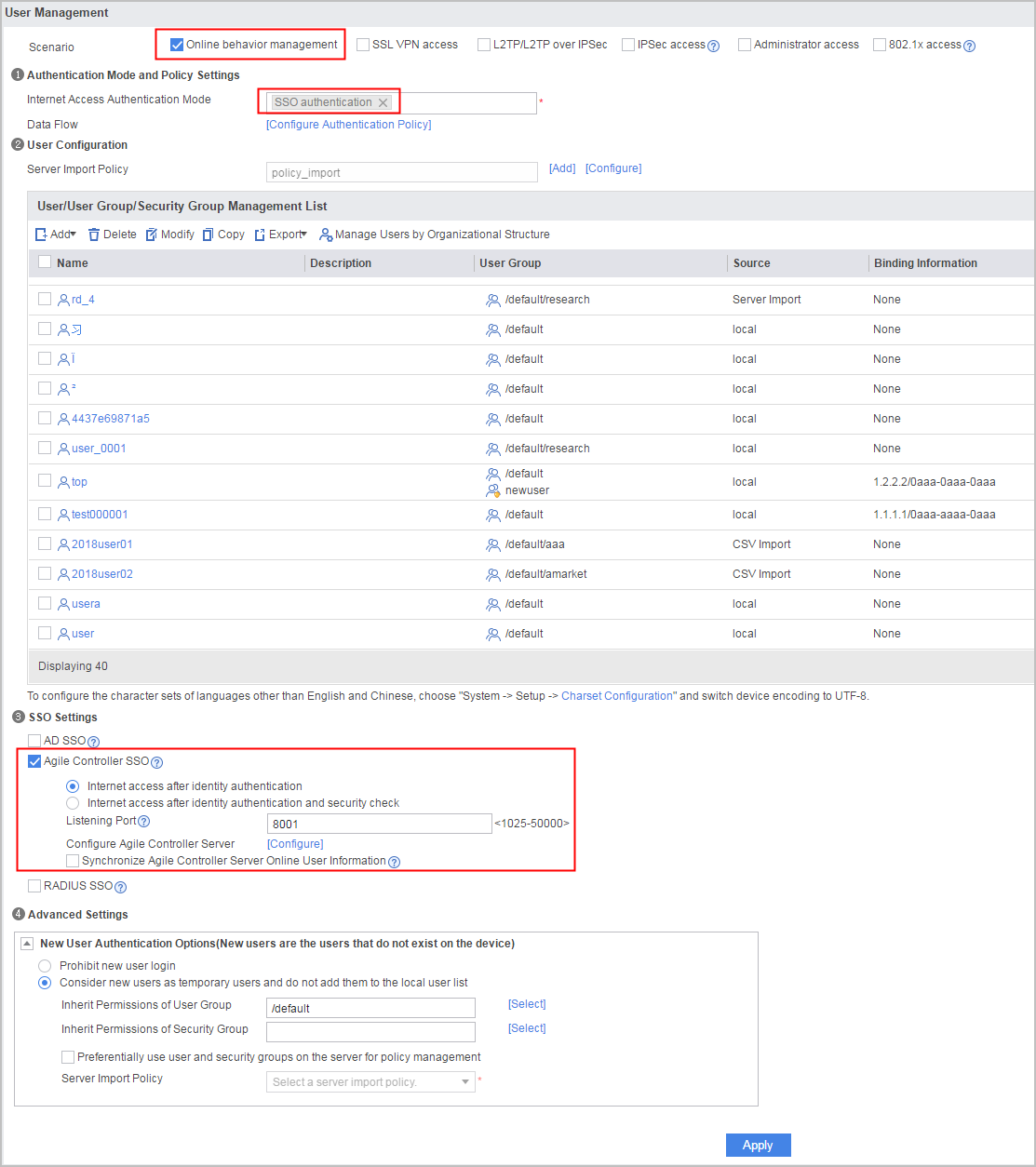

    Choose Object > User > default, set the following parameters. Then click Apply.

  9. Enable device identification on the Agile Controller server.

    Choose Resource > Terminal > Parameter Setting. In Terminal Identification, select Enable.

  10. Import devices from the Agile Controller server for security policies to reference.

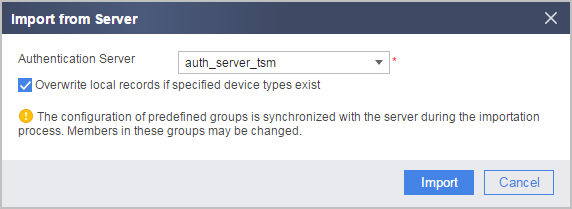

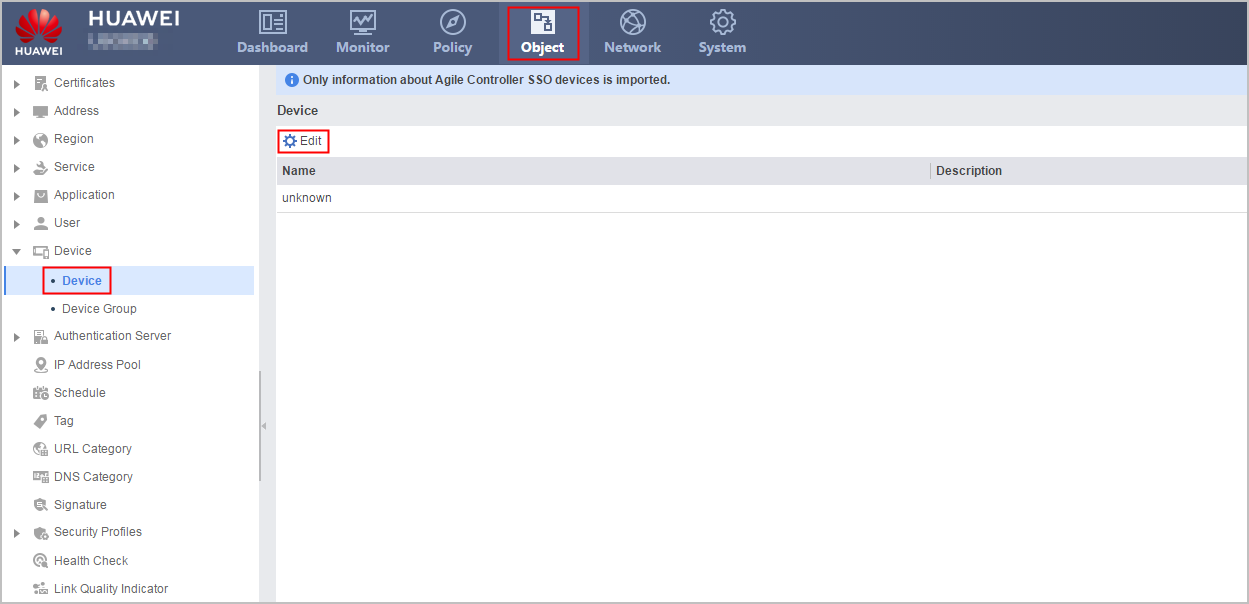

    Choose Object > Device > Device, click Edit. Then click Import.

    The FW can import only Agile Controller SSO devices.

    Click Object > Device > Device Group. You can view that imported devices have been added to the corresponding predefined device groups.

  11. Configure a security policy to allow the intranet users whose access mode is wired-portal and device type is pc device group to access the Internet.

    Choose Policy > Security Policy > Security Policy, click Add Security Policy and set the following parameters. Then click OK.

    Name

    sec_policy_user

    Source Zone

    trust

    Destination Zone

    untrust

    Source Address/Region

    10.3.0.0/24

    Access Mode

    wired-portal

    Device

    pc

    Action

    Permit

Configuration Verification

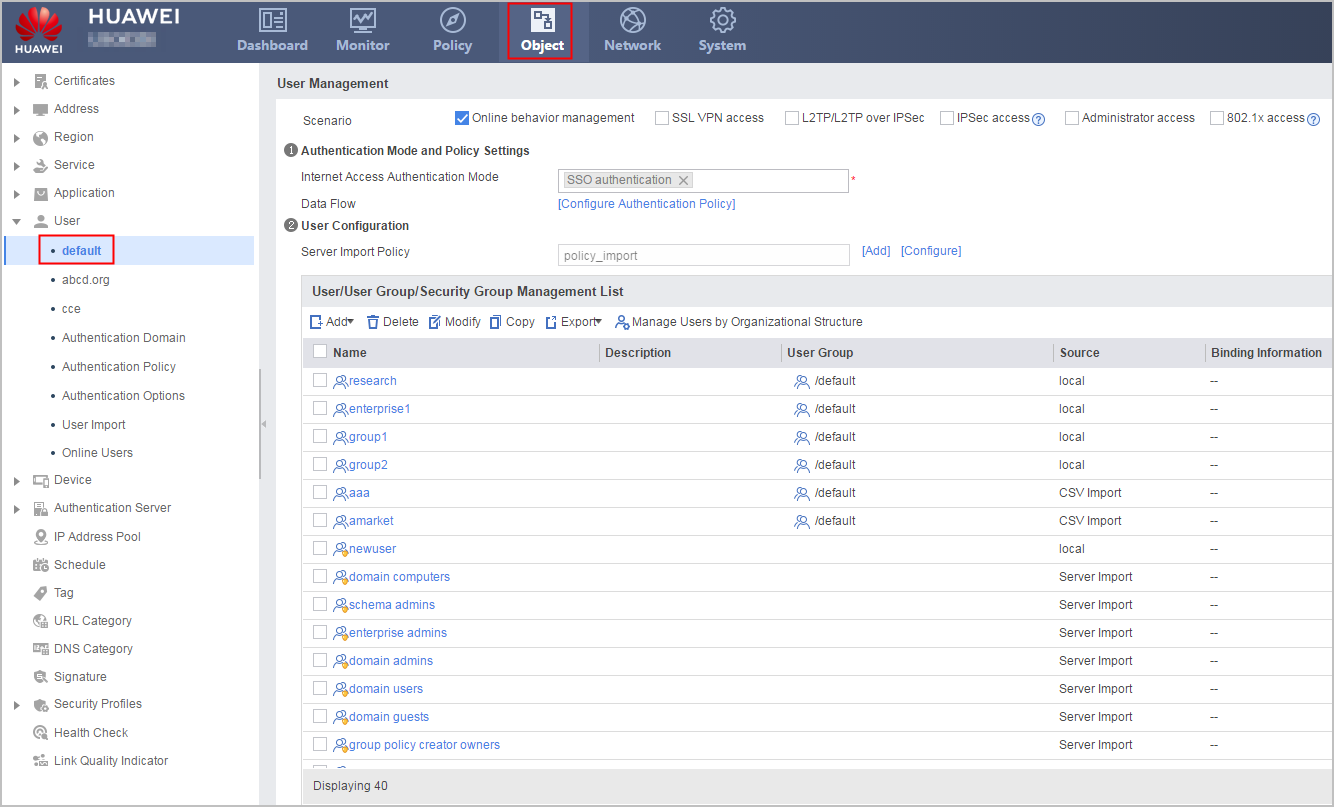

  • On the FW Web UI, choose Object > User > default to see if the configured user objects are available.
  • On the FW Web UI, choose Object > User > Online User to see if there is information about online users.
  • Wired intranet users can use browsers on PCs to access the Internet after portal authentication. However, in other conditions, they cannot access the Internet, as shown in the following table.
    Table 1 Verification of intranet user access to the Internet under different conditions

    Device

    wired-802.1x

    wireless-802.1x

    wired-portal

    wireless-portal

    PC

    N

    N

    Y

    N

    Other devices

    N

    N

    N

    N
    • Y indicates that intranet users can access the Internet, and N indicates that they cannot access the Internet.
    • wired-802.1x indicates wired Internet access from clients that support 802.1x authentication. wireless-802.1x indicates wireless Internet access from clients that support 802.1x authentication. wired-portal indicates wired Internet access from clients after portal authentication. wireless-portal indicates wireless Internet access from clients after portal authentication.

Configuration Scripts

#
 sysname FW
#
 user-manage single-sign-on tsm
  enable
 user-manage portal-template portal 0
  portal-url http://10.2.0.50:8080/portal
#
tsm-server template auth_server_tsm
 tsm-server encryption-mode aes128 shared-key %$%$|5<h@/062'gA|%:9CO.2/JA8%$%$
 tsm-server ip-address 10.2.0.50
#
interface GigabitEthernet0/0/1
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 10.2.0.1 255.255.255.0
#
interface GigabitEthernet0/0/3
 ip address 10.3.0.1 255.255.255.0
#
firewall zone trust
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 add interface GigabitEthernet0/0/1
#
firewall zone dmz
 add interface GigabitEthernet0/0/2
#
security-policy
 rule name policy_sec_tsm
  source-zone trust
  destination-zone dmz
  source-address 10.3.0.0 24
  destination-address 10.2.0.50 32
  action permit
 rule name policy_sec_dns
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 24
  service dns
  action permit
 rule name policy_sec_tsm_1
  source-zone local
  destination-zone dmz
  action permit
 rule name policy_sec_tsm_2
  source-zone dmz
  destination-zone local
  action permit
 rule name policy_sec_user
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 24
  access-authentication wired-portal
  device-classification device-group pc
  action permit
#
auth-policy
 rule name auth_policy_tsm
  source-zone trust
  destination-zone dmz
  source-address 10.3.0.0 24
  destination-address 10.2.0.50 32
  action none
 rule name auth_policy_service
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 24
  action auth portal-template portal
#
 user-manage import-policy policy_import from tsm
 server template auth_server_tsm
 server basedn root
 destination-group /default
 import-type user
 import-override enable
 time-interval 120
#
aaa
 domain default
  service-type internetaccess
  new-user add-temporary group /default

# The following configuration takes effect only one time and is not saved into the configuration file.
 execute user-manage import-policy policy_import
 update device-category tsm-server template auth_server_tsm import-overwrite
 test tsm-server template auth_server_tsm
Parent Topic: Security Policy
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
