CLI: Example for Configuring RBL-Based Anti-Spam

This section provides an example for configuring mail filtering on the FW that serves as the security gateway on the intranet.

Networking Requirements

The enterprise has a domain name of its own and deploys a mail server on the intranet. RBL-based anti-spam is required to protect the mail server in the DMS against spam, reducing network resource consumption.

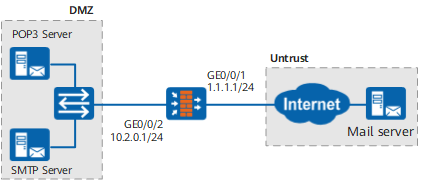

Figure 1 Mail filtering networking diagram

Procedure

Set the interface IP address and add the interface to a security zone.

Set an IP address for GigabitEthernet 0/0/1 and assign the interface to the untrust zone.

<FW> system-view
[FW] interface GigabitEthernet 0/0/1
[FW-GigabitEthernet0/0/1] ip address 1.1.1.1 24
[FW-GigabitEthernet0/0/1] quit
[FW] firewall zone untrust
[FW-zone-untrust] add interface GigabitEthernet 0/0/1
[FW-zone-untrust] quit

Set an IP address for GigabitEthernet 0/0/2 and assign the interface to the dmz.

[FW] interface GigabitEthernet 0/0/2
[FW-GigabitEthernet0/0/2] ip address 10.2.0.1 24
[FW-GigabitEthernet0/0/2] quit
[FW] firewall zone dmz
[FW-zone-dmz] add interface GigabitEthernet 0/0/2
[FW-zone-dmz] quit

Enable the RBL filtering function and set the DNS server address.
```
[FW] rbl-filter enable
[FW] rbl-filter dns-server 10.10.10.10
```

Configure the mail filtering profile, use the RBL server cbl.anti-spam.org.cn, and set any reply code.

[FW] rbl-filter profile user-defined name "rbl server"
[FW-rbl-filter-profile-rbl server] query cbl.anti-spam.org.cn
[FW-rbl-filter-profile-rbl server] reply-code any
[FW-rbl-filter-profile-rbl server] quit

Reference the RBL filtering profile and set the filtering action to block.

[FW] rbl-filter profile user-defined name "rbl server" enable
[FW] rbl-filter profile user-defined name "rbl server" action block

Create a mail filtering profile and enable anti-spam.

[FW] profile type mail-filter name profile_mail_untrust_dmz
[FW-profile-mail-filter-profile_mail_untrust_dmz] rbl-filter enable
[FW-profile-mail-filter-profile_mail_untrust_dmz] quit

Configure a security policy to permit the DNS traffic from the FW to the zone where the RBL server resides.

[FW] security-policy
[FW-policy-security] rule name policy_sec_rbl
[FW-policy-security-rule-policy_sec_rbl] source-zone local
[FW-policy-security-rule-policy_sec_rbl] destination-zone untrust
[FW-policy-security-rule-policy_sec_rbl] service dns
[FW-policy-security-rule-policy_sec_rbl] action permit
[FW-policy-security-rule-policy_sec_rbl] quit

Configure the security policy between the dmz and the untrust zone.

[FW-policy-security] rule name policy_sec_untrust_dmz
[FW-policy-security-rule-policy_sec_untrust_dmz] source-zone untrust
[FW-policy-security-rule-policy_sec_untrust_dmz] destination-zone dmz
[FW-policy-security-rule-policy_sec_untrust_dmz] profile mail-filter profile_mail_untrust_dmz
[FW-policy-security-rule-policy_sec_untrust_dmz] action permit
[FW-policy-security-rule-policy_sec_untrust_dmz] quit
[FW-policy-security] quit

Commit the content security profiles.

[FW] engine configuration commit
Info: The operation may last for several minutes, please wait.
Info: MAIL submitted configurations successfully.
Info: Finish committing engine compiling.

Configuration Scripts

#
sysname FW
#
 rbl-filter enable
 rbl-filter dns-server 10.10.10.10
 rbl-filter profile user-defined name rbl server action block
 rbl-filter profile user-defined name rbl server enable
#
interface GigabitEthernet0/0/1
 undo shutdown
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/2
 undo shutdown
 ip address 10.2.0.1 255.255.255.0
#
firewall zone untrust
 add interface GigabitEthernet0/0/1
#
firewall zone dmz
 add interface GigabitEthernet0/0/2
#
profile type mail-filter name profile_mail_untrust_dmz
 rbl-filter enable
#
 rbl-filter profile user-defined name rbl server
  query cbl.anti-spam.org.cn
  reply-code any description rbl server
#
security-policy
 rule name policy_sec_untrust_dmz
  source-zone untrust
  destination-zone dmz
  profile mail-filter profile_mail_untrust_dmz
  action permit
 rule name policy_sec_rbl
  source-zone local
  destination-zone untrust
  service dns
  action permit
