This section provides an example for configuring load balancing by link weight for the FW to forward more traffic to the link with higher performance, which maximizes link resource efficiency and improves the Internet access experience of most users.

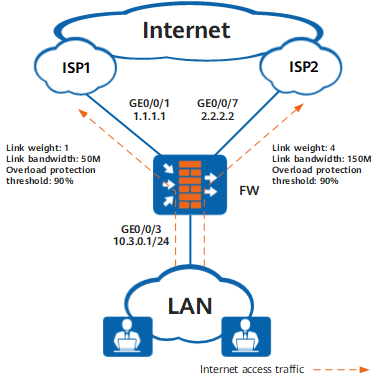

As shown in Figure 1, an enterprise has a 50M link connected to ISP1 and a 150M link connected to ISP2.
The enterprise requires that the ISP2 link forward 80% of the traffic and ISP1 link forward 20% of the traffic to improve the Internet access experience of most users.
When one link is overloaded (the threshold is 90%), follow-up traffic will be forwarded on the other link to ensure transmission availability.
The enterprise requires that the traffic ratio on ISP2 and ISP1 links is 4:1. Therefore, set the intelligent uplink selection mode to load balancing by link weight and set the weights of ISP2 and ISP1 links respectively to 4 and 1. To ensure that the FW can use other links to forward traffic when a link is faulty or overloaded, you need to configure health check and link overload protection functions.

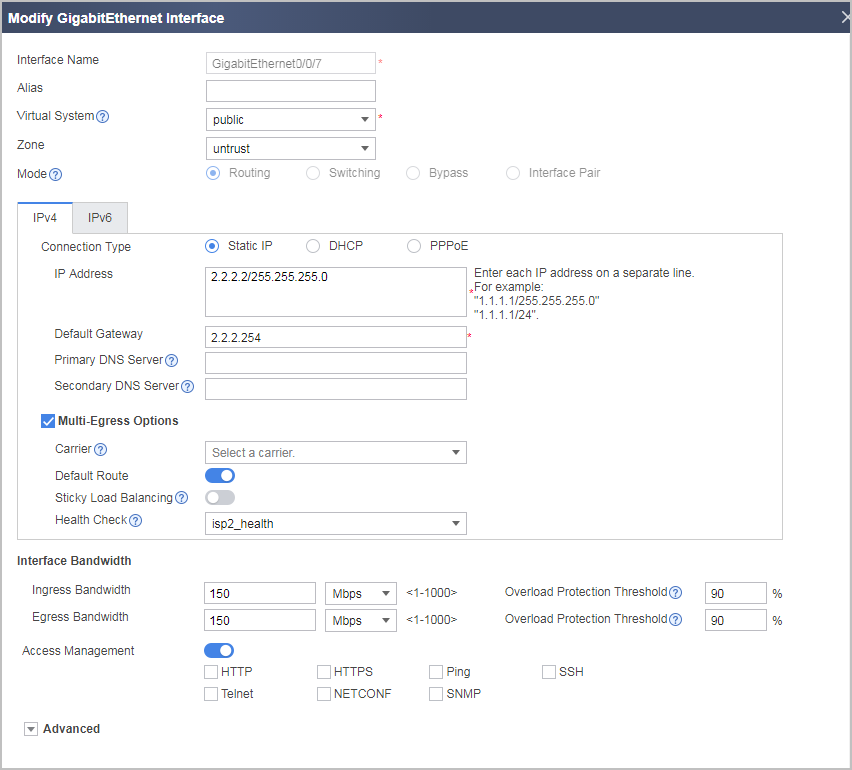

Set the interface IP address, security zone, gateway, bandwidth, and overload protection threshold, and apply the health check respectively on the interfaces.
Configure global route selection policies. Set the intelligent uplink selection mode to load balancing by link weight, configure the outbound interfaces on the FW connecting to ISP1 and ISP2 networks as intelligent uplink selection member interfaces, and set weights for the interfaces.
Configure a basic security policy to allow intranet users to access the Internet.
This example focuses on the configuration related to intelligent uplink selection. Configure other data such as NAT based on the actual networking.
Choose . Click Add in the Health Check List area to create a health check task for ISP1 link.


Click Add to create a health check task for ISP2 link.

Assume that 3.3.10.10 and 3.3.10.11 are known device addresses on the ISP1 network and that 9.9.20.20 and 9.9.20.21 are known device addresses on the ISP2 network.
If the state remains down after the health check configuration is complete, check the health check configuration.

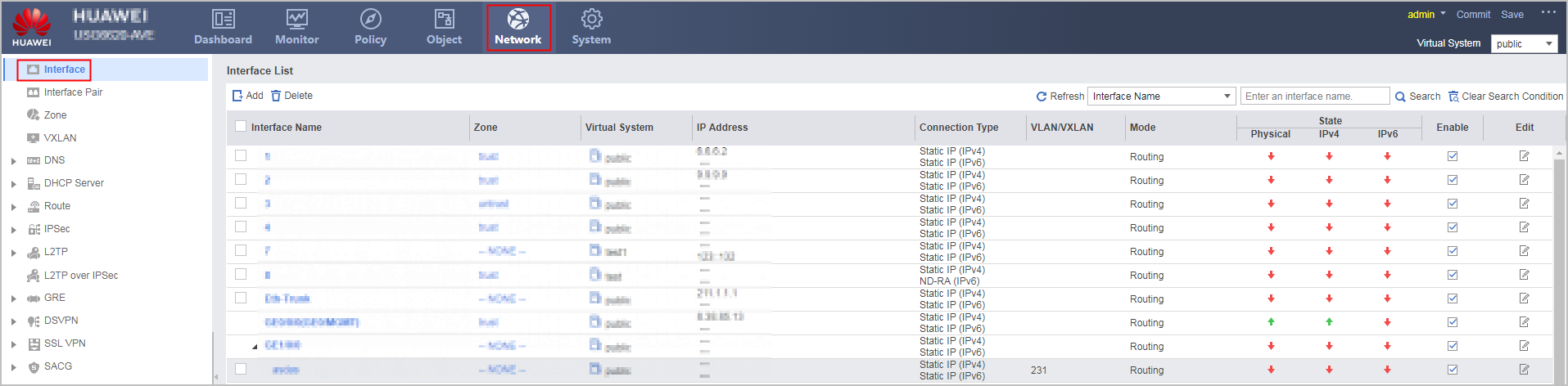

Choose and click
on the line of the interface to be configured.



Choose and click
on the line of the interface to be configured.

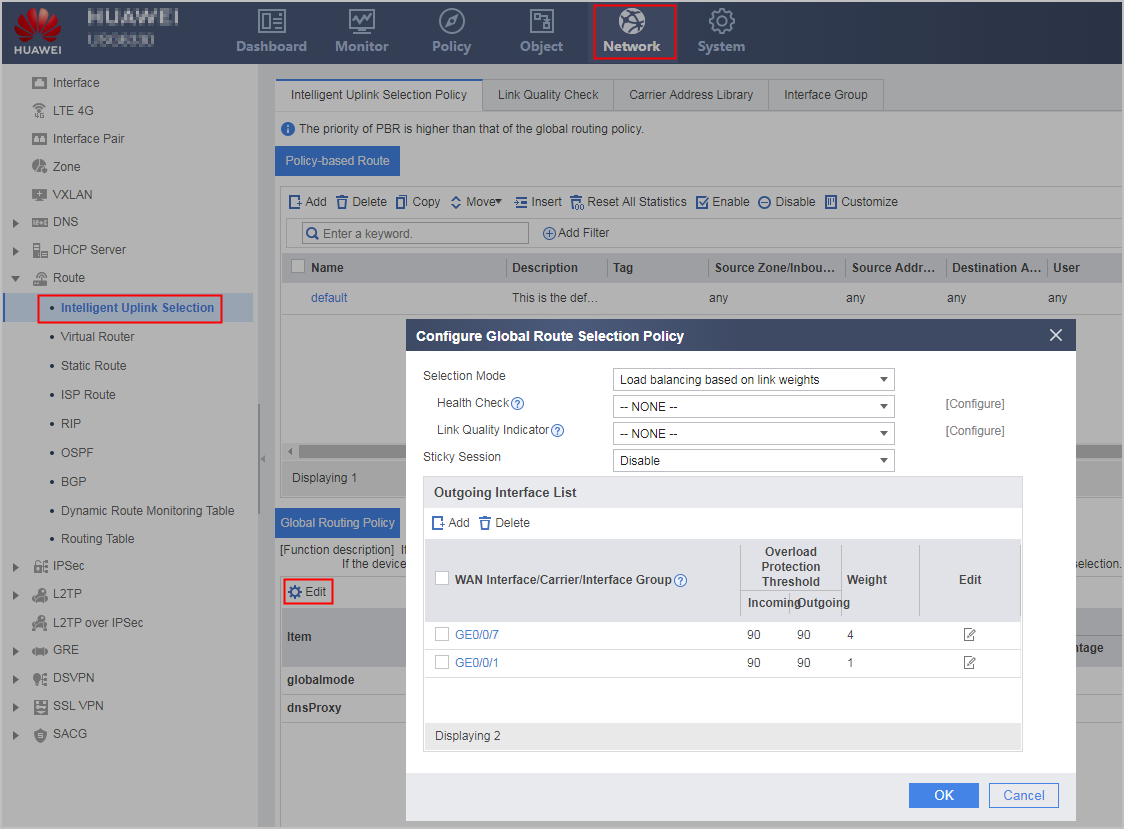

Choose . In the Global Routing Policy area, click Edit.

Choose and click Add Security Policy to create a security policy.

# healthcheck enable healthcheck name isp1_health destination 3.3.10.10 interface GigabitEthernet 0/0/1 protocol tcp-simple destination-port 10001 destination 3.3.10.11 interface GigabitEthernet 0/0/1 protocol tcp-simple destination-port 10002 healthcheck name isp2_health destination 9.9.20.20 interface GigabitEthernet0/0/7 protocol tcp-simple destination-port 10003 destination 9.9.20.21 interface GigabitEthernet0/0/7 protocol tcp-simple destination-port 10004 # interface GigabitEthernet 0/0/1 ip address 1.1.1.1 255.255.255.0 gateway 1.1.1.254 bandwidth ingress 50000 threshold 90 bandwidth egress 50000 threshold 90 healthcheck isp1_health # interface GigabitEthernet 0/0/3 ip address 10.3.0.1 255.255.255.0 # interface GigabitEthernet0/0/7 ip address 2.2.2.2 255.255.255.0 gateway 2.2.2.254 bandwidth ingress 150000 threshold 90 bandwidth egress 150000 threshold 90 healthcheck isp2_health # firewall zone trust set priority 85 add interface GigabitEthernet 0/0/3 # firewall zone untrust set priority 5 add interface GigabitEthernet 0/0/1 add interface GigabitEthernet0/0/7 # multi-interface mode proportion-of-weight add interface GigabitEthernet 0/0/1 add interface GigabitEthernet0/0/7 weight 4 # security-policy rule name policy_sec_trust_untrust source-zone trust destination-zone untrust source-address 10.3.0.0 mask 255.255.255.0 action permit # return
