Web: Example for Configuring Local Authentication on Internet Access Users
This section provides an example for configuring local authentication on Internet access users when a FW works as an egress gateway.
Networking Requirements
An enterprise has deployed a FW as the egress gateway to connect the intranet to the Internet, as shown in Figure 1.
Internet access users include R&D employees, marketing employees, and guests. All of them dynamically obtain IP addresses.
The user management and authentication mechanisms of the FW must identify IP addresses on the intranet as users to implement user-specific behavior control and permission assignment. Requirements are as follows:
- Information about users and departments is saved on the FW and can be referenced by policies.
- R&D employees and marketing employees must be authenticated by the FW.
- Guests must be authenticated by the FW and can only use the specified guest accounts to access network resources.
- Redirected authentication is implemented on guests. When a guest uses a browser to access a web page, the FW redirects the guest to an authentication page. After the guest is authenticated, the Internet Explorer displays the requested web page.
Configuration Roadmap
The configuration roadmap is as follows:
- Create authentication policies and configure matching conditions and actions.
- Configure the access control for authentication domain default as online behavior management.
- Create user groups and users and set passwords for the users.
- Configure a security policy to allow users to access authentication web pages.
Data Planning
Item |
Data |
Description |
|---|---|---|
R&D employee |
Group User |
Add the R&D employee to group research. You can repeat the operations in this example to configure multiple user accounts. |
Marketing employee |
Group User |
Add the marketing employee to group marketing. You can repeat the operations in this example to configure multiple user accounts. |
Guest |
Group Name: /default User |
All guests use the guest account for authentication. |
Authentication policy |
Authentication is implemented on the R&D employee, marketing employee, or guest who meets matching conditions. The R&D employee, marketing employee, or guest can access network resources only after being authenticated by a FW. |
|
Authentication domain |
The default authentication domain is used during authentication. No authentication domain is required in the user names entered by R&D employees, marketing employees, and guests. |
Procedure
- Choose , set IP addresses for interfaces and assign the interfaces to security zones.
The following example describes how to configure interface GigabitEthernet 0/0/3. You can configure other interfaces based on the networking diagram.
Zone
trust
IP Address
10.3.0.1/24
- Choose , click Add to create an authentication policy.
Name
policy_auth_01
Source Zone
Trust
Source Address/Region
10.3.0.0/24
Action
Portal authentication
- Choose , configure local authentication.
Click Add and create user groups and users.

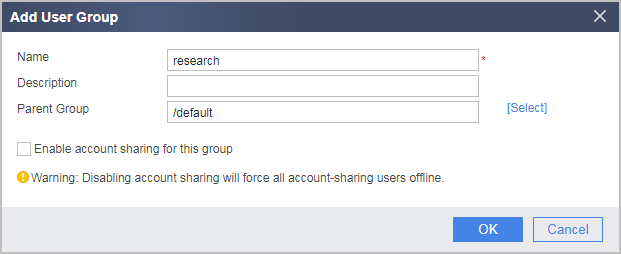

- Choose Add Group, create a user group object for an R&D employee.

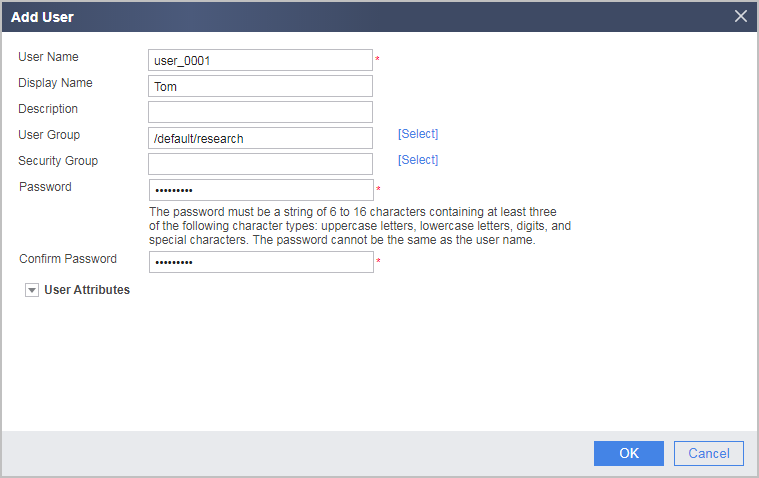

- Choose Add a User, create a user object for an R&D employee.
- Choose Add Group, create a user group object for an R&D employee.
- Choose , configure the redirect from the authentication page to the previously accessed page after authentication.
Set Redirection Setting After Successful Authentication as Redirect to the latest Web page, and click Apply.
- Choose , click Add to configure security policies.
- Configure a security policy to allow users to access the Internet.
Name
policy_sec_02
Source Zone
trust
Destination Zone
untrust
Source Address
10.3.0.0/24
Action
Permit
Enable the DNS service for the Trust -> Untrust interzone to allow HTTP domain name resolution packets through.
- Configure a security policy to allow users to access the Internet.
- After the configuration is complete, you can configure security policies, PBR policies, bandwidth policies, quota control policies, proxy policies, and audit policies that reference the user and user group objects.
Verification
Verify that the following conditions are true:
- The R&D employee Tom uses the Internet Explorer to access www.example.org and is redirected to an authentication page. The R&D employee then enters user name user_0001 and password Admin@123 for authentication. After the R&D employee is authenticated, the Internet Explorer displays the web page of www.example.org.
- The marketing employee Jack uses the Internet Explorer to access www.example.org and is redirected to an authentication page. The marketing employee then enters user name user_0002 and password Admin@123 for authentication. After the marketing employee is authenticated, the Internet Explorer displays the web page of www.example.org.
- The guest uses the Internet Explorer to access www.example.org and is redirected to an authentication page. The guest then enters user name guest and password Admin@123 for authentication. After the guest is authenticated, the Internet Explorer displays the web page of www.example.org.
- Before accessing non-HTTP servers, such as FTP servers, employees and guests need to access the authentication page at https://10.3.0.1:8887 for authentication. The IP address of the authentication page must be that of the interface on the FW and must be reachable to users.
- On the FW, choose to see information about online users.
Configuration Scripts
# sysname FW # user-manage redirect # interface GigabitEthernet0/0/1 ip address 1.1.1.1 255.255.255.0 # interface GigabitEthernet0/0/2 ip address 10.2.0.1 255.255.255.0 # interface GigabitEthernet0/0/3 ip address 10.3.0.1 255.255.255.0 # firewall zone trust add interface GigabitEthernet0/0/3 # firewall zone untrust add interface GigabitEthernet0/0/1 # firewall zone dmz add interface GigabitEthernet0/0/2 # aaa # domain default service-type internetaccess internet-access mode password # # security-policy rule name policy_sec_01 source-zone trust source-address 10.3.0.0 24 destination-zone local service protocol tcp destination-port 8887 action permit rule name policy_sec_02 source-zone trust source-address 10.3.0.0 24 destination-zone untrust action permit rule name policy_sec_03 source-zone trust source-address 10.3.0.0 24 destination-zone dmz action permit # auth-policy rule name policy_auth_01 source-zone trust source-address 10.3.0.0 24 action auth # The following user/group creation configuration is stored in the database, but not in the configuration profile. user-manage group /default/research user-manage group /default/marketing user-manage user user_0001 alias Tom parent-group /default/research password ********* undo multi-ip online enable user-manage user user_0002 alias Jack parent-group /default/marketing password ********* undo multi-ip online enable user-manage user guest parent-group /default password *********
