Web: Example for Configuring Agile Controller SSO Authenticating and AD Server Import for Internet Access Users

In this example, the FW serves as the egress gateway of an enterprise network; a Agile Controller server (Policy Center or Agile Controller) is used to authenticate users; user permission is controlled based on the organizational structure on an AD server.

Networking Requirements

An enterprise has deployed a FW as the egress gateway to connect the intranet to the Internet, as shown in Figure 1. Details are as follows:

  • AD and Agile Controller authentication systems are both deployed on the intranet. The AD server has the enterprise's organizational structure and account and password information about all users, and the Agile Controller server (Policy Center or Agile Controller) has synchronized the account information from the AD server.
  • Internet access users on the intranet include R&D employees and marketing employees.
Figure 1 Managing and authenticating internet access users through AD Server Import and Agile Controller SSO

The user management and authentication mechanisms of the FW must identify IP addresses on the intranet as users to implement user-specific behavior control and permission assignment. Requirements are as follows:

  • Before the R&D and marketing employees access network resources, they must be authenticated by the Agile Controller server.
  • The FW controls user permissions through the organizational structure on the AD server.
  • For new employees, their information might be created on the AD server, but these users are not stored on the FW, after being authenticated, these users go online as temporary users in the organization structure on the AD server.

Configuration Roadmap

This example describes only how to configure user management and authentication.

  1. Set AD server parameters on the FW to ensure that the FW can communicate properly with the AD server.
  2. Create an authentication domain on the FW, set the name of the authentication domain to be the same as the name of the domain on the AD server.
  3. Configure AD server import policies on the FW to import user information on the AD server to the FW.
  4. Configure the new user option of the authentication domain. If an authenticated user does not exist on the FW, the user goes online as a temporary user in the organization structure on the AD server.
  5. Add the FW on the Agile Controller server and configure the Agile Controller server on the FW to enable the FW and Agile Controller server to communicate.
  6. Configure security policies on the FW to allow the FW to communicate with the AD server and Agile Controller server.
  7. Set Agile Controller SSO parameters on the FW.
  8. Because the FW is deployed between users and the Agile Controller server, authentication packets pass through the FW. Therefore, to implement SSO, configure an authentication policy to disable the FW from authenticating the authentication requests destined for the Agile Controller server and configure security policies to ensure normal communication between the FW and Agile Controller server.
  9. On the FW, configure an authentication policy for users' service traffic and set the action to authentication exemption.

Data Planning

Item

Data

Description

AD server

  • Name: auth_server_ad

  • Primary Authentication Server IP: 10.2.0.250

  • Port: 88

  • Primary Server Host Name: ad.cce.com

  • Base DN/Port DN: dc=cce, dc=com

  • LDAP Port: 389

  • Administrator DN: cn=Administrator,cn=users

  • Administrator Password: Admin@123

On a FW, set the parameters for communication with an AD server.

The parameter settings on the FW must be consistent with those on the AD server.

Agile Controller server

  • Service Name: auth_server_tsm

  • Agile Controller IP Address: 10.2.0.251

  • Server Port: 8084

  • Encryption: AES128

  • Shared Key: Admin@123

On a FW, set the parameters for communication with a Agile Controller server.

The parameter settings on the FW must be consistent with those on the Agile Controller server.

User information import policy

  • Name: policy_import

  • Server Type: AD

  • Server Name: auth_server_ad

  • Import Type: All

  • Target User Group: /cce.com

  • Incremental Synchronization: 120 minutes

  • Overwrite local user records when the current user exists

Import users and user groups from the AD server to the FW.

Security policy

  • Name: policy_sec_1

  • Source Zone: trust

  • Destination Zone: local

  • Source Address/Region: 10.3.0.0/24

  • Destination Address/Region: 10.2.0.251/32

  • Action: Permit

Configure a security policy for the Trust (intranet users) -> DMZ (Agile Controller server) interzone for users to be authenticated by the Agile Controller server.

  • Name: policy_sec_2

  • Source Zone: local

  • Destination Zone: dmz

  • Action: Permit

Configure a security policy to allow the FW to communicate with an AD and Agile Controller server.

  • Name: policy_sec_2

  • Source Zone: dmz

  • Destination Zone: local

  • Action: Permit

Authentication Policy

  • Name: auth_policy_tsm

  • Source Zone: trust

  • Destination Zone: dmz

  • Source Address/Region: 10.3.0.0/24
  • Destination Address/Region: 10.2.0.251/32

  • Action: No authentication

To implement SSO, configure an authentication policy. This policy disables the FW from processing the authentication requests to the Agile Controller server.

  • Name: auth_policy_http

  • Source Zone: trust

  • Source Address/Region: 10.3.0.0/24

  • Action: Authentication exemption

Configure an authentication policy on the FW for users' service traffic and set the action to authentication exemption.

Procedure

  1. Configure security policies to ensure the communication among the users, Agile Controller server, AD server, and FW.
    1. Configure a security policy between the Trust zone (users) and DMZ (Agile Controller server) for users to get authenticated by the Agile Controller server.

      1. Choose Policy > Security Policy > Security Policy.

      2. Click Add, select Add Security Policy and set the following parameters.

        Name

        policy_sec_1

        Source Zone

        trust

        Destination Zone

        dmz

        Source Address/Region

        10.3.0.0/24

        Destination Address/Region

        10.2.0.251/32

        Action

        Permit
      3. Click OK.

    2. Configure a security policy for the DMZ (where the AD and Agile Controller servers reside) -> Local interzone to allow the AD and Agile Controller servers communicate with the FW.

      1. Click Add, select Add Security Policy and set the following parameters.

        Name

        policy_sec_2

        Source Zone

        local

        Destination Zone

        dmz

        Action

        Permit
      2. Click OK.

      3. Click Add, select Add Security Policy and set the following parameters.

        Name

        policy_sec_3

        Source Zone

        dmz

        Destination Zone

        local

        Action

        Permit
      4. Click OK.

  2. Set AD server parameters on the FW.

    1. Choose Object > Authentication Server > AD.

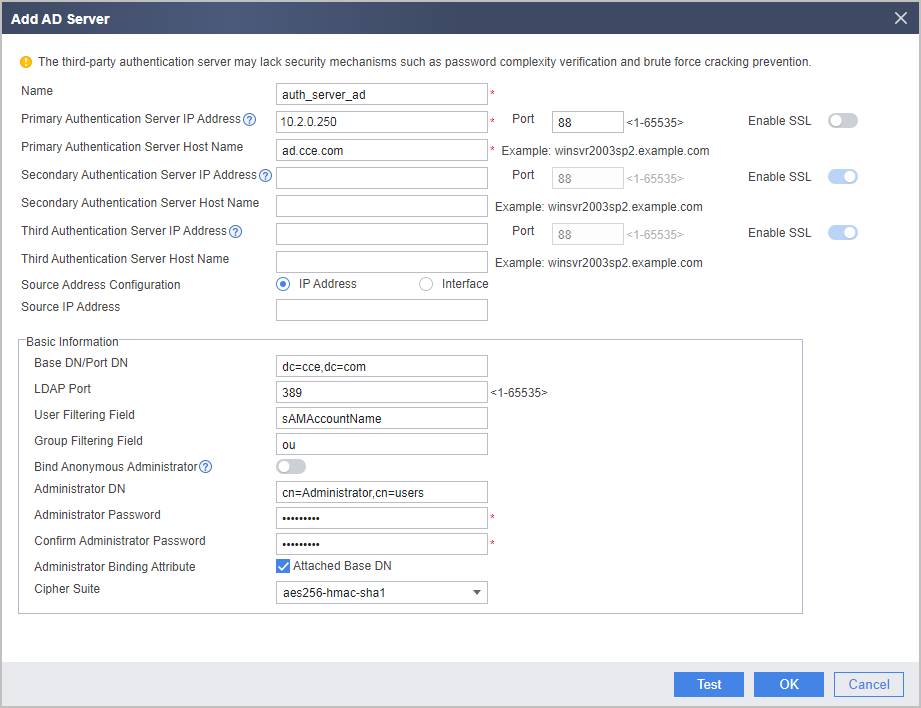

    2. Click Add and set the following parameters.

      The parameter settings on the FW must be consistent with those on the AD server.

      For the V600R007C20 version, whether to enable SSL for AD authentication cannot be configured on the web UI. When you configure the AD server on the web UI, SSL (ldap-over-ssl) is enabled by default. In this mode, LDAP over SSL must also be enabled on the AD server. For details, see the operating system guide of the AD server. To disable SSL (no-ssl), click CLI Console in the lower right corner of the web page. On the CLI configuration page that is displayed, run the ad-server authentication 10.2.0.250 88 no-ssl command in the corresponding AD server template view. From V600R007C20SPC100, you can configure whether to enable SSL for AD authentication on the Web UI. The following uses no-ssl as an example.

      If you are unfamiliar with the AD server and cannot provide the server name or Base DN values, you can use the AD Explorer software downloaded from Internet to connect to the AD server to query the attribute values. The mappings between the server attributes and parameters on the FW are as follows.

    3. Click Detect. In the dialog box that is displayed, click OK and enter the user name and password that are configured on the AD server. Click Start Checking to check the connectivity to the AD server.
    4. Click OK.
  3. Add the FW on the Agile Controller server.

    The following example describes Agile Controller V100R002C10. The user interface may vary with the version. For details, refer to the Policy Center or Agile Controller product documentation of a specific version.

    Choose System Configuration > Server Configuration > Online Behavior Management Device. Click Add and set the following parameters.

    The FW uses port 8001 to receive user online and offline messages sent from the Agile Controller server.

    If the FWs work in hot standby mode, you need to add Online Behavior Management Device twice on the Agile Controller server. The IP Address parameters must be set respectively to the real IP addresses of the active and standby device interfaces connecting to the Agile Controller server.

  4. On a FW, set the parameters for communication with a Agile Controller server.

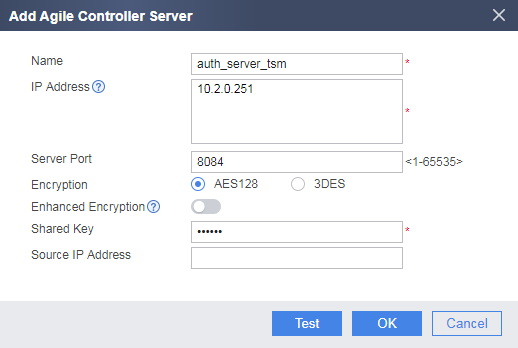

    1. Choose Object > Authentication Server > Agile Controller. Click Add and set the following parameters.

      The parameter settings on the FW must be consistent with those on the Agile Controller server. In most cases, the server port of Policy Center is 8080, and that of Agile Controller is 8084.

    2. Click Detection. In the dialog box that is displayed, click OK to check the connectivity to the Agile Controller server.
    3. Click OK.
  5. On a FW, choose Object > User > Authentication Domain, click Add to create an authentication domain.

  6. Configure a policy to import user information from the AD server to the FW.
    1. Choose Object > User > User Import > Server Import.

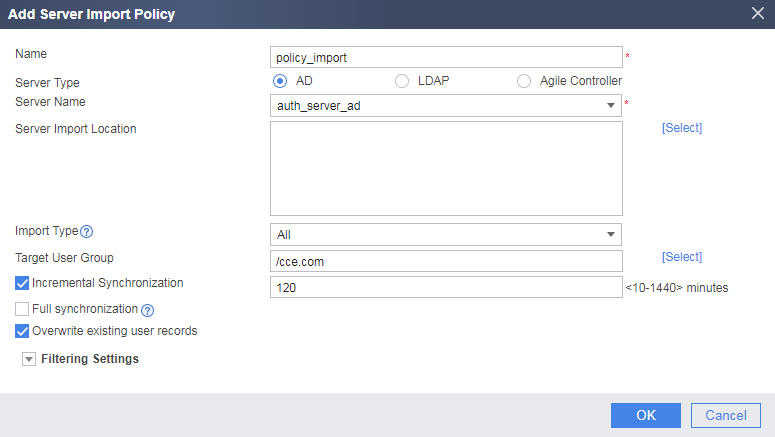

    2. Click Add and set the following parameters. Use the default values for the filtering parameters.

      In a scenario where the authentication server is isolated from the import server, the import type must contain the user, In this example, the import type is set to all users, user groups, and security groups.

    3. Click OK.
  7. Configure the cce.com authentication domain on the FW.
    1. Choose Object > User > cce.com.
    2. Set the following parameters.

      Click Configure on the right of Server Import Policy. A dialog box is displayed. Click Import Immediately corresponding to policy_import. After the import is complete, the user groups and users on the AD server are displayed in User/User Group/Security Group Management List.

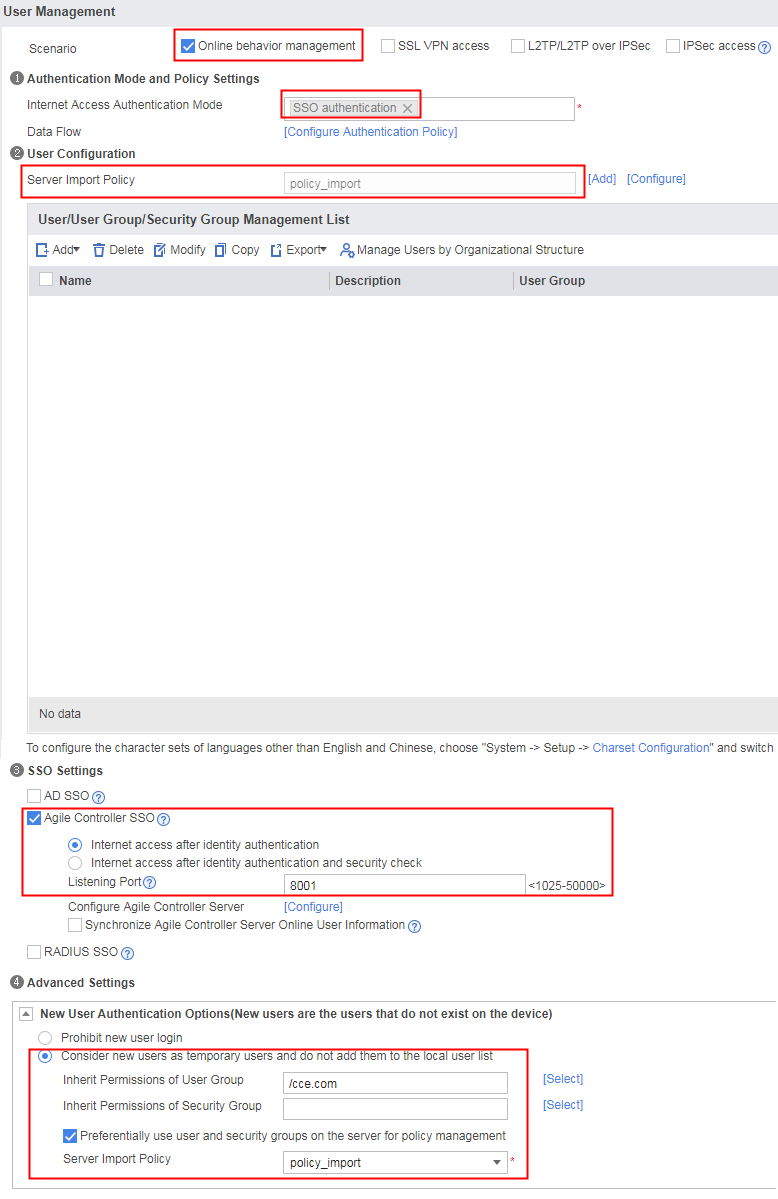

  8. Choose Object > User > Authentication Policy, click Add to create an authentication policy.

    Name

    auth_policy_tsm

    Source Zone

    trust

    Destination Zone

    dmz

    Source Address/Region

    10.3.0.0/24

    Destination Address/Region

    10.2.0.251/32

    Action

    No authentication

    Name

    auth_policy_service

    Source Zone

    trust

    Source Address/Region

    10.3.0.0/24

    Action

    Authentication exemption

    If the action of the authentication policy is set to authentication exemption, the FW obtains user information through SSO and permits the traffic when user information fails to be obtained during SSO authentication. If the network has high security requirements, set the action of the authentication policy to portal authentication. Then the FW will implement portal authentication on the users failing the SSO authentication.

  9. After the configuration is complete, you can configure security policies, PBR policies, bandwidth policies, quota control policies, proxy policies, and audit policies that reference the user and user group objects.

Configuration Verification

  • R&D and marketing employees enter their domain accounts and passwords for the Agile Controller authentication. After the authentication succeeds, they can access network resources.
  • A new employee enters the user name and password for Agile Controller authentication. After the authentication succeeds, they can access network resources, and their organizational structures are automatically added to the FW.
  • On the FW Web UI, choose Object > User > Online User to see if there is information about online users. Users log in on the FW and the organizational structure corresponding to the AD server.

Configuration Script

#
 sysname FW
#
 user-manage single-sign-on tsm
  enable
#
ad-server template auth_server_ad
 ad-server authentication 10.2.0.250 88 no-ssl
 ad-server authentication base-dn dc=cce,dc=com
 ad-server authentication manager cn=Administrator,cn=users %$%$KkGx/U}ir%TKvDU["/u$N/&z%$%$
 ad-server authentication host-name ad.cce.com
 ad-server authentication ldap-port 389
 ad-server user-filter sAMAccountName
 ad-server group-filter ou
#
tsm-server template auth_server_tsm
 tsm-server encryption-mode aes128 shared-key %$%$|5<h@/062'gA|%:9CO.2/JA8%$%$
 tsm-server ip-address 10.2.0.251
#
security-policy
 rule name policy_sec_1
  source-zone trust
  destination-zone local
  source-address 10.3.0.0 24
  destination-address 10.2.0.251 32
  action permit
 rule name policy_sec_2
  source-zone local
  destination-zone dmz
  action permit
 rule name policy_sec_3
  source-zone dmz
  destination-zone local
  action permit
#
interface GigabitEthernet0/0/1
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 10.2.0.1 255.255.255.0
#
interface GigabitEthernet0/0/3
 ip address 10.3.0.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet0/0/2
 #
aaa
 domain cce.com
  service-type internetaccess
  internet-access mode single-sign-on
  reference user current-domain
  new-user add-temporary group /cce.com auto-import policy_import
 #
#
auth-policy
 rule name auth_policy_tsm
  source-zone trust
  destination-zone dmz
  source-address 10.3.0.0 24
  destination-address 10.2.0.251 32
  action none
 rule name auth_policy_http
  source-zone trust
  source-address 10.3.0.0 24
  action exempt-auth
#
 user-manage import-policy policy_import from ad
 server template auth_server_ad
 server basedn dc=cce,dc=com
 destination-group /cce.com
 user-attribute sAMAccountName
 user-filter (&(|(objectclass=person)(objectclass=organizationalPerson))(cn=*)(!(objectclass=computer)))
 group-filter (|(objectclass=organizationalUnit)(ou=*))
 import-type all
 import-override enable
 sync-mode incremental schedule interval 120

# The following configuration is used to perform a one-time operation and not stored in the configuration profile.
 execute user-manage import-policy policy_import
 test-aaa testname testpassword ad-template auth_server_ad
 test tsm-server template auth_server_tsm
