Web: Example for Configuring RADIUS SSO for Internet Access Users

This section provides an example for configuring RADIUS Single Sign On (SSO) for Internet access users when a FW works as an egress gateway.

Networking Requirements

An enterprise has deployed a FW as the egress gateway to connect the intranet to the Internet, as shown in Figure 1.
  • Internet access users use the NAS to access the Internet.
  • The NAS sends user credentials to the RADIUS server for user authentication. The RADIUS server stores user and user group information.
  • Internet access users include R&D employees and marketing employees.
Figure 1 RADIUS SSO for Internet access users

The user management and authentication mechanisms of the FW must identify IP addresses on the intranet as users to implement user-specific behavior control and permission assignment. Requirements are as follows:

  • Information about users and departments is saved on the FW and can be referenced by policies.
  • After passing the authentication by entering correct RADIUS accounts and passwords, R&D employees and marketing employees can access network resources. R&D employees and marketing employees are identified by the user names they use for RADIUS authentication.
  • If the RADIUS accounts of new employees have been created on a RADIUS server but not stored on a FW, the FW considers them as temporary users and assigns them permissions of the specified group.

Configuration Roadmap

This example describes only how to configure user management and authentication.

  1. Export user information on a RADIUS server into a CSV file in the specified format and import the CSV file into a FW to create users and user groups in a batch.
  2. Set RADIUS SSO parameters on the FW.
  3. Set a new user authentication option for the default authentication domain. After a new user is authenticated, the user adopts the permission of the newuser group to access network resources.
  4. To prevent users from frequently log in to and log off from the FW, you are advised to set users' online duration to a larger value than the update interval of RADIUS accounting packets on the FW. In the example, the online duration is set to 480 minutes.
  5. On the FW, configure an authentication policy for users' service traffic and set the action to authentication exemption.
  6. Because the FW is deployed between users and the RADIUS server, authentication packets pass through the FW. Therefore, to implement SSO, configure an authentication policy to disable the FW from authenticating the authentication requests destined for the RADIUS server and configure security policies to ensure normal communication between the FW and RADIUS server.

Data Planning

Item Data Description

Parent group of new users

  • Name: newuser

  • Parent Group: /default

As a temporary user, and use permission of this group newuser.

RADIUS SSO

  • RADIUS SSO: Enable

  • Working mode: In-line
  • Receiving Interface: GigabitEthernet 0/0/3
  • Traffic to be analyzed by RADIUS SSO: 10.2.0.50:1813 (IP address of the RADIUS server: accounting port)

Set SSO parameters on the FW for the FW to analyze the RADIUS accounting packets passing by to obtain user-IP address mappings.

Procedure

  1. Choose Network > Interface, set IP addresses for interfaces and assign the interfaces to security zones.

    The following example describes how to configure interface GigabitEthernet 0/0/3. You can configure other interfaces based on the networking diagram.

    Zone

    trust

    IP Address

    10.3.0.1/24

  2. Choose Policy > Security Policy > Security Policy, click Add to configure security policies.
    1. Configure a security policy between the Trust zone (users and NAS device) and DMZ (RADIUS server) for users to get authenticated by the RADIUS server.

      Name

      policy_sec_radius

      Source Zone

      trust

      Destination Zone

      dmz

      Destination Address

      10.2.0.0/24

      Action

      Permit

    2. Configure a security policy to allow users to access the Internet.

      Name

      policy_sec_02

      Source Zone

      trust

      Destination Zone

      untrust

      Source Address

      10.3.0.0/24

      Action

      Permit

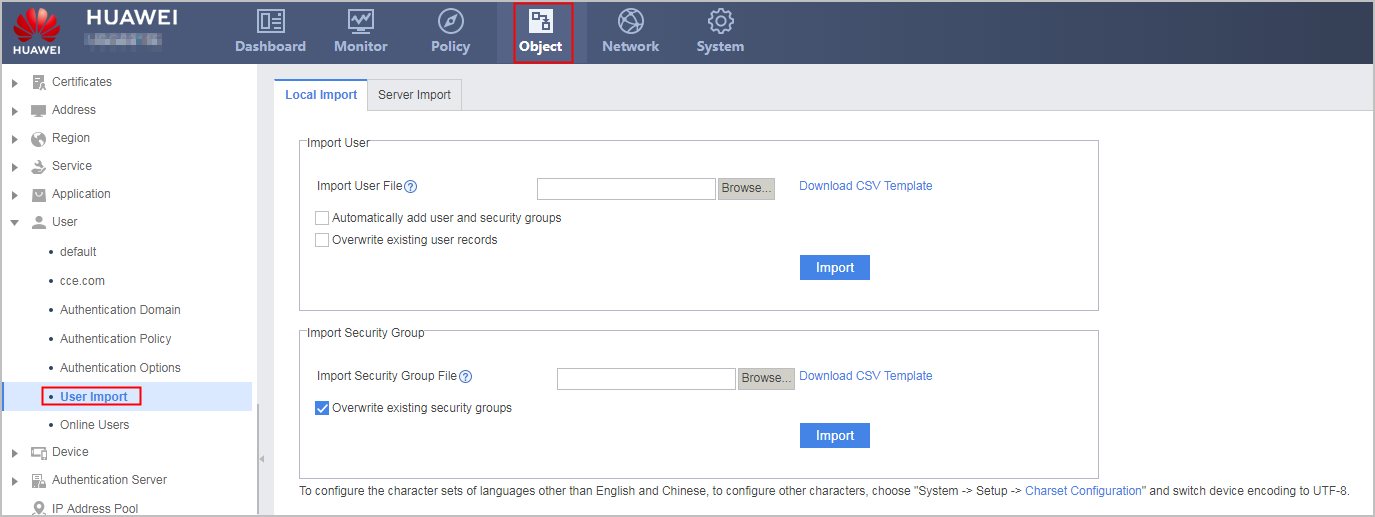

  3. Choose Object > User > User Import > Local Import, import users and user groups from a CSV file.
    1. In Import User, click Download CSV Template and download the CSV template to your PC.

    2. Write user information on the RADIUS server into a CSV file according to the template.

      Read the instructions on the CSV template and fill in user information. The following figure shows a complete CSV file.

    3. Click Import to import the CSV file.

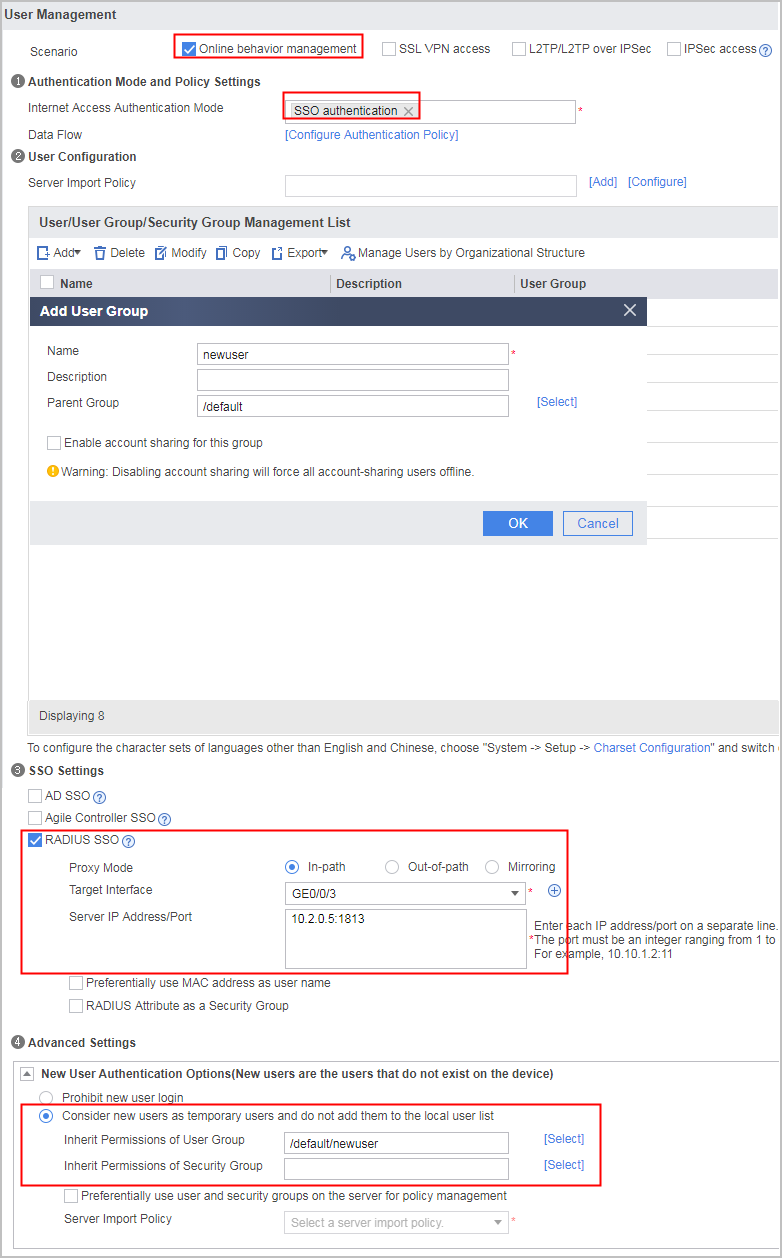

  4. Choose Object > User > default, configure RADIUS SSO and click Apply.

    The user groups and users in the default authentication domain are imported through the CSV file on the previous step. The newuser user group accommodates new users.

  5. Choose Object > User > Authentication Option > Global Configuration, set the online user timeout duration to 480 minutes.
  6. Choose Object > User > Authentication Policy, click Add to configure authentication policies. Configure the action in the authentication policy for users to access the RADIUS server as no-authentication so that the users' authentication packets can go through the FW to the RADIUS server. Configure the action in the authentication policy for users' service traffic to authentication exemption so that the FW can obtain user information through SSO.

    Name

    auth_policy_radius

    Source Zone

    trust

    Destination Zone

    dmz

    Destination Address/Region

    10.2.0.50/32

    Action

    No authentication

    Name

    auth_policy_service

    Source Zone

    trust

    Source Address/Region

    10.3.0.0/24

    Action

    Authentication exemption

    If the action of the authentication policy is set to authentication exemption, the FW obtains user information through SSO and permits the traffic when user information fails to be obtained during SSO authentication. If the network has high security requirements, set the action of the authentication policy to portal authentication. Then the FW will implement portal authentication on the users failing the SSO authentication.

  7. After the configuration is complete, you can configure security policies, PBR policies, bandwidth policies, quota control policies, proxy policies, and audit policies that reference the user and user group objects.

Verification

  • R&D employees can access network resources after successful logins to the NAS using RADIUS accounts and passwords.
  • Marketing employees can access network resources after successful logins to the NAS using RADIUS accounts and passwords.
  • On the FW, choose Object > User > Online User to see information about online users.

Configuration Scripts

#
 sysname FW
#
 user-manage online-user aging-time 480
 user-manage single-sign-on radius
  enable
  mode in-path
  interface GigabitEthernet0/0/3
  traffic server-ip 10.2.0.50 port 1813
#
security-policy
 rule name sec_policy_radius
  source-zone trust
  destination-zone dmz
  destination-address 10.2.0.0 24
  action permit
 rule name policy_sec_02
  source-zone trust
  source-address 10.3.0.0 24
  destination-zone untrust
  action permit
#
auth-policy
 rule name auth_policy_radius
  source-zone trust
  destination-zone dmz
  destination-address 10.2.0.50 32
  action none
 rule name auth_policy_service
  source-zone trust
  source-address 10.3.0.0 24
  action exempt-auth
#
interface GigabitEthernet0/0/1
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 10.2.0.1 255.255.255.0
#
interface GigabitEthernet0/0/3
 ip address 10.3.0.1 255.255.255.0
#
firewall zone trust
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 add interface GigabitEthernet0/0/1
#
firewall zone dmz
 add interface GigabitEthernet0/0/2
#
aaa
 domain default
  service-type internetaccess
  internet-access mode single-sign-on
  new-user add-temporary group /default/newuser

# The following configuration is used to perform a one-time operation and not stored in the configuration profile.
 user-manage user-import demo.csv auto-create-group override
 user-manage group /default/newuser
