Web: Example for Configuring the Communication Between Virtual Systems

The FW uses virtual systems to manage departments separately, simplifying the configuration. This section describes how to implement communication between virtual systems.

Networking Requirements

As shown in Figure 1, a FW is deployed in area of the large campus network as the access gateway. The network of area A comprises the R&D and non-R&D departments, and the two departments have different network access permissions. Requirements are as follows:

  • Some employees in the R&D department can access the Internet, and all employees in the non-R&D department can access the Internet.
  • The R&D department is isolated from non-R&D departments, but specific employees in the two departments can communicate.
  • The service volumes of the R&D and non-R&D departments are nearly the same. Therefore, the same virtual system resources are allocated to them.
Figure 1 Networking diagram of communication between virtual systems

Data Planning

Item

Data

Description

vsysa
  • Virtual system name: vsysa
  • Outside interface: GE0/0/1
  • Outside interface IP address: 10.1.1.8/24
  • Security zone to which the outside interface belongs: Untrust
  • Inside interface: GE0/0/3
  • Inside interface IP address: 10.3.0.1/24
  • Private IP address range: 10.3.0.0/24
  • Security zone to which the inside interface belongs: Trust
  • IP addresses allowed to access the Internet: 10.3.0.2 to 10.3.0.10

-

vsysb
  • Virtual system name: vsysb
  • Outside interface: GE0/0/2
  • Outside interface IP address: 10.1.1.9/24
  • Security zone to which the outside interface belongs: Untrust
  • Inside interface: GE0/0/4
  • Inside interface IP address: 10.3.1.1/24
  • Private IP address range: 10.3.1.0/24
  • Security zone to which the inside interface belongs: Trust

-

Resource class
  • Name: r1
  • Reserved Number for session: 10000
  • Maximum Number for session: 50000
  • User: 300
  • User Group: 10
  • Policy: 300
  • Outbound Reserved Bandwidth: 20 Mbps

-

Configuration Roadmap

  1. The public system administrator creates two virtual systems vsysa, and vsysb, assigns resources.
  2. The public system administrator configures routes for the employees that can communicate.
  3. The public system administrator configures IP addresses, routes, security policies, and NAT policies for vsysa.
  4. The public system administrator configures IP addresses, routes, security policies, and NAT policies for vsysb.

Procedure

  1. Click Dashboard on the main menu. In the Device Information area, click Configure on the line of Virtual System to enable the virtual system function.

  2. Configure a resource class.
    1. Choose System > Virtual System > Resource Class.

    2. Click Add and set the following parameters.

  3. In the root system, create virtual systems vsysa and vsysb and allocate resources to them.
    1. Choose System > Virtual System > Virtual System.

    2. Click Add and then the Basic Settings tab and set the following parameters.

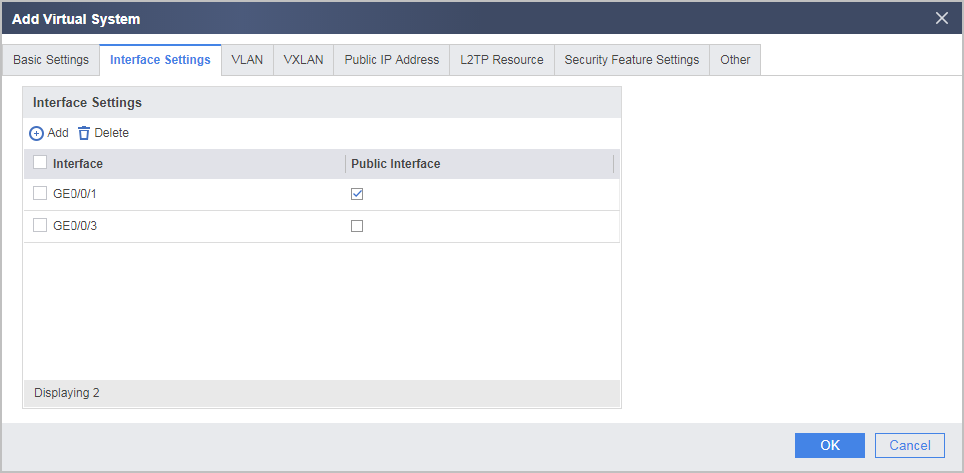

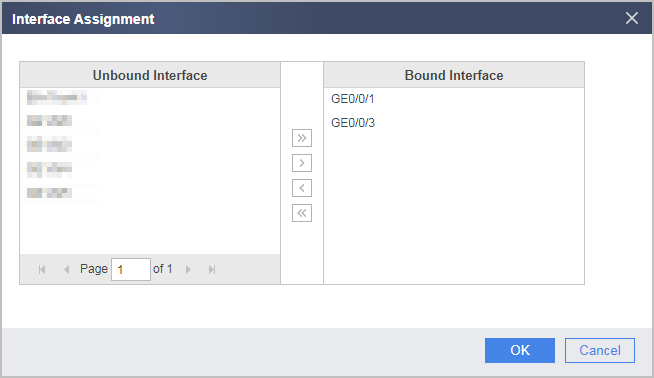

    3. Click the Interface Settings tab and allocate interfaces to the virtual system.

    4. Set GE0/0/1 as the public interface.

      Bandwidth resource configurations in resource classes take effect only after the public interface is configured.

      In this example, the bandwidth should be limited for intranet users to access the Internet. Set WAN interface GE0/0/1 as the public interface. Then all traffic from intranet users to the Internet is forwarded through GE0/0/1, which is called the outgoing direction. This function can work with Uplink Bandwidth configured in 2.b to limit the bandwidth for intranet users to access the Internet.

    5. Repeat these steps to create vsysb and allocate the resource class r1 and interfaces GE0/0/2 and GE0/0/4 to it.
  4. Set an IP address for Virtual-if 0 and assign the interface to a security zone. The IP address of Virtual-if 0 can be set to any address but it must be different from the IP addresses of all the other interfaces.
    1. Choose Network > Interface.
    2. Click the interface name and set the following parameters for the interface.

      Interface

      Virtual-if 0

      Security Zone

      trust

      IP Address

      172.16.0.1/24

  5. In the root system, configures routes for the employees in different virtual systems to communicate.

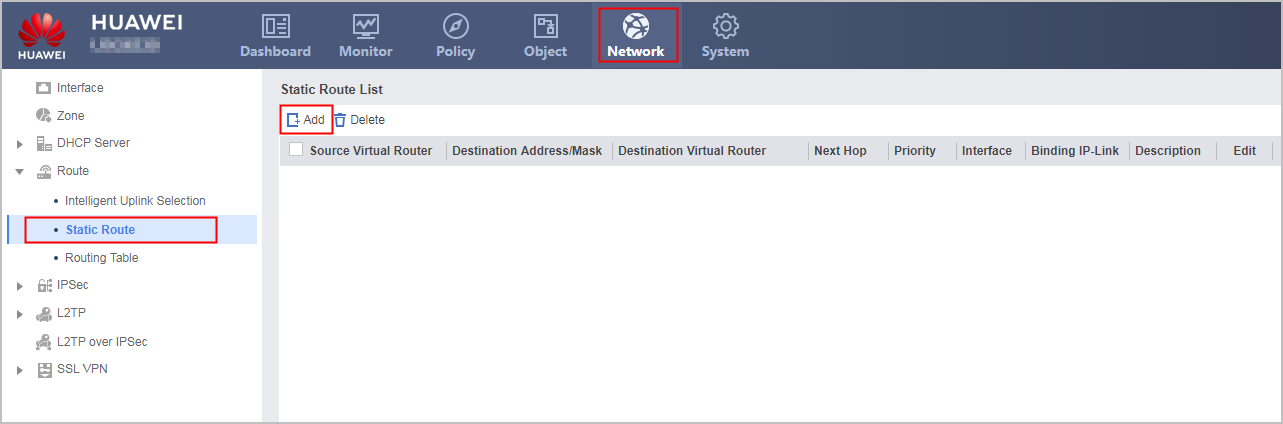

    1. Choose Network > Route > Static Route.

    2. Click Add and configure the following static route.

      Protocol

      IPv4

      Source Virtual Router

      vsysb

      Destination Address/Mask

      10.3.0.0/255.255.255.0

      Destination Virtual Router

      vsysa

      Next Hop

      -

      Outgoing Interface

      -

    3. Repeat these steps to configure a route to vsysb.

      Protocol

      IPv4

      Source Virtual Router

      vsysa

      Destination Address/Mask

      10.3.1.0/255.255.255.0

      Destination Virtual Router

      vsysb

      Next Hop

      -

      Outgoing Interface

      -

  6. Set interface parameters in vsysa. The IP address of Virtual-if 1 can be set to any address but it must be different from the IP addresses of all the other interfaces.
    1. Select vsysa from the Virtual System drop-down list in the upper right corner to access vsysa.

    2. Choose Network > Interface.
    3. Click the interface name and set the following parameters for the interface.

      Interface

      GigabitEthernet 0/0/1

      GigabitEthernet 0/0/3

      Virtual-if 1

      Security Zone

      untrust

      trust

      dmz

      IP Address

      10.1.1.8/24

      10.3.0.1/24

      172.16.1.1/24

  7. Configure routes in vsysa.
    1. Choose Network > Route > Static Route.

    2. Click Add and configure the following static route for Internet access.

      Protocol

      IPv4

      Source Virtual Router

      vsysa

      Destination Address/Mask

      0.0.0.0/0.0.0.0

      Destination Virtual Router

      vsysa

      Next Hop

      10.1.1.1

      Outgoing Interface

      NONE

  8. Configure security policies in vsysa.

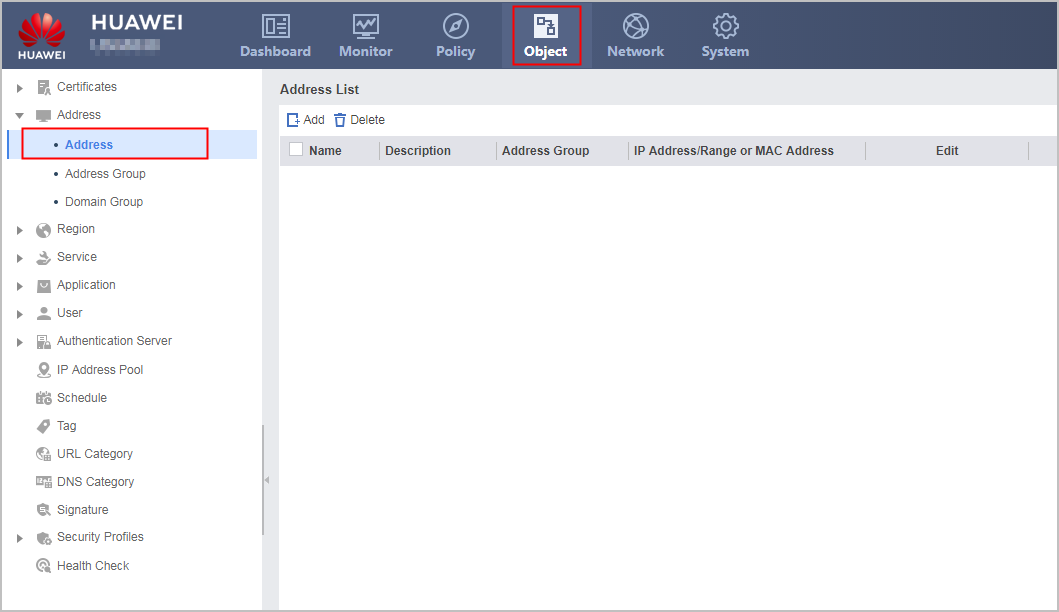

    1. Choose Object > Address > Address.

    2. Click Add and set the following IP address range.

      Name

      ipaddress1

      IP Address Range

      10.3.0.2-10.3.0.10

    3. Repeat these steps to create the following IP address range.

      Name

      ipaddress2

      IP Address Range

      10.3.0.20-10.3.0.30

    4. Repeat these steps to create the following IP address range.

      Name

      ipaddress3

      IP Address Range

      10.3.1.20-10.3.1.30

    5. Choose Policy > Security Policy > Security Policy.
    6. Choose Add Security Policy and configure the following security policy for vsysa to allow R&D employees on a specific network segment to access the Internet. Packets from employees on other network segments to the Internet will match the default security policy and are denied.

      Name

      to_internet

      Source Zone

      trust

      Destination Zone

      untrust

      Source Address/Region

      ipaddress1

      Action

      permit

    7. Repeat these steps to configure another security policy for vsysa to allow specific employees in vsysa and vsysb to communicate.

      Name

      to_vsysb

      Source Zone

      trust

      Destination Zone

      dmz

      Source Address/Region

      ipaddress2

      Destination Address/Region

      ipaddress3

      Action

      permit

    8. Repeat these steps to configure another security policy for vsysa to allow specific employees in vsysa and vsysb to communicate.

      Name

      to_vsysa

      Source Zone

      dmz

      Destination Zone

      trust

      Source Address/Region

      ipaddress3

      Destination Address/Region

      ipaddress2

      Action

      permit

  9. Configure a NAT policy in vsysa.
    1. Choose Policy > NAT Policy > NAT Policy > NAT Policy, click Add, and configure a NAT policy based on the following parameter values.

      Name

      nat1

      NAT Type

      NAT

      NAT Mode

      Source address translation

      Source Zone

      trust

      Destination Type

      Outbound Interface

      Outbound Interface

      GigabitEthernet 0/0/1

      Source Address

      ipaddress1

      Source Address Translated To

      Outbound Interface

  10. The public system administrator configures IP addresses, routes, security policies, and NAT policies for vsysb.

    The configuration is similar to that of the R&D department except the following:

    • The IP address of the inside interface is different.
    • You only need to configure a security policy to allow all IP addresses to access the Internet and another two security policies to allow employee communication.
    • The outbound interface of the NAT policy must be set to GE0/0/2, and the source address must be set to any.

Verification

  • Use a PC that is allowed to access the Internet and a PC that is not allowed to access the Internet from the R&D department and use the PCs to access the Internet. If the results are as expected, the IP addresses, security policies and NAT policies of vsysa are correctly configured.
  • Access the Internet from the non-R&D department. If the access succeeds, the IP addresses, security policies and NAT policies of vsysb are correctly configured.

Configuration Scripts

Configuration script of the public system

#
 sysname FW
#
 vsys enable
#
resource-class r1
 resource-item-limit session reserved-number 10000 maximum 50000
 resource-item-limit policy reserved-number 300
 resource-item-limit user reserved-number 300
 resource-item-limit user-group reserved-number 10
 resource-item-limit bandwidth 20 outbound
#
vsys name vsysa 1
 assign resource-class r1
 assign interface GigabitEthernet0/0/1
 assign interface GigabitEthernet0/0/3
#
vsys name vsysb 2
 assign resource-class r1
 assign interface GigabitEthernet0/0/2
 assign interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/1
 set public-interface
#
interface GigabitEthernet0/0/2
 set public-interface
#
interface Virtual-if0
 ip address 172.16.0.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface Virtual-if0
#
 ip route-static vpn-instance vsysb 10.3.0.0 24 vpn-instance vsysa
 ip route-static vpn-instance vsysa 10.3.1.0 24 vpn-instance vsysb
#
return

Configuration script of vsysa

#
interface GigabitEthernet0/0/1
 ip address 10.1.1.8 255.255.255.0
#
interface GigabitEthernet0/0/3
 ip address 10.3.0.1 255.255.255.0
#
interface Virtual-if1
 ip address 172.16.1.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone dmz
 set priority 50
 add interface Virtual-if1
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
ip address-set ipaddress1 type object
 address 0 range 10.3.0.2 10.3.0.10
#
 ip route-static 0.0.0.0 0.0.0.0 10.1.1.1
#
security-policy
 rule name to_internet
  source-zone trust
  destination-zone untrust
  source-address address-set ipaddress1
  action permit
 rule name to_vsysb
  source-zone trust
  destination-zone dmz
  source-address range 10.3.0.20 10.3.0.30
  destination-address range 10.3.1.20 10.3.1.30
  action permit
 rule name to_vsysa
  source-zone dmz
  destination-zone trust
  source-address range 10.3.1.20 10.3.1.30
  destination-address range 10.3.0.20 10.3.0.30
  action permit
#
 nat-policy
  rule name nat1
   source-zone trust
   egress-interface GigabitEthernet0/0/1
   source-address address-set ipaddress1
   action source-nat easy-ip
#
return

Configuration script of vsysb

#
interface GigabitEthernet0/0/2
 ip address 10.1.1.9 255.255.255.0
#
interface GigabitEthernet0/0/4
 ip address 10.3.1.1 255.255.255.0
#
interface Virtual-if2
 ip address 172.16.2.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/4
#
firewall zone dmz
 set priority 50
 add interface Virtual-if2
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/2
#
 ip route-static 0.0.0.0 0.0.0.0 10.1.1.1
#
security-policy
 rule name to_internet
  source-zone trust
  destination-zone untrust
  action permit
 rule name to_vsysa
  source-zone trust
  destination-zone dmz
  source-address range 10.3.1.20 10.3.1.30
  destination-address range 10.3.0.20 10.3.0.30
  action permit
 rule name to_vsysb
  source-zone dmz
  destination-zone trust
  source-address range 10.3.0.20 10.3.0.30
  destination-address range 10.3.1.20 10.3.1.30
  action permit
#
 nat-policy
  rule name nat1
   source-zone trust
   egress-interface GigabitEthernet0/0/2
   action source-nat easy-ip
#
return
