Web: Example for Configuring the Flow Probe

This example describes the typical application and configuration method of the flow probe function.

Networking Requirements

On an enterprise campus network, the network administrator needs to use the flow probe function on the FW to collect network-layer and transport-layer information of traffic passing through the FW. It then sends the collected information to the HiSec Insight for analysis and evaluation. In this way, threats and APT attacks on the network can be identified.

Figure 1 Flow probe application networking

Procedure

Set interface IP addresses and assign the interfaces to security zones.
1. Choose Network > Interface.
2. Click of GE0/0/1 and set the parameters as follows:

  IP Address

  1.1.1.1

  Subnet Mask

  255.255.255.0

  Zone

  untrust
3. Click OK.
4. Repeat the preceding steps to configure GE0/0/2.

  IP Address

  10.1.2.1

  Subnet Mask

  255.255.255.0

  Zone

  dmz
5. Repeat the preceding steps to configure GE0/0/3.

  IP Address

  10.1.1.1

  Subnet Mask

  255.255.255.0

  Zone

  trust
Configure security policies.
1. Choose Policy > Security Policy > Security Policy.
2. Click Add.
3. Configure a security policy between the Local and DMZ security zones to allow the FW to send the information collected by the flow probe to the HiSec Insight.
  Name

  policy_to_cis

  Source Zone

  local

  Destination Zone

  dmz

  Source Address/Region

  10.1.2.1/24

  Destination Address/Region

  10.1.2.2/24

  Service

  udp

  Action

  Permit
4. Configure a security policy between the Trust and Untrust security zones to allow intranet users to access the Internet.
  Name

  policy_to_Internet

  Source Zone

  trust

  Destination Zone

  untrust

  Source Address/Region

  10.1.1.0/24

  Action

  Permit
Configure the flow probe.
1. Choose Policy > Flow Probe.

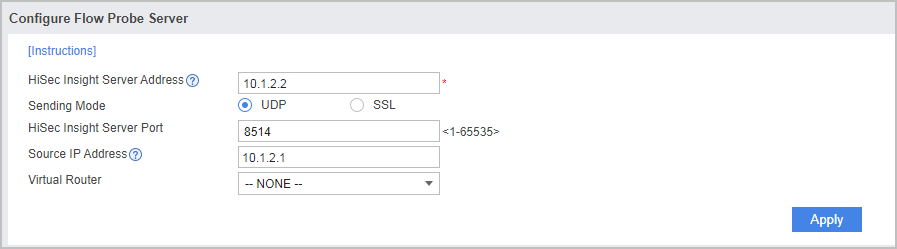

2. Set parameters for the interconnection between the FW and HiSec Insight.
3. Click Apply.

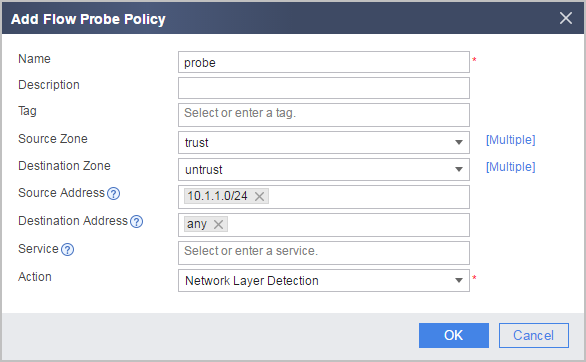

4. Click Add in Flow Probe Policy List and configure a flow probe policy as follows.

  If you want the flow probe to collect SSL-encrypted traffic information, you can use the ECA (Encrypted Communication Analytics,) function. That is, set the action of the flow probe policy to Network Layer and Application Layer Detection (Including Encrypted Communication Analytics). For traffic matching the flow probe policy, the ECA function collects SSL protocol negotiation information, packet statistics information, and DNS and HTTP protocol information of the traffic. Then it sends the information to the HiSec Insight in metadata format. The HiSec Insight analyzes and assesses the information to identify malicious encrypted traffic.
5. Click OK.
Configure the HiSec Insight.
Configure the third-party data source function on the HiSec Insight. If the FW needs to send collected data to the HiSec Insight in SSL mode, you must configure the relevant certificate under the server certificate function node of the HiSec Insight.
1. Choose System > System Management > Service.

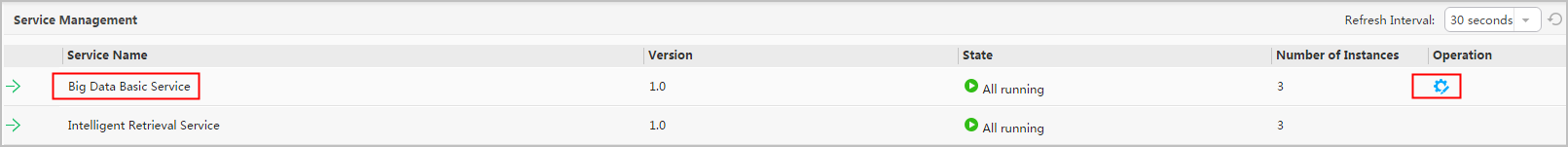

2. Click Operation corresponding to Big Data Basic Service and configure the third-party data source.

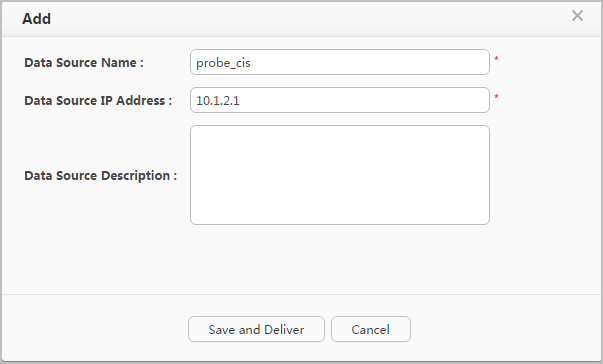

3. Click Add and configure the name and IP address of the data source.
4. Click Save and Deliver.

IP Address	1.1.1.1
Subnet Mask	255.255.255.0
Zone	untrust

IP Address	10.1.2.1
Subnet Mask	255.255.255.0
Zone	dmz

IP Address	10.1.1.1
Subnet Mask	255.255.255.0
Zone	trust

Name	policy_to_cis
Source Zone	local
Destination Zone	dmz
Source Address/Region	10.1.2.1/24
Destination Address/Region	10.1.2.2/24
Service	udp
Action	Permit

Name	policy_to_Internet
Source Zone	trust
Destination Zone	untrust
Source Address/Region	10.1.1.0/24
Action	Permit

Verification

For traffic matching the flow probe policy, choose Smart Search > Metadata Search on the HiSec Insight web UI to search for the source IP address of the traffic. If a result can be found, the HiSec Insight has received data sent from the FW flow probe.

Configuration Scripts

#
interface GigabitEthernet 0/0/1
 undo shutdown
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet 0/0/2
 undo shutdown
 ip address 10.1.2.1 255.255.255.0
#
interface GigabitEthernet 0/0/3
 undo shutdown
 ip address 10.1.1.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet 0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet 0/0/1
#
firewall zone dmz
 set priority 50
 add interface GigabitEthernet 0/0/2
#
security-policy
 rule name policy_to_cis
  source-zone local
  destination-zone dmz
  source-address 10.1.2.0 mask 255.255.255.0
  destination-address 10.1.2.0 mask 255.255.255.0
  service udp
  action permit
 rule name policy_to_Internet
  source-zone trust
  destination-zone untrust
  source-address 10.1.1.0 mask 255.255.255.0
  action permit
#
flow-probe metadata-collect server ip 10.1.2.2
flow-probe metadata-collect source ip 10.1.2.1
#
flow-probe-policy
 rule name probe
  source-zone trust
  destination-zone untrust
  source-address 10.1.1.0 mask 255.255.255.0
  action probe network-layer
