CLI: Example for Configuring IPSec Tunnels Between the Headquarters Using IPSec Policy Groups in ISAKMP Mode and Branches

Networking Requirements

As shown in Figure 1, the headquarters is connected to two branches. The networking requirements are as follows:

  • FW_B connects Branch 1 to the Internet, and FW_C connects Branch 2 to the Internet.
  • FW_A and FW_B are reachable to each other; and FW_A and FW_C are reachable to each other.

  • FW_A, FW_B, and FW_C use fixed public IP addresses.

The purposes of this networking are as follows:

  • PC 2 and PC 3 in the branches can securely communicate with PC 1 in the headquarters.
  • IPSec tunnels can be set up between FW_A and FW_B, and between FW_A and FW_C. However, FW_B and FW_C cannot establish an IPSec tunnel with each other.

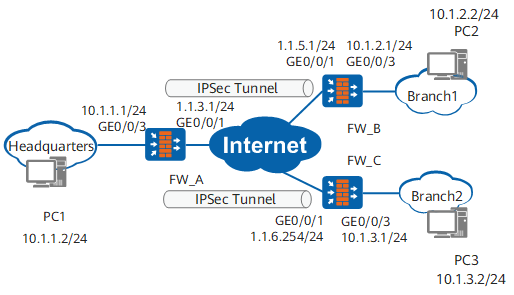

Figure 1 Configuring IPSec Tunnels Between the Headquarters Using IPSec Policy Groups in ISAKMP Mode and Branches

Data Plan

Item

Data

FW_A

Interface number: GigabitEthernet 0/0/3

IP address: 10.1.1.1/24

Security zone: Trust

Interface number: GigabitEthernet 0/0/1

IP address: 1.1.3.1/24

Security zone: Untrust

IPSec configuration

Peer IP address: 1.1.5.1 (FW_B), 1.1.6.254 (FW_C)

Authentication type: pre-shared key

Pre-shared key: Test!1234

Local ID type: IP address

Peer ID type: any

FW_B

Interface number: GigabitEthernet 0/0/1

IP address: 1.1.5.1/24

Security zone: Untrust

Interface number: GigabitEthernet 0/0/3

IP address: 10.1.2.1/24

Security zone: Trust

IPSec configuration

Peer IP address: 1.1.3.1

Authentication type: pre-shared key

Pre-shared key: Test!1234

Local ID type: IP address

Peer ID type: IP address

FW_C

Interface number: GigabitEthernet 0/0/1

IP address: 1.1.6.254/24

Security zone: Untrust

Interface number: GigabitEthernet 0/0/3

IP address: 10.1.3.1/24

Security zone: Trust

IPSec configuration

Peer IP address: 1.1.3.1

Authentication type: pre-shared key

Pre-shared key: Test!1234

Local ID type: IP address

Peer ID type: IP address

Configuration Roadmap

  1. Configure interfaces and routes, and enable security policies.
  2. Configure the IPSec policy in ISAKMP Mode, including basic IPSec policy information, data flow to be protected by IPSec, and proposal parameters for security association (SA) negotiation.

Procedure

  1. Perform basic configurations on FW_A, including setting the interface IP addresses, adding interfaces to security zones, and configuring interzone security policies and a static route.

    1. Set interface IP addresses.

      <sysname> system-view
      [sysname] sysname FW_A
      [FW_A] interface GigabitEthernet 0/0/3
      [FW_A-GigabitEthernet0/0/3] ip address 10.1.1.1 24
      [FW_A-GigabitEthernet0/0/3] quit
      [FW_A] interface GigabitEthernet 0/0/1
      [FW_A-GigabitEthernet0/0/1] ip address 1.1.3.1 24
      [FW_A-GigabitEthernet0/0/1] quit
    2. Add interfaces to corresponding security zones.

      [FW_A] firewall zone trust
      [FW_A-zone-trust] add interface GigabitEthernet 0/0/3
      [FW_A-zone-trust] quit
      [FW_A] firewall zone untrust
      [FW_A-zone-untrust] add interface GigabitEthernet 0/0/1
      [FW_A-zone-untrust] quit
    3. Configure the security policies between the Trust and Untrust zones.

      [FW_A] security-policy
      [FW_A-policy-security] rule name policy1
      [FW_A-policy-security-rule-policy1] source-zone trust
      [FW_A-policy-security-rule-policy1] destination-zone untrust
      [FW_A-policy-security-rule-policy1] source-address 10.1.1.0 24
      [FW_A-policy-security-rule-policy1] destination-address 10.1.2.0 24
      [FW_A-policy-security-rule-policy1] destination-address 10.1.3.0 24
      [FW_A-policy-security-rule-policy1] action permit
      [FW_A-policy-security-rule-policy1] quit
      [FW_A-policy-security] rule name policy2
      [FW_A-policy-security-rule-policy2] source-zone untrust
      [FW_A-policy-security-rule-policy2] destination-zone trust
      [FW_A-policy-security-rule-policy2] source-address 10.1.2.0 24
      [FW_A-policy-security-rule-policy2] source-address 10.1.3.0 24
      [FW_A-policy-security-rule-policy2] destination-address 10.1.1.0 24
      [FW_A-policy-security-rule-policy2] action permit
      [FW_A-policy-security-rule-policy2] quit
    4. Configure the security policies between the Local and Untrust zones.

      The Local-Untrust interzone policy controls whether IKE negotiation packets can pass through the FW. This policy can use the source and destination addresses, protocol, or port as the matching condition. In this example, the source and destination addresses are used as the matching condition. To use the protocol or port as the matching condition, you need to enable ESP and port 500 for UDP (port 4500 also in NAT traversal scenarios).

      [FW_A-policy-security] rule name policy3
      [FW_A-policy-security-rule-policy3] source-zone local
      [FW_A-policy-security-rule-policy3] destination-zone untrust
      [FW_A-policy-security-rule-policy3] source-address 1.1.3.1 32
      [FW_A-policy-security-rule-policy3] action permit
      [FW_A-policy-security-rule-policy3] quit
      [FW_A-policy-security] rule name policy4
      [FW_A-policy-security-rule-policy4] source-zone untrust
      [FW_A-policy-security-rule-policy4] destination-zone local
      [FW_A-policy-security-rule-policy4] destination-address 1.1.3.1 32
      [FW_A-policy-security-rule-policy4] action permit
      [FW_A-policy-security-rule-policy4] quit
      [FW_A-policy-security] quit

      Configure the security policies between the Local and Untrust zones to permit the interzone traffic for the negotiation between the tunnel endpoints.

    5. Configure a static route to reach branches. Assume that the next hop of the route is 1.1.3.2.

      [FW_A] ip route-static 0.0.0.0 0.0.0.0 1.1.3.2

  2. Configure an IPSec policy and apply the policy to the corresponding interface on FW_A.
    1. Configure ACLs to define data flows that need to be protected.

      1. Configure advanced ACL 3000 to define the data flow from the headquarters to Branch1.

        [FW_A] acl 3000
        [FW_A-acl-adv-3000] rule 5 permit ip source 10.1.1.0 0.0.0.255 destination 10.1.2.0 0.0.0.255
        [FW_A-acl-adv-3000] quit
      2. Configure advanced ACL 3001 to define the data flow from the headquarters to Branch2.

        [FW_A] acl 3001
        [FW_A-acl-adv-3001] rule 5 permit ip source 10.1.1.0 0.0.0.255 destination 10.1.3.0 0.0.0.255
        [FW_A-acl-adv-3001] quit

    2. Configure an IPSec proposal.

      [FW_A] ipsec proposal tran1
      [FW_A-ipsec-proposal-tran1] esp authentication-algorithm sha2-256
      [FW_A-ipsec-proposal-tran1] esp encryption-algorithm aes-256
      [FW_A-ipsec-proposal-tran1] quit

    3. Configure an IKE proposal.

      [FW_A] ike proposal 10
      [FW_A-ike-proposal-10] authentication-method pre-share
      [FW_A-ike-proposal-10] prf hmac-sha2-256
      [FW_A-ike-proposal-10] encryption-algorithm aes-256
      [FW_A-ike-proposal-10] dh group14
      [FW_A-ike-proposal-10] integrity-algorithm hmac-sha2-256
      [FW_A-ike-proposal-10] quit

    4. Configure IKE peers.

      1. Configure an IKE peer named b.

        [FW_A] ike peer b
        [FW_A-ike-peer-b] ike-proposal 10
        [FW_A-ike-peer-b] remote-address 1.1.5.1
        [FW_A-ike-peer-b] pre-shared-key Test!1234
        [FW_A-ike-peer-b] quit
      2. Configure an IKE peer named c.

        [FW_A] ike peer c
        [FW_A-ike-peer-b] ike-proposal 10
        [FW_A-ike-peer-b] remote-address 1.1.6.254
        [FW_A-ike-peer-b] pre-shared-key Test!1234
        [FW_A-ike-peer-b] quit

    5. Configure an IPSec policy numbered 9 and 10 in IPSec policy group map1.

      [FW_A] ipsec policy map1 9 isakmp
      [FW_A-ipsec-policy-isakmp-map1-9] security acl 3001
      [FW_A-ipsec-policy-isakmp-map1-9] proposal tran1
      [FW_A-ipsec-policy-isakmp-map1-9] ike-peer c
      [FW_A-ipsec-policy-isakmp-map1-9] quit
      [FW_A] ipsec policy map1 10 isakmp
      [FW_A-ipsec-policy-isakmp-map1-10] security acl 3000
      [FW_A-ipsec-policy-isakmp-map1-10] proposal tran1
      [FW_A-ipsec-policy-isakmp-map1-10] ike-peer b
      [FW_A-ipsec-policy-isakmp-map1-10] quit

    6. Apply IPSec policy group map1 to GigabitEthernet 0/0/1.

      [FW_A] interface GigabitEthernet 0/0/1
      [FW_A-GigabitEthernet0/0/1] ipsec policy map1
      [FW_A-GigabitEthernet0/0/1] quit

  3. Perform basic configurations on FW_B.
    1. Set interface IP addresses and add the interfaces to security zones.

      1. Set interface IP addresses.

        <sysname> system-view
        [sysname] sysname FW_B
        [FW_B] interface GigabitEthernet 0/0/3
        [FW_B-GigabitEthernet0/0/3] ip address 10.1.2.1 24
        [FW_B-GigabitEthernet0/0/3] quit
        [FW_B] interface GigabitEthernet 0/0/1
        [FW_B-GigabitEthernet0/0/1] ip address 1.1.5.1 24
        [FW_B-GigabitEthernet0/0/1] quit
      2. Add GigabitEthernet 0/0/3 to the Trust zone and GigabitEthernet 0/0/1 to the Untrust zone.

        [FW_B] firewall zone trust
        [FW_B-zone-trust] add interface GigabitEthernet 0/0/3
        [FW_B-zone-trust] quit
        [FW_B] firewall zone untrust
        [FW_B-zone-untrust] add interface GigabitEthernet 0/0/1
        [FW_B-zone-untrust] quit

    2. Configure interzone security policies.

      1. Configure the security policies between the Trust and Untrust zones.

        [FW_B] security-policy
        [FW_B-policy-security] rule name policy1
        [FW_B-policy-security-rule-policy1] source-zone trust
        [FW_B-policy-security-rule-policy1] destination-zone untrust
        [FW_B-policy-security-rule-policy1] source-address 10.1.2.0 24
        [FW_B-policy-security-rule-policy1] destination-address 10.1.1.0 24
        [FW_B-policy-security-rule-policy1] action permit
        [FW_B-policy-security-rule-policy1] quit
        [FW_B-policy-security] rule name policy2
        [FW_B-policy-security-rule-policy2] source-zone untrust
        [FW_B-policy-security-rule-policy2] destination-zone trust
        [FW_B-policy-security-rule-policy2] source-address 10.1.1.0 24
        [FW_B-policy-security-rule-policy2] destination-address 10.1.2.0 24
        [FW_B-policy-security-rule-policy2] action permit
        [FW_B-policy-security-rule-policy2] quit
      2. Configure the security policies between the Local and Untrust zones.

        The Local-Untrust interzone policy controls whether IKE negotiation packets can pass through the FW. This policy can use the source and destination addresses, protocol, or port as the matching condition. In this example, the source and destination addresses are used as the matching condition. To use the protocol or port as the matching condition, you need to enable ESP and port 500 for UDP (port 4500 also in NAT traversal scenarios).

        [FW_B-policy-security] rule name policy3
        [FW_B-policy-security-rule-policy3] source-zone local
        [FW_B-policy-security-rule-policy3] destination-zone untrust
        [FW_B-policy-security-rule-policy3] source-address 1.1.5.1 32
        [FW_B-policy-security-rule-policy3] destination-address 1.1.3.1 32
        [FW_B-policy-security-rule-policy3] action permit
        [FW_B-policy-security-rule-policy3] quit
        [FW_B-policy-security] rule name policy4
        [FW_B-policy-security-rule-policy4] source-zone untrust
        [FW_B-policy-security-rule-policy4] destination-zone local
        [FW_B-policy-security-rule-policy4] source-address 1.1.3.1 32
        [FW_B-policy-security-rule-policy4] destination-address 1.1.5.1 32
        [FW_B-policy-security-rule-policy4] action permit
        [FW_B-policy-security-rule-policy4] quit
        [FW_B-policy-security] quit

      Configure the security policies between the Local and Untrust zones to permit the interzone traffic for the negotiation between the tunnel endpoints.

    3. Configure a static route to the headquarters. Assume that the next hop is 1.1.5.2.

      [FW_B] ip route-static 0.0.0.0 0.0.0.0 1.1.5.2

  4. Configure an IPSec policy and apply the policy to the corresponding interface on FW_B.
    1. Configure an ACL to define data flows that need to be protected.

      [FW_B] acl 3000
      [FW_B-acl-adv-3000] rule 5 permit ip source 10.1.2.0 0.0.0.255 destination 10.1.1.0 0.0.0.255
      [FW_B-acl-adv-3000] quit

    2. Configure an IPSec proposal.

      [FW_B] ipsec proposal tran1
      [FW_B-ipsec-proposal-tran1] esp authentication-algorithm sha2-256
      [FW_B-ipsec-proposal-tran1] esp encryption-algorithm aes-256
      [FW_B-ipsec-proposal-tran1] quit

    3. Configure an IKE proposal.

      [FW_B] ike proposal 10
      [FW_B-ike-proposal-10] authentication-method pre-share
      [FW_B-ike-proposal-10] prf hmac-sha2-256
      [FW_B-ike-proposal-10] encryption-algorithm aes-256
      [FW_B-ike-proposal-10] dh group14
      [FW_B-ike-proposal-10] integrity-algorithm hmac-sha2-256
      [FW_B-ike-proposal-10] quit

    4. Configure an IKE peer.

      [FW_B] ike peer a
      [FW_B-ike-peer-a] ike-proposal 10
      [FW_B-ike-peer-a] remote-address 1.1.3.1
      [FW_B-ike-peer-a] pre-shared-key Test!1234
      [FW_B-ike-peer-a] quit

    5. Configure an IPSec policy with the name map1 and number 10.

      [FW_B] ipsec policy map1 10 isakmp
      [FW_B-ipsec-policy-isakmp-map1-10] security acl 3000
      [FW_B-ipsec-policy-isakmp-map1-10] proposal tran1
      [FW_B-ipsec-policy-isakmp-map1-10] ike-peer a
      [FW_B-ipsec-policy-isakmp-map1-10] quit

    6. Apply security policy map1 to GigabitEthernet 0/0/1.

      [FW_B] interface GigabitEthernet 0/0/1
      [FW_B-GigabitEthernet0/0/1] ipsec policy map1
      [FW_B-GigabitEthernet0/0/1] quit

  5. Perform basic configurations on FW_C.
    1. Set interface IP addresses and add them to the corresponding security zones.

      1. Set the IP address of GigabitEthernet 0/0/3 to 10.1.3.1/24, and set the IP address of GigabitEthernet 0/0/1 to 1.1.6.254/24.

        <sysname> system-view
        [sysname] sysname FW_C
        [FW_C] interface GigabitEthernet 0/0/3
        [FW_C-GigabitEthernet0/0/3] ip address 10.1.3.1 24
        [FW_C-GigabitEthernet0/0/3] quit
        [FW_C] interface GigabitEthernet 0/0/1
        [FW_C-GigabitEthernet0/0/1] ip address 1.1.6.254 24
        [FW_C-GigabitEthernet0/0/1] quit
      2. Add GigabitEthernet 0/0/3 to the Trust zone and GigabitEthernet 0/0/1 to the Untrust zone.

        [FW_C] firewall zone trust
        [FW_C-zone-trust] add interface GigabitEthernet 0/0/3
        [FW_C-zone-trust] quit
        [FW_C] firewall zone untrust
        [FW_C-zone-untrust] add interface GigabitEthernet 0/0/1
        [FW_C-zone-untrust] quit

    2. Configure interzone security policies.

      1. Configure the security policies between the Trust and Untrust zones.

        [FW_C] security-policy
        [FW_C-policy-security] rule name policy1
        [FW_C-policy-security-rule-policy1] source-zone trust
        [FW_C-policy-security-rule-policy1] destination-zone untrust
        [FW_C-policy-security-rule-policy1] source-address 10.1.3.0 24
        [FW_C-policy-security-rule-policy1] destination-address 10.1.1.0 24
        [FW_C-policy-security-rule-policy1] action permit
        [FW_C-policy-security-rule-policy1] quit
        [FW_C-policy-security] rule name policy2
        [FW_C-policy-security-rule-policy2] source-zone untrust
        [FW_C-policy-security-rule-policy2] destination-zone trust
        [FW_C-policy-security-rule-policy2] source-address 10.1.1.0 24
        [FW_C-policy-security-rule-policy2] destination-address 10.1.3.0 24
        [FW_C-policy-security-rule-policy2] action permit
        [FW_C-policy-security-rule-policy2] quit
      2. Configure the security policies between the Local and Untrust zones.

        The Local-Untrust interzone policy controls whether IKE negotiation packets can pass through the FW. This policy can use the source and destination addresses, protocol, or port as the matching condition. In this example, the source and destination addresses are used as the matching condition. To use the protocol or port as the matching condition, you need to enable ESP and port 500 for UDP (port 4500 also in NAT traversal scenarios).

        [FW_C-policy-security] rule name policy3
        [FW_C-policy-security-rule-policy3] source-zone local
        [FW_C-policy-security-rule-policy3] destination-zone untrust
        FW_C-policy-security-rule-policy3] destination-address 1.1.3.1 32
        [FW_C-policy-security-rule-policy3] action permit
        [FW_C-policy-security-rule-policy3] quit
        [FW_C-policy-security] rule name policy4
        [FW_C-policy-security-rule-policy4] source-zone untrust
        [FW_C-policy-security-rule-policy4] destination-zone local
        [FW_C-policy-security-rule-policy4] source-address 1.1.3.1 32
        [FW_C-policy-security-rule-policy4] action permit
        [FW_C-policy-security-rule-policy4] quit
        [FW_C-policy-security] quit

      Configure the security policies between the Local and Untrust zones to permit the interzone traffic for the negotiation between the tunnel endpoints.

    3. Configure a static route to the headquarters. Assume that the next hop is 1.1.6.2.

      [FW_C] ip route-static 0.0.0.0 0.0.0.0 1.1.6.2

  6. Configure an IPSec policy and apply the policy to the corresponding interface on FW_C.
    1. Configure an ACL to define data flows that need to be protected.

      [FW_C] acl 3000
      [FW_C-acl-adv-3000] rule 5 permit ip source 10.1.3.0 0.0.0.255 destination 10.1.1.0 0.0.0.255
      [FW_C-acl-adv-3000] quit

    2. Configure an IPSec proposal.

      [FW_C] ipsec proposal tran1
      [FW_C-ipsec-proposal-tran1] esp authentication-algorithm sha2-256
      [FW_C-ipsec-proposal-tran1] esp encryption-algorithm aes-256
      [FW_C-ipsec-proposal-tran1] quit

    3. Configure an IKE proposal.

      [FW_C] ike proposal 10
      [FW_C-ike-proposal-10] authentication-method pre-share
      [FW_C-ike-proposal-10] prf hmac-sha2-256
      [FW_C-ike-proposal-10] encryption-algorithm aes-256
      [FW_C-ike-proposal-10] dh group14
      [FW_C-ike-proposal-10] integrity-algorithm hmac-sha2-256
      [FW_C-ike-proposal-10] quit

    4. Configure an IKE peer.

      [FW_C] ike peer a
      [FW_C-ike-peer-a] ike-proposal 10
      [FW_C-ike-peer-a] remote-address 1.1.3.1
      [FW_C-ike-peer-a] pre-shared-key Test!1234
      [FW_C-ike-peer-a] quit

    5. Configure an IPSec policy with the name map1 and number 10.

      [FW_C] ipsec policy map1 10 isakmp
      [FW_C-ipsec-policy-isakmp-map1-10] security acl 3000
      [FW_C-ipsec-policy-isakmp-map1-10] proposal tran1
      [FW_C-ipsec-policy-isakmp-map1-10] ike-peer c
      [FW_C-ipsec-policy-isakmp-map1-10] quit

    6. Apply ISPec policy map1 to GigabitEthernet 0/0/1.

      [FW_C] interface GigabitEthernet 0/0/1
      [FW_C-GigabitEthernet0/0/1] ipsec policy map1
      [FW_C-GigabitEthernet0/0/1] quit

Verification

  1. After the configuration is complete, PC1 and PC2, PC1 and PC3 can access each other, and PC2 and PC3 cannot access each other.
  2. On FW_A, you can view two pairs of IKE SAs.

    <FW_A> display ike sa
    IKE SA information :
        Conn-ID       Peer        VPN   Flag(s)   Phase   RemoteType  RemoteID
      ------------------------------------------------------------------------------
        50336907      1.1.5.1:500       RD|ST|A   v2:2    IP          1.1.5.1
        50336906      1.1.5.1:500       RD|ST|A   v2:1    IP          1.1.5.1
        33554436      1.1.6.254:500     RD|A      v2:2    IP          1.1.6.254
        33554435      1.1.6.254:500     RD|A      v2:1    IP          1.1.6.254

      Number of IKE SA : 4
      ------------------------------------------------------------------------------

      Flag Description:
      RD--READY   ST--STAYALIVE   RL--REPLACED   FD--FADING   TO--TIMEOUT
      HRT--HEARTBEAT   LKG--LAST KNOWN GOOD SEQ NO.   BCK--BACKED UP
      M--ACTIVE   S--STANDBY   A--ALONE  NEG--NEGOTIATING
  3. On FW_B and FW_C, you can view the IKE SAs whose peer ends are the headquarters. The following takes the information displayed on FW_B as an example.

    <FW_B> display ike sa
    IKE SA information :
        Conn-ID       Peer        VPN   Flag(s)   Phase   RemoteType  RemoteID
      ------------------------------------------------------------------------------
        16782416      1.1.3.1:500       RD|A      v2:2    IP          1.1.3.1
        16782415      1.1.3.1:500       RD|A      v2:1    IP          1.1.3.1

      Number of IKE SA : 2
      ------------------------------------------------------------------------------

      Flag Description:
      RD--READY   ST--STAYALIVE   RL--REPLACED   FD--FADING   TO--TIMEOUT
      HRT--HEARTBEAT   LKG--LAST KNOWN GOOD SEQ NO.   BCK--BACKED UP
      M--ACTIVE   S--STANDBY   A--ALONE  NEG--NEGOTIATING
  4. On FW_A, you can view two pairs of IPSec SAs, corresponding to FW_B and FW_C respectively.
    <FW_A> display ipsec sa brief

    Current ipsec sa num:4
    Number of SAs:4
        Src address   Dst address      SPI        VPN  Protocol     Algorithm
    -------------------------------------------------------------------------------
        1.1.6.254       1.1.3.1       4001819557        ESP      E:AES-256 A:SHA2-256-128
        1.1.5.1         1.1.3.1       3923280450        ESP      E:AES-256 A:SHA2-256-128
        1.1.3.1         1.1.6.254     4249128694        ESP      E:AES-256 A:SHA2-256-128
        1.1.3.1         1.1.5.1       787858613         ESP      E:AES-256 A:SHA2-256-128

  5. On FW_B and FW_C, you can view a pair of reverse IPSec SAs of FW_A. The following takes the information displayed on FW_B as an example.
    <FW_B> display ipsec sa brief
    Current ipsec sa num:2
    Number of SAs:2
        Src address   Dst address     SPI      VPN  Protocol     Algorithm
    -------------------------------------------------------------------------------
         1.1.5.1        1.1.3.1    3923280450         ESP       E:AES-256 A:SHA2-256-128
         1.1.3.1        1.1.5.1    787858613          ESP       E:AES-256 A:SHA2-256-128

Configuration Files

  • FW_A configuration file

    #
     sysname FW_A
    #
    acl number 3000
     rule 5 permit ip source 10.1.1.0 0.0.0.255 destination 10.1.2.0 0.0.0.255
    acl number 3001
     rule 5 permit ip source 10.1.1.0 0.0.0.255 destination 10.1.3.0 0.0.0.255
    #
    ipsec proposal tran1
     esp authentication-algorithm sha2-256
     esp encryption-algorithm aes-256
    #
    ike proposal 10
      encryption-algorithm aes-256
      dh group14
      authentication-algorithm sha2-256
      authentication-method pre-share
      integrity-algorithm hmac-sha2-256
      prf hmac-sha2-256
    #
    ike peer b
      pre-shared-key %$%$c([VET@941t/q_4tS-f7,ri/%$%$
      ike-proposal 10
      remote-address 1.1.5.1
    #
    ike peer c
      pre-shared-key %$%$d([VET@941t/q_56S-f7,ra/%$%$
      ike-proposal 10
      remote-address 1.1.6.254
    #
    ipsec policy map1 9 isakmp
     security acl 3001
     ike-peer c
     proposal tran1
    #
    ipsec policy map1 10 isakmp
     security acl 3000
     ike-peer b
     proposal tran1
    #
    interface GigabitEthernet0/0/3
     undo shutdown
     ip address 10.1.1.1 255.255.255.0
    #
    interface GigabitEthernet0/0/1
     undo shutdown
     ip address 1.1.3.1 255.255.255.0
     ipsec policy map1
    #
    firewall zone trust
     set priority 85
     add interface GigabitEthernet0/0/3
    #
    firewall zone untrust
     set priority 5
     add interface GigabitEthernet0/0/1
    #
    ip route-static 0.0.0.0 0.0.0.0 1.1.3.2
    #
    security-policy
      rule name policy1
        source-zone trust
        destination-zone untrust
        source-address 10.1.1.0 24
        destination-address 10.1.2.0 24
        destination-address 10.1.3.0 24
        action permit
      rule name policy2
        source-zone untrust
        destination-zone trust
        source-address 10.1.2.0 24
        source-address 10.1.3.0 24
        destination-address 10.1.1.0 24
        action permit
      rule name policy3
        source-zone local
        destination-zone untrust
        source-address 1.1.3.1 32
        action permit
      rule name policy4
        source-zone untrust
        destination-zone local
        destination-address 1.1.3.1 32
        action permit
    #
    return

  • FW_B configuration file

    #
     sysname FW_B
    #
    acl number 3000
     rule 5 permit ip source 10.1.2.0 0.0.0.255 destination 10.1.1.0 0.0.0.255
    #
    ipsec proposal tran1
     esp authentication-algorithm sha2-256
     esp encryption-algorithm aes-256
    #
    ike proposal 10
      encryption-algorithm aes-256
      dh group14
      authentication-algorithm sha2-256
      authentication-method pre-share
      integrity-algorithm hmac-sha2-256
      prf hmac-sha2-256
    #
    ike peer a
     pre-shared-key %@%@TI"2Gr[*D9KS1Z0-#3v'xT;d%@%@
     ike-proposal 10
     remote-address 1.1.3.1
    #
    ipsec policy map1 10 isakmp
     security acl 3000
     ike-peer a
     proposal tran1
    #
    interface GigabitEthernet0/0/3
     undo shutdown
     ip address 10.1.2.1 255.255.255.0
    #
    interface GigabitEthernet0/0/1
     undo shutdown
     ip address 1.1.5.1 255.255.255.0
     ipsec policy map1
    #
    firewall zone trust
     set priority 85
     add interface GigabitEthernet0/0/3
    #
    firewall zone untrust
     set priority 5
     add interface GigabitEthernet0/0/1
    #
    ip route-static 0.0.0.0 0.0.0.0 1.1.5.2
    #
    security-policy
      rule name policy1
        source-zone trust
        destination-zone untrust
        source-address 10.1.2.0 24
        destination-address 10.1.1.0 24
        action permit
      rule name policy2
        source-zone untrust
        destination-zone trust
        source-address 10.1.1.0 24
        destination-address 10.1.2.0 24
        action permit
      rule name policy3
        source-zone local
        destination-zone untrust
        source-address 1.1.5.1 32
        destination-address 1.1.3.1 32
        action permit
      rule name policy4
        source-zone untrust
        destination-zone local
        source-address 1.1.3.1 32
        destination-address 1.1.5.1 32
        action permit
    #
    return
  • FW_C configuration file

    #
     sysname FW_C
    #
    acl number 3000
     rule 5 permit ip source 10.1.3.0 0.0.0.255 destination 10.1.1.0 0.0.0.255
    #
    ipsec proposal tran1
     esp authentication-algorithm sha2-256
     esp encryption-algorithm aes-256
    #
    ike proposal 10
      encryption-algorithm aes-256
      dh group14
      authentication-algorithm sha2-256
      authentication-method pre-share
      integrity-algorithm hmac-sha2-256
      prf hmac-sha2-256
    #
    ike peer a
     pre-shared-key %@%@8O:JW`kDBG.O9Y(h6>YK\=,T%@%@
     ike-proposal 10
     remote-address 1.1.3.1
    #
    ipsec policy map1 10 isakmp
     security acl 3000
     ike-peer a
     proposal tran1
    #
    interface GigabitEthernet0/0/3
     undo shutdown
     ip address 10.1.3.1 255.255.255.0
    #
    interface GigabitEthernet0/0/1
     undo shutdown
     ip address 1.1.6.254 255.255.255.0
     ipsec policy map1
    #
    firewall zone trust
     set priority 85
     add interface GigabitEthernet0/0/3
    #
    firewall zone untrust
     set priority 5
     add interface GigabitEthernet0/0/1
    #
    ip route-static 0.0.0.0 0.0.0.0 1.1.6.2
    #
    security-policy
      rule name policy1
        source-zone trust
        destination-zone untrust
        source-address 10.1.3.0 24
        destination-address 10.1.1.0 24
        action permit
      rule name policy2
        source-zone untrust
        destination-zone trust
        source-address 10.1.1.0 24
        destination-address 10.1.3.0 24
        action permit
      rule name policy3
        source-zone local
        destination-zone untrust
        destination-address 1.1.3.1 32
        action permit
      rule name policy4
        source-zone untrust
        destination-zone local
        source-address 1.1.3.1 32
        action permit
    #
    return
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
