Web: Example for Using URL Categories and Blacklist/Whitelist to Control Website Access

The URL categories and blacklist/whitelist can be used together to control the access to a certain type of websites and implement more refined access control on a fixed website.

Networking Requirements

As shown in Figure 1, the FW is deployed at the network border as the enterprise's gateway to implement URL filtering on HTTP requests.

Employees can access only Education/Science, Search Engines/Portals and Social Network websites. In addition, the enterprise wants to further control the access to the following websites:

  • Allow employees to access internal forum websites: www.example3.com and www.example4.com.
  • Prohibit employees from accessing www.example2.com in the Education/Science category and www.example1.com in the Social Network category.

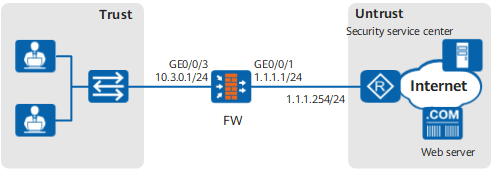

Figure 1 Using URL categories and blacklist/whitelist to control website access

Configuration Roadmap

  1. Set the IP address and security zone of the interface.
  2. Create the URL filtering profile url_profile_01, add www.example1.com and www.example2.com to the blacklist, and add www.example3.com and www.example4.com to the whitelist. Use predefined URL categories and set the control actions of Education/Science, Search Engines/Portals and Social Network websites to Allow, set the action for other websites to Block.
  3. Configure a security policy and reference the URL filtering profile url_profile_01 to implement URL access control.

Procedure

  1. Set the IP address and security zone of the interface.

    1. Choose Network > Interface.

    2. Click for GE0/0/3 and set the parameters as follows:

      Zone trust
      IPv4
      IP Address 10.3.0.1/24
    3. Click OK.

    4. Repeat the previous steps to set the parameters for GE0/0/1.

      Zone untrust
      IPv4
      IP Address 1.1.1.1/24

  2. Configure URL filtering profiles.

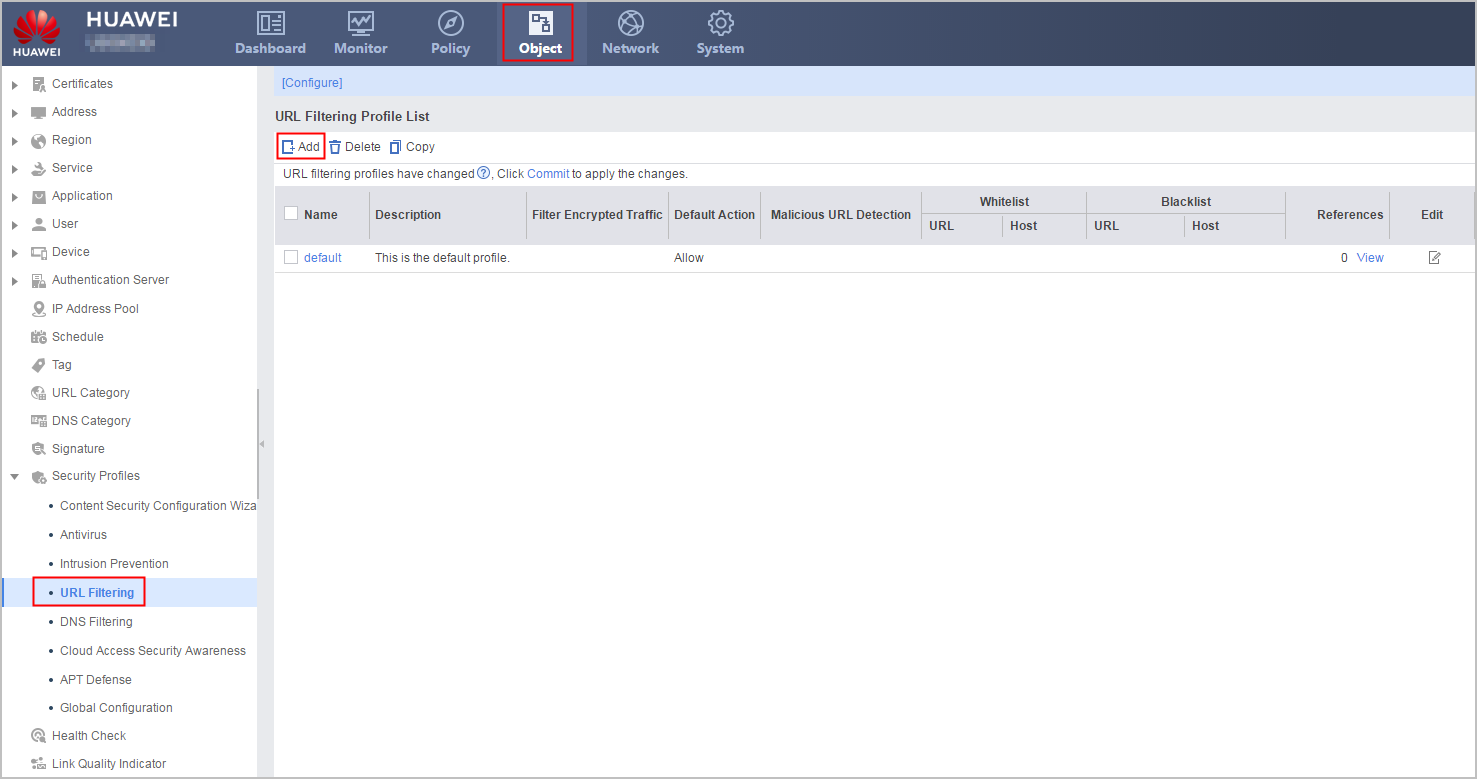

    1. Choose Object > Security Profiles > URL Filtering.

    2. In URL Filtering Profile, click Add and set the parameters as follows:

      Name

      url_profile_01
      Default Action

      Allow

      NOTE:

      If you want to deny URLs outside the whitelist, you can set the default action to deny so that the FW uses the default action when the remote query service is unavailable. In this manner, URLs outside the whitelist can be denied.

      If you want to permit URLs outside the blacklist, you can set the default action to permit so that the FW uses the default action when the remote query service is unavailable. In this manner, URLs outside the blacklist can be permitted.
      Whitelist URL

      www.example3.com

      www.example4.com
      Blacklist URL

      www.example1.com

      www.example2.com
      URL Filtering Level

      Select Custom, and set the action for predefined categories Education/Science, Search Engines/Portals and Social Network to Allow and the action for other predefined categories to Block.

      NOTE:

      To simplify configuration, you can also perform the following operations:

      After you select Custom, select Block to the right of Name in the first row. The action for all user-defined categories and predefined categories becomes Block. You can then set the action for the three predefined categories to Allow.
    3. Click OK.

  3. Reference URL filtering profiles in security policies.

    1. Choose Policy > Security Policy > Security Policy.

    2. Click Add Security Policy and set the parameters as follows:

      Name policy_sec_01
      Source Zone trust
      Destination Zone untrust
      Source Address/Region 10.3.0.0/24
      Destination Address/Region any
      Action permit
      Content Security
      URL Filtering

      url_profile_01
    3. Click OK.

  4. Click Save on the upper right of the web page, and click OK in the dialog box that is displayed.
  5. Click Commit on the upper right of the web page, and click OK in the dialog box that is displayed.

Verification

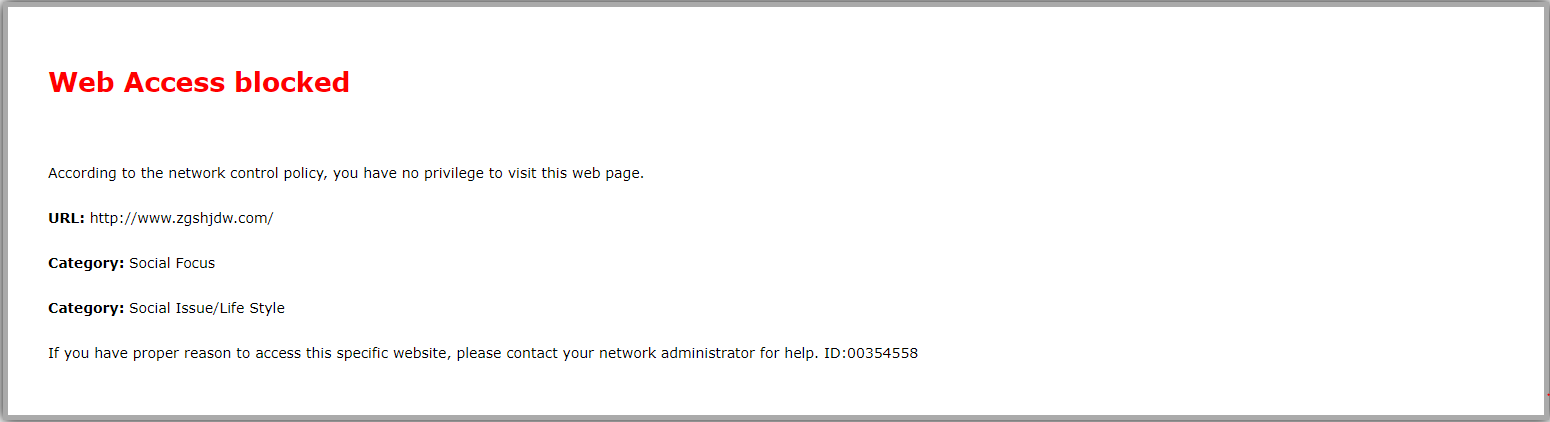

  • Employees can access Education/Science, Search Engines/Portals, and Social Network websites. The access requests to other websites are blocked, and a message is displayed accordingly. For example:

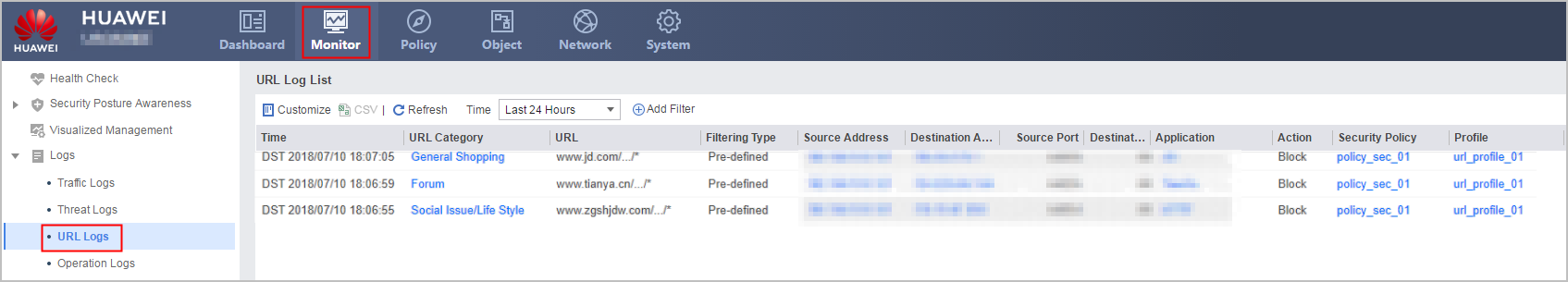

    If you query URL logs (Monitor > Log > URL Log), you can see the logs that employees' access to prohibited websites matched the URL filtering rule whose filtering type is Predefined and action is block. For example:

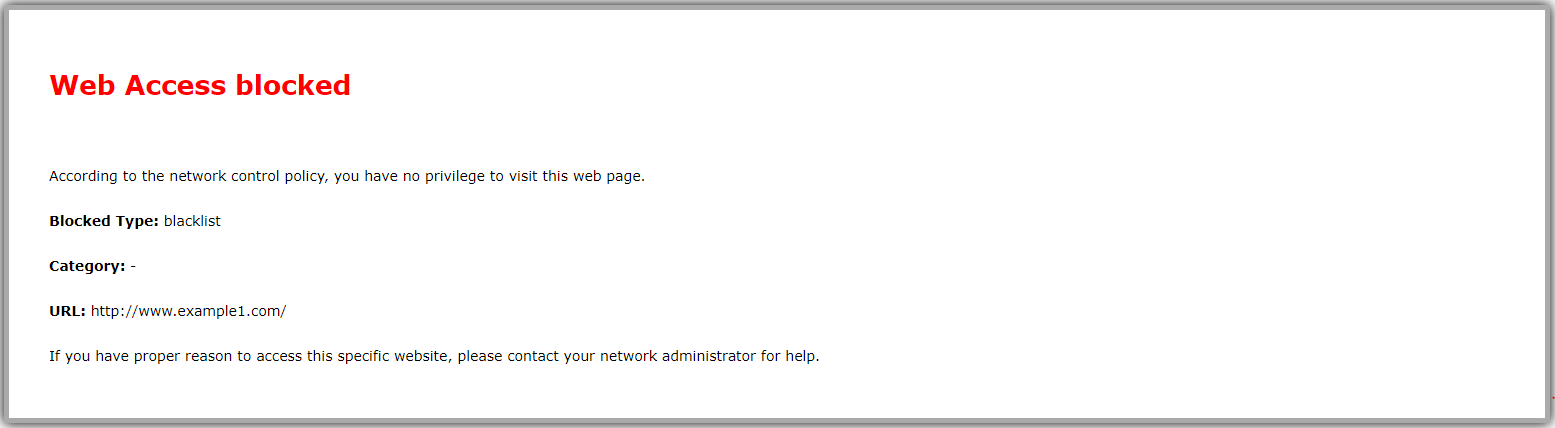

  • Employees can access www.example3.com and www.example4.com but cannot access www.example1.com or www.example2.com. They received pushed information when their access was blocked. For example:

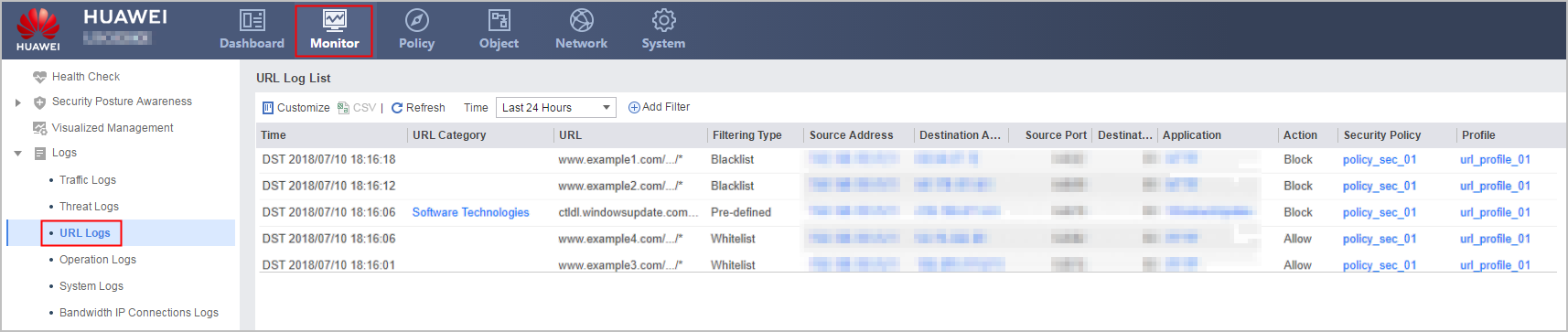

    If you query the URL logs (Monitor > Log > URL Log), you can see the logs generated when employees' access requests are permitted or denied, with the filtering type being Whitelist or Blacklist, respectively. For example:

Configuration Scripts

#
interface GigabitEthernet0/0/1
 undo shutdown
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/3
 undo shutdown
 ip address 10.3.0.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
profile type url-filter name url_profile_01
 add blacklist url www.example1.com
 add blacklist url www.example2.com
 add whitelist url www.example3.com
 add whitelist url www.example4.com
 category pre-defined subcategory-id 101 action block
 category pre-defined subcategory-id 102 action block
 category pre-defined subcategory-id 162 action block
 category pre-defined subcategory-id 163 action block
 category pre-defined subcategory-id 164 action block
 category pre-defined subcategory-id 165 action block
 category pre-defined subcategory-id 103 action block
 category pre-defined subcategory-id 166 action block
 category pre-defined subcategory-id 167 action block
 category pre-defined subcategory-id 168 action block
 category pre-defined subcategory-id 104 action block
 category pre-defined subcategory-id 169 action block
 category pre-defined subcategory-id 170 action block
 category pre-defined subcategory-id 105 action block
 category pre-defined subcategory-id 171 action block
 category pre-defined subcategory-id 172 action block
 category pre-defined subcategory-id 173 action block
 category pre-defined subcategory-id 174 action block
 category pre-defined subcategory-id 106 action block
 category pre-defined subcategory-id 109 action block
 category pre-defined subcategory-id 110 action block
 category pre-defined subcategory-id 111 action block
 category pre-defined subcategory-id 112 action block
 category pre-defined subcategory-id 114 action block
 category pre-defined subcategory-id 115 action block
 category pre-defined subcategory-id 117 action block
 category pre-defined subcategory-id 178 action block
 category pre-defined subcategory-id 179 action block
 category pre-defined subcategory-id 180 action block
 category pre-defined subcategory-id 181 action block
 category pre-defined subcategory-id 248 action block
 category pre-defined subcategory-id 118 action block
 category pre-defined subcategory-id 119 action block
 category pre-defined subcategory-id 122 action block
 category pre-defined subcategory-id 182 action block
 category pre-defined subcategory-id 183 action block
 category pre-defined subcategory-id 184 action block
 category pre-defined subcategory-id 123 action block
 category pre-defined subcategory-id 124 action block
 category pre-defined subcategory-id 186 action block
 category pre-defined subcategory-id 187 action block
 category pre-defined subcategory-id 188 action block
 category pre-defined subcategory-id 189 action block
 category pre-defined subcategory-id 125 action block
 category pre-defined subcategory-id 127 action block
 category pre-defined subcategory-id 128 action block
 category pre-defined subcategory-id 130 action block
 category pre-defined subcategory-id 131 action block
 category pre-defined subcategory-id 132 action block
 category pre-defined subcategory-id 197 action block
 category pre-defined subcategory-id 198 action block
 category pre-defined subcategory-id 199 action block
 category pre-defined subcategory-id 200 action block
 category pre-defined subcategory-id 227 action block
 category pre-defined subcategory-id 228 action block
 category pre-defined subcategory-id 133 action block
 category pre-defined subcategory-id 201 action block
 category pre-defined subcategory-id 202 action block
 category pre-defined subcategory-id 204 action block
 category pre-defined subcategory-id 205 action block
 category pre-defined subcategory-id 134 action block
 category pre-defined subcategory-id 135 action block
 category pre-defined subcategory-id 136 action block
 category pre-defined subcategory-id 137 action block
 category pre-defined subcategory-id 138 action block
 category pre-defined subcategory-id 139 action block
 category pre-defined subcategory-id 140 action block
 category pre-defined subcategory-id 141 action block
 category pre-defined subcategory-id 206 action block
 category pre-defined subcategory-id 207 action block
 category pre-defined subcategory-id 208 action block
 category pre-defined subcategory-id 209 action block
 category pre-defined subcategory-id 210 action block
 category pre-defined subcategory-id 229 action block
 category pre-defined subcategory-id 142 action block
 category pre-defined subcategory-id 143 action block
 category pre-defined subcategory-id 144 action block
 category pre-defined subcategory-id 145 action block
 category pre-defined subcategory-id 146 action block
 category pre-defined subcategory-id 147 action block
 category pre-defined subcategory-id 211 action block
 category pre-defined subcategory-id 212 action block
 category pre-defined subcategory-id 213 action block
 category pre-defined subcategory-id 240 action block
 category pre-defined subcategory-id 253 action block
 category pre-defined subcategory-id 149 action block
 category pre-defined subcategory-id 150 action block
 category pre-defined subcategory-id 214 action block
 category pre-defined subcategory-id 215 action block
 category pre-defined subcategory-id 216 action block
 category pre-defined subcategory-id 217 action block
 category pre-defined subcategory-id 151 action block
 category pre-defined subcategory-id 218 action block
 category pre-defined subcategory-id 219 action block
 category pre-defined subcategory-id 220 action block
 category pre-defined subcategory-id 221 action block
 category pre-defined subcategory-id 222 action block
 category pre-defined subcategory-id 223 action block
 category pre-defined subcategory-id 230 action block
 category pre-defined subcategory-id 252 action block
 category pre-defined subcategory-id 152 action block
 category pre-defined subcategory-id 153 action block
 category pre-defined subcategory-id 238 action block
 category pre-defined subcategory-id 154 action block
 category pre-defined subcategory-id 155 action block
 category pre-defined subcategory-id 224 action block
 category pre-defined subcategory-id 225 action block
 category pre-defined subcategory-id 156 action block
 category pre-defined subcategory-id 157 action block
 category pre-defined subcategory-id 158 action block
 category pre-defined subcategory-id 231 action block
 category pre-defined subcategory-id 232 action block
 category pre-defined subcategory-id 159 action block
 category pre-defined subcategory-id 254 action block
 category pre-defined subcategory-id 160 action block
 category pre-defined subcategory-id 161 action block
 category pre-defined subcategory-id 176 action block
 category pre-defined subcategory-id 226 action block
 category pre-defined subcategory-id 234 action block
 category pre-defined subcategory-id 235 action block
 category pre-defined subcategory-id 236 action block
 category pre-defined subcategory-id 237 action block
 category pre-defined subcategory-id 239 action block
 category pre-defined subcategory-id 241 action block
 category pre-defined subcategory-id 233 action block
#
security-policy
 rule name policy_sec_01
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 mask 255.255.255.0
  profile url-filter url_profile_01
  action permit
