CLI: Using the Blacklist/Whitelist to Control Website Access

This section provides an example for configuring blacklist/whitelist-based URL filtering to permit or deny the access to specific websites.

Networking Requirements

As shown in Figure 1, the FW is deployed at the network border as the enterprise's gateway to implement URL filtering on HTTP requests sent by users to access the Internet.

The enterprise has R&D and marketing employees. The specific networking requirements are as follows:

  • The R&D employees are whitelisted and can access only work-related URLs (www.example.com/working) and hosts (www.example.com) from 09:00 to 17:00 every day.
  • The marketing employees are blacklisted and can access all URLs excluding specific URLs (www.example.net/*) from 09:00 to 17:00 every day.

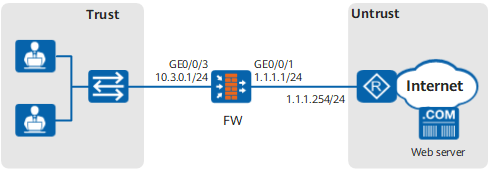

Figure 1 Using the blacklist/whitelist to control website access

Configuration Roadmap

  1. Set interface IP addresses and assign the interfaces to security zones.
  2. For R&D employees, create a URL filtering profile named profile_url_research, add whitelisted URLs (www.example.com/working) and hosts (www.example.org), and set the action to block for all predefined categories and the default action to block (if the remote query service is unavailable, the FW will take the default action to control the access to the non-whitelisted URLs).
  3. For marketing employees, create a URL filtering profile named profile_url_marketing, add blacklisted URLs (www.example.net/*), and set the action to allow for all predefined categories and the default action to allow (if the remote query service is unavailable, the FW will take the default action to control the access to the non-blacklisted URLs).
  4. Configure two security policies and reference user groups and URL filtering profiles to control the URL access from different user groups.

Procedure

  1. Set the IP address and security zone of the interface.
    1. Set an IP address for interface GigabitEthernet 0/0/1 and assign the interface to the untrust zone.

      <FW> system-view
[FW] interface GigabitEthernet 0/0/1
[FW-GigabitEthernet0/0/1] ip address 1.1.1.1 24
[FW-GigabitEthernet0/0/1] quit
[FW] firewall zone untrust
[FW-zone-untrust] add interface GigabitEthernet 0/0/1
[FW-zone-untrust] quit

    2. Set an IP address for interface GigabitEthernet 0/0/3 and add the interface to the trust zone.

      [FW] interface GigabitEthernet 0/0/3
[FW-GigabitEthernet0/0/3] ip address 10.3.0.1 24
[FW-GigabitEthernet0/0/3] quit
[FW] firewall zone trust
[FW-zone-trust] add interface GigabitEthernet 0/0/3
[FW-zone-trust] quit

  2. Configure URL filtering profiles.
    1. Configure a URL filtering profile for the R&D department.

      [FW] profile type url-filter name profile_url_research
[FW-profile-url-filter-profile_url_research] description URL filter profile of web access control for research.
[FW-profile-url-filter-profile_url_research] default action block
[FW-profile-url-filter-profile_url_research] category user-defined action block
[FW-profile-url-filter-profile_url_research] category pre-defined action block
[FW-profile-url-filter-profile_url_research] add whitelist url www.example.com/working
[FW-profile-url-filter-profile_url_research] add whitelist host www.example.org
[FW-profile-url-filter-profile_url_research] quit

    2. Configure a URL filtering profile for the marketing department.

      [FW] profile type url-filter name profile_url_marketing
[FW-profile-url-filter-profile_url_marketing] description URL filter profile of web access control for marketing.
[FW-profile-url-filter-profile_url_marketing] category user-defined action allow
[FW-profile-url-filter-profile_url_marketing] category pre-defined action allow
[FW-profile-url-filter-profile_url_marketing] add blacklist url  www.example.net/*
[FW-profile-url-filter-profile_url_marketing] quit

  3. Configure schedules.

    [FW] time-range time_range
[FW-time-range-time_range] period-range 09:00:00 to 17:00:00 daily
[FW-time-range-time_range] quit

  4. Reference URL filtering profiles in security policies.

    In this example, user groups research (R&D personnel) and marketing (marketing personnel) to be referenced have been created.

    1. Configure a security policy for the R&D department.

      [FW] security-policy
[FW-policy-security] rule name policy_sec_research
[FW-policy-security-rule-policy_sec_research] description Security policy of web access protect for research.
[FW-policy-security-rule-policy_sec_research] source-zone trust
[FW-policy-security-rule-policy_sec_research] destination-zone untrust
[FW-policy-security-rule-policy_sec_research] source-address 10.3.0.0 mask 255.255.255.0
[FW-policy-security-rule-policy_sec_research] user user-group /default/research
[FW-policy-security-rule-policy_sec_research] time-range time_range
[FW-policy-security-rule-policy_sec_research] action permit
[FW-policy-security-rule-policy_sec_research] profile url-filter profile_url_research
[FW-policy-security-rule-policy_sec_research] quit

    2. Configure a security policy for the marketing department.

      [FW-policy-security] rule name policy_sec_marketing
[FW-policy-security-rule-policy_sec_marketing] description Security policy of web access protect for marketing.
[FW-policy-security-rule-policy_sec_marketing] source-zone trust
[FW-policy-security-rule-policy_sec_marketing] destination-zone untrust
[FW-policy-security-rule-policy_sec_marketing] source-address 10.3.0.0 mask 255.255.255.0
[FW-policy-security-rule-policy_sec_marketing] user user-group /default/marketing
[FW-policy-security-rule-policy_sec_marketing] time-range time_range
[FW-policy-security-rule-policy_sec_marketing] action permit
[FW-policy-security-rule-policy_sec_marketing] profile url-filter profile_url_marketing
[FW-policy-security-rule-policy_sec_marketing] quit
[FW-policy-security] quit

  5. Commit the content security profiles.

    [FW] engine configuration commit
Info: The operation may last for several minutes, please wait.
Info: URL submitted configurations successfully.
Info: Finish committing engine compiling.

Verification

  • R&D employees can access only www.example.com/working-related URLs and www.example.org-related hosts from 09:00 to 17:00 every day. Accessible URLs:
    • www.example.com/working/index.htm
    • www.example.com/working/todo
    • www.example.org
    • www.example.org/network

    By viewing the URL log URL/4/FILTER, you can see that the access requests from R&D department employees to other websites matched the URL filtering policy whose filtering type is Pre-defined and action is Block.

  • Marketing employees can access only all websites, excluding www.example.net/* from 09:00 to 17:00. Inaccessible URLs:
    • www.example.net
    • www.example.net/index.html
    • www.example.net/game

    By viewing the URL log URL/4/FILTER, you can see that the access requests from marketing department employees to websites related to www.example.net/* matched the URL filtering policy whose filtering type is Blacklist and action is Block.

Configuration Scripts

#
sysname FW
#
 time-range time_range
  period-range 09:00:00 to 17:00:00 daily
#
interface GigabitEthernet0/0/1
 undo shutdown
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/3
 undo shutdown
 ip address 10.3.0.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
profile type url-filter name profile_url_research
 description URL filter profile of web access control for research.
 add whitelist url www.example.com/working
 add whitelist host www.example.org
 category pre-defined subcategory-id 101 action block
 category pre-defined subcategory-id 102 action block
 category pre-defined subcategory-id 162 action block
 category pre-defined subcategory-id 163 action block
 category pre-defined subcategory-id 164 action block
 category pre-defined subcategory-id 165 action block
 category pre-defined subcategory-id 103 action block
 category pre-defined subcategory-id 166 action block
 category pre-defined subcategory-id 167 action block
 category pre-defined subcategory-id 168 action block
 category pre-defined subcategory-id 104 action block
 category pre-defined subcategory-id 169 action block
 category pre-defined subcategory-id 170 action block
 category pre-defined subcategory-id 105 action block
 category pre-defined subcategory-id 171 action block
 category pre-defined subcategory-id 172 action block
 category pre-defined subcategory-id 173 action block
 category pre-defined subcategory-id 174 action block
 category pre-defined subcategory-id 106 action block
 category pre-defined subcategory-id 108 action block
 category pre-defined subcategory-id 177 action block
 category pre-defined subcategory-id 251 action block
 category pre-defined subcategory-id 109 action block
 category pre-defined subcategory-id 110 action block
 category pre-defined subcategory-id 111 action block
 category pre-defined subcategory-id 112 action block
 category pre-defined subcategory-id 114 action block
 category pre-defined subcategory-id 115 action block
 category pre-defined subcategory-id 117 action block
 category pre-defined subcategory-id 178 action block
 category pre-defined subcategory-id 179 action block
 category pre-defined subcategory-id 180 action block
 category pre-defined subcategory-id 181 action block
 category pre-defined subcategory-id 118 action block
 category pre-defined subcategory-id 119 action block
 category pre-defined subcategory-id 122 action block
 category pre-defined subcategory-id 182 action block
 category pre-defined subcategory-id 183 action block
 category pre-defined subcategory-id 184 action block
 category pre-defined subcategory-id 247 action block
 category pre-defined subcategory-id 248 action block
 category pre-defined subcategory-id 249 action block
 category pre-defined subcategory-id 250 action block
 category pre-defined subcategory-id 123 action block
 category pre-defined subcategory-id 124 action block
 category pre-defined subcategory-id 186 action block
 category pre-defined subcategory-id 187 action block
 category pre-defined subcategory-id 188 action block
 category pre-defined subcategory-id 189 action block
 category pre-defined subcategory-id 125 action block
 category pre-defined subcategory-id 126 action block
 category pre-defined subcategory-id 190 action block
 category pre-defined subcategory-id 127 action block
 category pre-defined subcategory-id 128 action block
 category pre-defined subcategory-id 129 action block
 category pre-defined subcategory-id 191 action block
 category pre-defined subcategory-id 192 action block
 category pre-defined subcategory-id 193 action block
 category pre-defined subcategory-id 194 action block
 category pre-defined subcategory-id 195 action block
 category pre-defined subcategory-id 196 action block
 category pre-defined subcategory-id 130 action block
 category pre-defined subcategory-id 131 action block
 category pre-defined subcategory-id 132 action block
 category pre-defined subcategory-id 197 action block
 category pre-defined subcategory-id 198 action block
 category pre-defined subcategory-id 199 action block
 category pre-defined subcategory-id 200 action block
 category pre-defined subcategory-id 227 action block
 category pre-defined subcategory-id 228 action block
 category pre-defined subcategory-id 133 action block
 category pre-defined subcategory-id 201 action block
 category pre-defined subcategory-id 202 action block
 category pre-defined subcategory-id 204 action block
 category pre-defined subcategory-id 205 action block
 category pre-defined subcategory-id 134 action block
 category pre-defined subcategory-id 135 action block
 category pre-defined subcategory-id 136 action block
 category pre-defined subcategory-id 137 action block
 category pre-defined subcategory-id 138 action block
 category pre-defined subcategory-id 139 action block
 category pre-defined subcategory-id 140 action block
 category pre-defined subcategory-id 141 action block
 category pre-defined subcategory-id 206 action block
 category pre-defined subcategory-id 207 action block
 category pre-defined subcategory-id 208 action block
 category pre-defined subcategory-id 209 action block
 category pre-defined subcategory-id 210 action block
 category pre-defined subcategory-id 229 action block
 category pre-defined subcategory-id 142 action block
 category pre-defined subcategory-id 143 action block
 category pre-defined subcategory-id 144 action block
 category pre-defined subcategory-id 145 action block
 category pre-defined subcategory-id 146 action block
 category pre-defined subcategory-id 147 action block
 category pre-defined subcategory-id 211 action block
 category pre-defined subcategory-id 212 action block
 category pre-defined subcategory-id 213 action block
 category pre-defined subcategory-id 240 action block
 category pre-defined subcategory-id 253 action block
 category pre-defined subcategory-id 149 action block
 category pre-defined subcategory-id 150 action block
 category pre-defined subcategory-id 214 action block
 category pre-defined subcategory-id 215 action block
 category pre-defined subcategory-id 216 action block
 category pre-defined subcategory-id 217 action block
 category pre-defined subcategory-id 151 action block
 category pre-defined subcategory-id 218 action block
 category pre-defined subcategory-id 219 action block
 category pre-defined subcategory-id 220 action block
 category pre-defined subcategory-id 221 action block
 category pre-defined subcategory-id 222 action block
 category pre-defined subcategory-id 223 action block
 category pre-defined subcategory-id 230 action block
 category pre-defined subcategory-id 252 action block
 category pre-defined subcategory-id 152 action block
 category pre-defined subcategory-id 153 action block
 category pre-defined subcategory-id 238 action block
 category pre-defined subcategory-id 154 action block
 category pre-defined subcategory-id 155 action block
 category pre-defined subcategory-id 224 action block
 category pre-defined subcategory-id 225 action block
 category pre-defined subcategory-id 156 action block
 category pre-defined subcategory-id 157 action block
 category pre-defined subcategory-id 158 action block
 category pre-defined subcategory-id 231 action block
 category pre-defined subcategory-id 232 action block
 category pre-defined subcategory-id 159 action block
 category pre-defined subcategory-id 254 action block
 category pre-defined subcategory-id 160 action block
 category pre-defined subcategory-id 161 action block
 category pre-defined subcategory-id 176 action block
 category pre-defined subcategory-id 226 action block
 category pre-defined subcategory-id 234 action block
 category pre-defined subcategory-id 235 action block
 category pre-defined subcategory-id 236 action block
 category pre-defined subcategory-id 237 action block
 category pre-defined subcategory-id 239 action block
 category pre-defined subcategory-id 241 action block
 category pre-defined subcategory-id 233 action block
 default action block
profile type url-filter name profile_url_marketing
 description URL filter profile of web access control for marketing.
 add blacklist url www.example.net/*
#
security-policy
 rule name policy_sec_research
  description Security policy of web access protect for research.
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 mask 255.255.255.0
  user user-group /default/research
  time-range time_range
  profile url-filter profile_url_research
  action permit
 rule name policy_sec_marketing
  description Security policy of web access protect for marketing.
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 mask 255.255.255.0
  user user-group /default/marketing
  time-range time_range
  profile url-filter profile_url_marketing
  action permit
Parent Topic: Content Security
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
