Web: Example for Configuring DNS Category-based DNS Filtering

This section provides an example for configuring DNS category-based DNS filtering to control the access to domain names of a category. The URL category can be either a predefined category of the FW or a user-defined category.

Networking Requirements

As shown in Figure 1, the FW is deployed at the network border as the enterprise's gateway to implement DNS filtering on the DNS query requests submitted by users for accessing external networks.

The enterprise has R&D and marketing employees. The specific requirements on the employees are as follows:

The R&D employees can access only education/science and search/portal websites from 09:00 to 17:00 every day.
The marketing employees can access only education/science, search/portal, and social news websites and a specific domain name (www.example.net) from 09:00 to 17:00 every day.

Figure 1 Networking diagram for configuring DNS category-based DNS filtering

Configuration Roadmap

Set interface IP addresses and assign interfaces to security zones.
Configure the DNS server and ensure that the FW can correctly resolve domain name sec.huawei.com.
Configure user-defined category DNS_userdefine_category and add www.example.net to the user-defined domain name.
Configure the remote query server to obtain the mappings between domain names and predefined categories. In this example, Education/Science, Search Engines/Portals, and Social Focus are all predefined categories.
Configure two DNS filtering profiles, one for the R&D personnel and the other for the marketing personnel. Specify control actions for user-defined categories and predefined categories.
To ensure that remote query is available, configure a security policy and reference user-defined services in the security policy to allow the FW to access the scheduling center sec.huawei.com. The user-defined services include:
- TCP: The destination port number is 80 (for interaction with scheduling center sec.huawei.com).
- TCP: The destination port number is 12612 (for interaction with a dispatch server).
- UDP: The destination port number is 12600 (for interaction with a query server).
Configure two security policies and reference time ranges, user groups, and DNS filtering profiles to control domain name access of different user groups within various time ranges.

Procedure

Set interface IP addresses and assign interfaces to security zones.
1. Choose Network > Interface.
2. Click of GE0/0/3 and set the parameters as follows.

  Zone

  trust

  IPv4

  IP Address

  10.3.0.1/24
3. Click OK.
4. Repeat the preceding steps to set the parameters for GE0/0/1.

  Zone

  untrust

  IPv4

  IP Address

  1.1.1.1/24
Configure the DNS server.

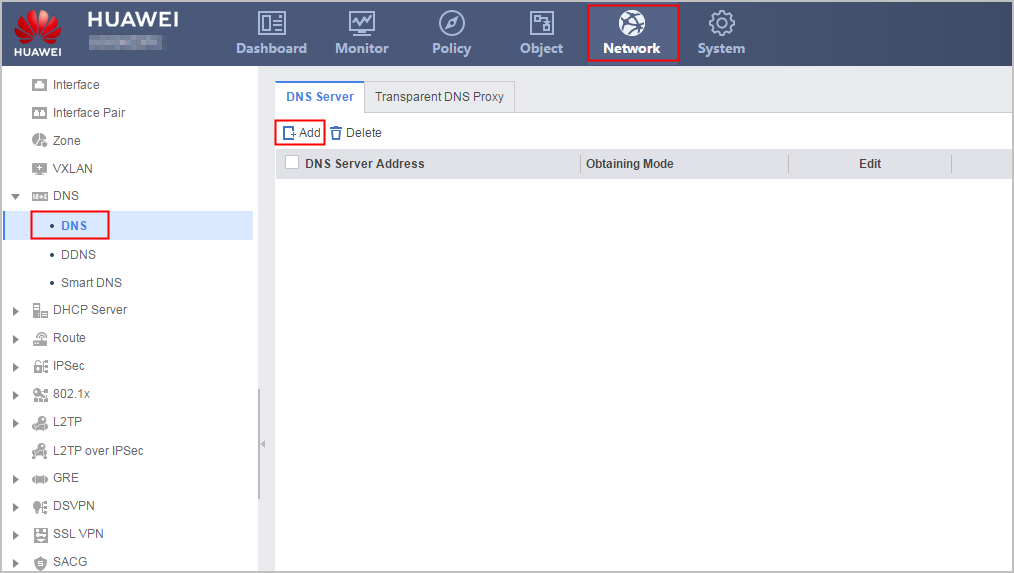

1. Choose Network > DNS > DNS.
2. In DNS Server List, click Add.
3. Configure the DNS server as follows.

  DNS server address

  10.2.0.70
4. Click OK.
Configure a user-defined DNS category.

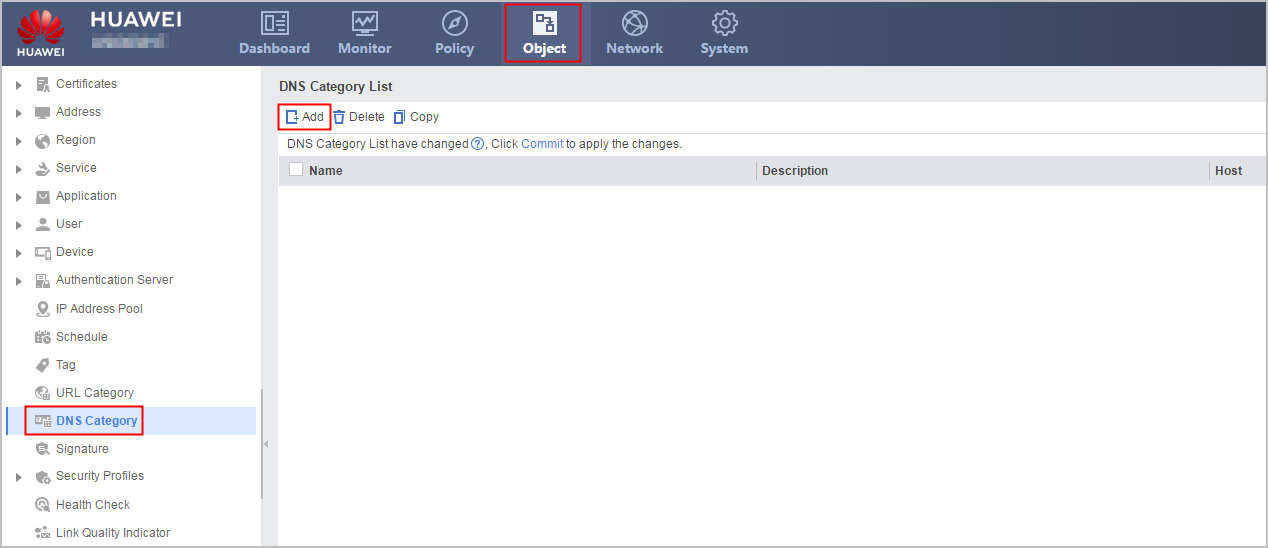

1. Choose Object > DNS Category.
2. Click Add and set parameters as follows.

  Name

  DNS_userdefine_category

  Description

  User-defined DNS category for marketing access control

  Host

  www.example.net
3. Click OK.
Configure the remote query server.
1. Choose Object > Security Profiles > Global Configuration.
2. Select Country where the FW resides to China.
3. In the URL Remote Query Server Settings area, set parameters as follows.
  Query Mode

  Remote

  Scheduling Center

  sec.huawei.com
4. Click Apply.
5. Choose Object > URL Category.
6. Click Configure and set the parameters as follows.

  Timeout

  3

  Action When Timeout

  Allow
7. Click OK.

Zone	trust
IPv4
IP Address	10.3.0.1/24

Zone	untrust
IPv4
IP Address	1.1.1.1/24

DNS server address	10.2.0.70

Name	DNS_userdefine_category
Description	User-defined DNS category for marketing access control
Host	www.example.net

Query Mode	Remote
Scheduling Center	sec.huawei.com

Timeout	3
Action When Timeout	Allow

Configure DNS filtering profiles.

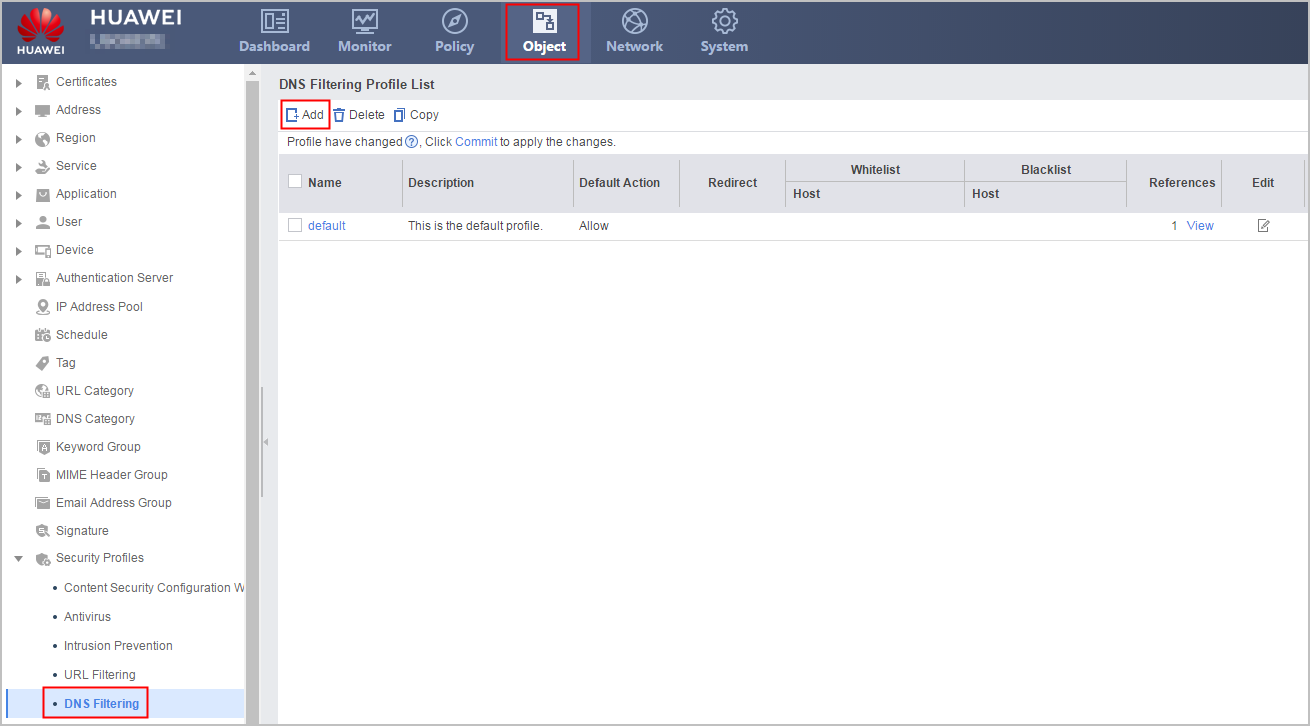

Choose Object > Security Profiles > DNS Filtering.

In DNS Filtering Profile, click Add and set the parameters as follows.

Name	profile_dns_research
Description	DNS filter profile of web access control for research.
Default Action	Allow
DNS Filtering Level	Select Custom, and set the action for predefined categories Education/Science and Search Engines/Portals to Allow and the action for other predefined categories to Block. NOTE: To simplify configuration, you can also perform as follows: After you select Custom, select Block to the right of Name in the first row. The action for all user-defined categories and predefined categories becomes Block. You can then set the action for the two predefined categories to Allow.

Click OK.

In DNS Filtering Profile, click Add and set the parameters as follows.

Name	profile_dns_marketing
Description	DNS filter profile of web access control for marketing.
Default Action	Allow
DNS Filtering Level	Select Custom, and set the action for predefined categories Education/Science, Search Engines/Portals, and Social Focus and user-defined category DNS_userdefine_category to Allow and the action for other predefined categories to Block. NOTE: To simplify configuration, you can also perform as follows: After you select Custom, select Block to the right of Name in the first row. The action for all user-defined categories and predefined categories becomes Block. You can then set the action for the three predefined categories and the user-defined category to Allow.

Click OK.

Configure schedules.
1. Choose Object > Schedule.
2. Click Add to create schedule time_range. Set the parameters as follows.
  Name

  time_range

  Type

  Periodic schedule

  Start Time

  09:00:00

  End Time

  17:00:00

  Weekly Validity Time

  Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday
3. Click OK.
Configure user-defined services.
1. Choose Object > Service > Service.
2. Click Add and enter user-defined service name service_sec_huawei_com.
3. In Protocol List, click Add and set the parameters as follows.

  Protocol

  TCP

  Protocol Number

  6

  Source Port

  0-65535

  Destination Port

  80
4. Click OK.
5. Repeat the preceding steps to set the following parameters.

  Protocol

  TCP

  Protocol Number

  6

  Source Port

  0-65535

  Destination Port

  12612

  Protocol

  UDP

  Protocol Number

  17

  Source Port

  0-65535

  Destination Port

  12600
Configure security policies and reference user-defined services to allow the FW to access the scheduling center.
1. Choose Policy > Security Policy > Security Policy.
2. Click Add Security Policy and set the parameters as follows.

  Name

  policy_sec_huawei_com

  Source Zone

  local

  Destination Zone

  untrust

  Service

  service_sec_huawei_com

  Action

  Permit

Name	time_range
Type	Periodic schedule
Start Time	09:00:00
End Time	17:00:00
Weekly Validity Time	Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday

Protocol	TCP
Protocol Number	6
Source Port	0-65535
Destination Port	80

Protocol	TCP
Protocol Number	6
Source Port	0-65535
Destination Port	12612

Protocol	UDP
Protocol Number	17
Source Port	0-65535
Destination Port	12600

Name	policy_sec_huawei_com
Source Zone	local
Destination Zone	untrust
Service	service_sec_huawei_com
Action	Permit

Reference DNS filtering profiles in security policies.

In this example, user groups research (R&D employees) and marketing (marketing employees) to be referenced have been created.

Choose Policy > Security Policy > Security Policy.

Click Add Security Policy and set the parameters as follows.

Content Security
Name	policy_sec_research
Description	Security policy of web access protect for research.
Source Zone	trust
Destination Zone	untrust
User	/default/research
Schedule	time_range
Action	Permit
DNS Filtering	profile_dns_research

Click OK.

Click Add Security Policy and set the parameters as follows.

Content Security
Name	policy_sec_marketing
Description	Security policy of web access protect for marketing.
Source Zone	trust
Destination Zone	untrust
User	/default/marketing
Schedule	time_range
Action	Permit
DNS Filtering	profile_dns_marketing

Click OK.

Click Save on the upper right of the web page and click OK in the dialog box that is displayed.
Click Commit on the upper right of the web page and click OK in the dialog box that is displayed.

Verification

Employees in the R&D department can access only websites in the Education/Science and Search Engines/Portals categories from 09:00 to 17:00 every day.

Choose Monitor > Logs > System Log List to view DNS logs. You can find that R&D employees' access to social focus and forum websites is blocked and the filtering type is Predefined.
Marketing employees are allowed to access only websites in the Education/Science, Search Engines/Portals, and Social Focus categories, and www.example.net and are blocked when attempting to access other websites, such as forum websites from 09:00 to 17:00 every day.

Choose Monitor > Logs > System Log List to view DNS logs. You can find that marketing employees' access to forum websites is blocked and the filtering type is Predefined.

Configuration Scripts

#
sysname FW
#
 dns resolve
 dns server 10.2.0.70
#
ip service-set service_sec_huawei_com type object
 service 0 protocol tcp source-port 0 to 65535 destination-port 80
 service 1 protocol tcp source-port 0 to 65535 destination-port 12612
 service 2 protocol udp source-port 0 to 65535 destination-port 12600
#
 country CN
#
 time-range time_range
  period-range 09:00:00 to 17:00:00 daily
#
interface GigabitEthernet0/0/1
 undo shutdown
 ip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/3
 undo shutdown
 ip address 10.3.0.1 255.255.255.0
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/1
#
dns-filter category user-defined name DNS_userdefine_category
 description DNS userdefine category of access control for marketing.
 add host www.example.net
#
profile type dns-filter name profile_dns_research
 description DNS filter profile of web access control for research.
 category pre-defined subcategory-id 101 action block
 category pre-defined subcategory-id 102 action block
 category pre-defined subcategory-id 162 action block
 category pre-defined subcategory-id 163 action block
 category pre-defined subcategory-id 164 action block
 category pre-defined subcategory-id 165 action block
 category pre-defined subcategory-id 103 action block
 category pre-defined subcategory-id 166 action block
 category pre-defined subcategory-id 167 action block
 category pre-defined subcategory-id 168 action block
 category pre-defined subcategory-id 104 action block
 category pre-defined subcategory-id 169 action block
 category pre-defined subcategory-id 170 action block
 category pre-defined subcategory-id 105 action block
 category pre-defined subcategory-id 171 action block
 category pre-defined subcategory-id 172 action block
 category pre-defined subcategory-id 173 action block
 category pre-defined subcategory-id 174 action block
 category pre-defined subcategory-id 106 action block
 category pre-defined subcategory-id 108 action block
 category pre-defined subcategory-id 177 action block
 category pre-defined subcategory-id 251 action block
 category pre-defined subcategory-id 109 action block
 category pre-defined subcategory-id 110 action block
 category pre-defined subcategory-id 111 action block
 category pre-defined subcategory-id 112 action block
 category pre-defined subcategory-id 114 action block
 category pre-defined subcategory-id 115 action block
 category pre-defined subcategory-id 117 action block
 category pre-defined subcategory-id 178 action block
 category pre-defined subcategory-id 179 action block
 category pre-defined subcategory-id 180 action block
 category pre-defined subcategory-id 181 action block
 category pre-defined subcategory-id 248 action block
 category pre-defined subcategory-id 118 action block
 category pre-defined subcategory-id 119 action block
 category pre-defined subcategory-id 122 action block
 category pre-defined subcategory-id 182 action block
 category pre-defined subcategory-id 183 action block
 category pre-defined subcategory-id 184 action block
 category pre-defined subcategory-id 123 action block
 category pre-defined subcategory-id 124 action block
 category pre-defined subcategory-id 186 action block
 category pre-defined subcategory-id 187 action block
 category pre-defined subcategory-id 188 action block
 category pre-defined subcategory-id 189 action block
 category pre-defined subcategory-id 125 action block
 category pre-defined subcategory-id 127 action block
 category pre-defined subcategory-id 128 action block
 category pre-defined subcategory-id 130 action block
 category pre-defined subcategory-id 131 action block
 category pre-defined subcategory-id 132 action block
 category pre-defined subcategory-id 197 action block
 category pre-defined subcategory-id 198 action block
 category pre-defined subcategory-id 199 action block
 category pre-defined subcategory-id 200 action block
 category pre-defined subcategory-id 227 action block
 category pre-defined subcategory-id 228 action block
 category pre-defined subcategory-id 133 action block
 category pre-defined subcategory-id 201 action block
 category pre-defined subcategory-id 202 action block
 category pre-defined subcategory-id 204 action block
 category pre-defined subcategory-id 205 action block
 category pre-defined subcategory-id 134 action block
 category pre-defined subcategory-id 135 action block
 category pre-defined subcategory-id 136 action block
 category pre-defined subcategory-id 137 action block
 category pre-defined subcategory-id 138 action block
 category pre-defined subcategory-id 139 action block
 category pre-defined subcategory-id 140 action block
 category pre-defined subcategory-id 141 action block
 category pre-defined subcategory-id 206 action block
 category pre-defined subcategory-id 207 action block
 category pre-defined subcategory-id 208 action block
 category pre-defined subcategory-id 209 action block
 category pre-defined subcategory-id 210 action block
 category pre-defined subcategory-id 229 action block
 category pre-defined subcategory-id 142 action block
 category pre-defined subcategory-id 143 action block
 category pre-defined subcategory-id 144 action block
 category pre-defined subcategory-id 145 action block
 category pre-defined subcategory-id 146 action block
 category pre-defined subcategory-id 147 action block
 category pre-defined subcategory-id 211 action block
 category pre-defined subcategory-id 212 action block
 category pre-defined subcategory-id 213 action block
 category pre-defined subcategory-id 240 action block
 category pre-defined subcategory-id 253 action block
 category pre-defined subcategory-id 149 action block
 category pre-defined subcategory-id 150 action block
 category pre-defined subcategory-id 214 action block
 category pre-defined subcategory-id 215 action block
 category pre-defined subcategory-id 216 action block
 category pre-defined subcategory-id 217 action block
 category pre-defined subcategory-id 151 action block
 category pre-defined subcategory-id 218 action block
 category pre-defined subcategory-id 219 action block
 category pre-defined subcategory-id 220 action block
 category pre-defined subcategory-id 221 action block
 category pre-defined subcategory-id 222 action block
 category pre-defined subcategory-id 223 action block
 category pre-defined subcategory-id 230 action block
 category pre-defined subcategory-id 252 action block
 category pre-defined subcategory-id 152 action block
 category pre-defined subcategory-id 153 action block
 category pre-defined subcategory-id 238 action block
 category pre-defined subcategory-id 154 action block
 category pre-defined subcategory-id 155 action block
 category pre-defined subcategory-id 224 action block
 category pre-defined subcategory-id 225 action block
 category pre-defined subcategory-id 156 action block
 category pre-defined subcategory-id 157 action block
 category pre-defined subcategory-id 158 action block
 category pre-defined subcategory-id 231 action block
 category pre-defined subcategory-id 232 action block
 category pre-defined subcategory-id 159 action block
 category pre-defined subcategory-id 254 action block
 category pre-defined subcategory-id 160 action block
 category pre-defined subcategory-id 161 action block
 category pre-defined subcategory-id 176 action block
 category pre-defined subcategory-id 226 action block
 category pre-defined subcategory-id 234 action block
 category pre-defined subcategory-id 235 action block
 category pre-defined subcategory-id 236 action block
 category pre-defined subcategory-id 237 action block
 category pre-defined subcategory-id 239 action block
 category pre-defined subcategory-id 241 action block
 category pre-defined subcategory-id 233 action block
 category user-defined name DNS_userdefine_category action block
profile type dns-filter name profile_dns_marketing
 description DNS filter profile of web access control for marketing.
 category pre-defined subcategory-id 101 action block
 category pre-defined subcategory-id 102 action block
 category pre-defined subcategory-id 162 action block
 category pre-defined subcategory-id 163 action block
 category pre-defined subcategory-id 164 action block
 category pre-defined subcategory-id 165 action block
 category pre-defined subcategory-id 103 action block
 category pre-defined subcategory-id 166 action block
 category pre-defined subcategory-id 167 action block
 category pre-defined subcategory-id 168 action block
 category pre-defined subcategory-id 104 action block
 category pre-defined subcategory-id 169 action block
 category pre-defined subcategory-id 170 action block
 category pre-defined subcategory-id 105 action block
 category pre-defined subcategory-id 171 action block
 category pre-defined subcategory-id 172 action block
 category pre-defined subcategory-id 173 action block
 category pre-defined subcategory-id 174 action block
 category pre-defined subcategory-id 106 action block
 category pre-defined subcategory-id 108 action block
 category pre-defined subcategory-id 177 action block
 category pre-defined subcategory-id 251 action block
 category pre-defined subcategory-id 109 action block
 category pre-defined subcategory-id 110 action block
 category pre-defined subcategory-id 111 action block
 category pre-defined subcategory-id 112 action block
 category pre-defined subcategory-id 114 action block
 category pre-defined subcategory-id 115 action block
 category pre-defined subcategory-id 117 action block
 category pre-defined subcategory-id 178 action block
 category pre-defined subcategory-id 179 action block
 category pre-defined subcategory-id 180 action block
 category pre-defined subcategory-id 181 action block
 category pre-defined subcategory-id 248 action block
 category pre-defined subcategory-id 118 action block
 category pre-defined subcategory-id 119 action block
 category pre-defined subcategory-id 122 action block
 category pre-defined subcategory-id 182 action block
 category pre-defined subcategory-id 183 action block
 category pre-defined subcategory-id 184 action block
 category pre-defined subcategory-id 123 action block
 category pre-defined subcategory-id 124 action block
 category pre-defined subcategory-id 186 action block
 category pre-defined subcategory-id 187 action block
 category pre-defined subcategory-id 188 action block
 category pre-defined subcategory-id 189 action block
 category pre-defined subcategory-id 125 action block
 category pre-defined subcategory-id 127 action block
 category pre-defined subcategory-id 128 action block
 category pre-defined subcategory-id 130 action block
 category pre-defined subcategory-id 131 action block
 category pre-defined subcategory-id 132 action block
 category pre-defined subcategory-id 197 action block
 category pre-defined subcategory-id 198 action block
 category pre-defined subcategory-id 199 action block
 category pre-defined subcategory-id 200 action block
 category pre-defined subcategory-id 227 action block
 category pre-defined subcategory-id 228 action block
 category pre-defined subcategory-id 133 action block
 category pre-defined subcategory-id 201 action block
 category pre-defined subcategory-id 202 action block
 category pre-defined subcategory-id 204 action block
 category pre-defined subcategory-id 205 action block
 category pre-defined subcategory-id 134 action block
 category pre-defined subcategory-id 135 action block
 category pre-defined subcategory-id 136 action block
 category pre-defined subcategory-id 137 action block
 category pre-defined subcategory-id 138 action block
 category pre-defined subcategory-id 139 action block
 category pre-defined subcategory-id 140 action block
 category pre-defined subcategory-id 141 action block
 category pre-defined subcategory-id 206 action block
 category pre-defined subcategory-id 207 action block
 category pre-defined subcategory-id 208 action block
 category pre-defined subcategory-id 209 action block
 category pre-defined subcategory-id 210 action block
 category pre-defined subcategory-id 229 action block
 category pre-defined subcategory-id 142 action block
 category pre-defined subcategory-id 143 action block
 category pre-defined subcategory-id 144 action block
 category pre-defined subcategory-id 145 action block
 category pre-defined subcategory-id 146 action block
 category pre-defined subcategory-id 147 action block
 category pre-defined subcategory-id 211 action block
 category pre-defined subcategory-id 212 action block
 category pre-defined subcategory-id 213 action block
 category pre-defined subcategory-id 240 action block
 category pre-defined subcategory-id 253 action block
 category pre-defined subcategory-id 149 action block
 category pre-defined subcategory-id 150 action block
 category pre-defined subcategory-id 214 action block
 category pre-defined subcategory-id 215 action block
 category pre-defined subcategory-id 216 action block
 category pre-defined subcategory-id 217 action block
 category pre-defined subcategory-id 151 action block
 category pre-defined subcategory-id 218 action block
 category pre-defined subcategory-id 219 action block
 category pre-defined subcategory-id 220 action block
 category pre-defined subcategory-id 221 action block
 category pre-defined subcategory-id 222 action block
 category pre-defined subcategory-id 223 action block
 category pre-defined subcategory-id 230 action block
 category pre-defined subcategory-id 252 action block
 category pre-defined subcategory-id 152 action block
 category pre-defined subcategory-id 153 action block
 category pre-defined subcategory-id 238 action block
 category pre-defined subcategory-id 154 action block
 category pre-defined subcategory-id 155 action block
 category pre-defined subcategory-id 224 action block
 category pre-defined subcategory-id 225 action block
 category pre-defined subcategory-id 156 action block
 category pre-defined subcategory-id 157 action block
 category pre-defined subcategory-id 158 action block
 category pre-defined subcategory-id 231 action block
 category pre-defined subcategory-id 232 action block
 category pre-defined subcategory-id 159 action block
 category pre-defined subcategory-id 254 action block
 category pre-defined subcategory-id 160 action block
 category pre-defined subcategory-id 161 action block
 category pre-defined subcategory-id 176 action block
 category pre-defined subcategory-id 226 action block
 category pre-defined subcategory-id 234 action block
 category pre-defined subcategory-id 235 action block
 category pre-defined subcategory-id 236 action block
 category pre-defined subcategory-id 237 action block
 category pre-defined subcategory-id 239 action block
 category pre-defined subcategory-id 241 action block
 category pre-defined subcategory-id 233 action block
#
security-policy
 rule name policy_sec_huawei_com
  source-zone local
  destination-zone untrust
  service service_sec_huawei_com
  action permit
 rule name policy_sec_research
  description Security policy of web access protect for research.
  source-zone trust
  destination-zone untrust
  user user-group /default/research
  time-range time_range
  profile dns-filter profile_dns_research
  action permit
 rule name policy_sec_marketing
  description Security policy of web access protect for marketing.
  source-zone trust
  destination-zone untrust
  user user-group /default/marketing
  time-range time_range
  profile dns-filter profile_dns_marketing
  action permit
