Protecting Users Against Intrusion During Internet Access

Faced Problems

As shown in Figure 1, an enterprise deploys the FW as a gateway to connect the intranet to the Internet.

When intranet users access the Internet, the users experience intrusion and attacks targeting browsers and OSs, threatening network security.

Figure 1 Protecting users against intrusion during Internet access

Solution

With the intrusion prevention function, the FW detects and blocks various intrusion behavior to secure the network.

The FW provides an intrusion prevention signature database that contains the signatures of known intrusion behavior. The FW matches a behavior with signatures in the intrusion prevention signature database. If a match is found, the behavior is considered as an intrusion behavior.

To ensure the accuracy of the intrusion detection result, you are advised to update the intrusion prevention signature database every week.

Reference the intrusion prevention profile in the security policy that permits intranet users to access the Internet to detect intrusion behavior on the network.

1. Log in to the web UI of the FW as the administrator.

2. Choose Object > Security Profiles > Intrusion Prevention.

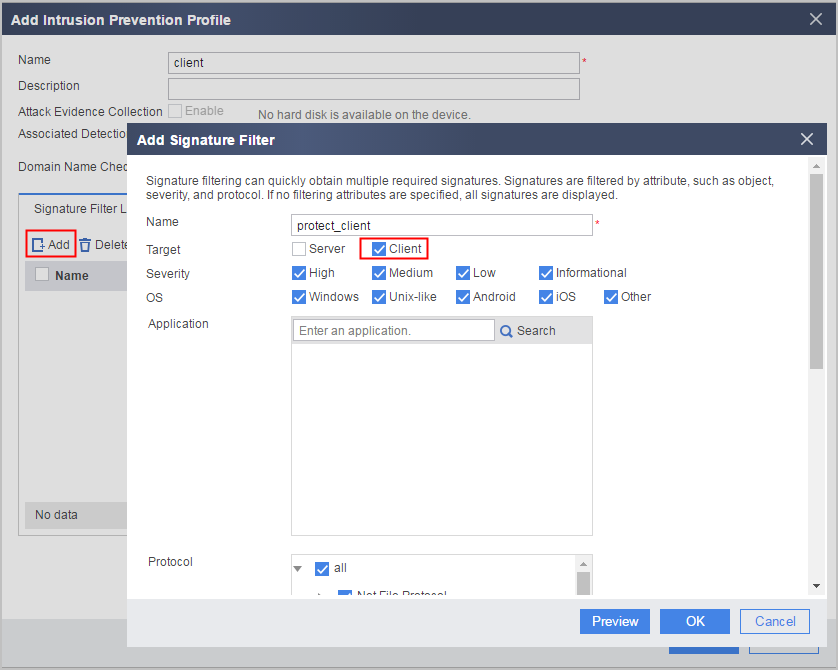

3. Click Add to create intrusion prevention profile client. In the profile, set Target to Client for the signature filter and use the default values of the other configuration items.



   Click Preview to view the signature filtering result.

4. Click OK.

5. After the configurations are complete, click Commit on the upper right of the web page to commit the intrusion prevention profile.

6. Choose Policy > Security Policy > Security Policy.

7. Click Add Security Policy. Configure matching conditions for the security policy as required and reference intrusion prevention profile client in the security policy.

   Name	policy1
   Source Zone	trust
   Destination Zone	untrust
   Source Address/Region	192.168.0.0/255.255.255.0
   Action	Permit
   Content Security
   Intrusion Prevention	client

8. Click OK.

Verification

Access a malicious website that hosts Trojan horses on the Internet from an intranet host. The FW blocks the access.

Choose Monitor > Log > Threat Log. You can view the intrusion logs generated by the FW.

Configuration Scripts

The configuration script related to the example is as follows:

#
profile type ips name client
 signature-set name protect_client
  os unix-like windows android ios other
  target client
  severity low medium high information
  protocol all
  category all
  application all
#
security-policy
 rule name policy1
  source-zone trust
  destination-zone untrust
  source-address 192.168.0.0 mask 255.255.255.0
  profile ips client
  action permit
#
